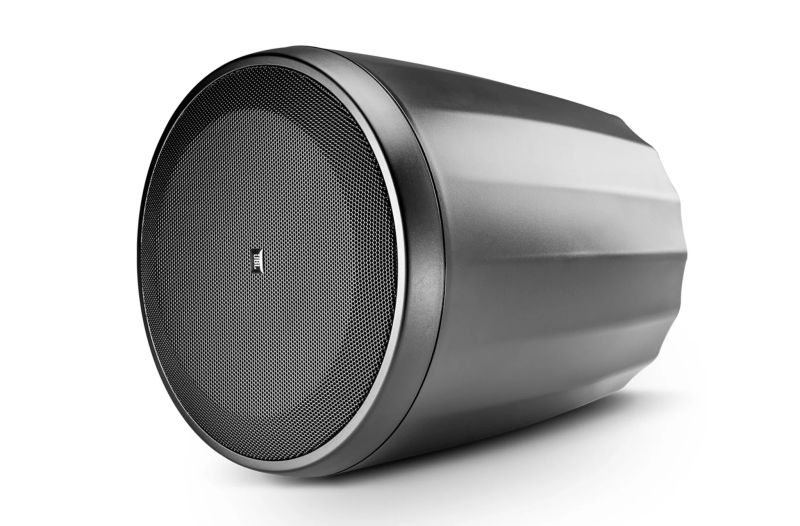

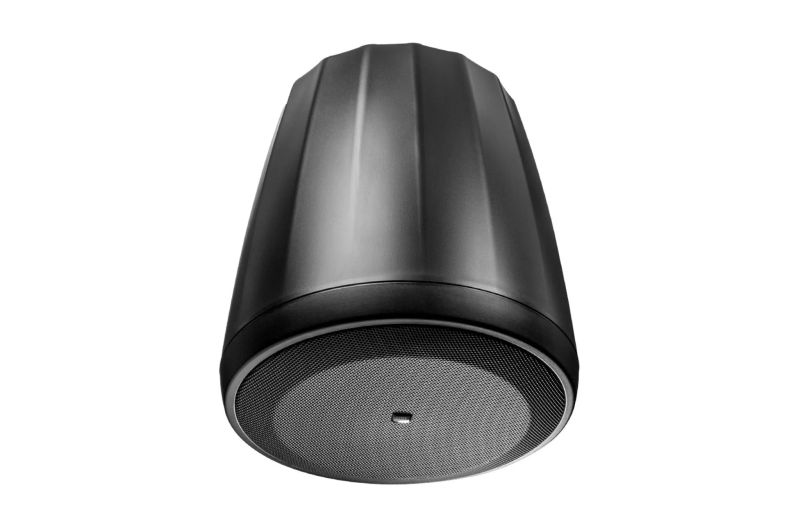

Control 64P/T

  • Marka : JBL
  • Ürün Kodu : CONTROL 64P/T

Kompakt Tam Aralıklı Sarkıt Hoparlör
Control 64P/T, açık mimari tavanlı odalar ve asılı form faktörünün istendiği diğer yerler için mükemmel ses üretimi sağlayan, kompakt, tam aralıklı, asılı tip bir hoparlördür.

Özellikler

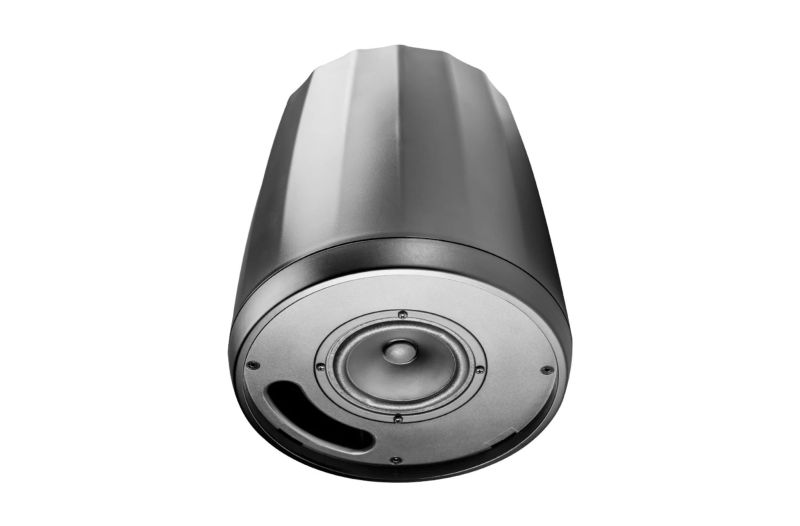

  • Polipropilen kaplı koniye ve 20 mm (0,8 inç) yüksek sıcaklık ses bobinine sahip 100 mm (4 inç) tam aralıklı sürücü.
  • 4,5 m (15 ft) galvanizli çelik kablolu ve kolay ayarlanabilen kelepçeli askı donanımı.
  • Siyah veya beyaz (-WH) seçenekleriyle şık tasarım.
  • UL listeli (hoparlör ve askı kablo sistemi).
  • 8 Ohm ve 70V/100V çalışma

Frequency Range (-10dB) 65 Hz - 15 kHz
Frequency Response (±3 dB) 85Hz - 14 kHz
Power Rating 100 W Continuous Program (2 hrs) 50 W (200W peak), Continuous Pink Noise (2 hrs) 40 W (160W peak) Continuous Pink Noise (100 hrs)
Maximum Input Voltage 18.2 V RMS (2 hrs), 36.4 V peak
Nominal Sensitivity 88 dB Nominal
Coverage Angle 120° conical
Directivity Factor (Q) 6.2
Directivity Index (DI) 7.3dB (averaged 1kHz - 16kHz)
Maximum SPL (1m) 105 dB continuous pink noise, 111 dB peak
Impedance 8 Ohm
Transformer Taps 70V: 30W, 15W, 7.5W & 3.7W 100V: 30W, 15W, 7.5W
Transformer Insertion Loss 0.94dB @ 3.7W, 0.89dB @ 7.5W, 0.83dB @ 15W, 0.94dB @ 30W
Drivers 100 mm (4 in) polypropylene-coated paper with cloth surround, 20 mm (0.8 in) copper voice coil
Enclosure High impact polystyrene
Grille Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
Outdoor Capability Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 - splash-proof rating.
Input Connectors Two removable locking euro-block 2-pin connectors with screw-down terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
Suspension Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
Safety Agency Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
Dimensions (H x W x D) 234 mm (9.3 in) diameter x 259 mm (10.2 in) height to top of cabinet. 279 mm (11.0 in) to top of suspension bracket.
Net Weight (each) 2.35 kg (5.2 lbs)
Shipping Weight (pair) 6.07 kg (13.4 lbs)
Included Accessories Two suspension cable systems (see "Suspension", above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
Optional Accessories MTC-PC60 top panel / terminal cover
Colors Available in black or white (-WH). Paintable
