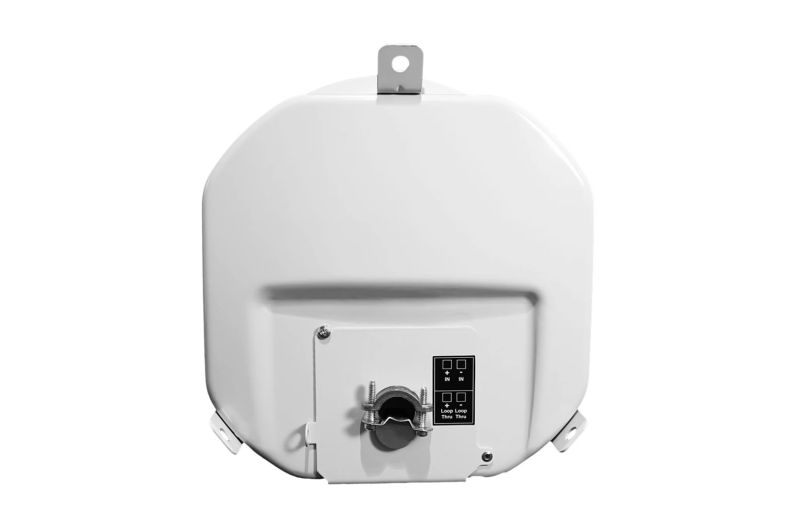

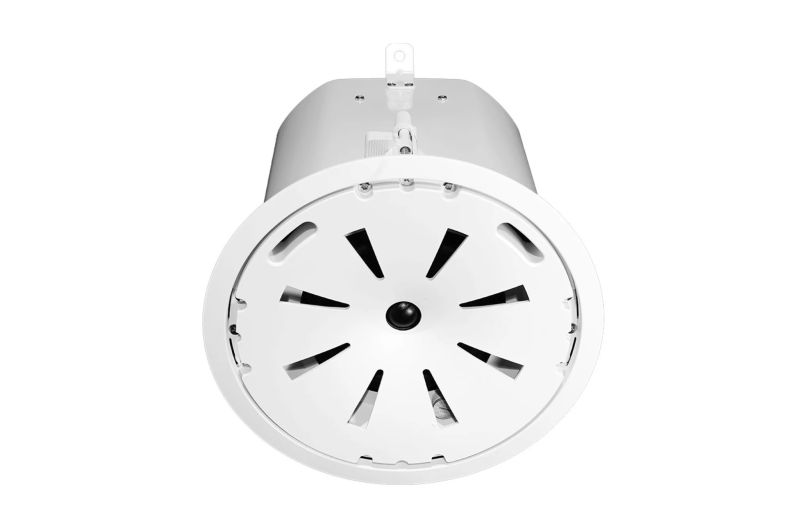

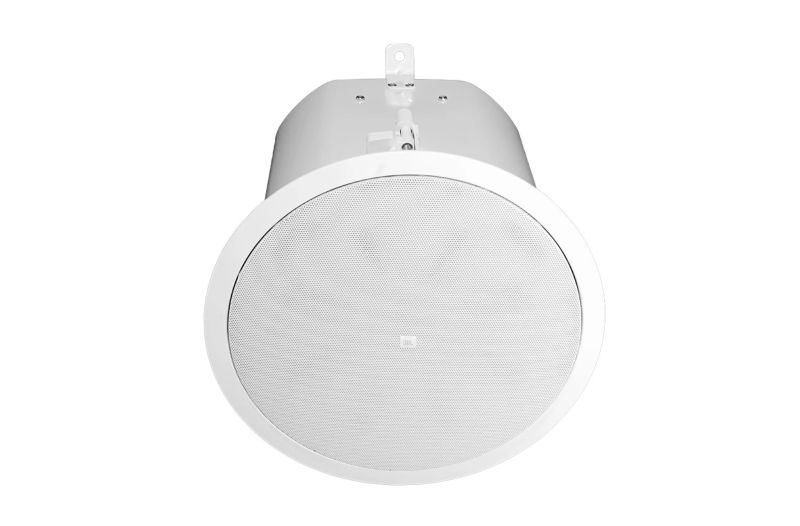

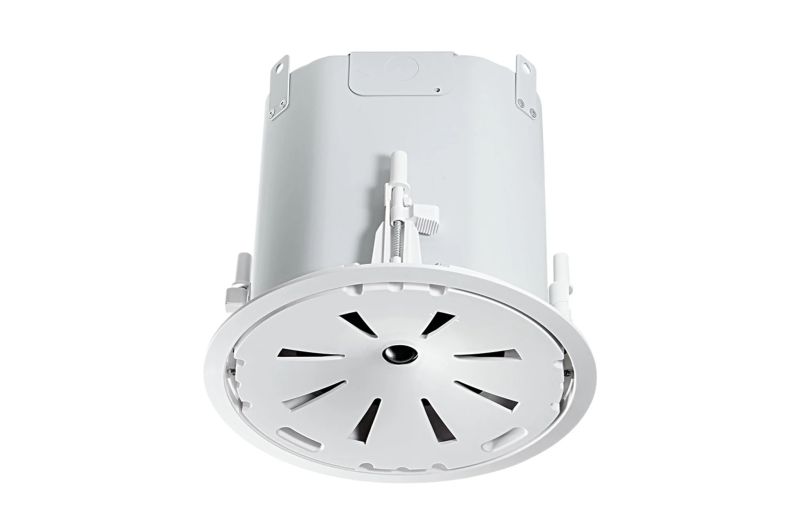

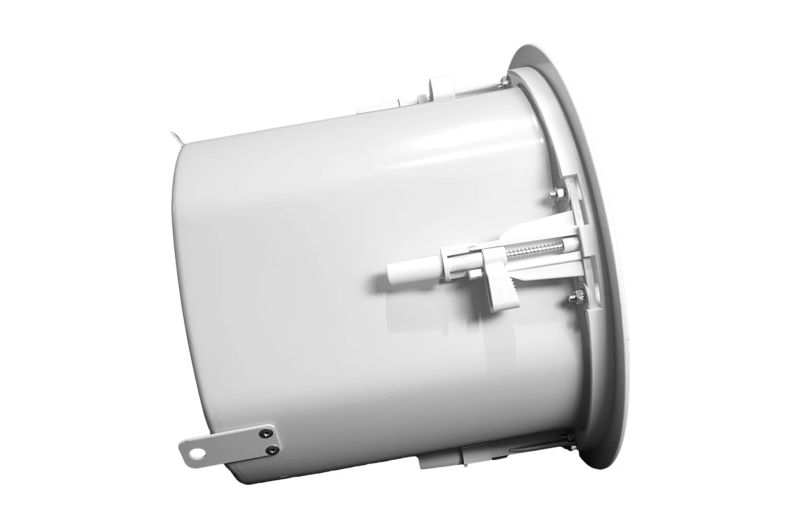

CONTROL 47C/T

  • Marka : JBL
  • Ürün Kodu : CONTROL 47C/T

Tutarlı Kapsama Alanı Genişletilmiş Bas
Control 47C/T, daha az sayıda hoparlörün geniş bir alanı kaplamasına olanak tanıyan geniş 120° kapsama alanına sahip genişletilmiş bas performansına sahiptir. Çok çeşitli uygulamalar için ideal olan Control 47C/T, restoran ve mağazalardan büyük kumarhanelere ve ötesine kadar çeşitli ortamlar için mükemmeldir.

Özellikler

  • Tescilli Konik RBI® Teknolojisi Geniş, Tutarlı Kapsama Sağlar
  • Düz Frekans Tepkisi ve Üstün Performans
  • 55 Hz'e Bas Tepkisi için Büyük Arka Kanal
  • Zarif tasarım her dekora uyar

Frequency Range 55 Hz - 20 kHz
Power Rating IEC System Long-Term Ratings (low-Z direct):
150 Watts Continuous Program Power
75 Watts Continuous Pink Noise (300W peak), hrs
Sensitivity 91 dB (1kHz - 16 kHz)
Transformer Taps 60W, 30W, 15W (7.5W at 70V only)
Coverage Angle 120° conical, constant directivity
Impedance 8 ohms (in bypass mode)
Drivers LF Driver: 165 mm (6.5 in)
HF Driver: 25 mm (1 in)
Input Connectors Two removeable locking 2-pin connectors with screwdown terminals.
Included Accessories C-rings, tile rails, paint shield, cutout template, Grille
Suspension Tabs Three, on top panel
Dimensions (Diameter x Depth) 305mm Diameter x 259mm Diameter Depth (12.0 in x 10.2 in)
Maximum SPL (1m) 110 dB (low-impedance, 116 dB peak)
109 dB (top 70V/100V tap)
Color White
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan formed steel (included "blind-mount")
Baffle/Rim ABS baffle with UL94-V0 flame class fire rating.
Ceiling Cutout Size 282 mm Diameter (11.1 in) (cardboard cutout template included)
Optional Accessories MTC-47NC New Construction Bracket MTC-47MR Mud Ring Construction Bracket
Plenum Usage Yes, backcan included
