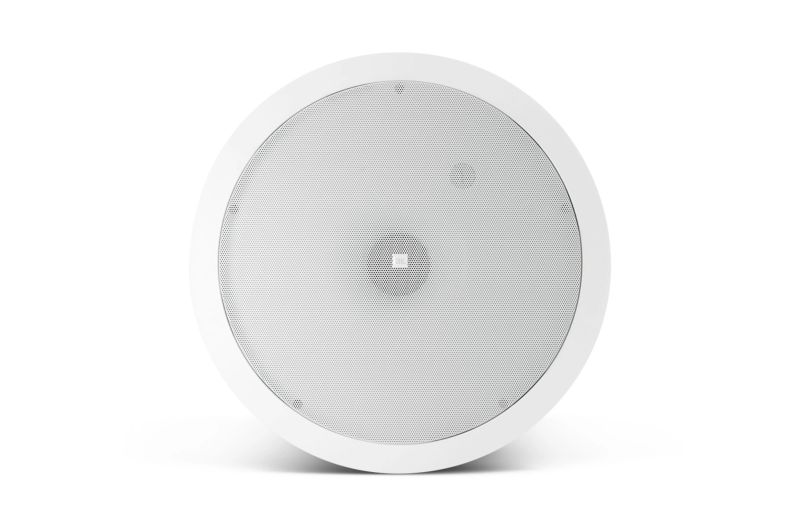

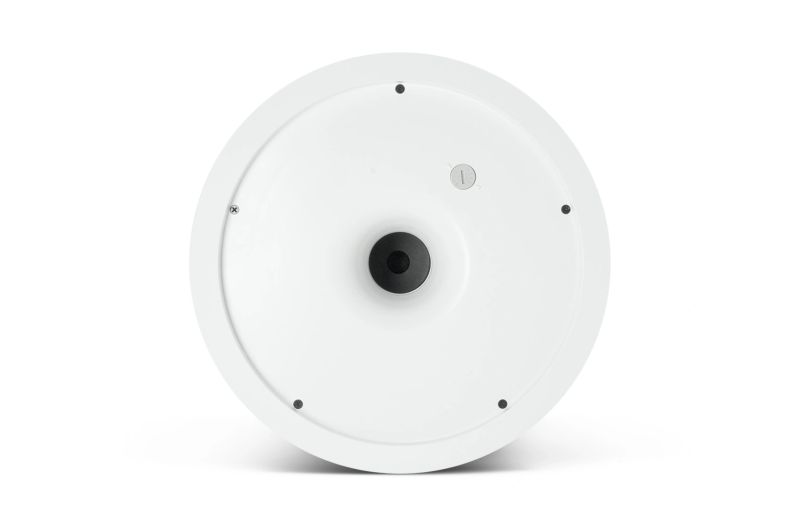

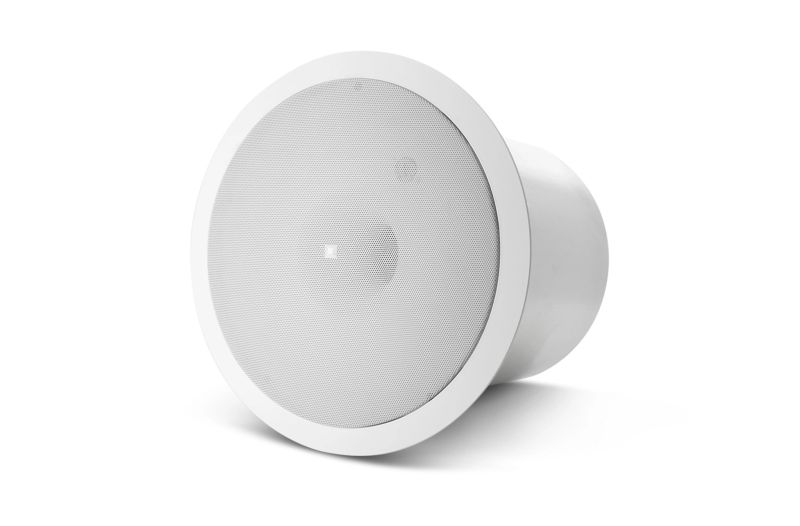

CONTROL 19CS

  • Marka : JBL
  • Ürün Kodu : CONTROL 19CS

Control 19CS, alçak profilli tavan tasarımından güçlü bas üretmek için gelişmiş özel teknolojiler kullanır.

  • Benzersiz Yuvalanmış Oda tasarımı ve Doğrusal Dinamik Açıklık bağlantı noktası tasarımı, kompakt bir muhafazadan yüksek çıkış sağlar.
  • JBL'nin özel SonicGuard aşırı yük koruması, daha yüksek çalışma seviyelerine ve gelişmiş sistem güvenilirliğine olanak tanır.
  • Bileşen: Uzun gezinimli 200 mm (8 inç) sürücü.
  • Hızlı kurulum ve kolay stoklama için ızgara, sırtlık ve fayans raylarıyla paketlenmiştir.
  • Basit kurulum ve tel bağlantı yöntemi.

Frequency Range 42 Hz - 200 Hz
Power Rating IEC System Long-Term Ratings (low-Z direct):
200 Watts Continuous Program Power
100 Watts Continuous Pink Noise (400W peak), 100 hrs
Sensitivity 95 dB SPL in ceiling near corner, 89 dB in center of ceiling
Coverage Angle 180° conical
Maximum SPL (1m) 109 dB (low-impedance, 115 dB peak, center of ceiling)
115 dB (low-impedance, 121 dB peak near corner)
Impedance 8 ohms
Input Connectors Removable locking connector with screw-down terminals.
Drivers 200 mm (8.0 in) subwoofer
Color White
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan formed steel (included "blind-mount")
Baffle/Rim Medium impact polystyrene, fire rated UL94V-0
Ceiling Cutout Size 305 mm (12.0 in) diameter (cardboard cutout template included)
Included Accessories C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector
Plenum Usage Yes, backcan included
Enclosure Material Backcan: Formed steel Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
Overload Protection Full-range power limiting to protect network and transducers. (On Control 19CS, not on Control 19CST)
Outside Dimensions (H x Dia)

345 x 345 mm (13.6 x 13.6 in) 318 mm (12.5 in) front of ceiling tile to back of backcan
Net Weight (each)

5.5 kg (12 lb)
Shipping Weight (pair)

Control 19CS: T12.7 kg (28 lb)
