Control 88M

  • Marka : JBL
  • Ürün Kodu : CONTROL 88M

İki Yönlü 8 inç (200 mm) Koaksiyel Mantar Yatay Hoparlör
Dış mekan uygulamaları için tasarlanan, hava koşullarına son derece dayanıklı Control 80 Serisi Yatay hoparlörler, mükemmel tam aralıklı ses kalitesi ve 360 derece kapsama alanı sağlar. Yere veya yere monte edilmek üzere tasarlanan Control 80 Serisi Yatay hoparlörler, alışveriş merkezleri, tema parkları, spor salonları, oteller, kumarhaneler, tatil köyleri, restoranlar, konaklama ve eğlence mekanları, giriş yolları dahil olmak üzere çok çeşitli uygulamalarda ve yüksek kaliteli müzik ve/veya çağrı hoparlörü yatay hoparlörünün gerekli olduğu her yerde kullanılabilir. Kompakt tasarımlı hoparlör dikkat çekmez ve çevresine kolayca uyum sağlar. Sert bir polietilen mahfaza, çim bakım ekipmanı ve elemanların kötü kullanımına karşı dayanıklıdır ve mahfazanın rengi malzeme boyunca uzanır, böylece hoparlör kazındığında veya çizildiğinde bile rengini korur.

Özellikler

  • Bileşenler:
    • 8" hava koşullarına son derece dayanıklı sürücü
    • 1" yumuşak kubbeli, hava koşullarına son derece dayanıklı tweeter
  • Doğrudan 8 Ohm ayarında 120W Pembe Gürültü Güç Kullanımı (240W program), artı dahili 60W 70V/100V çoklu kademe transformatörü
  • Sert polietilen hava koşullarına son derece dayanıklı muhafaza
  • Kablo koruması için tamamen izole edilmiş merkez bölme
  • 47Hz - 16kHz geniş frekans aralığına sahip yüksek kaliteli ses karakteri

Frequency Range (-10dB) 47 Hz - 16 kHz
Power Rating 240 W Continuous Program (2 hrs) 120W (480W peak), Continuous Pink Noise (2 hrs) 100W (400W peak) Continuous Pink Noise (100 hrs)
Transformer Taps 70V: 60W, 30W, 15W & 7.5W 100V: 60W, 30W, 15W
Frequency Response (±3 dB) 60Hz - 15 kHz
Maximum Input Voltage 28.0 V
Sensitivity 87 dB, 1W @ 1m (ave. 80Hz - 16kHz)
Coverage Pattern 360° H, 160° V (primary listening 10° to 50° up from ground)
Directivity Factor (Q) 2.1
Directivity Index (DI) 3.2 dB
Maximum SPL (1m) 108 dB
Impedance 8 Ohm (at 8 Ohm setting)
Minimum Impedance 6.6 Ohm at 9.5kHz
Insertion Loss <0.5 dB at any tap setting
Thru Setting 8 Ohm nominal
Crossover Type 2nd Order LPF on LF and 2nd Order HPF on HF
Recommended Protective High-Pass 45 Hz for 8 Ohm operation, 24 dB/oct 80 Hz for 60W tap, 24 dB/oct 50 Hz for 30W, 7.5W, and 7.5W taps, 24 dB/oct
Drivers LF: 200 mm (8.00 in) diameter LF driver, Kapton former, 38mm (1.5 in) voice coil, polypropylene cone and polyurethane surround.
HF: 25mm (1.0 in) diameter HF driver Polyetherimide (PEI) dome.
Enclosure LDPE Polyethylene plastic, 6 mm wall thickness, UL94V-0 rated.
Grille Powder coated stainless steel.
Outdoor Capability IP-56 rating per IEC529 (dust protected and protected against jets of water). Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-STd-202F for salt spray. Enclosure UL94V0 rated.
Safety Agency UL1480, Transformer UL Recognized per UL1876, ROHS compliant.
Input Connectors Bare wire with dielectric-gel-filled wire nuts (internal to top speaker section)

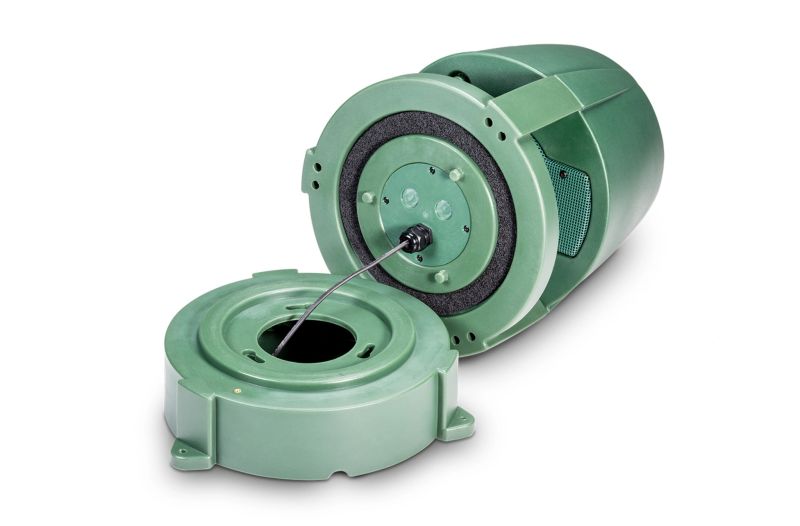

Wiring Water ingress protected by two stages of gland nuts, one mounted on outside of enclosure (installed by installer via drilling 22 mm (0.875 in, 7/8 in) hole in any of multiple provided locations) and one between the bottom base and top speaker sections. Included gland nuts require round-jacketed wire with outside diameter between 4.0 mm and 9.0 mm (0.16" in and 0.35" in). For Installation instructions, see Installation Guide (#IS-C80MLS).
Colors Hunter Green, RAL6018
Dimensions (H x W x D) 524 x 355 x 355 mm (20.7 x 14 x 14 in.)
Net Weight (each) 7.8 kg (17 lb)
Shipping Weight 10.5 kg (23 lb)
Included Accessories (2) wire nuts, (2) gland nuts, (1) right-angle screwdriver
Installer-Supplied Required Tools 22mm (0.875 in, 7/8 in) twist-type drill bit (or other type suitable for plastic) for installing gland nut into enclosure.
Optional Accessories 22mm (0.875 in, 7/8 in) twist-type drill bit (or other type suitable for plastic) for installing gland nut into enclosure.
