| Technical Data |
| Speaker Type |

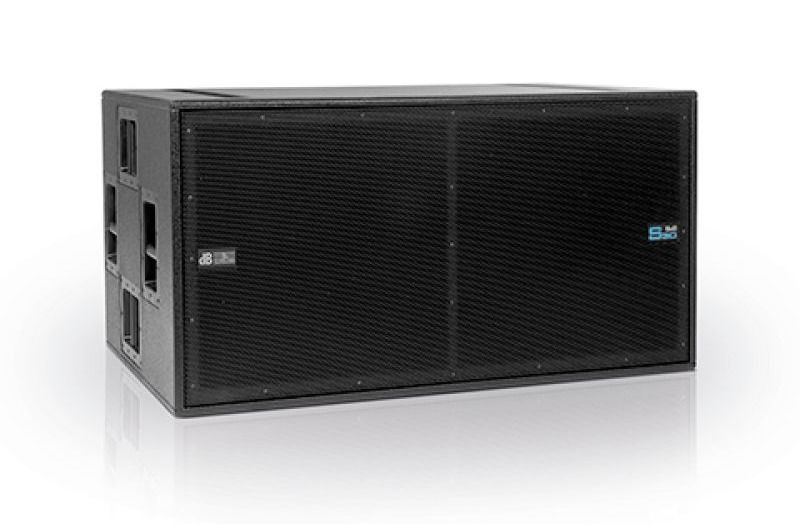

Active Bassreflex-Horn Subwoofer |
| Acoustical data |
| Frequency Response [+/- 3dB] |
30 - 120 Hz |
| Max SPL |
141 dB |
| Directivity |
Omnidirectional, Cardiod Option with DSP setup |
| LF |
2x18 " |
| Voice Coil LF |
4 " |
| Amplifier |
| Amp Technology |
Digipro® G2 |
| Amp Class |
Class D |
| Power Supply |
3 kW SMPS |
| LF Amp |
3000 W RMS |
| Cooling |
Convection |
| Processor |
| Controller |
DSP 56 bit |
| AD/DA Converter |
DSP 24 bit/48 kHz |
| System Presets |
X-Over,Delay |
| Phase |
0, 180 ° |
| Limiter |
RMS, Peak, Thermal |
| Delay Option |
0-4.5 ms internal |
| Crossover Frequency LF-MF |
75-120Hz | steps of 5Hz |
| LF-Xover out slope |
24 dB/Octave |
| Mechanics |
| Housing |
Multiplex plywood |
| Housing Design |
Rectangular |
| Handles |
4x Per Side |
| Accessory |
Dolly, Wheels 100mm, |
| |
Dust Cover, Rain Cover |
| Rigging Points |
2xPick Points on top to fix |
| |
DRK10/20 rigging frames |
| Width |
1100 mm (44 in) |
| Height |
580 mm (23.2 in) |
| Depth |
720 mm (28.8 in) |
| Weight |
83 kg (182.98 lbs) |
