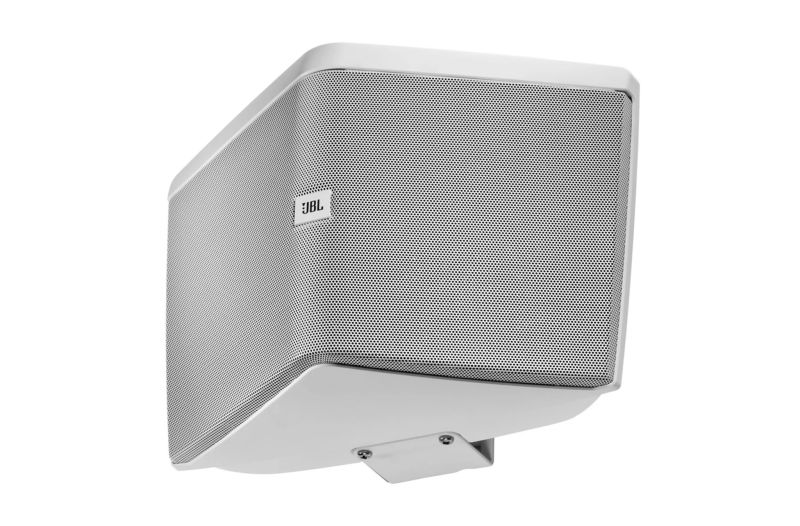

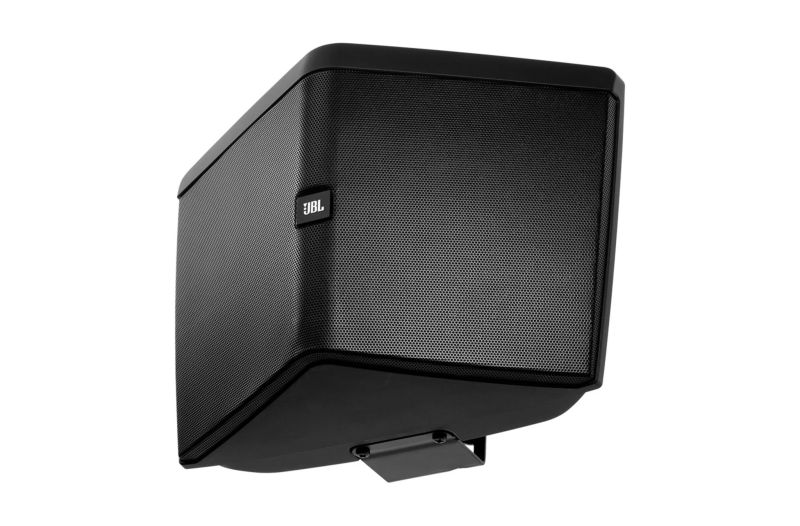

CONTROL HST

  • Marka : JBL
  • Ürün Kodu : CONTROL HST

5-1/4" LF, Çift Tweeter'lar ve HST Teknolojisine Sahip Geniş Kapsamlı Hoparlör

Özellikler

  • TWETER'LAR OYNATILDI
  • Çift tweeter'larda CMMD kaplamalı alüminyum diyaframlar, poliüretan çevre, neodimyum mıknatıs ve yüksek çıkış, düşük distorsiyon için sıvı soğutma bulunur
  • ve nem direnci.
  • DUVARA BAKIMLI WOOFER
  • İyi sönümlü woofer, çok yüksek sertlik-ağırlık oranı, yüksek çıkış ve neme karşı dayanıklılık için CMMD seramik metal matris diyaframı içerir
  • ve uzun süreli dayanıklılık.
  • KONTROLLÜ SES
  • Tasarlanmış gürültü engelleme, Control HST'nin oda genelinde daha tutarlı bir ses karakterinin yanı sıra daha düz bir frekans tepkisi sağlamasına olanak tanır.

Frequency Range (-10dB) 50 Hz - 20 kHz
Frequency Response (±3 dB) 68 Hz - 18 kHz
Coverage Angle 180°H x160°V
Directivity Factor (Q) 5.4 (1 k - 16 kHz)
Directivity Index (DI) 7.2 dB (1 k - 16 kHz)
System Power Rating (IEC) 100 W (400 W peak), 2 hrs. 75 W (300 W peak), 100 hrs.
Sensitivity 88 dB (Ave. 80 Hz - 20 kHz)
Maximum SPL (1m) Direct 8 Ohm: 108 dB (peaks of 114 dB) 60 W Tap: 97 dB @ 60W
Crossover Network 1.6 kHz, 3rd order (18 dB/oct) high-pass to HF, 2nd order low-pass to LF
Impedance 8 ohms

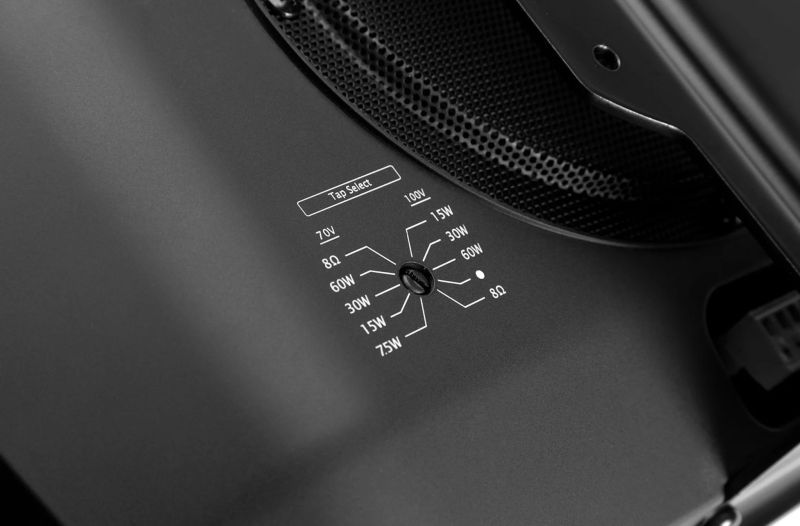

Transformer Taps 70V: 60W, 30W, 15W, 7.5W 100V: 60W, 30W, 15W

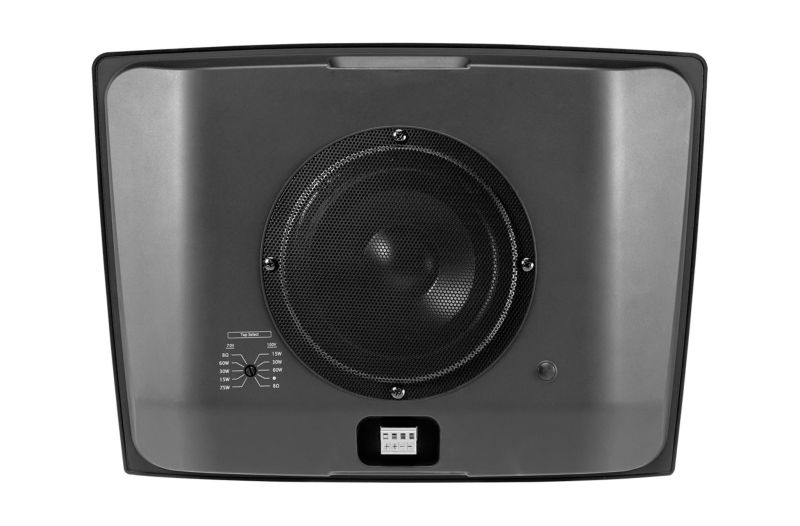

Drivers LF: CMMD ceramic metal matrix diaphragm cone, 25 mm (1 in) voice coil.

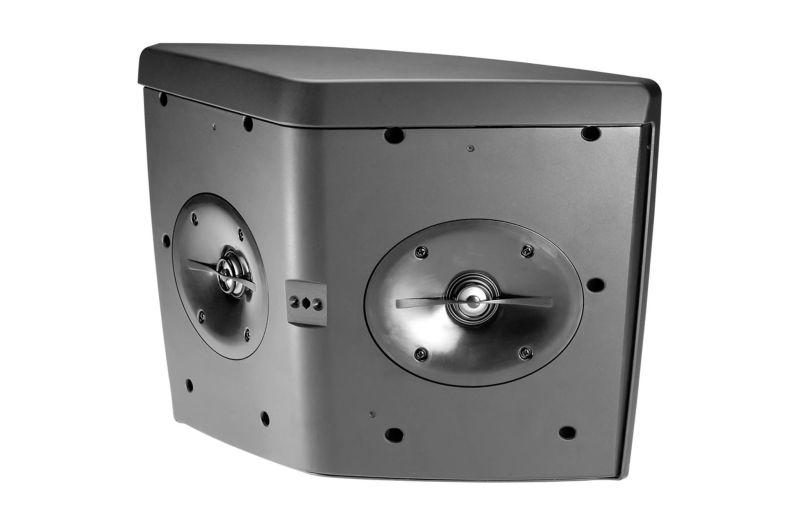

HF: Two splayed tweeters with CMMD-treated aluminum diaphragms, polyurethane surround, polyimide bobbin, neodymium magnet, and fluid-cooling.
Enclosure Fiberglass-reinforced ABS
Attachment Four M6 points for included U-bracket. Additional M6 insert point provided for adding secondary safety attachment cable. U-bracket must be utilized. Must be mounted on wall surface. Do not mount on pole.
Grille Aluminum grille, painted to match cabinet color.
Input Connectors Removable locking euro-block 4-pin connector with screw-down terminals for bare wire. Two pins for input and two pins for parallel loop-thru. Max. wire 12 AWG (2.5 mm2).
Outdoor Capability IP54 per IEC529. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray.
Dimensions (H x W x D) 362 x 256 x 184 mm (14.25 x 10.1 x 7.2 in), cabinet 208 mm (8.2 in) depth with included bracket.
Colors Available in black (RAL9004) and white (-WH, RAL9016)
Net Weight (each) 3.6 kgs (8.0 lb), 4.3 kgs (9.5 lb) with U-bracket
Included Accessories U-bracket, matches loudspeaker color (black or white), zinc-rich extra-thick powder coated steel.
Mounting Hardware Included wall-mount bracket.
