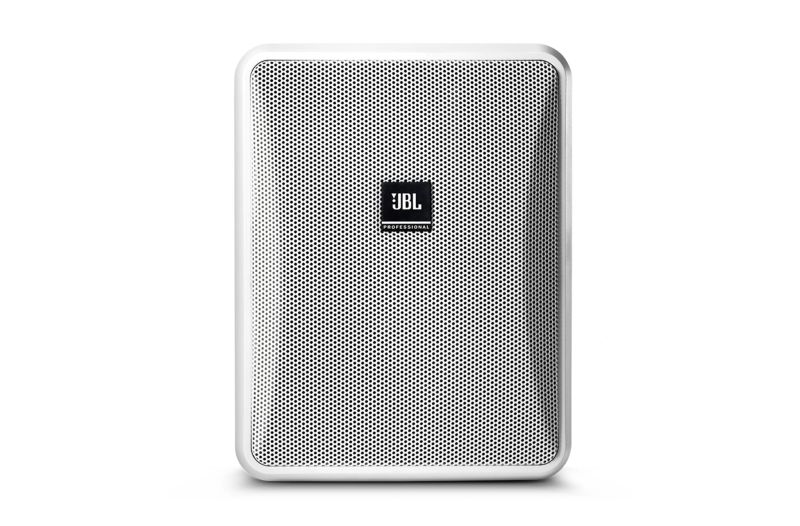

CONTROL 25-1L-WH

  • Marka : JBL
  • Ürün Kodu : CONTROL 25-1L-WH

Kompakt 8 Ohm İç Mekan/Dış Mekan Arka Plan/Ön Plan Hoparlörü
Control® 25-1L, zengin ses karakterine, geniş kapsama alanına, tutarlı dağılıma, çok yönlü montaja ve çok çeşitli dekorlara uyum sağlayan çağdaş, yüksek tasarımlı bir görünüme sahip, iki yönlü 5-¼" bir hoparlördür. Bu, Control 25-1L'yi perakende mağazaları, restoranlar, sağlık kulüpleri, tema parkları, eğitim tesisleri, konaklama, müzik kafeleri, eğlence mekanları ve en üst kalitede yüksek çıkışlı iç/dış mekanın bulunduğu her yer dahil olmak üzere çok çeşitli uygulamalar için mükemmel bir seçim haline getirir. ön plan/arka plan müziği (ve/veya çağrı) hoparlörü gereklidir.

Özellikler

  • Dokuma fiberglas konili 5-¼" woofer
  • Sıvı soğutmalı 3/4" PEI diyaframlı tweeter
  • Çağdaş, yüksek tasarımlı görünüm
  • Dahili InvisiBall® montaj donanımı ve ayrıca mevcut U braketi
  • Hava koşullarına dayanıklı muhafaza ve dönüştürücüler
  • Geniş 100° x 100° kapsama alanı
  • 100 Watt güç kullanımı (200 Watt program)
  • 60 Hz - 20 kHz'lik geniş frekans tepkisine sahip yüksek kaliteli ses karakteri.

Frequency Range (-10dB) 60 Hz to 20 kHz
Frequency Response (±3 dB) 85Hz - 17 kHz
Power Rating 200 W Continuous Program (2 hrs) *Continuous Pink Noise rating is IEC-shaped pink noise with a 6 dB crest factor. Continuous Program Power is defined as 3 dB above the Continuou Pink Noise Rating and is a conservative expression of the system's ability to handle normal speech and music program material.
Maximum Input Voltage 25.3 V RMS (2 hrs), 50.6 V peak
Maximum SPL (1m) 110 dB ave. Continuous Pink Noise (116 dB peak) *Calculated from sensitivity and power handling, exclusive of power compression.
Sensitivity 90 dB, 1W/1m (ave. 100 Hz - 10 kHz) *Half-space (on-wall) averaged 100 Hz - 10 kHz, 2.83V.
Coverage Angle 100°H x 100°V
Directivity Factor (Q) 6.04 (averaged 1kHz - 16kHz)
Directivity Index (DI) 7.6dB (averaged 1kHz - 16kHz)
Impedance 8 ohms
Crossover Type 2nd order low-pass, 3rd order high-pass
Recommended Protective High-Pass 60 Hz high-pass (24 dB/oct) *For protection against driving below resonant frequency and to keep transformer out of saturation.
Drivers LF: 135 mm (5.25 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
HF: 19 mm (0.75 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton voice coil former.
Enclosure High Impact Polystyrene (HIPS), painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
Grille Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-25WMG-1 (&-WH) available with WeatherMax multi-layer foam and tight-weave mesh vapor barrier backing.
Installation InvisiBall wall-mounting system included. Two 6 mm attachment points (on top and bottom) for optional MTC-25UB-1 (&-WH) U-bracket. Secondary safety attachment loop point on back panel.
Outdoor Capability IP-44 per IEC529 (IP-55 when installed with the optional MTC-25WMG-1 WeatherMax grille and either MTC-PC2 or MTC-PC3 panel cover.) Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray. Optional MTC-25WMG-1 WeatherMax grille for breaking up driving rain and for especially difficult environments.
Input Connectors Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2). Optional MTC-PC2 and MTC-PC3 protective panel covers available to provide sealed entrance for additional weather protection.
Safety Agency ROHS-compliant
Colors Black (RAL9004) or white (-WH, RAL9016)
Dimensions (H x W x D) 243 x 188 x 145 mm (9.6 x 7.4 x 5.7 in); 203 mm (8.0 in) deep total when mounted on InvisiBall wall-mount bracket. *In vertical orientation
Net Weight (each) 3.0 kg (6.7 lbs)
Shipping Weight 7.3 kg (16.0 lbs) for the pair-pack (for 2 speakers)
Included Accessories InvisiBall wall-mounting system, 6 mm x 100 mm hex key
Optional Accessories MTC-25UB-1 - Yolk-type U-bracket (&-WH)
Mounting Hardware InvisiBall aimable wall-mounting system included. Optional U-bracket.
