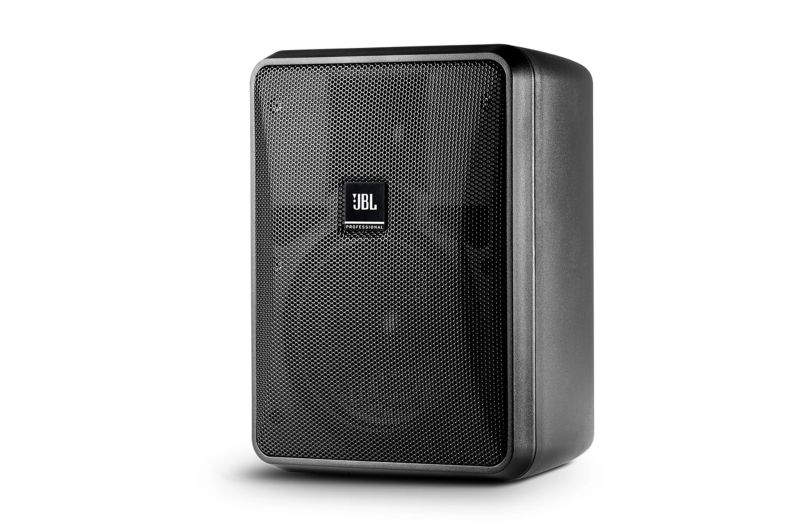

CONTROL 25-1-WH

  • Marka : JBL
  • Ürün Kodu : CONTROL 25-1-WH

Kompakt İç Mekan/Dış Mekan Arka Plan/Ön Plan Hoparlörü
Control® 25-1, zengin sonik karaktere, geniş kapsama alanına, tutarlı dağılıma, çok yönlü montaja ve çok çeşitli dekorlara uyum sağlayan çağdaş, yüksek tasarımlı bir görünüme sahip iki yönlü 5" bir hoparlördür. Bu, Control 25-1'i perakende mağazalar, restoranlar, sağlık kulüpleri, tema parkları, eğitim tesisleri, konaklama, müzik kafeler, eğlence mekanları ve yüksek kaliteli yüksek çıkışlı iç/dış mekan ön plan/arka plan müziğinin olduğu her yer dahil olmak üzere çok çeşitli uygulamalar için mükemmel bir seçim haline getirir. (ve/veya çağrı) hoparlörü gereklidir.

Özellikler

  • Bileşenler:
  • ? Dokuma fiberglas konili 5-¼" woofer
  • ? Sıvı soğutmalı 3/4" PEI diyaframlı tweeter
  • Çağdaş, yüksek tasarımlı görünüm
  • Dahili InvisiBall® montaj donanımı* ve ayrıca U braketi mevcuttur
  • Hava koşullarına dayanıklı muhafaza ve dönüştürücüler
  • Geniş 100° x 100° kapsama alanı
  • Doğrudan 8 Ohm ayarında 100 Watt güç kullanımı (200 Watt program), artı dahili 30 Watt 70V/100V çoklu kademe transformatörü.
  • 60 Hz - 20 kHz'lik geniş frekans tepkisine sahip yüksek kaliteli ses karakteri.

Frequency Range (-10dB) 60 Hz to 20 kHz
Frequency Response (±3 dB) 85Hz - 17 kHz
Power Rating 200 W Continuous Program (2 hrs) 100 W (400W peak), Continuous Pink Noise (2 hrs) 75 W (300W peak) Continuous Pink Noise (100 hrs)
Maximum Input Voltage 25.3 V RMS (2 hrs), 50.6 V peak
Maximum SPL (1m) 110 dB ave. Continuous Pink Noise (116 dB peak)
Sensitivity 90 dB, 1W/1m (ave. 100 Hz - 10 kHz)
Coverage Angle 100°H x 100°V
Directivity Factor (Q) 6.04 (averaged 1kHz - 16kHz)
Directivity Index (DI) 7.6dB (averaged 1kHz - 16kHz)
Impedance 8 ohms (THRU setting)
Crossover Type 2nd order low-pass, 3rd order high-pass

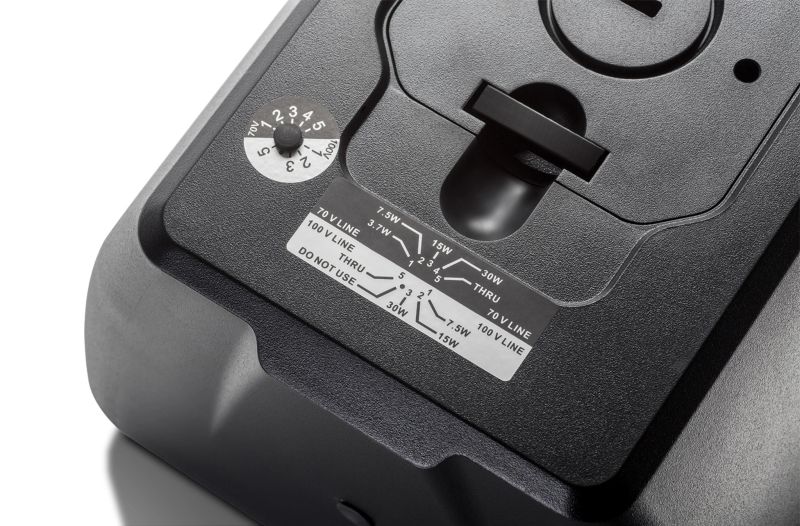

Transformer Taps 70V: 30W, 15W, 7.5W, 3.7W 100V: 30W, 15W, 7.5W Insertion Loss <0.94 dB at any tap setting Thru Setting: 8 Ohm nominal
Recommended ProtectiveHigh-Pass 60 Hz high-pass (24 dB/oct) (for 8 Ohm operation and for all 70V/100V taps settings).
Drivers LF: 135 mm (5.25 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
HF: 19 mm (0.75 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton voice coil former.
Enclosure High Impact Polystyrene (HIPS), painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
Grille Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-25WMG-1 (&-WH) available with WeatherMax multi-layer foam and tight-weave mesh vapor barrier backing.
Mounting Hardware InvisiBall wall-mounting system included. Two 6 mm attachment points (on top and bottom) for optional MTC-25UB-1 (&-WH) U-bracket. Secondary safety attachment loop point on back panel.
Outdoor Capability IP-44 per IEC529 (IP-55 when installed with the optional MTC-25WMG-1 WeatherMax grille and either MTC-PC2 or MTC-PC3 panel cover.) Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray. Optional MTC-25WMG-1 WeatherMax grille for breaking up driving rain and for especially difficult environments.

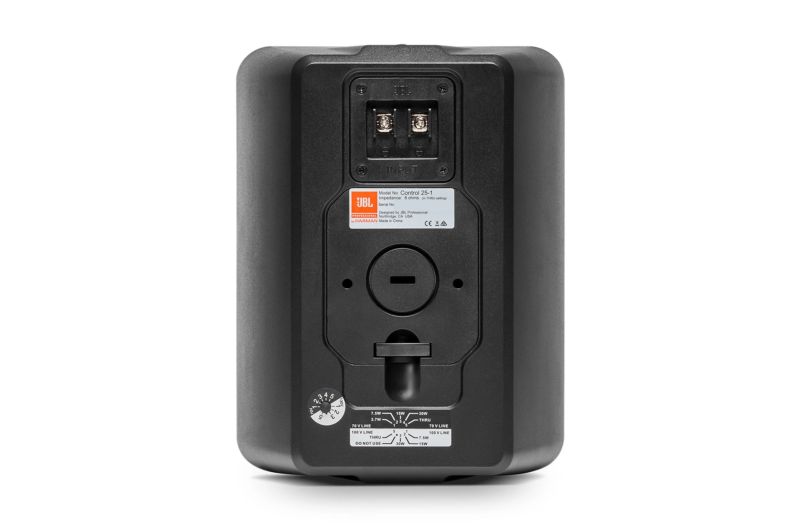

Input Connectors Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2). Optional MTC-PC2 and MTC-PC3 protective panel covers available to provide sealed entrance for additional weather protection.
Safety Agency ROHS-compliant; Transformer UL Recognized per UL1876

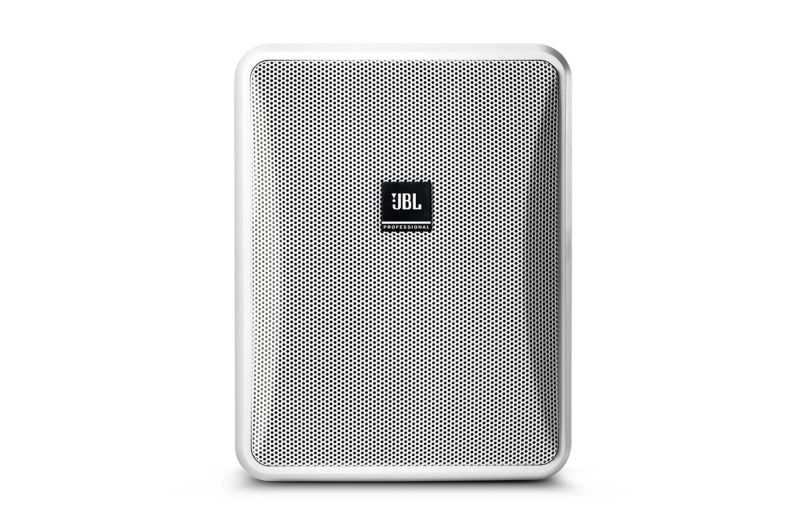

Colors Black (RAL9004) or white (-WH, RAL9016)
Dimensions (H x W x D) 243 x 188 x 145 mm (9.6 x 7.4 x 5.7 in); 203 mm (8.0 in) deep total when mounted on InvisiBall wall-mount bracket.
Net Weight (each) 3.4 kg (7.5 lbs)
Shipping Weight 8.16 kg (18 lbs) for the pair-pack (for 2 speakers)
Included Accessories InvisiBall wall-mounting system), 6 mm x 100 mm hex key
Optional Accessories MTC-25UB-1 - Yolk-type U-bracket (&-WH) MTC-25WMG-1 - WeatherMax grille with backing (&-WH) MTC-28/25CM - Ceiling-Mount InvisiBall adapter (&-WH)
