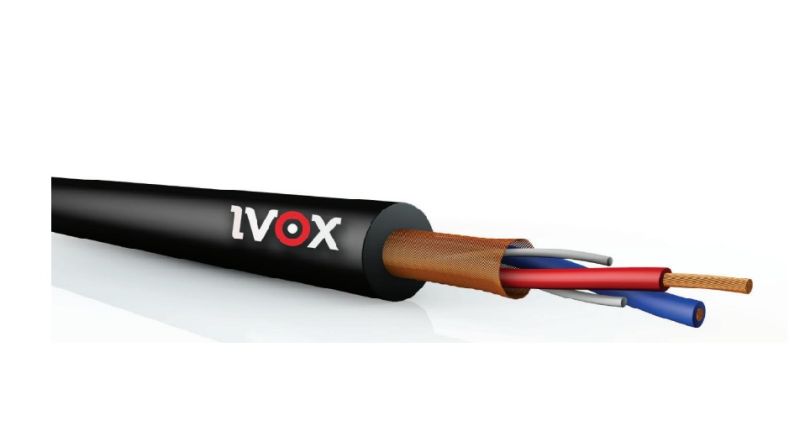

AXION 321

  • Marka : IVOX
  • Ürün Kodu : AXION 321

Bir bükümlü çift ile birleştirilmiş 3 x 1,5 mm² / 3 x 2,5 mm² ana güç kablosuna sahip AXION 311 hibrit kablo Analog sinyal çifti, alüminyum/polyester folyo ekranla korunur ve siyah bir PVC kılıfla kaplanır. Ayrıca güç sağlandığında analog ses kabinleri için de kullanılır.

Control pair 1 Pair
Core Numbers x Section 2 x 0,22 mm² (AWG 24)
Stranded Copper Conductor 7 x 0,20 mm ø Tinned Copper
Conductor Insulation 1,20 ± 0,05 mm ø XLPE
Conductor Color Code Blue / Red
Stranded Drain Wire 7 x 0,20 mm ø Tinned Copper
Shielding Al / Pes - Foil
Shielding Factor 100%
Outer Diameter 3,2 mm ø PVC
Power cores Core Numbers x Section 3 x 1,50 mm² (AWG 15)
Power cores Stranded Copper Conductor 27 x 0,25 mm Stranded Bare Copper
Power cores Conductor Insulation 2,95 ± 0,05 mm ø PVC
Power cores Outer Jacket sPvc Matt ,Black
Power cores Outer Diameter 10,5 mm ø
Power cores Weight 15,6 kg/100 m
Conductor Resistance Control < 85 Ohm / km
Power < 11 Ohm / km
Shield Resistance < 75 Ohm / km
Insulation Resistance > 2000 MOhm x km
Capacitance Control core/core 75 pF / m
Capacitance Control core/screen 130 pF / m
Nominal Impendance 1 KHz 600 Ohm /100 m
Minimum bending radius 12 x D ( D= outer diameter )
Temperature range Mobile installation - 5° C to + 70° C
Temperature range Fixed installation -30° C to + 70° C
