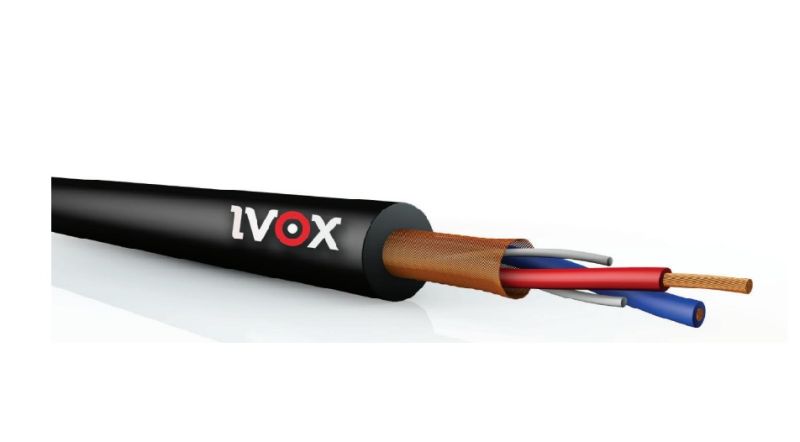

TS-825 REFFLEX

  • Marka : IVOX
  • Ürün Kodu : TS-825 REFFLEX

Bu refleks profesyonel hoparlör kabloları orijinal olarak son teknoloji ürünü Tri-Amp Sistemlerinden maksimum performans sağlayacak şekilde tasarlanmıştır. Olağanüstü sağlamlık ve dayanıklılık için ekstra sert ceket ve büyük boy ağır hizmet tipi yapı.

Core Section 2,50 mm² (14 AWG)
Stranded Copper Conductor 140 x 0,15 mm ø Stranded Bare Copper (16 AWG)
Conductor Insulation 3,20 ± 0,05 mm ø PVC
Conductor Color Code Blue / Red / Yellow / Green / Black / Pink / Orange / White
TS 225 Core Numbers x Section 2 x 2,50 mm²
TS 225 Outer Sheath sPVC Matt Black
TS 225 Outer Diameter 8,20 ± 0,10 mm ø
TS 225 Weight 11,8 kg/100 m
TS 425 Core Numbers x Section 4 x 2,50 mm²
TS 425 Outer Sheath sPVC Matt Black
TS 425 Outer Diameter 9,50 ± 0,10 mm ø
TS 425 Weight 17,8 kg/100 m
TS 625 Core Numbers x Section 6 x 2,50 mm²
TS 625 Outer Sheath sPVC Matt Black
TS 625 Outer Diameter 11,60 ± 0,10 mm ø
TS 625 Weight 27,5 kg/100 m
TS 825 Core Numbers x Section 8 x 2,50 mm²
TS 825 Outer Sheath sPVC Matt Black
TS 825 Outer Diameter 13 ± 0,10 mm ø
TS 825 Weight 36 kg/100 m
Conductor Resistance < 7.0 Ohm / km
Insulation Resistance > 2000 MOhm x km
Capacitance core/core 170 pF / m
Inductance 0,53 µH / m
Test voltage 2 kV
Max. Operating Voltage 300 V
Minimum bending radius 5 x D ( D= outer diameter )
Temperature range Mobile installation -5° C to + 70° C
Temperature range Fixed installation -30° C to + 70° C
