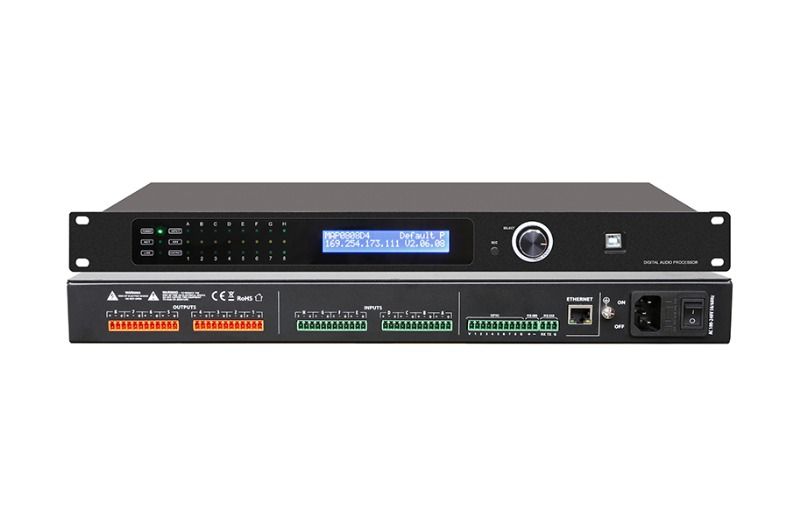

HT-DSP0808D

  • Marka : HTDZ
  • Ürün Kodu :

HT-DSP0808/HT-DSP0808D, dahili geri bildirim engelleme, otomatik karıştırma, matris mikseri, ekolayzır, geçiş, kompresör vb. DSP işlevlerine sahip, 8 giriş ve 8 çıkışlı bir konferans işlemcisidir. HT-DSP0808D, PA projesinde çeşitli durumlar için uygun olan Dante Network sesini destekler.

Analog Inputs 8 analog inputs, microphone / line selectable
Analog Outputs 8 analog outputs
Phantom Power 48V switchable per input channel
Dante Support Dante input and output port supported (HT-DSP0808D)
GPIO Function GPIO extensible function supported
Feedback Suppression Built-in feedback suppressor on each input channel
Mixing Modes AUTO-MIX and MATRIX-MIX supported
EQ Processing 31 PEQs per input, 10 PEQs per output
USB Interface USB free driver connection supported
Control Interfaces RS232 / RS485 connector for central control



Technical parameters

DSP Chip
Signal Processor 32-bit fixed/floating-point DSP 300MHz
Audio Latency < 1ms
A/D and D/A Converters 24-bit
Sample Rate 48KHz
ANALOG AUDIO INPUTS AND OUTPUTS
Input Channels 8 balanced. Mic/line level
Connectors 3.81 mm Phoenix Contact, 12-pin
Input Impedance 11.5K
Maximum Input Level 12dBu/Line, -9dBu/Mic
Phantom Power +48VDC, 10mA, selectable per input
Output Channels 8 balanced, line level
Output Impedance 150
AUDIO PERFORMANCE SPECIFICATIONS
Frequency Response 20Hz-20kHz(+/-0.5dB)/Line ; 20Hz-20kHz(+/-1.5dB)/Mic
THD+N -90dB(@12dBu,1kHz,A-wt)/Line ; -86dB(@-7dBu,1kHz,A-wt)/Mic
SNR 105dB(@12dBu,1kHz,A-wt)/Line; 95dB(@-7dBu,1kHz,A-wt)/Mic
COMMUNITICATION PORTS AND INDICATORS
USB Micro-B type, free driver
TCP/IP RJ-45
RS232 Phoenix seat
RS485 Phoenix seat
GPIO Phoenix seat, Machine Archive (customizable)
LCD display & Button LCD2402
LED Indicators Power, Link, +48V, Input and Output Audio signal
ELECTRICAL AND PHYSICAL
Voltage Range AC100V-240V 50/60 Hz
Dimension 44mmx483mmx210mm
Net Weight 2.8kg
Working Temperature -20--80
