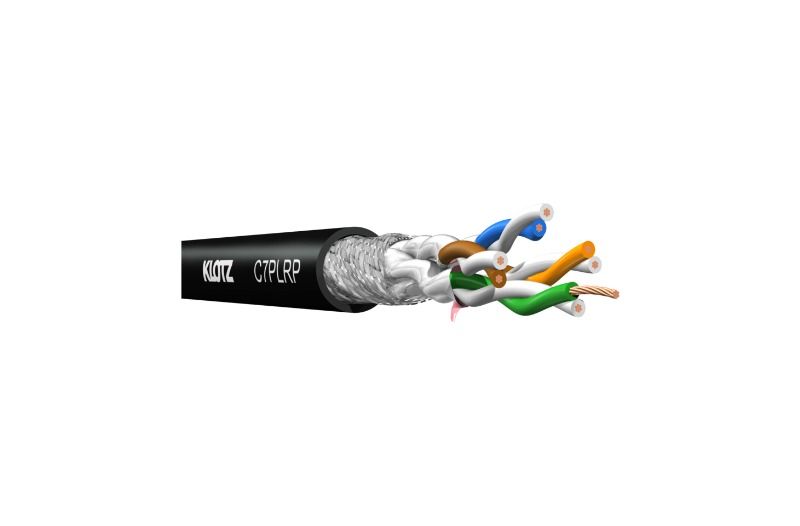

C7PLRP.200

C7PLRP
CAT7 UZUN ÇALIŞMA yama kablosu AWG 23/7 - S/FTP - 600 MHz - PUR

Özellikler

4x 2x AWG 23/7 - 600 MHz
100 m'ye kadar UZUN KOŞU
S/FTP (genel örgü kalkanı + folyo korumalı bükümlü çiftler)
kategori 7'ye göre IEC 61156-6'ya göre
PUR versiyonu, siyah
Ø 8,5 mm
analog ve dijital ses sinyalleri
IP üzerinden dijital medya
CAT6a kablo konnektörleri için uygundur: NEUTRIK etherCON (NE8MX6B) ve Telegärtner RJ45 metal (RJ45SAT-FS)

design
conductor	stranded bare copper, Ø 0.26 mm² (23/7 AWG)
core insulation	polyolefin, nom. Ø 1.53 mm
core stranding	2 cores twisted to a pair
twisting	4 shielded pairs stranded
pair shielding	AL/PET foil
overall shield	tinned copper braid, >65% coverage
outer jacket	PUR, black
overall diameter	8.5 mm
electric
conductor resistance	< 72.5 Ohm/km
mutual capacitance	44 pF/m
characteristic impedance	100 Ohm ± 15%
signal speed	0.75 c
propagation delay	< 536 ns/100m
delay skew	25 ns/100m
mechanics
min. bending radius
installation	8x overall diameter
operation	4x overall diametre
flame retardancy	acc. to IEC 60332-1-2
halogen-free	acc. to IEC 60754-1
