PW24X.100

PW24X

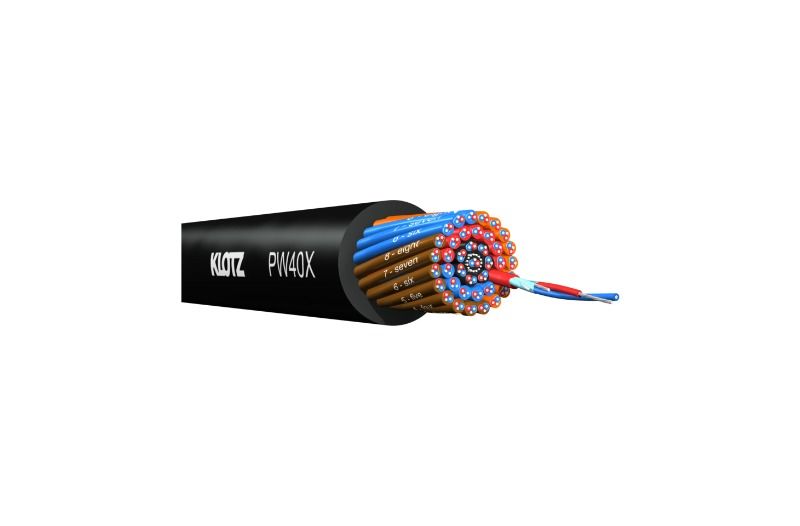

PolyWIRE XLPE stüdyo çok çekirdekli 24x 2x 0,22 mm² - PVC

Özellikler

design
cond. construction	stranded tinned copper, 7x 0.20 mm
cond. cross section	0.22 mm²
insulation	XLPE, red & blue
core arrangement	2 cores twisted to a pair
pair shielding	stranded tinned copper drain wire + AL/PET foil
pair jacket	PVC, color coded in steps of 8 pairs and numbered consecutively
cable stranding	n pairs twisted in layers
outer jacket	PVC, soft, matt
mechanical & thermal characteristics
operating temperature	-20°C / +70°C
min. bending radius
installed	5x overall diameter
mobile use	8x overall diameter
no hazardous substances	acc. to EU directivo RoHS-2 2011/65/EU
REACH conformity	acc. to regulation no. 1907/2006
CE conformity	acc. to EU directivo LVD 2014/35/EU
flame retardancy	acc. to IEC 60332-1-2
heat of combustion	2490 kWh/km
electric
conductor resistance	< 85 Ohm/km
capacitance
cond./cond.	80 pF/m
cond./shield	160 pF/m
crosstalk attenuation	> 15 kHz / 100 dB
insulation resistance	> 5 GOhm x km
test voltage
cond. / cond.	1200 V
cond./shield	500 V
