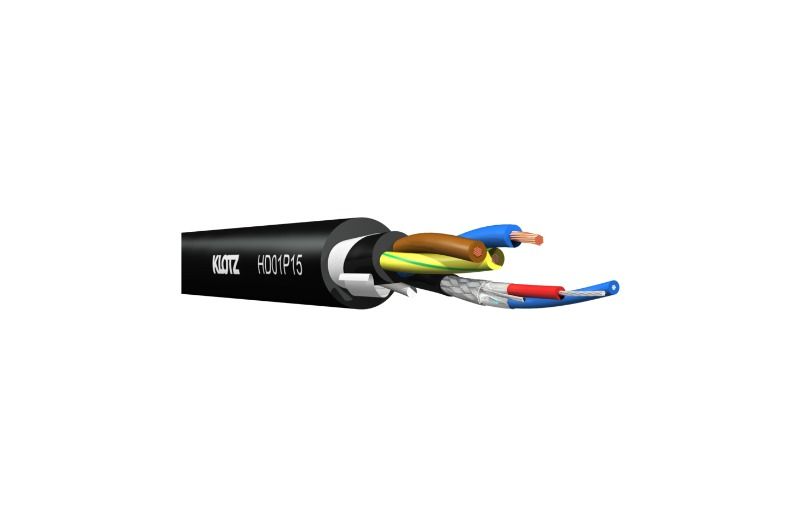

HD01P15.100

  • Marka : KLOTZ
  • Ürün Kodu : HD01P15.100

HD01P15
hibrit kablo dijital 110 Ohm + güç 1,5 mm²

Özellikler

  • sinyal kablosu (DMX, dijital ve analog ses)
  • güç kablosu 3x1,5 mm² - HD01P15
  • güç kablosu 3x 2,5 mm² - HD01P25
  • maks. tamburlardaki kablo uzunluğu: 60 m - HD01P15
  • maks. tamburlardaki kablo uzunluğu: 100 m - HD01P25
  • ör. powerCON ve XLR

hybrid
twisting 1 signal cable + 1 power cable + tracers
taping fleece
outer jacket PVC
operating temperature -25°C / +70°C
min. bending radius
fixed installed 65 mm
mobile use 130 mm
low pollutant acc. to EU directivo RoHS 2002/95/EG from 27.01.2003
flame retardancy acc. to IEC 60332-1 and VDE 0482 part 265-2-1
heat of combustion 4184 kJ/m
audio cable
cond. construction stranded tinned copper, 7x 0.20 mm
cond. cross section 0.22 mm²
insulation foam-skin PE
shielding AL/PET foil + tinned stranded drain wire + tinned copper braid (coverage 85%)
outer jacket PVC, black, Ø 4.5 mm
conductor resistance < 90 Ohm/km
capacitance 47 pF/m
characteristic impedance 110 Ohm
nom. attenuation [dB/100m]
1 MHz 2.3
3 MHz 3.9
10 MHz 6.9
power cable
conductor stranded bare copper, fine-wired acc. to IEC 60228, class 5
conductor cross-section 3x 1.5 mm²
insulation PVC
no. of cores 3
jacket PVC, black, Ø 8.3/10.2 mm
condctor resistance 12,5 Ohm/km resp. 7,5 Ohm/km
insulation resistance > 0.01 MOhm x km
rated voltage 300/500 V
