LSC425YS.100

LSC425YS

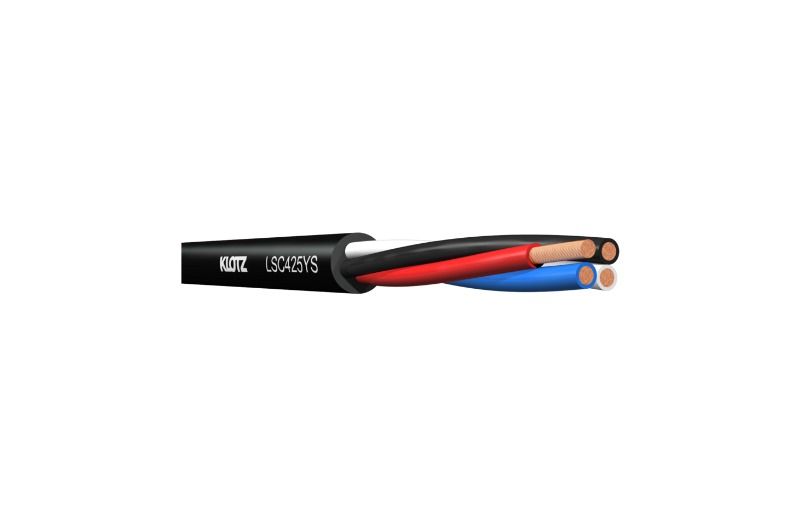

çok damarlı hoparlör kablosu 4x 2,5 mm² - PVC

Özellikler

design
conductor	stranded bare copper
insulation	PVC, color coded
cable stranding	4 cores stranded around a central filler
mechanical & thermal characteristics
min. bending radius	5x overall diameter
min. bending radius
installed	4x overall diametre
mobile use	8x overall diameter
no hazardous substances	acc. to EU directivo RoHS 2011/65/EU from 08.06.2011
REACH conformity	acc. to REACH regulation 1907/2006
CE conformity	acc. to EU directivo LVD 2014/35/EU
flame retardancy	flame retardant acc. to IEC 60332-1-2
electric
max. operating voltage	300 V
