SQ418H.100

  • Marka : KLOTZ
  • Ürün Kodu :

SQ418H

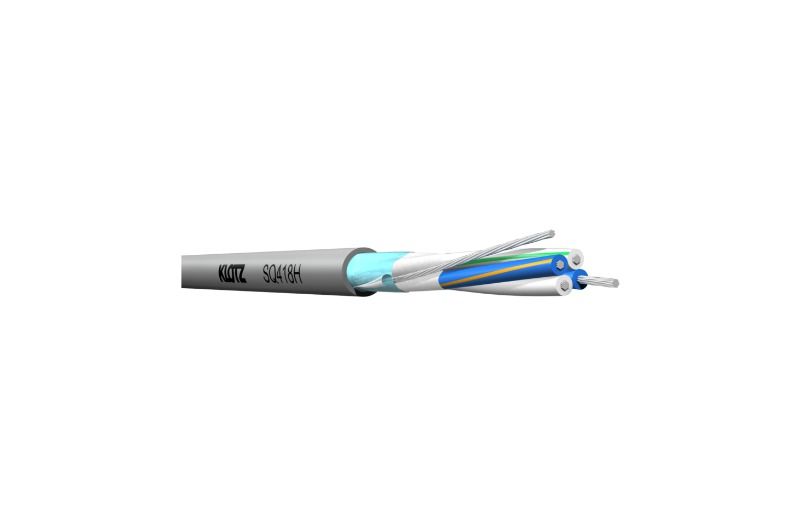

StarQuad pro ses kablosu 4x 0,18 mm² - FRNC

Özellikler

  • AL/PET folyo kalkanı (%100 kapsama)
  • dörtlü bağlantı: 2x 0,36 mm² (AWG 22)
  • AL/PET folyo kalkanı (%100 kapsama)
  • Alev geciktirici ve aşındırıcı olmayan (FRNC)
  • CPR sınıfı Eca acc. EN50575'e (IEC 60332) göre
  • ¹ dörtlü bağlantı: çapraz olarak zıt iki iletken bir iletkene bağlanır
  • ² çapraz olarak zıt iki iletkenin her çifti bir iletim yolu oluşturur

design
cond. construction stranded tinned copper, 7x 0.18 mm
cond. cross section 0.18 mm²
insulation polyethylene (PE)
core arrangement 4 cores twisted to a star quad
drain wire stranded tinned copper, 7x 0.16 mm
shielding AL/PETP foil
element jacket LSZH, grey, numbered
outer jacket FRNC, grey
overall diameter 4.7 mm
mechanical & thermal characteristics
operating temperature -25°C / +70°C
min. bending radius
installed 5x overall diameter
mobile use 10x overall diameter
no hazardous substances acc. to EU directivo RoHS 2011/65/EU from 08.06.2011
CE conformity acc. to EU directivo LVD 2014/35/EU
REACH conformity acc. to REACH regulation 1907/2006
halogen-free acc. to IEC 60754-1
non corrosive acc. to IEC 60754-2
flame retardancy acc. to IEC 60332-1-2
low smoke emission acc. to IEC 61034-2
heat of combustion 190 kWh/km
electric
conductor resistance 100 Ohm/km
insulation resistance > 50 GOhm x km
capacitance
cond./cond.¹ 125 pF/m
cond./shield¹ 173 pF/m
cond./cond.² 50 pF/m
cond./shield² 95 pF/m
