SQ414Y.100

  • Marka : KLOTZ
  • Ürün Kodu :

SQ414Y

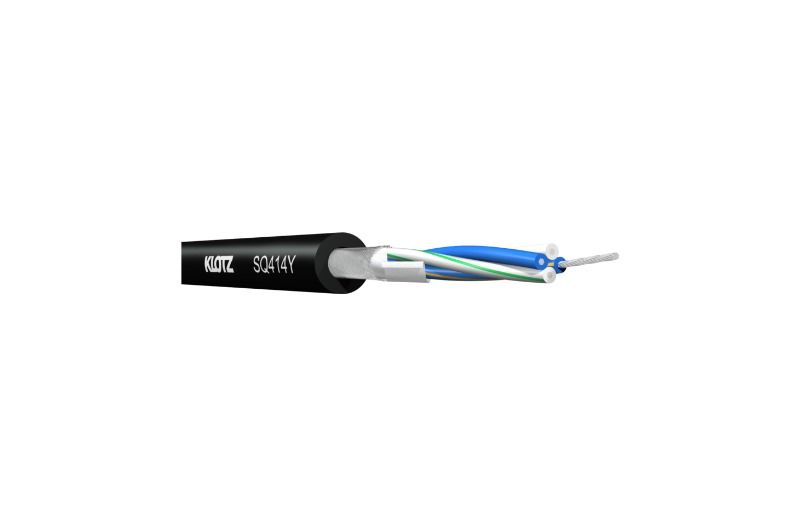

StarQuad pro ses kablosu 4x 0,15 mm² - PVC

Özellikler

  • 0,15 mm² iletken kesiti (AWG 26)
  • dörtlü bağlantı: 2x 0,30 mm² (AWG 22)
  • çok yoğun kalaylı bakır spiral kalkan
  • son derece esnek
  • ¹ dörtlü bağlantı: çapraz olarak zıt iki iletken bir iletkene bağlanır
  • ² çapraz olarak zıt iki iletkenin her çifti bir iletim yolu oluşturur

design
cond. construction stranded tinned copper, 19x 0.10 mm
cond. cross section 0.15 mm²
insulation polyethylene (PE)
core arrangement 4 cores twisted to a star quad
shielding tinned copper spiral shield, >95% coverage
outer jacket PVC, black
overall diameter 5.5 mm
mechanical & thermal characteristics
operating temperature -25°C / +70°C
min. bending radius
installed 5x overall diameter
mobile use 10x overall diameter
no hazardous substances acc. to EU directivo RoHS 2011/65/EU from 08.06.2011
CE conformity acc. to EU directivo LVD 2006/95/EG
flame retardancy acc. to IEC 60332-1-2
heat of combustion 175 kWh/km
electric
conductor resistance 120 Ohm/km
shield resistance < 30 Ohm/km
capacitance
cond./cond.¹ 150 pF/m
cond./shield¹ 200 pF/m
cond./cond.² 60 pF/m
cond./shield² 110 pF/m
characteristic impedance¹ 40 Ohm
characteristic impedance² 110 Ohm
