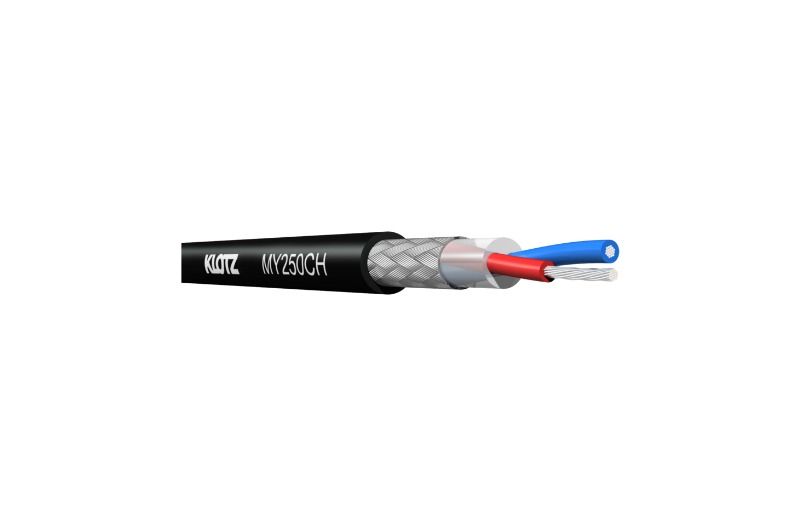

MY250CH.100

  • Marka : KLOTZ
  • Ürün Kodu :

MY250CH
dayanıklı profesyonel mikrofon kablosu 2x 0,50 mm² - ara kılıf - FRNC

Özellikler

  • 0,50 mm² iletken kesiti (AWG 20)
  • ultra düşük kapasite 60 pF/m (18 pF/ft)
  • kalaylı bakır spiral kalkan
  • çift bükümünü stabilize etmek için iç kılıf
  • Alev geciktirici ve aşındırıcı olmayan (FRNC)
  • CPR sınıfı Eca acc. EN50575'e (IEC 60332) göre

design
cond. construction stranded bare copper, 16x 0.20 mm
cond. cross section 0.50 mm²
insulation polyethylene (PE)
core arrangement 2 cores twisted to a pair
inner jacket extruded inner covering from PE
shielding tinned copper braid, 85% coverage
outer jacket FRNC
overall diameter 5.7 mm
mechanical & thermal characteristics
operating temperature -30°C / +70°C
min. bending radius
installed 5x overall diameter
mobile use 10x overall diameter
no hazardous substances acc. to EU directivo RoHS 2011/65/EU from 08.06.2011
CE conformity acc. to EU directivo LVD 2006/95/EG
halogen-free acc. to IEC 60754-1
non corrosive acc. to IEC 60754-2
flame retardancy acc. to IEC 60332-1-2
low smoke emission acc. to IEC 61034-2
heat of combustion 720 kJ/m
electric
conductor resistance < 35 Ohm/km
capacitance
cond./cond. 60 pF/m
cond./shield 95 pF/m
insulation resistance > 10 GOhm x km
