MC2000SW.100

  • Marka : KLOTZ
  • Ürün Kodu : MC2000SW.100

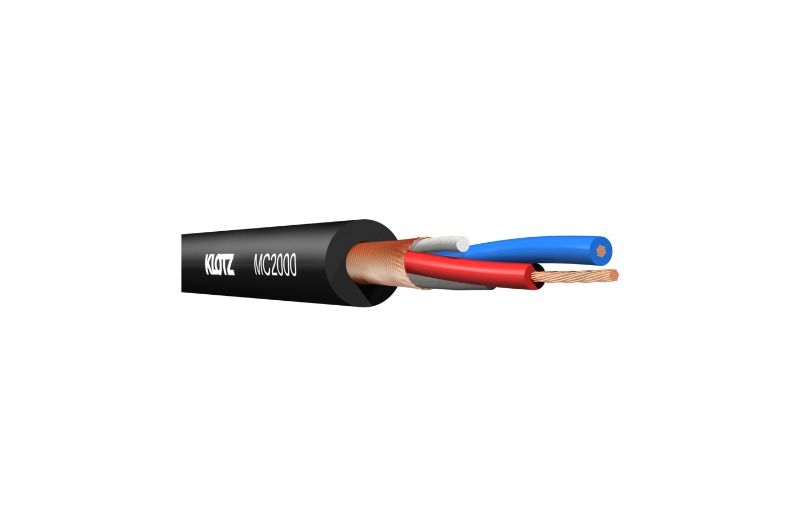

MC2000
M2 profesyonel mikrofon kablosu 2x 0,22 mm² - ekstra ağır kılıf - PVC

Özellikler

  • 0,22 mm² iletken kesiti (AWG 24)
  • ultra düşük kapasite 60 pF/m (18 pF/ft)
  • çıplak bakır spiral kalkan
  • ekstra ağır genel kılıf

design
cond. construction stranded bare copper, 28x 0.10 mm
cond. cross section 0.22 mm²
insulation polyethylene (PE)
core arrangement 2 cores + twisted cotton tracers
shielding bare copper spiral shield
outer jacket PVC, matt
overall diameter 6.5 mm
mechanical & thermal characteristics
operating temperature -25°C / +70°C
min. bending radius
installed 5x overall diameter
mobile use 10x overall diameter
no hazardous substances acc. to EU directivo RoHS 2011/65/EU from 08.06.2011
CE conformity acc. to EU directivo LVD 2006/95/EG
flame retardancy flame retardant acc. to IEC 60332-1-2
electric
conductor resistance < 85 Ohm/km
capacitance
cond./cond. 60 pF/m
cond./shield 110 pF/m
insulation resistance > 10 GOhm x km
