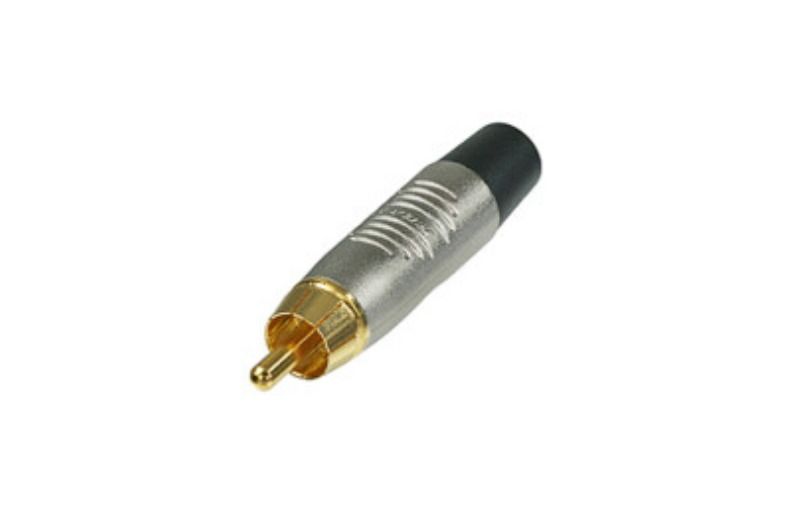

RF2C-AU-0

  • Marka : REAN
  • Ürün Kodu : RF2C-AU-0

RCA fişi, altın kaplama kontaklar

Product
Title RF2C
Connection Type Phono ("RCA/Cinch")
Electrical
Contact Resistance <=10 mOhm
Insulation Resistance >=200 MOhm(Initial)
Dielectric Strength 50Hz 0.5kv dc
Mechanical
Insertion and Withdrawal Force 5-40N
Lifetime >5,000 Mating Cycles
Cable O.D. 4 - 6 mm
Wiresize 1.5 mm²
Wiresize 16 AWG
Material
Bush ring ABS
Chuck POM
Ground Contact Bronze
Boot PVC
Housing Zinc
Housing Brass
Pin Body PA6+30%GF
Housing Gold Plating
Ground Contact Gold Plating
Housing Nickel Plating
