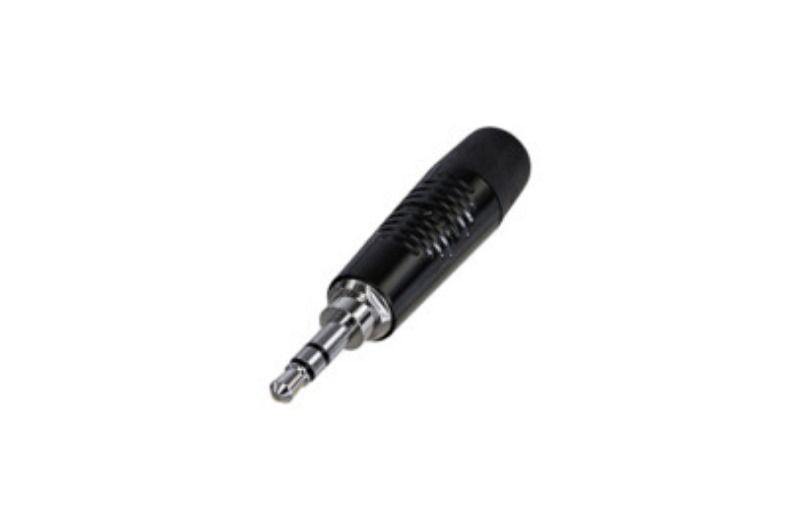

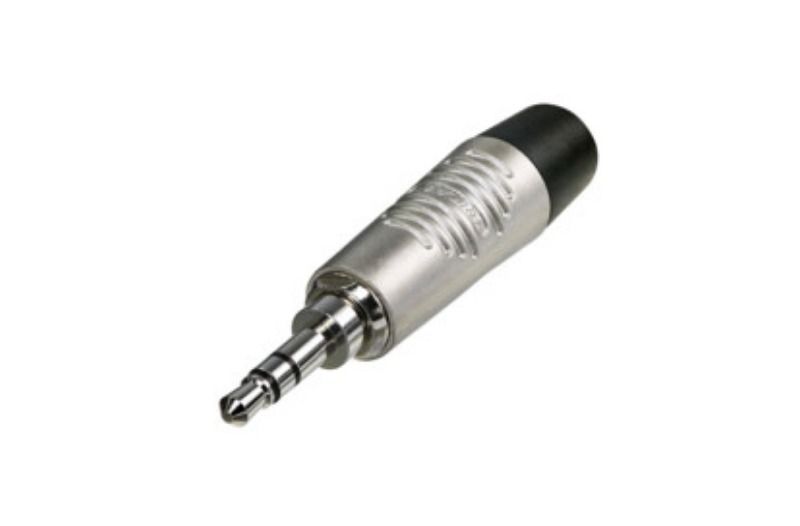

RTP3C-B

Stereo 3 kutuplu

Product
Title	RTP3C
Connection Type	Plug
Electrical
Contact Resistance	<=10 mOhm
Insulation Resistance	>200 MOhm(Initial)
Dielectric Strength	500V dc 50HZ
Mechanical
Insertion and Withdrawal Force	<=60 N
Lifetime	>1,000 Mating Cycles
Cable O.D.	2 - 4 mm
Wiresize	0.24 mm²
Wiresize	24 AWG
Material
Sleeve Assembly	Brass
Sleeve	Brass
Housing	Zinc
Sleeve Assembly	Nickel Plating
Sleeve	Nickel Plating
Housing	Nickel Plating
