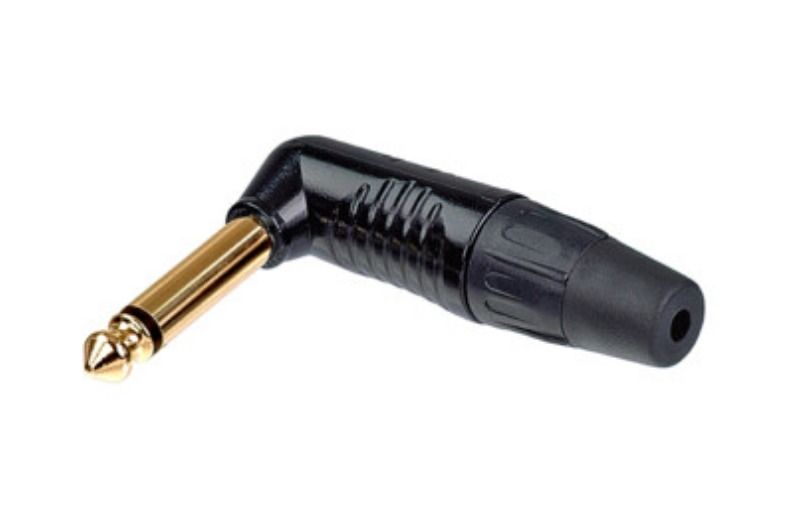

RP2RC-B

Mono 1/4" dik açılı fiş

Product
Title	RP2RC
Connection Type	Plug
Electrical
Contact rated current	depends on mating connector mOhm
Contact resistance	depends on mating connector mOhm
Dielectric strength	1 kV dc
Insulation resistance	> 1.5 GOhm
Mechanical
Lifetime	> 1000 mating cycles
Cable O.D.	4 - 7 mm
Wiresize	1.0 mm²
Wiresize	18 AWG
Wiring	Solder contacts
Material
Boot	PA6+30% GF
Contact	Brass ( CuZn39Pb3)
Contact plating	Nickel / Au
Shell	Zinc alloy
Shell plating	Nickel / Black
Strain relief	POM
Environmental
Temperature range	-20 °C to +70 °C
Flammability	UL 94 HB
Solderability	complies with IEC68-2-20
