RLS4MPZ

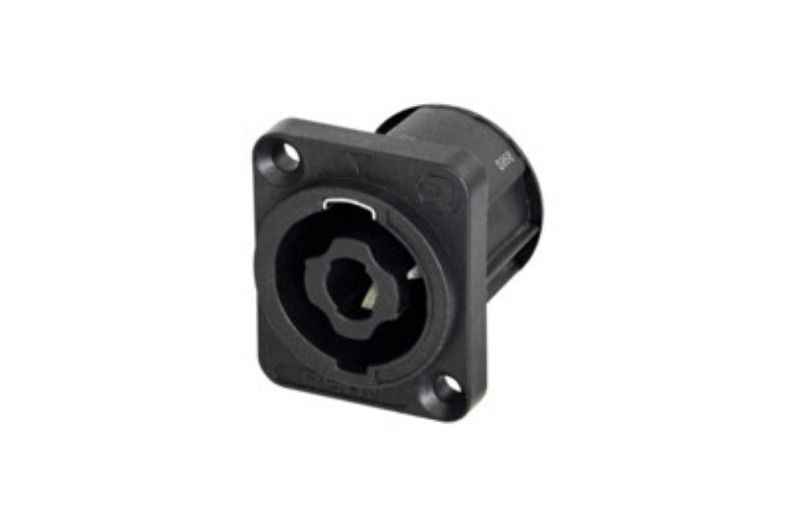

4 kutuplu hoparlör yuvası, D Boyutu öne monteli, 3/16" düz tırnaklı kontaklar

Product
Title	RLS4MPZ
Connection Type	Loudspeaker Connectors
Electrical
Rated current	continuous 30 A rms
Contact resistance	<= 5 mOhm
Insulation resistance	> 1 GOhm
Dielectric strength	4 kV dc
Rated Voltage	250 V
Mechanical
Lifetime	> 1000 mating cycles
Chassis shape	D

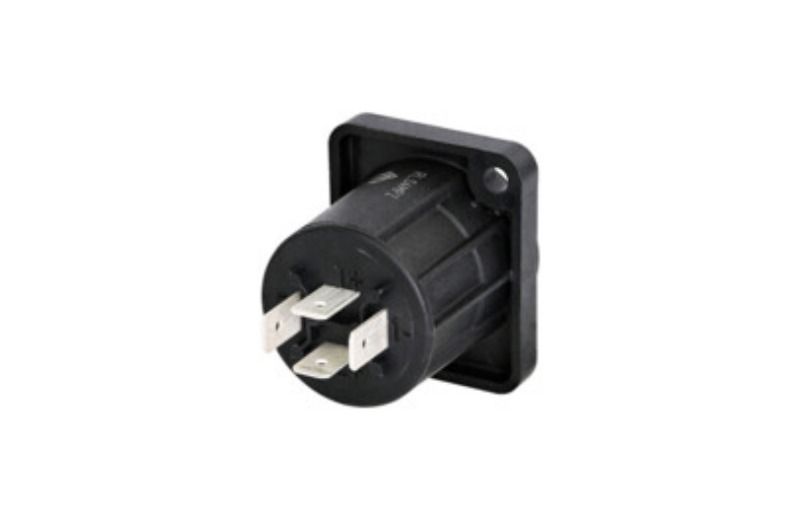

Wiring	flat tab ( 4.8 × 0.5 mm ) or soldering
Mounting direction	Front mounting or rear mounting
Material
Contact	Bronze
Contact plating	Ag
Shell	PA6+30%GF
Environmental
Temperature range	-30 °C to +80 °C
Flammability	UL94 V-0
Solderability	complies with IEC68-2-20
