RCAC3I-G-001-0

  • Marka : REAN
  • Ürün Kodu : RCAC3I-G-001-0

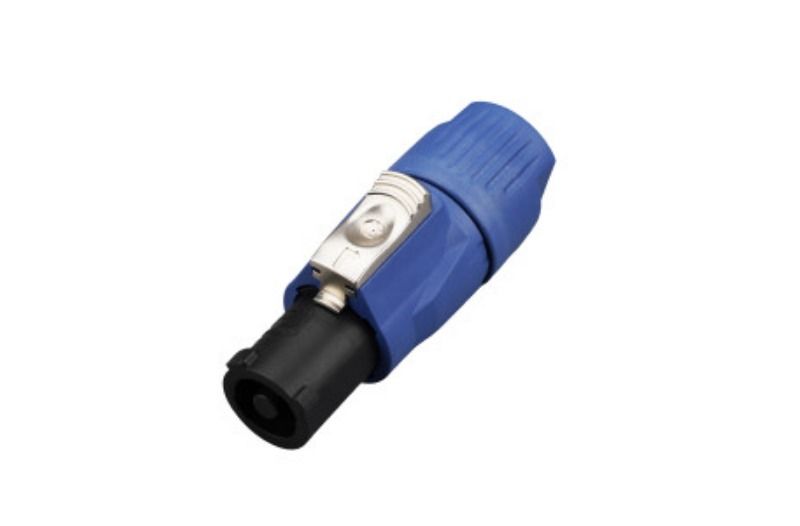

3 kutuplu AC güç girişi konektörü

Product
Title RCAC3I-G-001
Connection type Power connector
Electrical
Contact resistance < 3 mOhm
Dielectric strength 4kV AC
Insulation resistance > 1GOhm (Initial)
Rated current per contact 20A rms
Rated voltage 250V AV
Mechanical
Lifetime 4000 mating cycles
Locking method Twist lock
Material
Housing PA
Insert PA
Contact Bronze
Contact plating Ag
Strain relief PA
Environmental
Flammability UL 94 V-0
Temperature range -30 °C to +80 °C
