RRAC3O-G-000-0

  • Marka : REAN
  • Ürün Kodu : RRAC3O-G-000-0

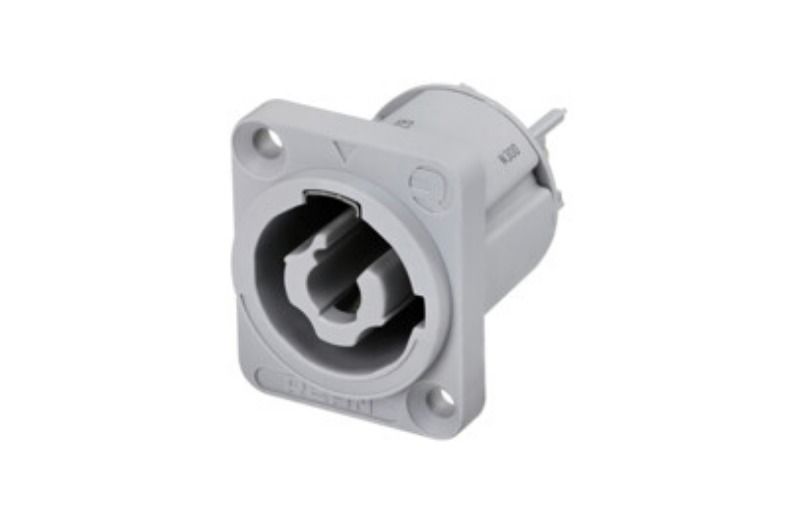

Önden ve arkadan monte edilebilen D-Size montaj flanşlı 3 kutuplu AC elektrik prizi

Product
Title RRAC3O-G
Connection Type Power Connectors
Electrical
Number of contacts 2 + PE
Rated current per contact 16 A / 20 A RMS
Rated Voltage 250 V / 127 V AC
Dielectric strength (peak) 4 kV ac
Contact resistance <= 3 mOhm
Insulation resistance (after dampheat, IEC 68-2-30) > 1 GOhm
Mechanical
Retention method Twist lock
Cable O.D. range 6 -15 mm
Wiring Cable Screw type terminals, wire size 2.5 mm² / 12 AWG
Wiring Receptacle Flat tabs for FASTON® (4.8 x 0.5 mm) or soldering
Material
Cable connector contacts Brass, Ag plated
Receptacle contacts Bronze, Ag plated
Chucks POM
Environmental
Flammability UL94 V-0
Temperature range -30 °C to +80 °C
Protection class (mated) IP 20
Safety Requirments EN / IEC61984
Solderability complies with IEC68-2-20
