RRE8F-D-001-0

  • Marka : REAN
  • Ürün Kodu :

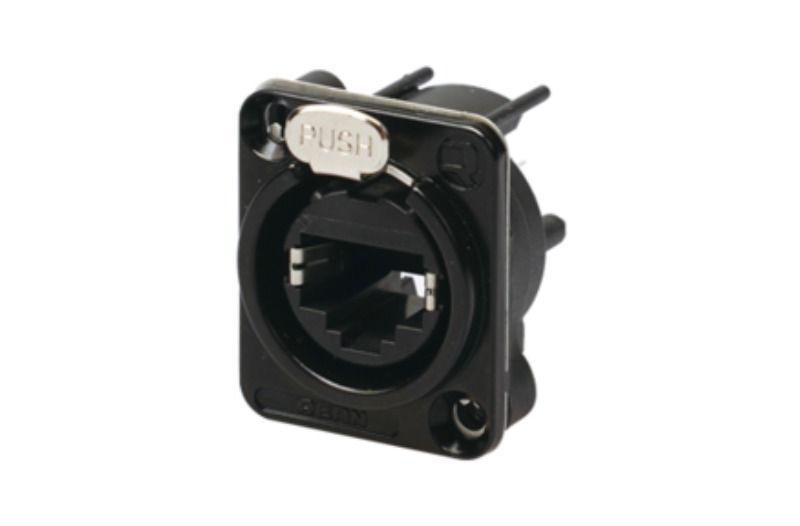

RJ45 Dikey PCB montaj yuvası, mandal kilitli D şeklinde metal flanş

Özellikler ve Faydalar

  • D tipi standart flanş
  • Güvenilir mandal kilit sistemi

Product
Title RRE8F-D-001
Gender female
Electrical
Contact resistance < 10 mOhm
Dielectric strength 1 kVdc
Frequency range 1-100MHz
Insulation resistance > 0.5 GOhm
Rated current per contact 1.5 A
Rated voltage < 50 V
Standard compliance TIA/EIA 586B, IEC11801
Power over Ethernet PoE+ acc. IEEE 802.3at
Mechanical
Insertion force <= 20 N
Withdrawal force <= 20 N
Lifetime > 1000 mating cycles
Panel thickness max. 4 mm 0.16'
Wiring Vertical PCB mount
Locking device Latch lock
Chassis shape D
Material
Contact plating Au
Contacts Bronze
Insert PBTP 15 % GR
Shell Zinc alloy
Shell plating Black
Environmental
Flammability UL94 V-0
Temperature range -30 °C to +80 °C
