RRE8F-A-001

Marka : REAN
Ürün Kodu :

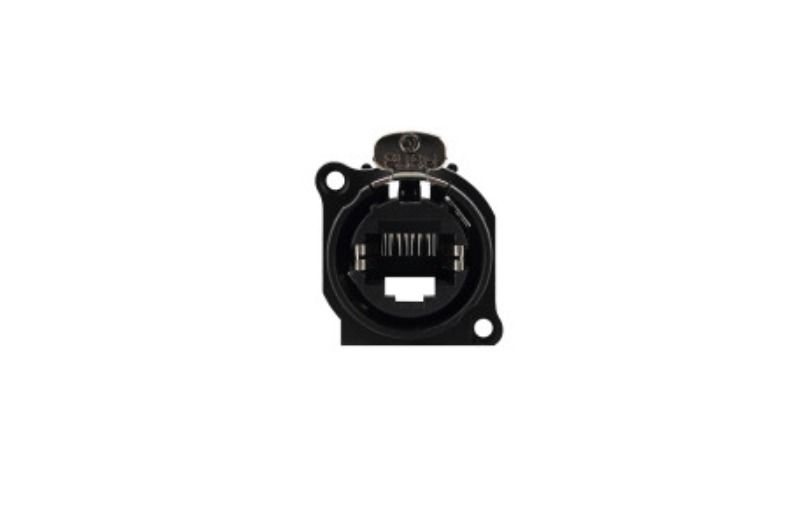

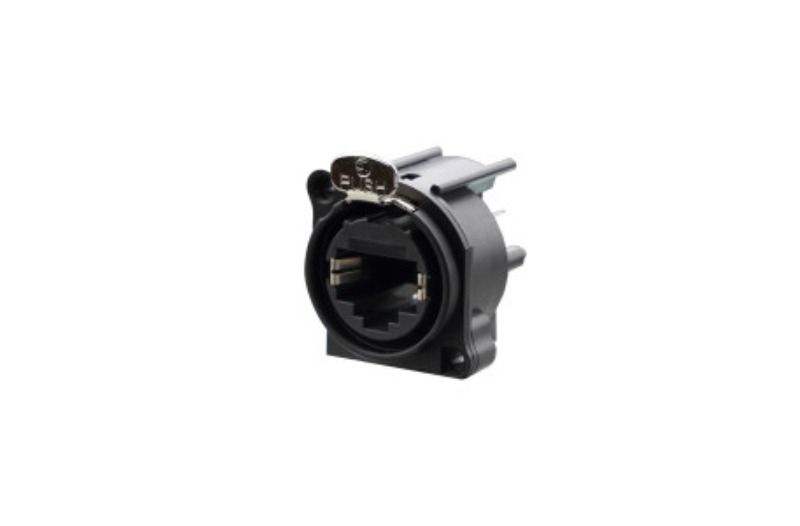

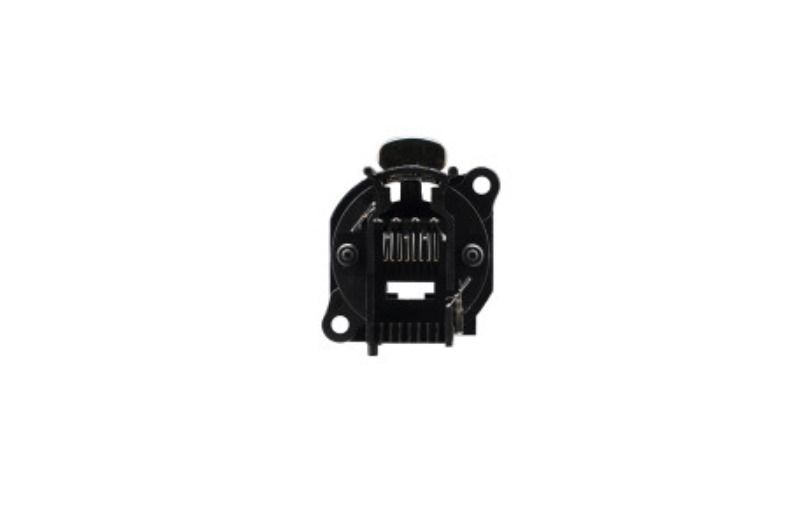

Dikey PCB montajlı RJ45 yuvası, mandal kilitli A-Serisi kesit

Özellikler ve Faydalar

Uygun maliyetli Ethernet Şasi çözümü
CAT5E performansı
Endüstriyel standart A tipi panel kesimi ve PCB montajı

Product
Title	RRE8F-A-001
Connection type	Ethernet
Gender	Female
Electrical
Contact resistance	<50 mOhm
Dielectric strength	1 kVdc
Insulation resistance	> 0.5 GOhm
Rated current per contact	1.5 A
Rated voltage	<= 57 V
Transmission performance	CAT5e
Mechanical
Insertion force	<= 40 N
Withdrawal force	<= 40 N
Lifetime	1000 mating cycles
Wiring	Vertical PCB mount
Locking device	Latch lock
Mounting direction	Rear mounting
Chassis shape	A
Mounting	A-Screw
Material
Contacts	Au
Locking element	Bronze
Shell	Plastic
Environmental
Solderability	Complies with IEC 68-2-20
Temperature range	-30 °C to +80 °C
