RC4M

Marka : REAN
Ürün Kodu :

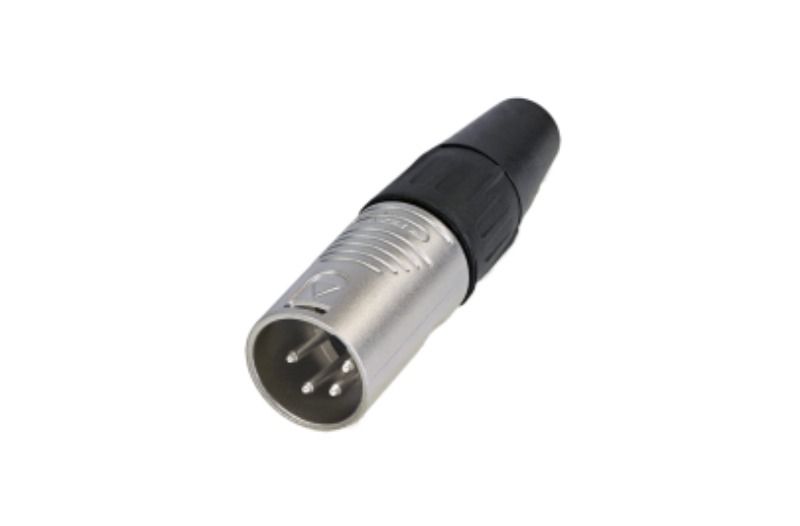

4 kutuplu erkek XLR kablo konnektörü

Product
Title	RC4M
Connection type	XLR
Gender	Male
Electrical
Contact resistance	<= 5 mOhm
Insulation resistance	> 1.5 GOhm
Rated Current	10 A
Mechanical
Insertion force	<= 40 N
Withdrawal force	<= 40 N
Lifetime	> 1000 mating cycles
Cable O.D.	4 - 7 mm
Wiresize	1.5 mm²
Wiresize	16 AWG
Material
Pin	Brass
Male Insert	PA6+30%GF UL94-HB
Ground Contact	Bronze
Housing	Zinc
Pin Chuck	POM
Push Ring	POM
Bushing	PA6+30%GF
Boot	PVC
Pin	Sliver Plating
Ground Contact	Tin and Cer
Housing	Nickel Plating
