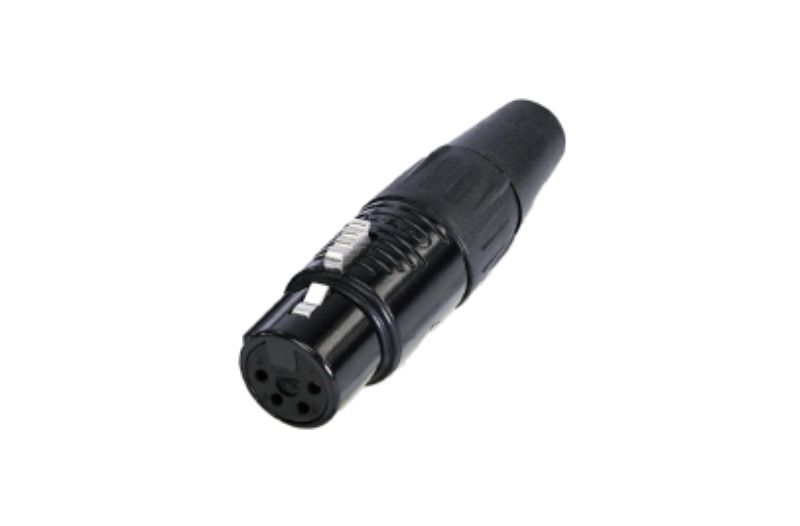

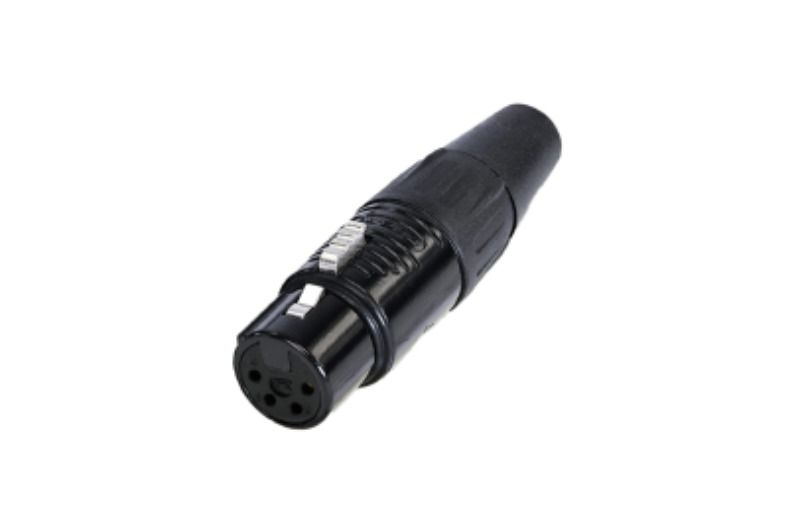

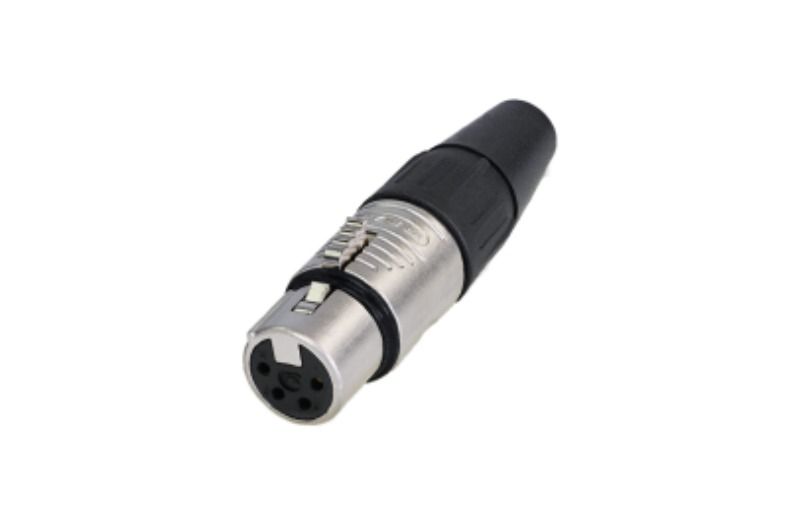

RC4F

  • Marka : REAN
  • Ürün Kodu :

4 kutuplu dişi XLR kablo konnektörü

Product
Title RC4F
Connection type XLR
Gender Female
Electrical
Insulation resistance > 1.5 GOhm
Contact resistance < 5 mOhm
Rated Current 10 A
Mechanical
Insertion force <= 40 N
Withdrawal force <= 40 N
Lifetime >1000 Mating Cycles
Cable O.D. 4 - 7 mm
Wiresize 1.5 mm²
Wiresize 16 AWG
Material
Plastic Body PA6+30%GF UL94-HB
Jack Bronze
Ground Contact Steel
Rubber Ring Rubber
Button Zinc
Housing Zinc
Chuck POM
Push Ring POM
Bushing PA6+30%GF
Boot PVC
Jack Sliver Plating
Ground Contact Tin and Cer
Button Nickel Plating
Housing Nickel Plating
