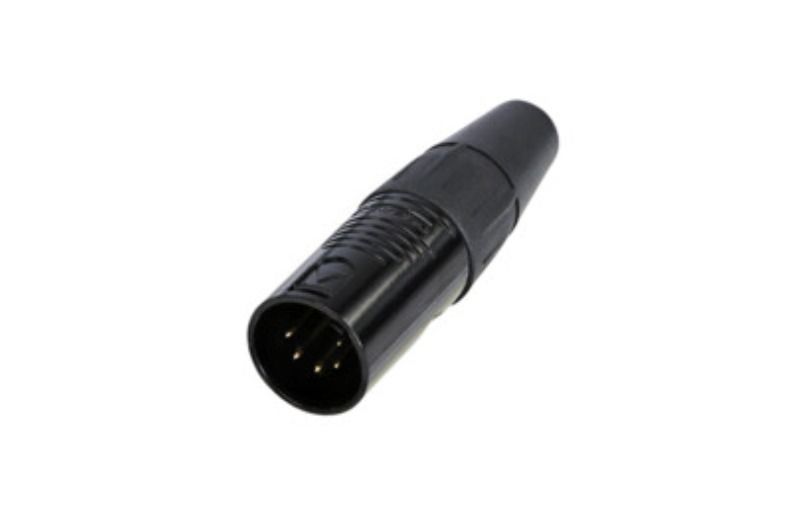

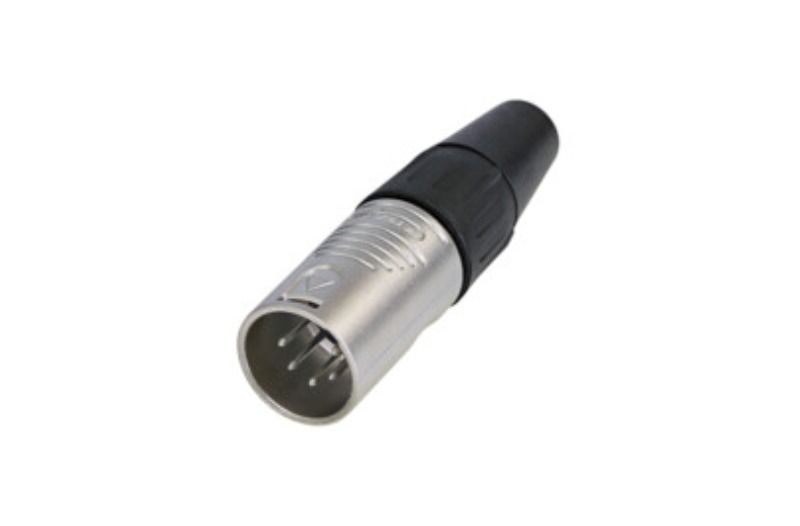

RC5M-BAG

  • Marka : REAN
  • Ürün Kodu : RC5M-BAG

5 kutuplu erkek XLR kablo konnektörü

Product
Title RC5M
Connection Type XLR
Gender male
Electrical
Insulation Resistance >1.5 GOhm
Contact Resistance <= 5 mOhm
Rated Current 10 A
Mechanical
Lifetime >1000 Mating Cycles
Insertion Force <= 30 N
Withdrawal Force <= 20 N
Cable O.D. 4 - 7 mm
Wiresize 1.5 mm²
Wiresize 16 AWG
Material
Housing Zinc
Pin Brass
Male Insert PA6+30%GF
Ground Contact Bronze
Chuck POM
Bushing PA6+30%GF
Push Ring POM
Boot PVC
Housing Nickel Plating
Pin Sliver Plating
Ground Contact Tin and Cer
