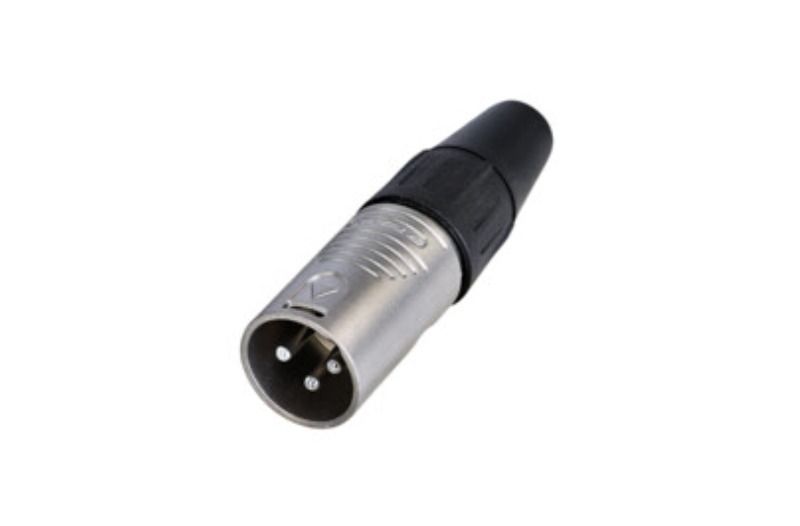

RC3M

Marka : REAN
Ürün Kodu : RC3M

3 kutuplu erkek XLR kablo konnektörü

Product
Title	RC3M
Connection Type	XLR
Gender	male
Electrical
Insulation Resistance	> 1.5 GOhm
Contact Resistance	<= 5 mOhm
Rated Current	10 A
Mechanical
Lifetime	>1000 Mating Cycles
Insertion Force	<= 30 N
Withdrawal Force	<= 20 N
Cable O.D.	4 - 7 mm
Wiresize	1.5 mm²
Wiresize	16 AWG
Material
Pin	Brass
Male Insert	PA6+30%GF UL94-HB
Ground Contact	Bronze
Housing	Zinc
Chuck	POM
Push Ring	POM
Bushing	PA6+30%GF
Boot	PVC
Pin	Sliver Plating
Ground Contact	Tin and Cer
Housing	Nickel Plating
