COL600

  • Marka : JBL
  • Ürün Kodu :

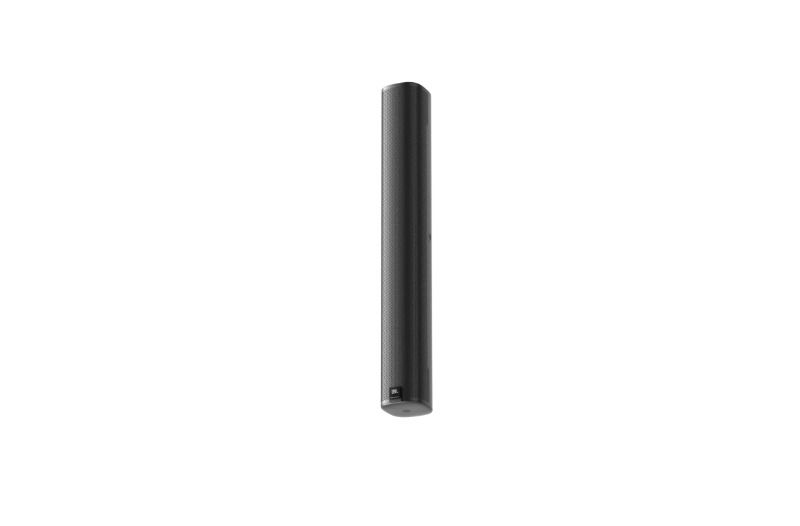

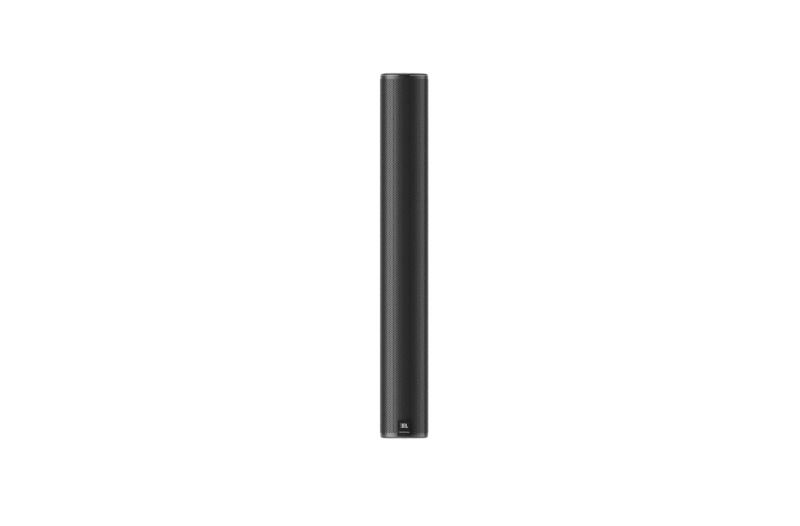

JBL COL600, geniş yatay ve dar dikey kapsama alanı sağlayan, hedefe yönelik yerleşik 10° aşağı eğime sahip, çoğu dinleme alanı için optimum kapsama alanı sağlayan ve hoparlörün duvara düz olarak monte edilmesine olanak tanıyan zarif, 24 inç (600 mm) ince kolonlu bir hoparlördür. Endüstriyel tasarım mükemmelliği alanında uluslararası tasarım ödüllerinin sahibi olan ince, kompakt tasarım, neredeyse her türlü mimari dekoru tamamlar.
Şık tasarım ve olağanüstü performans özelliklerinin birleşimi, COL600'ü konferans/toplantı odaları, konferans salonları, perakende mağazalar, yolcu salonları, geçiş alanları, dolgu uygulamaları, video için ses ve ince, kompakt tasarım ve yüksek performansın istendiği diğer uygulamalar gibi çok çeşitli uygulamalar için ideal kılar.

İki adet 5 inç x 2,25 inç yarış pisti woofer'ı, sütun form faktöründe maksimum yayılma alanı sağlar. Tweeter, dinleme alanının daha az engellenmesi için dizinin üst kısmında yer alır ve kabin duvara düz olsa bile aşağı eğimli kapsama hedefine izin verecek şekilde aşağı bir açıyla hedeflenir. 3,7 inçlik (93 mm) sığ kabin derinliği, kabinin arkası duvara aynı hizada olacak şekilde kurulduğunda ADA (Engelli Amerikalılar Yasası) projelerine uygundur.

20 watt'lık çoklu kademe transformatörü, 70 V veya 100 V dağıtılmış hoparlör hatlarında kullanıma izin verirken, hoparlör, 80 W sürekli güç kullanımıyla (320 W tepe, 2 saat) doğrudan 8 ohm çalışma için değiştirilebilir. 70 Hz ila 20 kHz frekans aralığı, müzik veya konuşma için temiz, net ses sağlar.

Çok yönlü kurulum, üst ve alt panellere (yatay pan hedefleme için) veya sol ve sağ yan panellere monte edilebilen, birlikte verilen iki L braketi ile sağlanır. Her iki konum da duvara yakın kuruluma olanak tanır. Ek olarak, kabin hedeflemesine 10°'ye kadar aşağı eğim eklemek için düşük profilli bir döner (pan) / eğimli duvar braketi de dahildir (hoparlör duvara düz monte edildiğinde yerleşik 10° aşağı eğim amacına ek olarak).

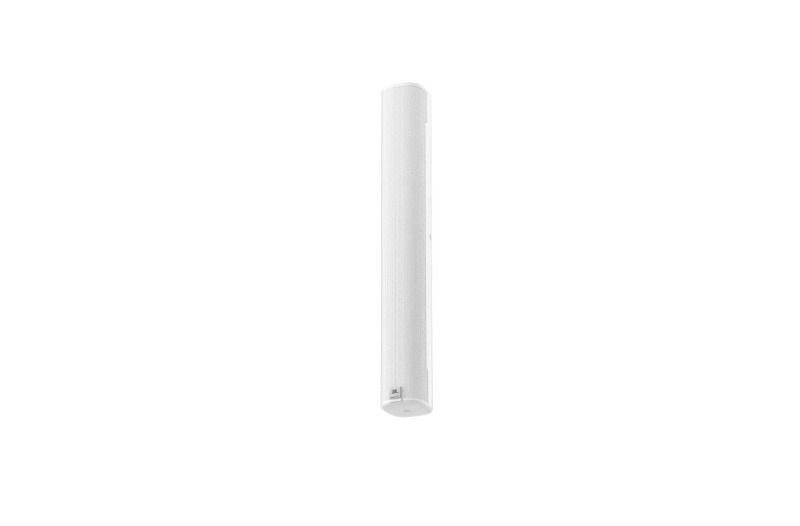

COL600, toz veya su girişine karşı koruma için IP54 derecesine (IEC60529 uyarınca) sahiptir. Sürücüler su ile arıtılmıştır, ızgarada su desteği vardır ve giriş terminallerini korumak için bir kapak dahildir. Siyah (JBL-COL600-BK) veya beyaz (JBL-COL600-WH) renkleri mevcuttur.

Özellikler

  • İki adet 5 x 2,25 inç yarış pisti woofer'ı ve bir adet 1 inç tweeter
  • Sığ 3,7 inç kabin derinliği ile 24 inç yüksekliğinde
  • Geniş 160° yatay ve odaklanmış 110° dikey kapsama alanı
  • Kabinin fiziksel olarak aşağı eğilmesine gerek kalmadan çoğu dinleme alanını kapsamayı amaçlayan 10° aşağı eğim
  • 80W sürekli pembe gürültü güç kullanımı (320W tepe noktası)
  • 70 Hz - 20 kHz frekans aralığı
  • Dahili 20W 70V/100V çoklu kademe trafosu ve ayrıca 8 ohm doğrudan giriş.
  • 111 dB tepe SPL (105 dB sürekli), 2 saat
  • Dinleme alanının engelsiz kapsaması için sütunun üst kısmına yakın Tweeter
  • Çok yönlü montaj braketleri dahildir - her ikisi de

Frequency Range (-10 dB)¹ 70 Hz - 20 kHz
Frequency Response (+/-3 dB) 105 Hz - 20 kHz
Power Rating (8 Ohm setting)2 160W Continuous Program (2 hrs)
80W (320W peak) Continuous Pink Noise (2 hrs)
60W (240W peak) Continuous Pink Noise (100 hrs)
Sensitivity (2.83V @ 1m) 86 dB
Coverage Pattern Vertical 110° [1kHz-4 kHz average];
10° down-tilt to aiming access for+45°/-65° coverage in relation to physical cabinet aim
Horizontal 160° [1kHz - 4 kHz average]
Directivity (Q) 7.8
Directivity Index (DI) 8.9 dB
Rated Maximum SPL 105 dB Continuous (111 dB peak) @ 1m
Nominal Impedance 8 Ohm (in Thru/direct mode)
Minimum Impedance 7.0 Ohm@ 275 Hz
Transformer Taps 20W, 10W, 5W @ both 70V & 100V (plus 2.5W @ 70V), and 8 Ohm thru, selectable via switch
Transformer Insertion Loss Less than 1 dB for all taps
Maximum Input Voltage 21 V RMS (2 hrs), 42 V peak
Recommended Protective High-Pass 70 Hz for 8 Ohm operation; 60 Hz for all transformer tap settings (20W, 10W, 5W and 2.5W).
Drivers Two 125 x 55 mm (5 x 2.25 in.) racetrack LF drivers
One 25 mm (1 in.) tweeter (tweeter located at top of array for better coverage of listening space)
Enclosure Material PC + ABS, UL94-V0 flammability rating
Grille Plated SPCC with polyester powder coat finish
Agency Ratings Transformer UL recognized. RoHS, REACH compliance. LVD for CE.
Environmental Rating IP-54 rated per IEC60529, dust and water protected when installed with included rain cover for input terminal compartment and no physical up-tilt cabinet aiming. UV resistant. [Cycle 1 per ISO 4892.3-2006]
Terminals 4-pin Euroblock connection for bare wire, accepts 24 to 14 AWG gauge wire (0.25 to 2.5 sq mm). Rain cover allows for one or two 2-wire cables, with max cable jacket diameter of 8 mm (0.3 in)
Insert Points

Back Panel: 2 threaded insert points for WALL BRACKET; attaches via included M6 x 20 mm bolts, flat washers, & lock washers; plus 1 threaded insert point for secondary safety cable, M6 threaded x 20 mm deep.

Top & Bottom Caps: 1 threaded insert point on each cap (top & bottom, 2 insert points total) for L-BRACKETS; attach via included M6 x 28 mm bolts, flat washers, and lock washers. (Remove silicon caps over insert points AND remove pre-installed bolts holding end cap in place.) [Note: For installer-specified attachment to these threaded insert points (without L-bracket), threaded insert is M6 x 28 mm deep.]

Side Panels: 1 threaded insert point on each side (left and right, for 2 insert points total) for L-BRACKETS; attach via included M6 x 28 mm bolts, flat washers, and lock washers. (Remove silicon caps over insert points.) [Note: For installer-specified attachment to these threaded insert points (without L-bracket), insert is M6 x 22 mm deep.]

Mounting Multiple mounting methods (see Installation Guide for more details):

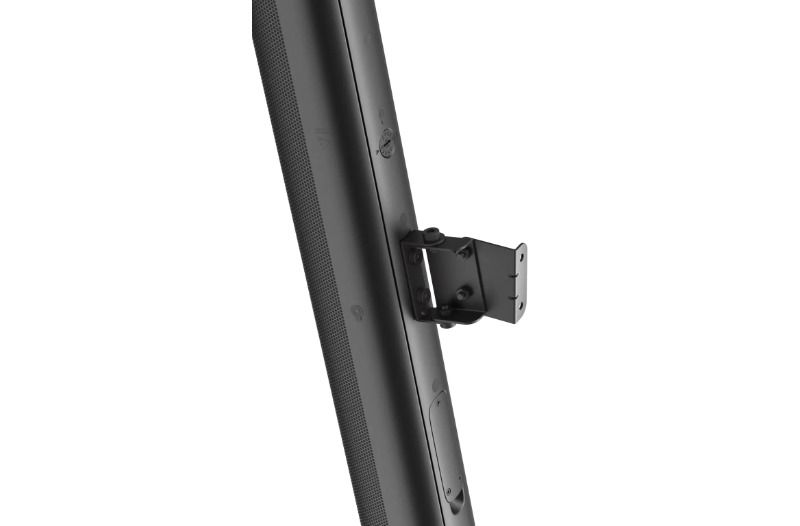

  1. Included Swivel (Pan) / Tilt WALL BRACKET provides continuously variable ±95° degree Horizontal left-right swivel (pan) aiming (at 0° down-tilt); continuously adjustable +0°/-10° Vertical tilt (when no interference to wall); WALL and SPEAKER sections of WALL BRACKET ASSEMBLY attach together via included M6 x 12 mm bolts, flat washers, and lock washers.

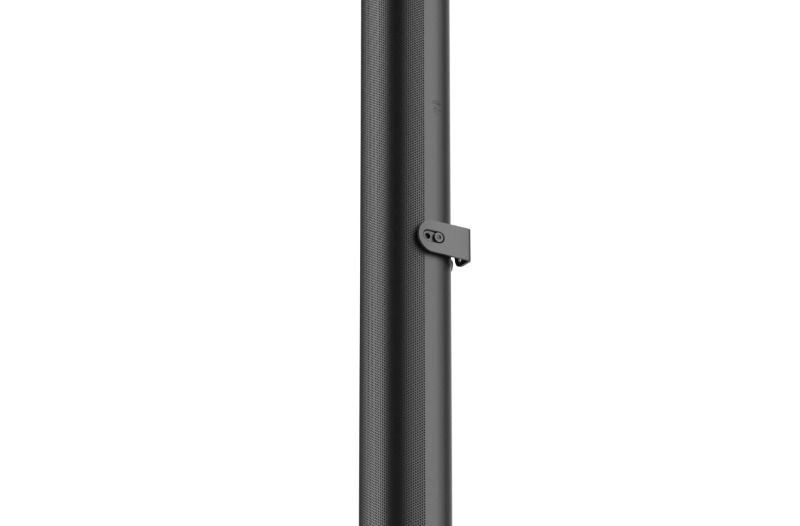

  2. Two included L-brackets that can be positioned on either top & bottom insert points or side-side insert points.
  3. Top, bottom, and 2 side threaded insert points can be interfaced by installer for installer-supplied mounting methods. Installer responsible for safety of mounting method.
Dimensions (H x W x D) 598 x 102 x 93 mm (23.6 x 4.1 x 3.7 inches)
Net Weight 3.5 kg (7.8 lbs) each
Shipping Weight 4.5 kg (10.0 lbs) each (packed 1 speaker per carton)
Included Accessories Low-profile Swivel (Pan) / Tilt WALL BRACKET; 2 x L-BRACKETS that can be positioned on top/bottom or side/side insert points.
SKU Numbers and Colors JBL-COL600-BK (black, RAL9004), JBL-COL600-WH (white, RAL9016)
