| Directional pattern |
Omnidirectional |
| Principle of operation |
Pressure |
| Cartridge type |
Pre-polarized condenser |
| Frequency response |
20 Hz - 20 kHz |
| Effective frequency range ±2 dB |
Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz |
| Sensitivity, nominal, ±3 dB at 1 kHz |
6 mV/Pa; -44 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted |
Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4 |
Typ. 38 dB (max. 40 dB) |
| Distortion, THD < 0.5% |
133 dB SPL RMS, 136 dB SPL peak |
| Distortion, THD < 1% |
136 dB SPL RMS, 139 dB SPL peak |
| Dynamic range |
Typ. 111 dB |
| Max. SPL, THD 10% |
144 dB SPL peak |
| Rated output impedance |
30 - 40 Ohm |
| Cable drive capability |
Up to 300 m (984 ft) with DAD9001-BC XLR Adapter |
| Power supply (for full performance) |
For wireless systems Min. 5 V - max. 10 V through DPA adapterWith DAD6001-BC: P48 (Phantom Power). Will work from 12 V |
| Current consumption |
Typ. 1.5 mA (microphone). 3.5 mA with DAD9001-BC XLR Adapter |
| Connector |
MicroLock, MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack |
| Weight |
7.5 g (0.26 oz) incl. Cable and MicroLock connector |
| Microphone diameter |
5.4 mm (0.21 in) |
| Microphone length |
12.7 mm (0.5 in) |
| Cable length |
1.8 m (5.9 ft) |
| Polarity |
Positively increasing sound pressure produces positive going voltage on MicroLock pin |
| Temperature range |
-40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) |
Up to 90% |
| Sensitivity selection tolerance (at 1 kHz) |
±1.5 dB |

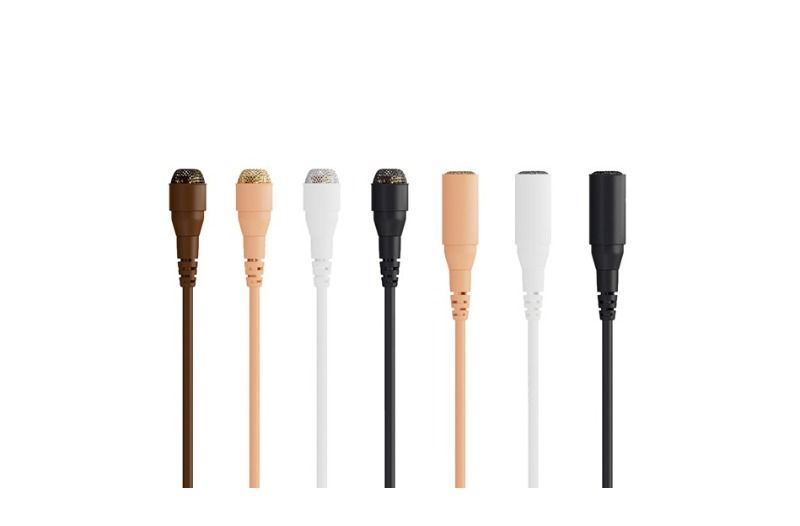

| Colors |
Black, Beige, Brown, White |
