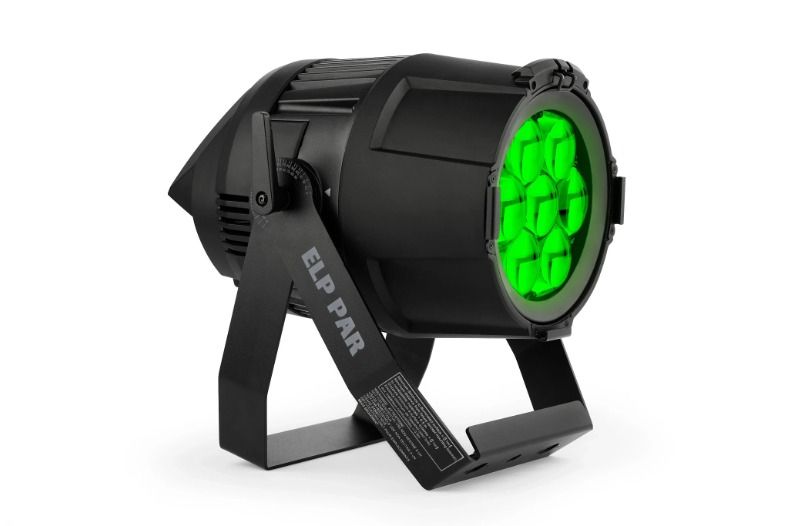

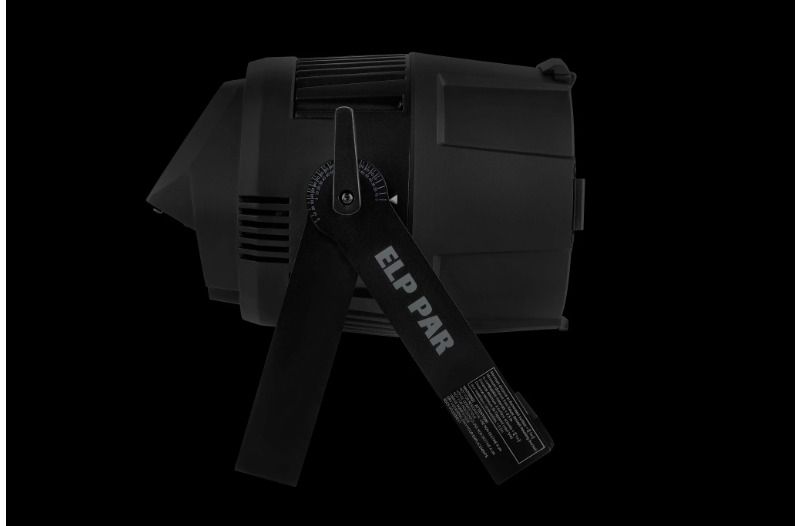

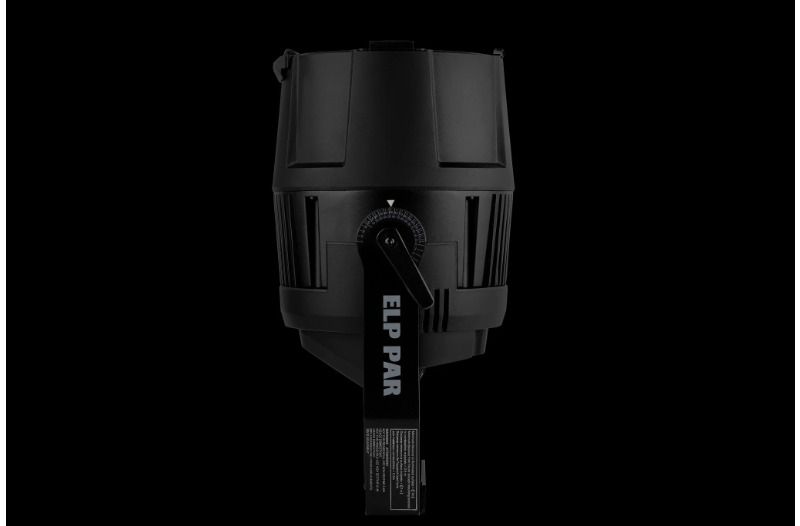

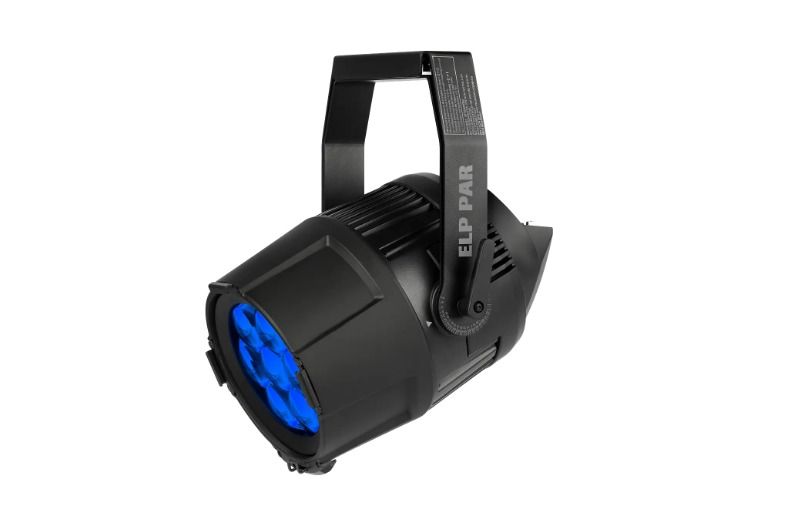

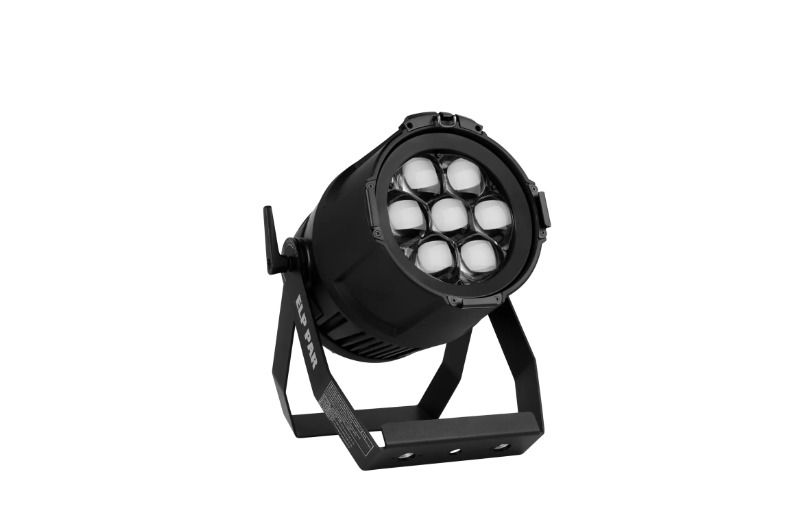

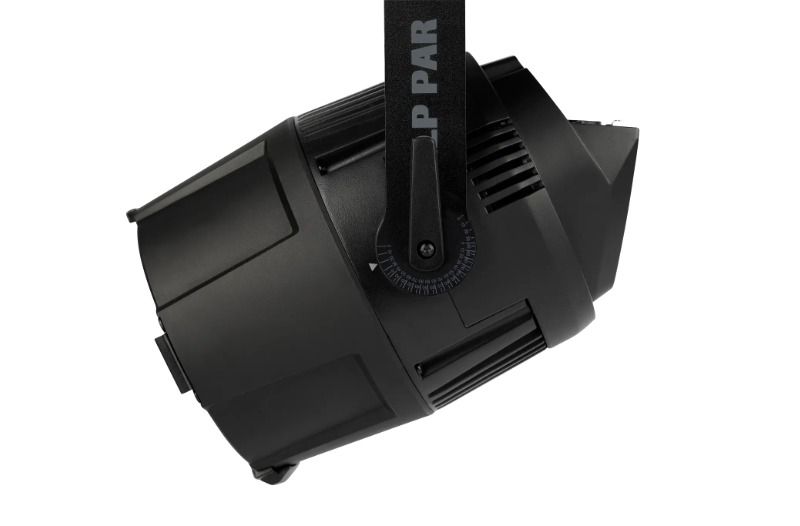

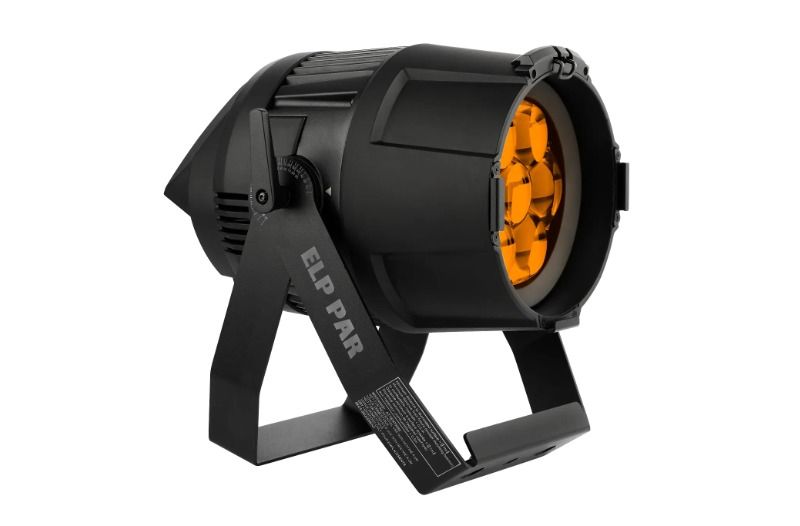

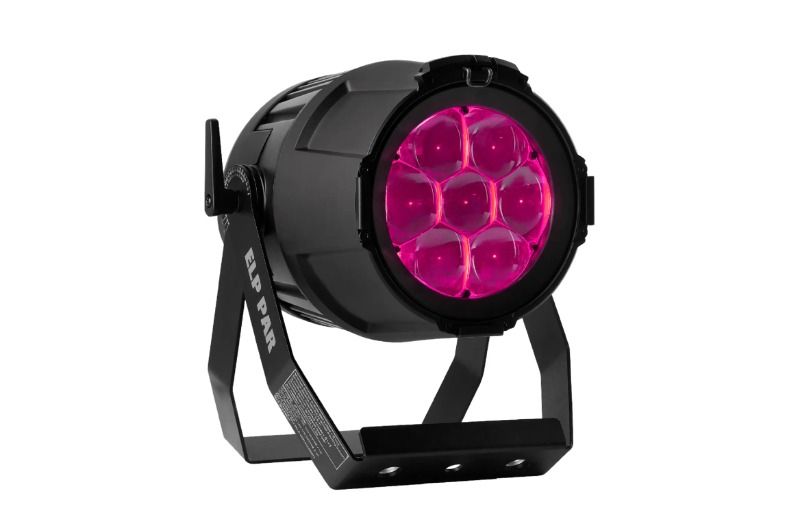

ELP PAR

  • Marka : MARTIN
  • Ürün Kodu : ELP PAR

ELP PAR
ZOOMLU STATİK RGBW LED PAR ARMATÜRÜ

Martin ELP PAR statik LED armatürü, benzeri görülmemiş lümen çıkışı, yüksek yoğunluklu dar yakınlaştırma, tam gamlı renk kalibrasyonu ve akıllı donanım ve kontrol özellikleriyle statik yıkama kategorisinde yeni bir standart belirliyor.

ELP PAR, hızlı odaklama sistemi ve parlak projeksiyon açısı göstergeleri sayesinde kurulumu daha hızlı ve daha kolay hale getirir. Diğer performans geliştirmeleri arasında hem sahne aydınlatmasına hem de sıkı orta ışın efektlerine olanak tanıyan geniş bir yakınlaştırma aralığı, doğru renk üretimi ve hassas renk sıcaklığı kontrolü sağlayan gelişmiş bir renk kalibrasyon sistemi, genişletilmiş bir renk modu ve RGB renginin istediğiniz beyaz nokta etrafında karıştırılmasına olanak tanıyan bir CTC kanalı yer alır.

İster bir tiyatro prodüksiyonunu, festivali, sergiyi veya kurumsal etkinliği aydınlatın, kendi sınıfında yeni bir performans standardı belirleyen bu çok yönlü LED armatürle sahneyi renklerle doldurun ve çarpıcı ışın efektleri yaratın.

Özellikler

  • Hafif motor: 7 x 40W RGBW
  • Tam gamlı renk kalibrasyon sistemi
  • CTC kontrolü: 1.800-12.850 K
  • Lümen çıkışı: 3.500 lm
  • Yoğunluk: 390.000 cd
  • Yakınlaştırma: 4,2 - 58°
  • Hızlı Odaklama modu, bir konsol operatörüne ihtiyaç duymadan kurulum ve odaklamaya olanak tanır
  • Projeksiyon göstergelerinden arındırılmış olması hızlı kurulum sağlar
  • Açılı güç ve veri bağlantıları, tesisatı veya kurulumu engellemeyen temiz bir kablo akışını destekler
  • Omega braket bağlantılı kafes kiriş ve zemine montaj boyunduruğu dahil
  • Düşük gürültülü 33 dB Tiyatro modunda çalışma
  • IP20 derecesi
  • Boyutlar: 312 x 287 x 401 mm (12,3 x 11,3 x 15,8 inç) (braket dahil)
  • Ağırlık: 7,8 kg (17,2 lb.)

Physical
Length 312 mm (12.3 in.)
Width 287 mm (11.3 in.)
Height 401 mm (15.8 in.) with bracket
Weight 7.8 kg (17.2 lbs.)
Dynamic Effects
Color mixing RGBW
Color presets 48 color presets, virtual color wheel effects
Zoom Motorized
Color temperature control Variable 1,800 - 12,850K
Electronic dimming 0 - 100%, four dimming curve options
Strobe and pulse effects Variable speed and action, random strobe
Electronic shutter effect Instant open and blackout
Control and Programming
Control options DMX, RDM
16-bit fine control Dimming, RGB, zoom
LED color management modes Raw, extended and calibrated

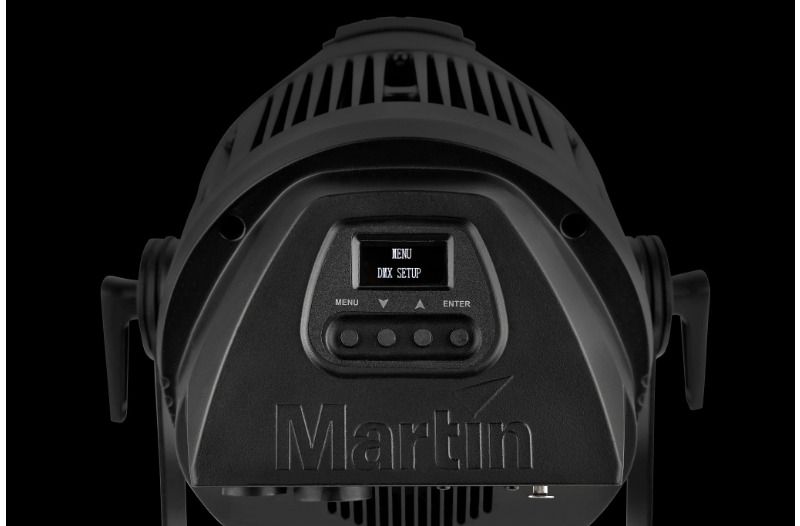

DMX address setting Control panel with OLED display
DMX channels 14
DMX compliance USITT DMX512-A
RDM compliance ANSI/ESTA E1.20
Firmware update via DMX using Martin Companion
Optics

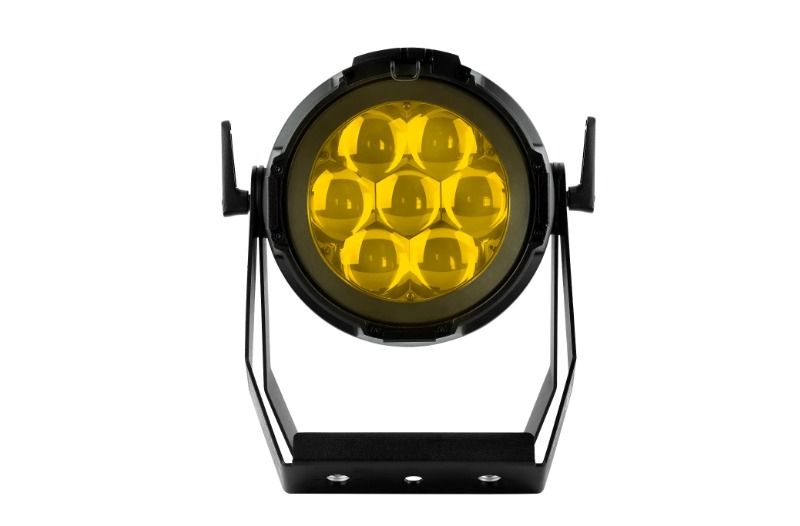

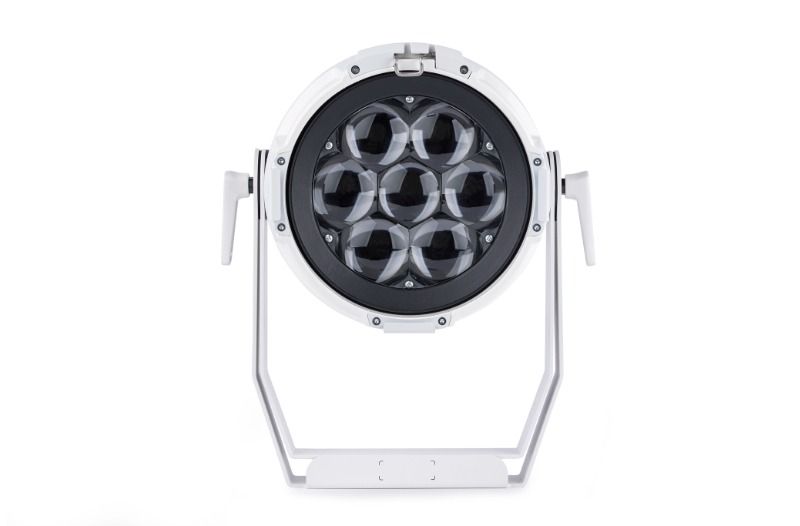

Light source 7 x 40 W RGBW Osram LEDs
Minimum LED lifetime 50,000 hours (to >70% luminous output)*
Beam angle (half-peak) 4.2° - 38.7°
Field angle (one-tenth peak) 5.1° - 58.6°
Cutoff angle (3%) 5.7° - 69.6°
Binning Tight color and flux binning
Calibration Full Gamut Color Calibration*Figure obtained under manufacturer's test conditions
Photometric Data
Wide beam 3,525 lumens
Narrow beam 1,445 lumens
Fixture Center Intensity Narrow Beam 390,083 cd
Fixture Center Intensity Wide beam 9,957 cd
CRI (Color Rendering Index) >70
CQS (Color Quality Scale) 83
TM-30 Rf (IES TM-30-15 Fidelity Index) 77
TM-30 Rg (IES TM-30-15 Gamut Index) 117
TLCI (Television Lighting Consistency Index) 61
CCT 6,500 K
LED refresh rate - Standard Mode 3600 Hz
LED refresh rate - Theatre Mode 19200 Hz
*All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Construction
Housing Aluminum and composite
Filter mount 191 x 191 mm (7.5 x 7.5 in.)
Color Black
Protection rating IP 20
Installation

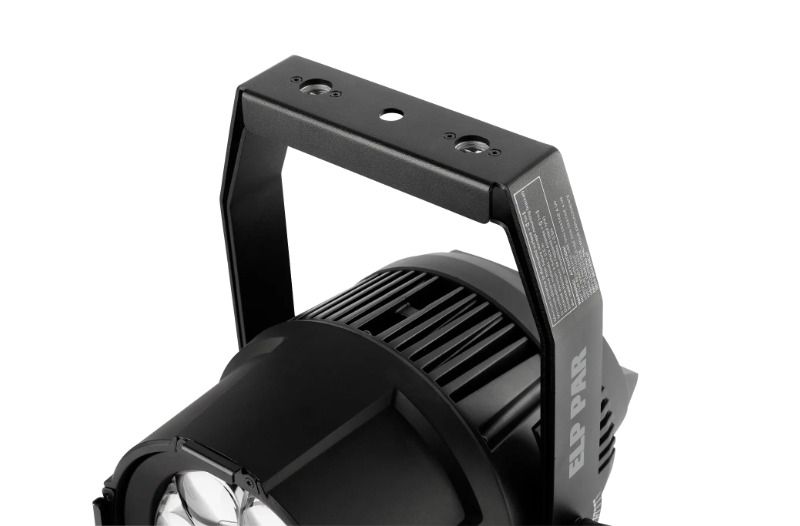

Mounting points Adjustable bracket, surface or truss mount (fits Martin Omega Bracket)
Location Not for household use, indoor use in dry location only
Orientation Any
Minimum distance to combustible materials 0.5 m (1.7 ft.)
Minimum distance to illuminated surfaces 1 m (3.3 ft.)
Minimum clearance around fan and air vents 0.5 m (1.7 ft.)

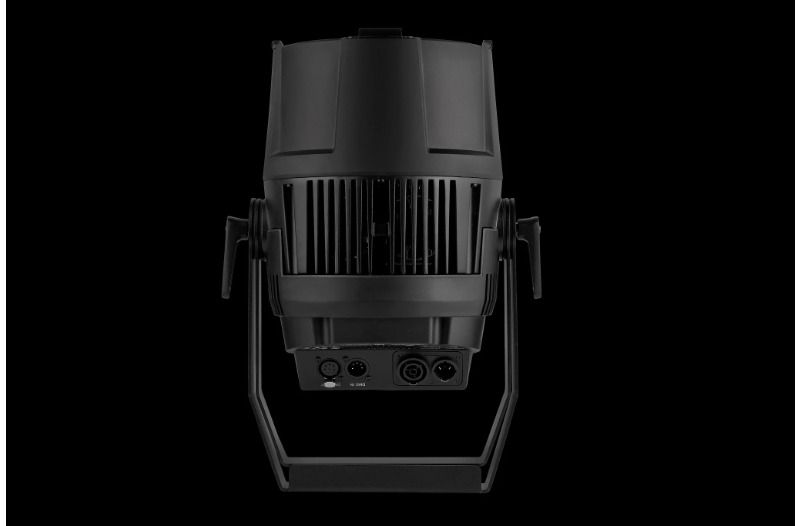

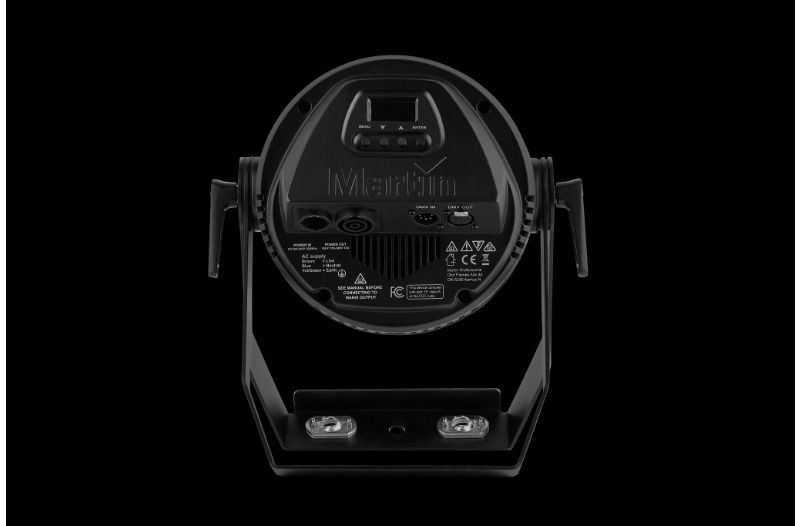

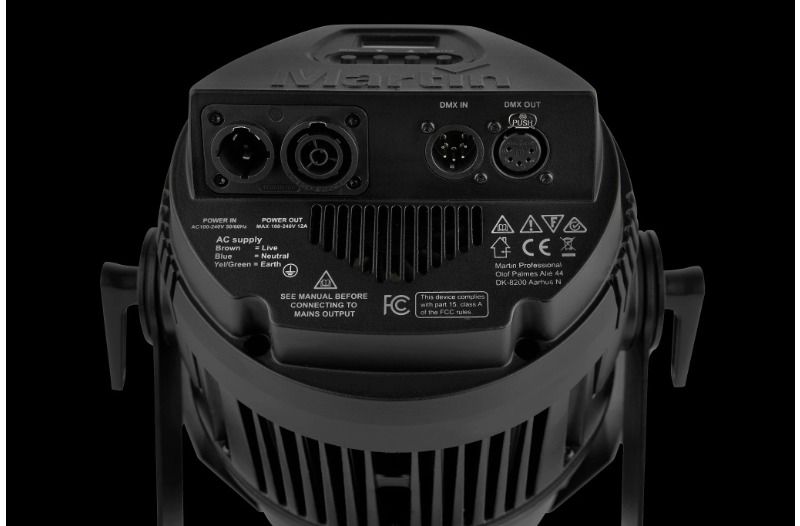

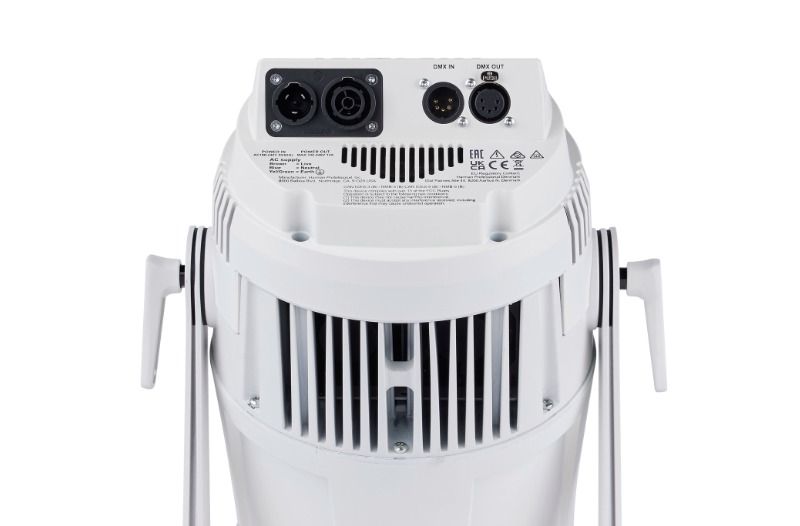

Connections
AC power input/output Neutrik PowerCON TRUE1 TOP
DMX and RDM data in/out Neutrik 5-pin locking XLR
Electrical
AC power 100-240 V AC nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch mode Typical half-cycle RMS inrush current at 240 V, 50 Hz: 8.7 A Power Factor: 0.99 @ 100 V / 120 V , 0.94 @ 220 V / 230 V / 240 V Typical current draw: 3.0 A @ 100 V / 120 V , 1.7 A @ 220 V / 230 V / 240 V * Power Consumption Typical: 300 W * Hibernation: 3 W * * Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Typical: full output white, no effects moving, regulated fan speed.Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.
Thermal
Cooling Forced air (temperature regulated, low noise)
Total heat dissipation (calculated) 1170 BTU/hr.
Maximum surface temperature 65° C (149° F)
Maximum ambient temperature (Ta max.) 40° C (104° F)
Minimum ambient temperature (Ta min.) -10° C (14° F)
Acoustic Data
Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output) 37.1 dB(A)
Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low) 33.0 dB(A)
Environmental
RoHS Compliant
REACH Compliant
WEEE Compliant
Proposition 65 Compliant
Efficacy (max output) 14.9 lm/W
LWR* 449 lm/kg (204 lm/lb)
LWR = Lumen-to-Weight Ratio
Approvals
Global CB Certification/IECEE IEC 60598-2-17 (IEC 60598-1)
EU safety EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC EN 55015; EN 55032; EN 55035; EN 61000-3-2, EN 61000-3-3, EN 61547
US safety UL 1573
US EMC FCC Part 15 Class B
Canadian safety CSA C22.2 No. 166
Canadian EMC ICES-003 Class B, ICES-005 Class B
Australia/NZ RCM
United Kingdom UKCA
Included Items
Adjustable mounting bracket Safety and Installation Manual
Related Items
Martin Companion Cable (for firmware update over DMX) P/N 91616091
Martin Companion Software (for firmware update over DMX) Free download from www.martin.com
Accessories
Power Input Cables Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91611797 Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 5 m (16.4 ft.) P/N 91611786 Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91610173 Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 5 m (16.4 ft.) P/N 91610174Power Linking Cables Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 0.45 m (1.5 ft.) P/N 91611784 Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785 Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796 Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170 Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171 Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172Power Connectors Power Connector, Cable Mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789HU Power Connector, Cable Mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788HUInstallation Hardware G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003 Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007 Half-coupler Clamp: P/N 91602005 Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006 Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
Ordering Information
ELP PAR in cardboard box P/N MAR-90800000

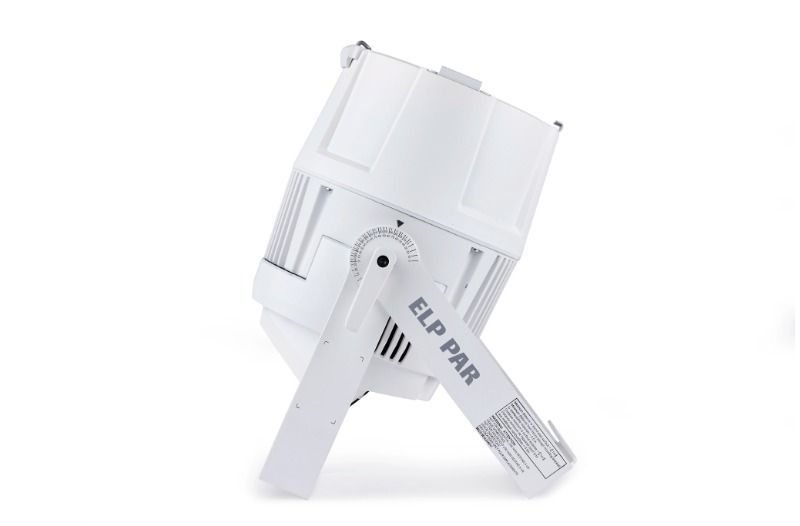

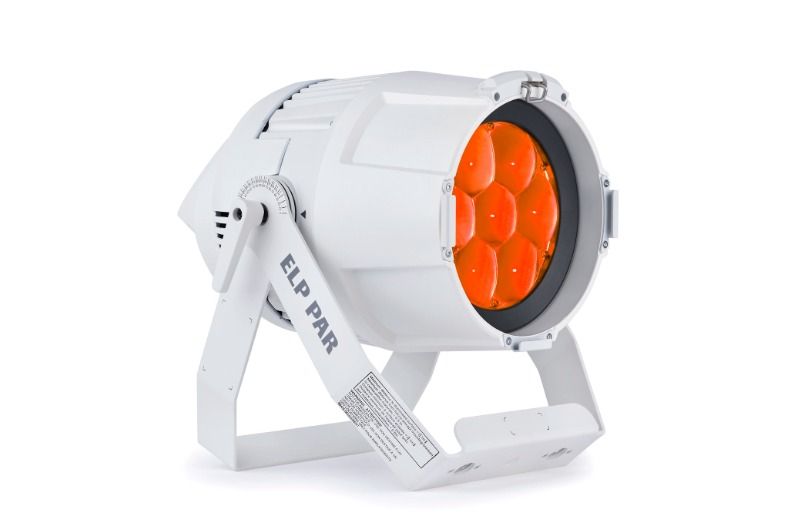

ELP PAR - White in cardboard box P/N MAR-90800005
