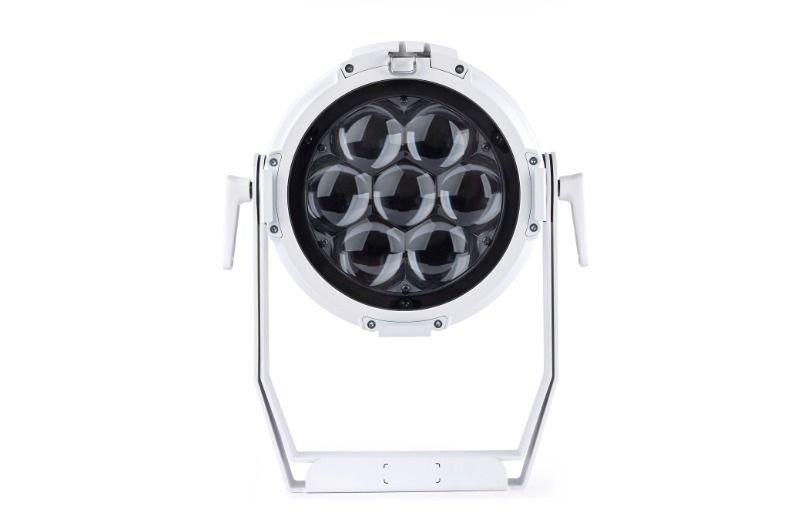

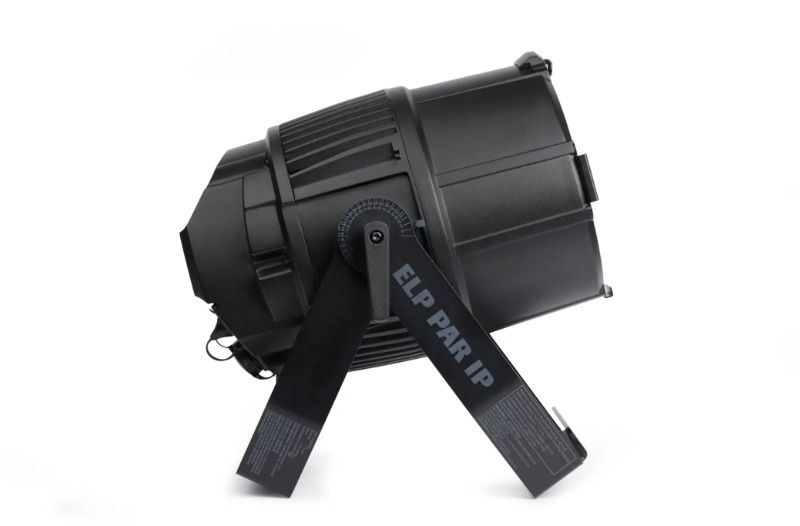

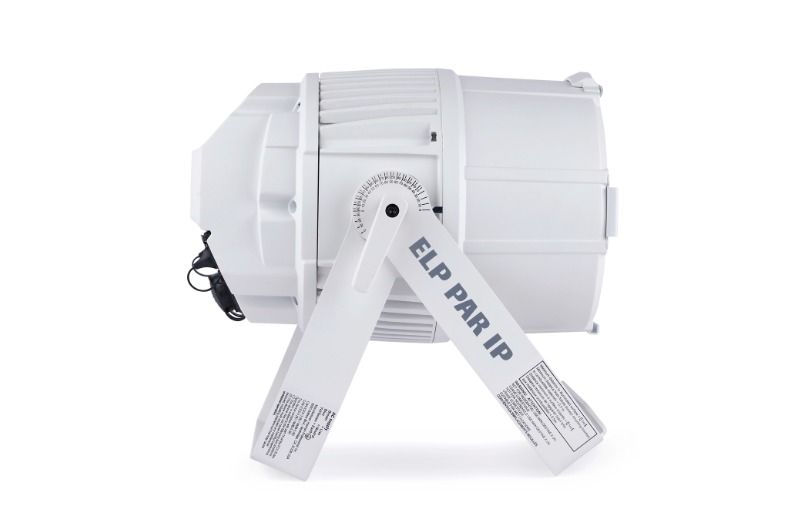

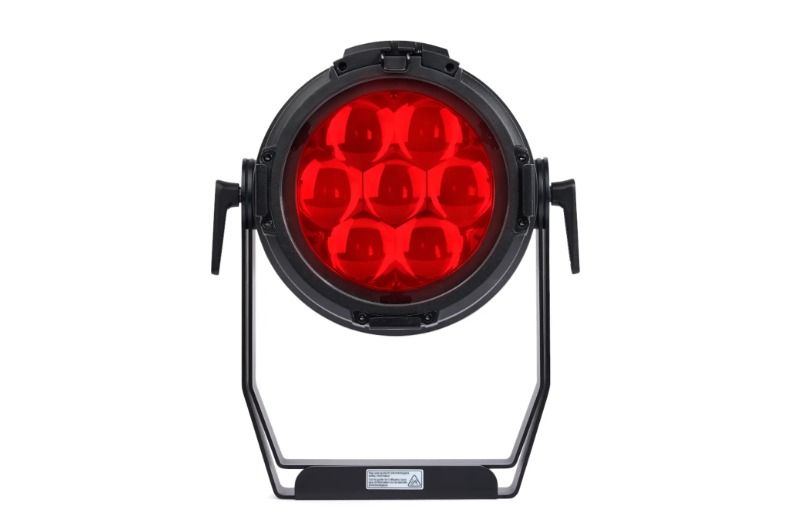

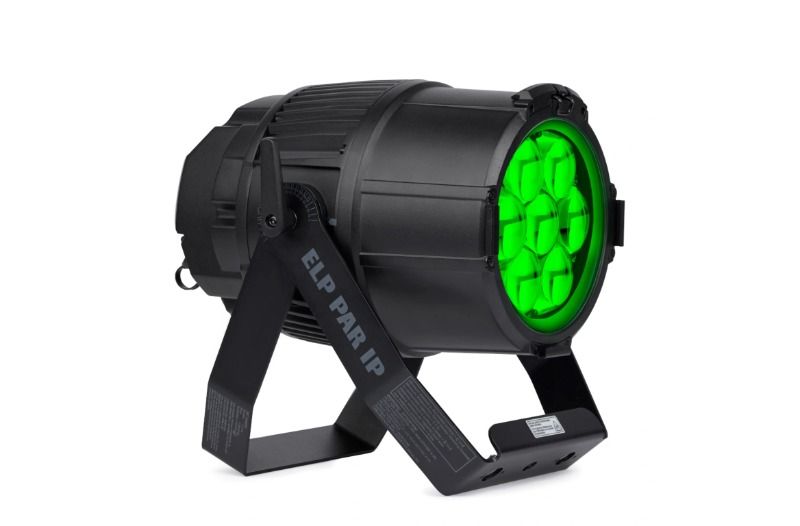

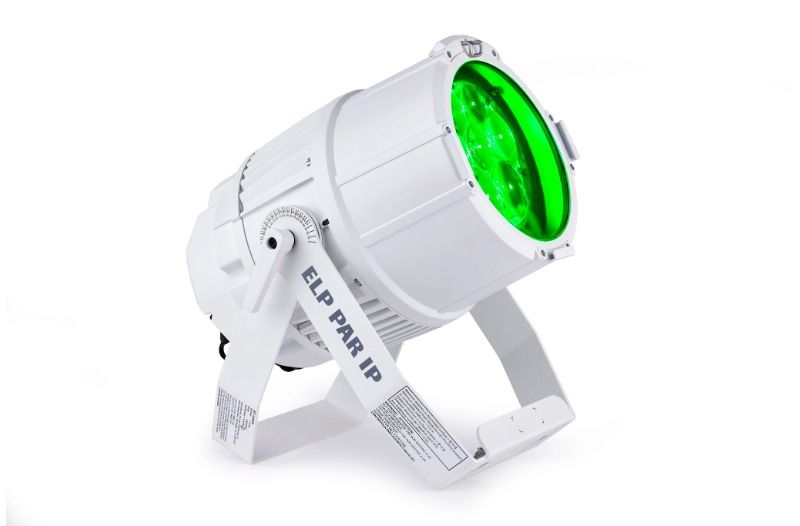

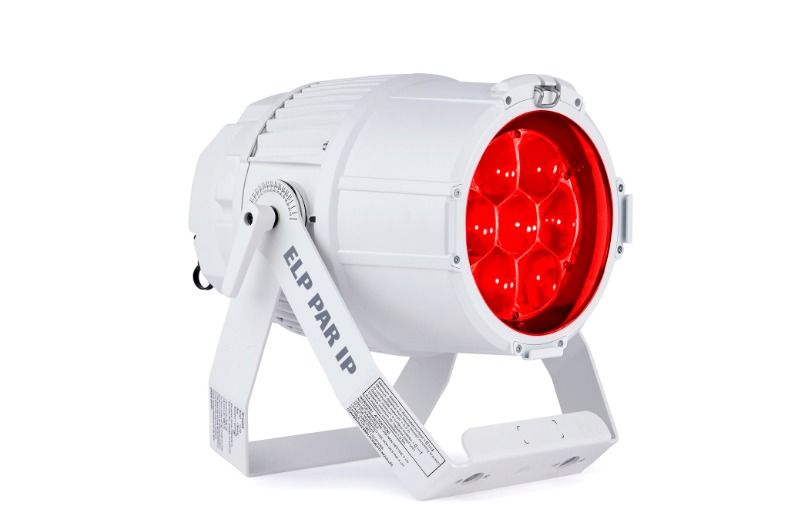

ELP PAR IP

Marka : MARTIN
Ürün Kodu :

ELP PAR IP'si

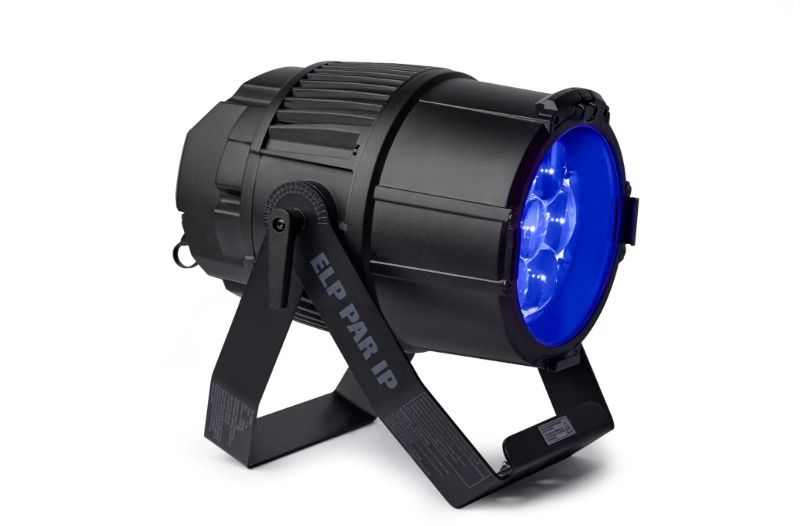

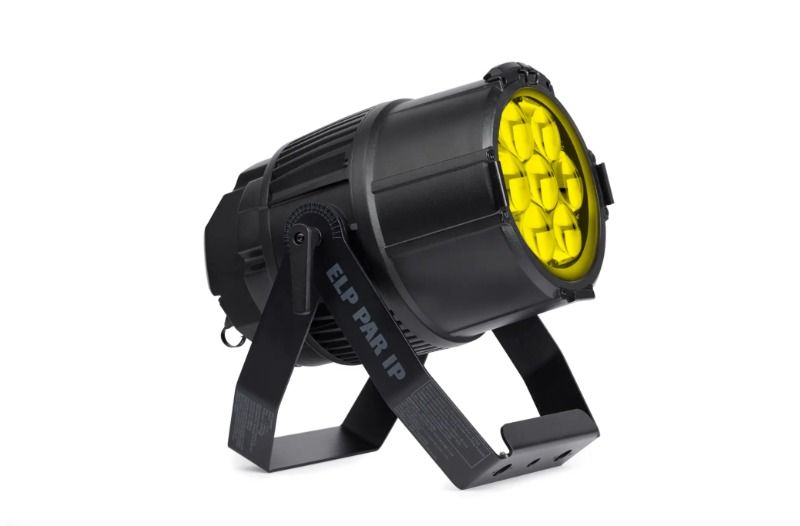

ZOOM IP65 DEĞERLENDİRMELİ STATİK RGBW LED PAR ARMATÜRÜ

Martin ELP PAR IP statik LED armatürü, benzeri görülmemiş lümen çıkışı, yüksek yoğunluklu dar yakınlaştırma, tam gamlı renk kalibrasyonu ve akıllı donanım ve kontrol özellikleriyle statik yıkama kategorisinde yeni bir standart belirliyor. Bu armatür, toz ve su girişine karşı koruma sağlayan IP65 derecesine sahip iç ve dış mekan uygulamaları için idealdir.

ELP PAR IP, hızlı odaklanma sistemi ve parlak projeksiyon açısı göstergeleri sayesinde kurulumu daha hızlı ve daha kolay hale getirir. Diğer performans iyileştirmeleri arasında hem sahne aydınlatmasını hem de sıkı orta ışın efektlerini destekleyen geniş bir yakınlaştırma aralığı, doğru renk üretimi ve hassas renk sıcaklığı kontrolü sağlayan gelişmiş bir renk kalibrasyon sistemi, genişletilmiş bir renk modu ve renk alanını değiştirebilen bir CTC kanalı yer alıyor.

Açık veya kapalı bir tiyatro prodüksiyonunu, festivali, sergiyi veya kurumsal etkinliği aydınlatıyor olun, kendi sınıfında yeni bir performans standardı belirleyen bu çok yönlü LED armatürle sahneyi renklerle doldurun ve çarpıcı ışın efektleri yaratın.

Özellikler

Hafif motor: 7 x 40W RGBW
Tam gamlı renk kalibrasyon sistemi
CTC kontrolü: 1.800-12.850 K
Hızlı Odaklama modu, bir konsol operatörüne ihtiyaç duymadan kurulum ve odaklamaya olanak tanır
Projeksiyon göstergelerinden arındırılmış olması hızlı kurulum sağlar
Açılı güç ve veri bağlantıları, tesisatı veya kurulumu engellemeyen temiz bir kablo akışını destekler
Omega braket bağlantılı kafes kiriş ve zemine montaj boyunduruğu dahil
Lümen çıkışı: 3.350
Yakınlaştırma: 5,5-50?
Yoğunluk: 329.058 cd
IP65 derecesi
Boyutlar: 315 x 285 x 498 mm (12,4 x 11,3 x 15,7 inç) (braket dahil)
Ağırlık: 9,1 kg (20 lbs)

Physical
Length	315 mm (12.4 in.)
Width	285 mm (11.3 in.)
Height	398 mm (15.7 in.) with bracket
Weight	9.1 kg (20.1 lbs.)
Dynamic Effects
Color mixing	RGBW
Color presets	48 color presets, virtual color wheel effects
Zoom	Motorized
Electronic dimming	0 - 100%, four dimming curve options
Strobe and pulse effects	Variable speed and action, random strobe
Electronic shutter effect	Instant open and blackout
Color temperature	Variable 1,800 - 12,850 K
Control and Programming
Control options	DMX, RDM
16-bit fine control	Dimming, RGB, Zoom
LED color management modes	Raw, extended and calibrated
DMX address setting	Control panel with OLED display
DMX channels	14
DMX compliance	USITT DMX512-A
RDM compliance	ANSI/ESTA E1.20
Optics
Light source	7 x 40 W RGBW Osram LEDs
Minimum LED lifetime	50 000 hours (to >70% luminous output)*
Beam angle (half-peak)	4.4 - 33.3°
Field angle (one-tenth peak)	5.5 - 50.0°
Binning	Tight color and flux binning
Calibration	Full Gamut and Color Calibration
Maximum output	3,350 lumens*Figure obtained under manufacturer´s test conditions
Photometric Data
Wide beam	3,350 lumens
Narrow beam	1,626 lumens
Fixture Center Intensity Narrow Beam	329,058 cd
Fixture Center Intensity Wide beam	10,141 cd
CRI (Color Rendering Index)	>70
CQS (Color Quality Scale)	84
TM-30 Rf (IES TM-30-15 Fidelity Index)	79
TM-30 Rg (IES TM-30-15 Gamut Index)	116
TLCI (Television Lighting Consistency Index)	61
CCT	6,500 K
LED refresh rate - Standard Mode	3,600 Hz
LED refresh rate - Theatre Mode	19,200 Hz*All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient
Construction
Housing	Aluminum and composite
Filter mount	191 x 191 mm (7.5 x 7.5 in.)
Color	Black
Ingress protection rating	IP65
Installation
Mounting points	Adjustable bracket, surface or truss mount (fits Martin Omega Bracket)
Location	Wet locations, temporary outdoor use, not for household use
Orientation	Any
Minimum distance to combustible materials	0.5 m (1.7 ft.)
Minimum distance to illuminated surfaces	1 m (3.3 ft.)
Minimum clearance around fan and air vents	0.5 m (1.7 ft.)

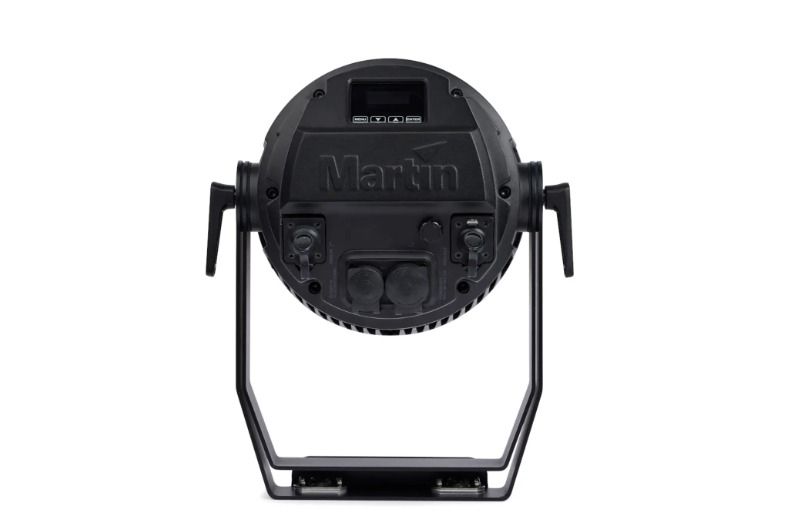

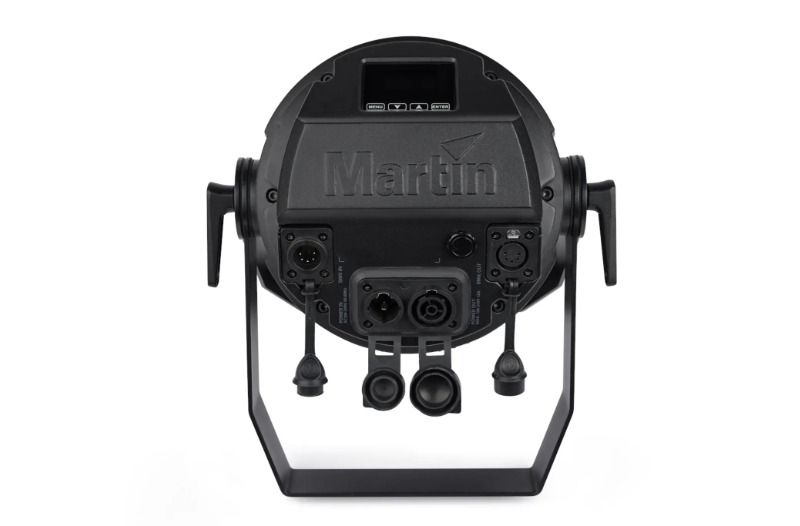

Connections
AC power in, thru	Neutrik PowerCON TRUE1 TOP
DMX data in, thru	Neutrik IP-rated 5-pin locking XLR
Electrical
AC power	100-240 V AC nominal, 50/60 HzPower supply unit: Auto-ranging electronic switch modeTypical half-cycle RMS inrush current at 230 V, 50 Hz: 11.2 APower Factor: 0.99 @ 100 V / 120 V , 0.94 @ 220 V / 230 V / 240 VTypical current draw: 3.7 A @ 100 V / 120 V , 1.7 A @ 220 V / 230 V / 240 V * Power ConsumptionTypical: 300 W Hibernation: 2 W * Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Typical: full output white, no effects moving, regulated fan speed.Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.

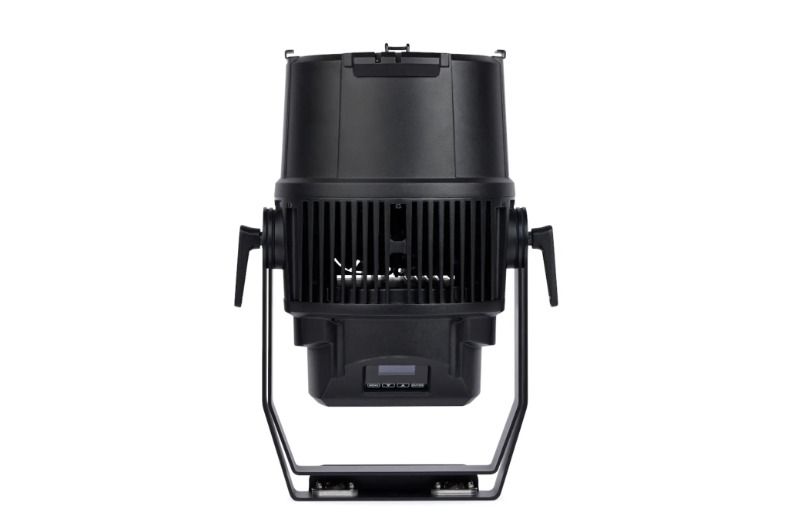

Thermal
Cooling	Forced air (temperature regulated, low noise)
Total heat dissipation*	1126 BTU/hr.*Calculated, +/- 10%, at full intensity, full white
Maximum surface temperature	71° C (160° F)
Maximum ambient temperature (Ta max.)	40° C (104° F)
Minimum ambient temperature (Ta min.)	-10°C (14° F)
Acoustic Data
Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output)	40.9 dB(A)
Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low)	37.9 dB(A)
Environmental
RoHS	Compliant
REACH	Compliant
WEEE	Compliant
Proposition 65	Compliant
Efficacy (max output)	14.3 lm/W
LWR*	385 lm/kg (174 lm/lb)
LWR = Lumen-to-Weight Ratio
Approvals
Global CB Certification/IECEE	IEC 60598-2-17 (IEC 60598-1)
EU safety	EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC	EN 55015, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61547
US safety	UL 1573
US EMC	FCC Part 15 Class B
Canadian safety	CSA C22.2 No. 166
Canadian EMC	ICES-003 Class B, ICES-005 Class B
Australia/NZ	RCM
United Kingdom	UKCAINCLUDED ITEMS Adjustable mounting bracket ACCESSORIES Power input cables, 16 A Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.): P/N 91611797Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.): P/N 91610173 Power relay cables, 16 A, for relaying power to fixtures in chains Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796 Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172 Power connectors Cable Connector, Neutrik powerCON TRUE1 NAC3FX-W TOP (female): P/N 91611789HU Cable Connector, Neutrik powerCON TRUE1 NAC3MX-W TOP (male): P/N 91611788HU Installation hardware Martin Omega bracket for rigging clamp attachment: P/N 91602001 Half-coupler clamp: P/N 91602005 G-clamp (suspension vertically downwards only): P/N 91602003 Quick-trigger clamp (suspension vertically downwards only): P/N 91602007 Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006 Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
Adjustable mounting bracket
Power input cables, 16 A
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.)	P/N 91611797
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.)	P/N 91610173
Power relay cables, 16 A, for relaying power to fixtures in chains
Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.)	P/N 91611796
Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.)	P/N 91610172
Power connectors
Cable Connector, Neutrik powerCON TRUE1 NAC3FX-W TOP (female)	P/N 91611789HU
Cable Connector, Neutrik powerCON TRUE1 NAC3MX-W TOP (male)	P/N 91611788HU
Installation hardware
Martin Omega bracket for rigging clamp attachment	P/N 91602001
Half-coupler clamp	P/N 91602005
G-clamp (suspension vertically downwards only)	P/N 91602003
Quick-trigger clamp (suspension vertically downwards only)	P/N 91602007
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black	P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver	P/N 91604007
Related Items
Martin Companion Software Suite (including firmware uploader)	Free download from www.martin.com
Martin Companion Cable USB/DMX hardware interface	P/N 91616091
Ordering Information
ELP PAR IP in cardboard box	P/N MAR-90800010
ELP PAR IP - White in cardboard box	P/N MAR-90800015
