Atomic Colors

  • Marka : MARTIN
  • Ürün Kodu :

Atomik Renkler
Tüm Atomik flaşlar için harici renkli kaydırma çubuğu

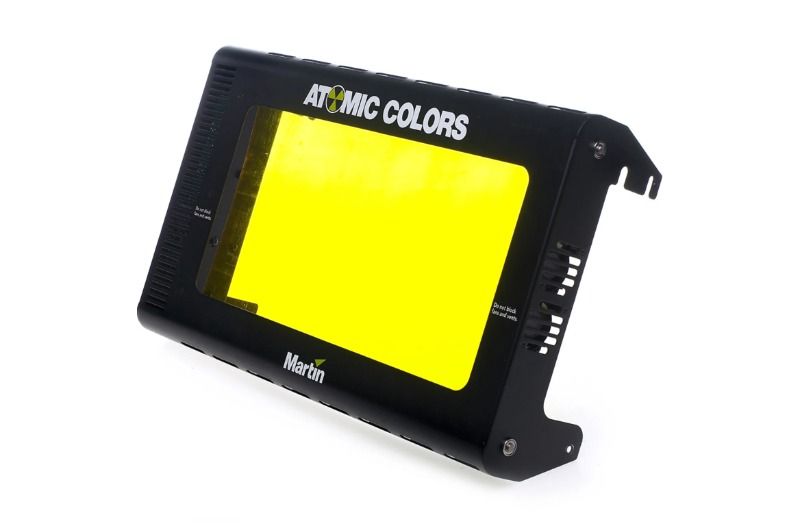

Atomic Colors, orijinal Atomic 3000 DMX'in ve ayrıca yeni Atomic 3000 LED'in ön kısmına takılan, on adede kadar parlak renkli flaş ve kör efekti sağlayan, özel olarak tasarlanmış bir renkli kaydırma aksesuarıdır. Aura arka ışığı ve Atomic 3000 LED'in ana çıkışıyla birlikte, aynı zamanda çarpıcı üç boyutlu göz alıcı görünümler sunar.

Physical
Length 470 mm (18.5 in.)
Width 273 mm (10.7 in.)
Height 102 mm (4.0 in.)
Weight 2.5 kg (5.5 lbs.)
Color gel thickness 0.075 mm (0.003 in.) - 0.125 mm (0.005 in.)
Dynamic Effects
Color gel scrolling 10 standard colors supplied, custom color gel strings can be fabricated by customer
Control and Programming
Control options DMX
Setting and addressing Three-button LED control panel
Cooling fan speed control Onboard control panel, DMX
Gel scrolling speed, 'gel saver' mode, light-activated fan operation Onboard control panel
DMX channels 1 or 2
DMX compliance USITT DMX512/1990
Construction
Housing Steel
Color Black
Finish Electrostatic powder-coated
Protection rating IP20
Installation
Mounting points Fastens to Atomic fixture
Location Indoor use only, mounted on Atomic fixture
Orientation Any
Connections
Combined power and DMX data from Atomic fixture 4-pin XLR
Electrical
DC Power 24 V (+/- 10%)
DC current 0.55 A (max.)
Power source when used with xenon tube-based Atomic 3000 DMX MPU-02 or MPU-08 external PSU
Thermal
Cooling Forced air (4-speed fans)
Maximum ambient temperature (Ta max.) 40° C (104° F)
Minimum ambient temperature (Ta min.) 10° C (50° F)
Included Items
10-color gel string (installed) P/N 91611090
5 m power/data cable, 4-pin XLRUser manual
Accessories
MPU-02 Power Supply Unit* P/N 91611084
MPU-08 Power Supply Unit* P/N 91611085
*For use with original Atomic 3000 DMX only. Do not use a PSU when installing on Atomic 3000 LED
Ordering Information
Atomic Colors for Atomic 3000 DMX and Atomic 3000 LED P/N 91611086
