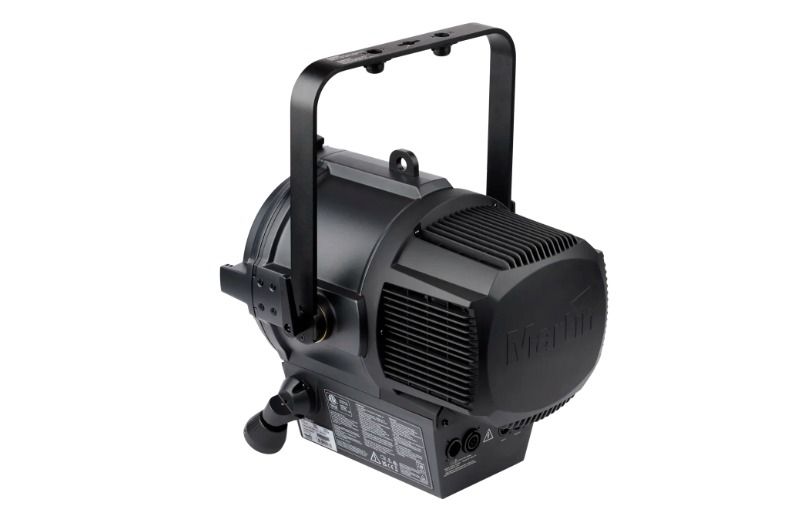

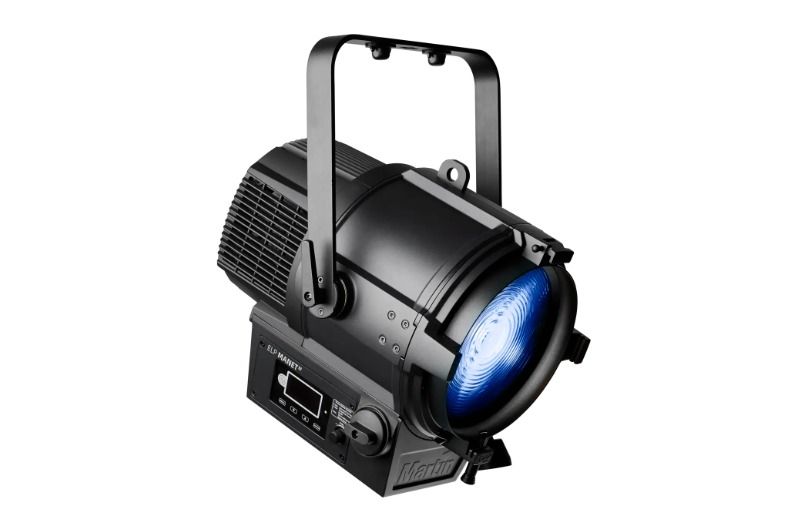

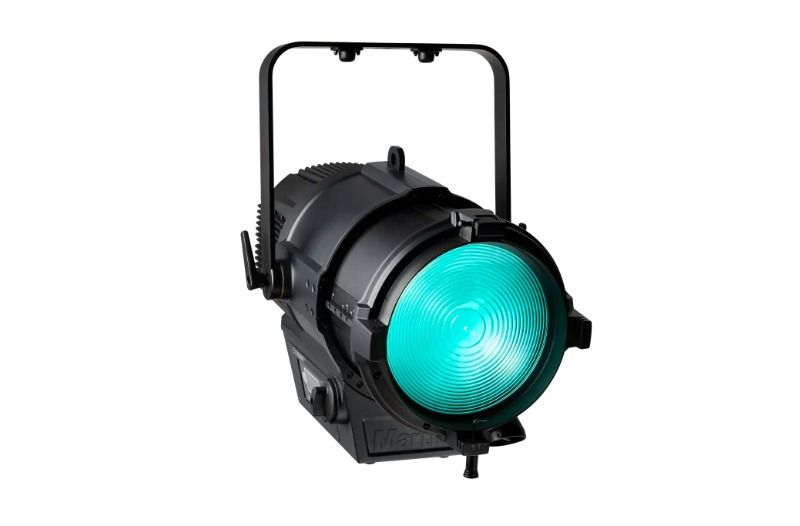

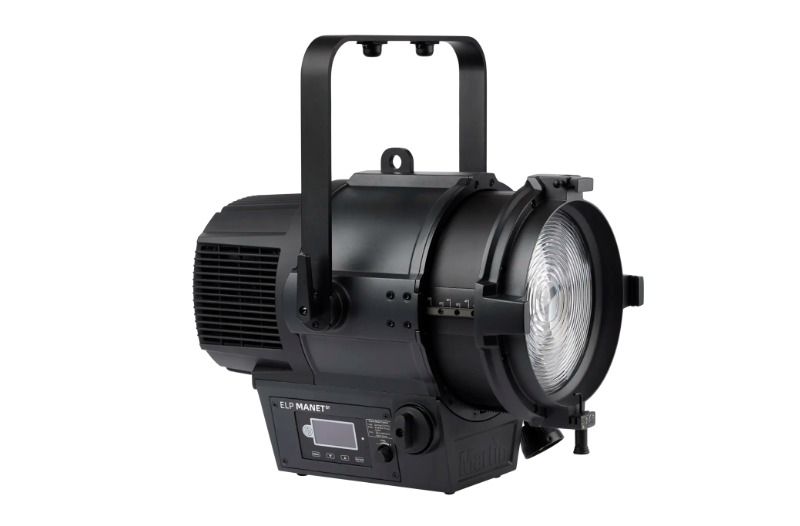

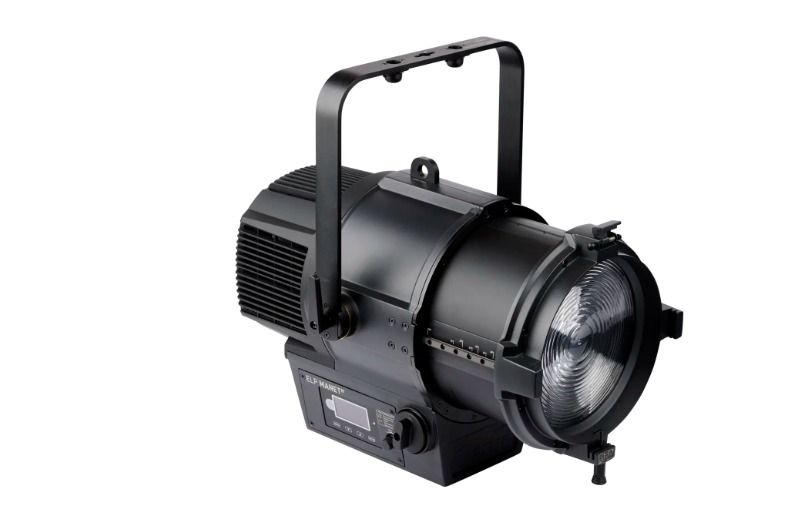

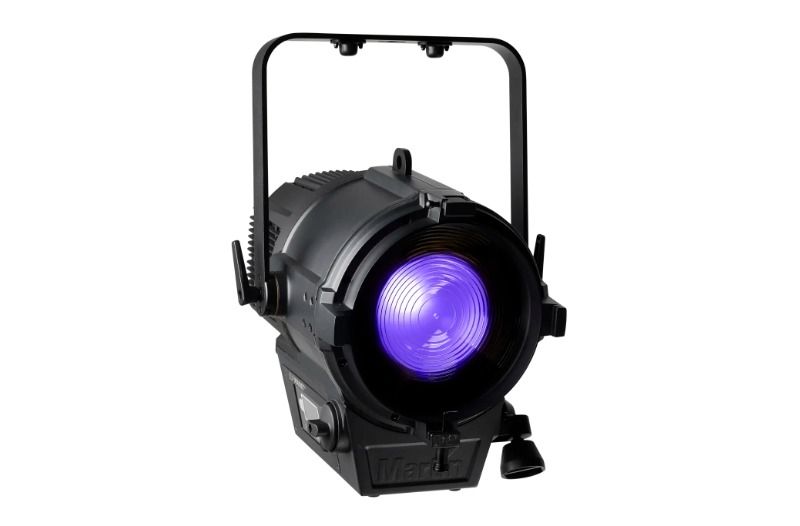

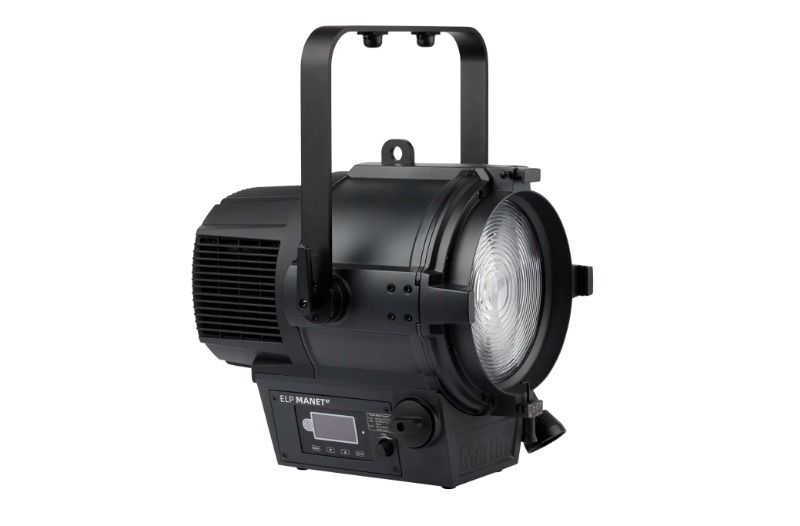

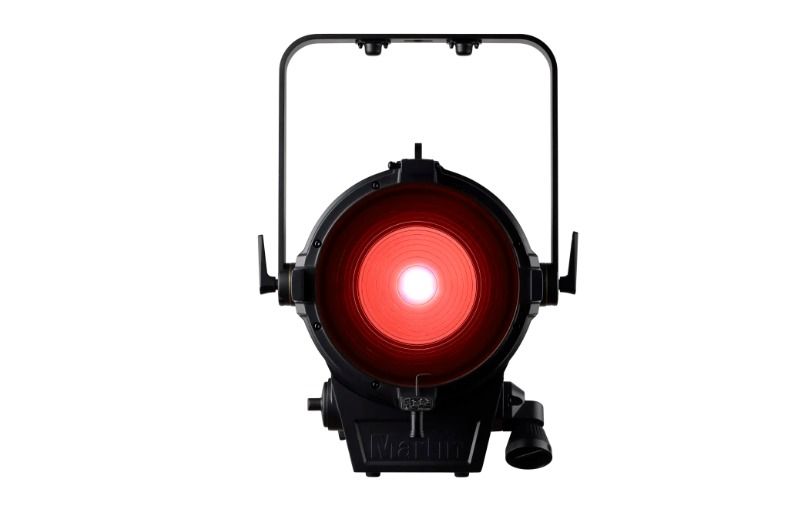

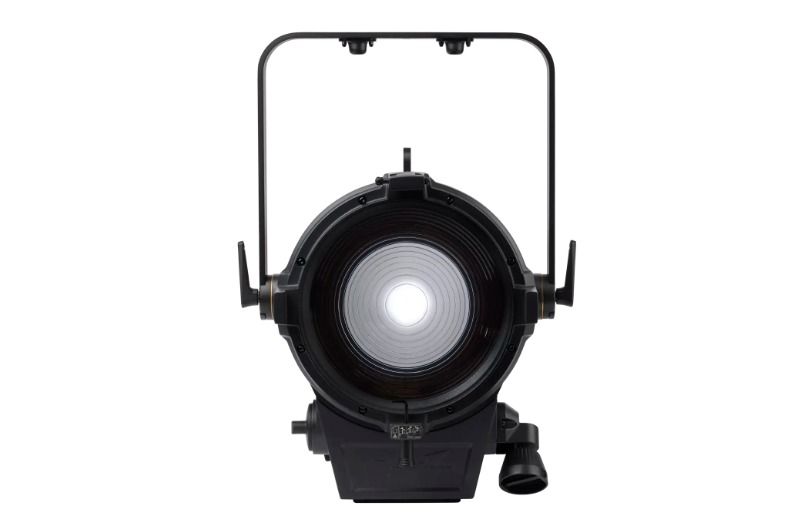

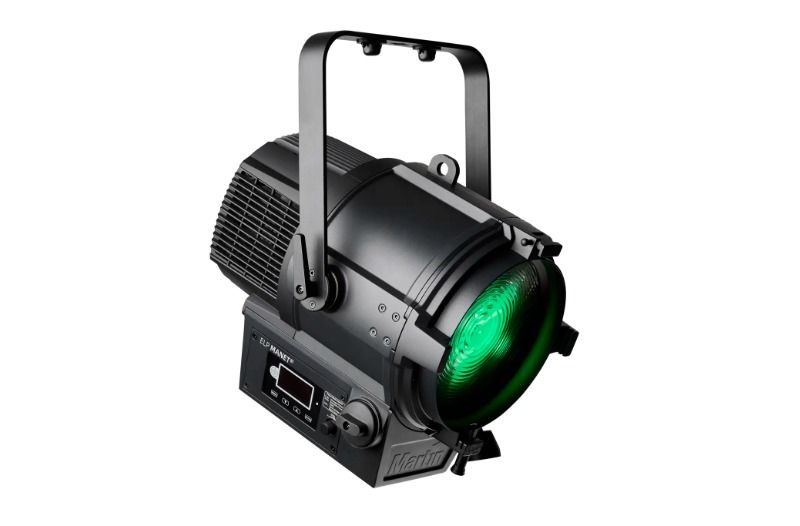

ELP MANET 8f

  • Marka : MARTIN
  • Ürün Kodu :

ELP MANET 8f
LED Sahne ve Stüdyo Fresnel

Martin Professional'ın ELP MANET 8f'si, hassas ışın kontrolüyle statik armatür aydınlatmasını yeniden tanımlıyor. Latince sahne yönetmenliği olan "geriye kalır"dan ilham alan bu film, Shakespeare tiyatrosuna ve eskimeyen hikaye anlatıcılığına saygı duruşunda bulunuyor. Klasik tungsten tarzı çıkışı modern LED verimliliğiyle birleştiren bu ürün, zengin, rafine bir palet için altı renkli LED ışık motoruna ve 95 değerinde TM-30 Rf'ye ve 98 değerinde CRI puanına sahiptir. Dikkatle tasarlanmış 8 inç (200 mm) Fresnel lens, 9 ila 50 derece yakınlaştırma ve yansıma önleyici ahır kapıları, pürüzsüz, yapaylık içermeyen solma sağlar. Ultra sessiz çalışma, sezgisel kontroller ve Martin'in Companion Uygulaması aracılığıyla kablosuz yapılandırma ile ELP MANET 8f, benzersiz performans, esneklik ve sanat sunarak her anın unutulmaz kalmasını sağlar.

Özellikler

  • 13.000+ Lümen Çıkışı
  • Kırmızı, Yeşil, Mavi, Amber, Limon ve Camgöbeği LED'li 6 Renkli Işık Motoru
  • Tamamen Doğrusal 1.850-12.500 K Renk Sıcaklığı Kontrol Sistemi

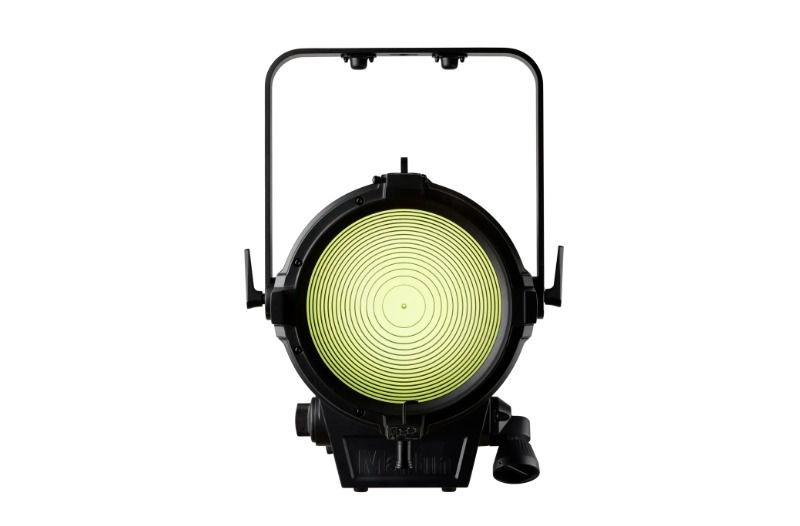

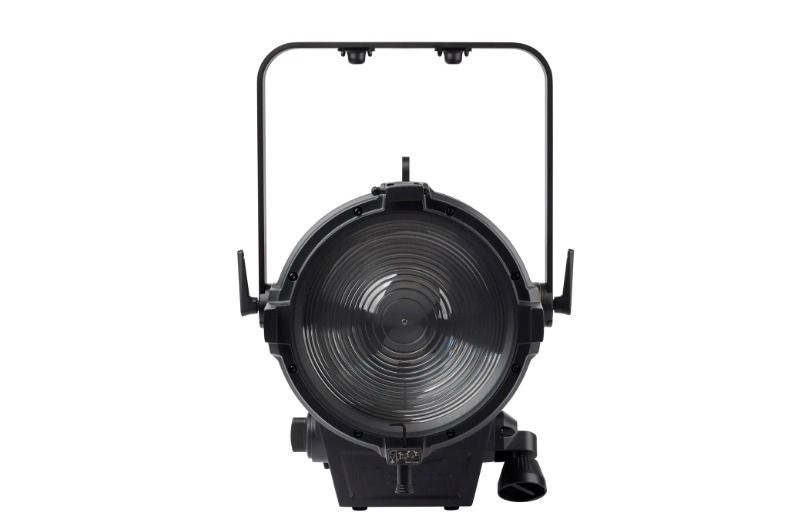

  • Dikkatlice tasarlanmış 8 inç (200 mm) Fresnel Lens
  • Geniş Renk Gamı
  • Sınıfında Lider Işık Kalitesi
  • 9°-50° Manuel Zum Lensi
  • Yüksek Çözünürlüklü Düşük Seviyeli Karartma

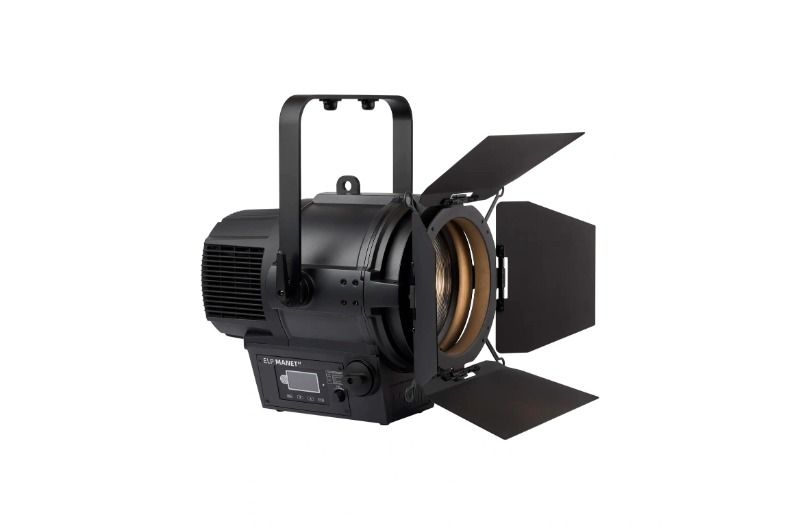

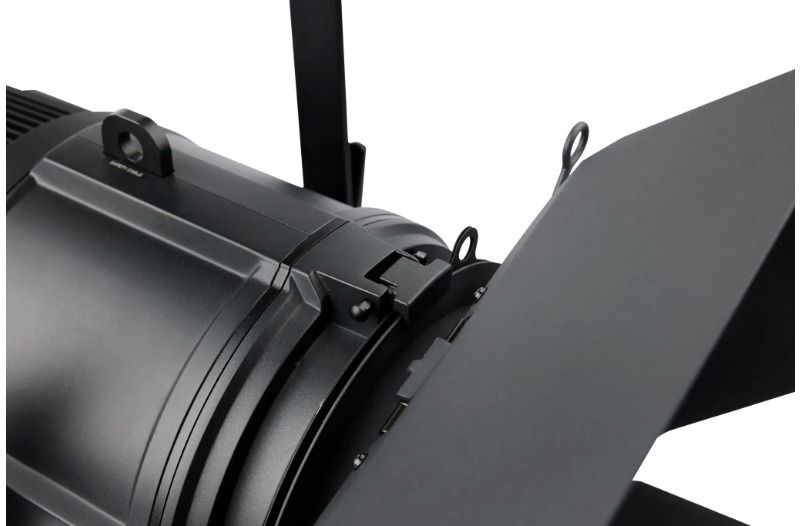

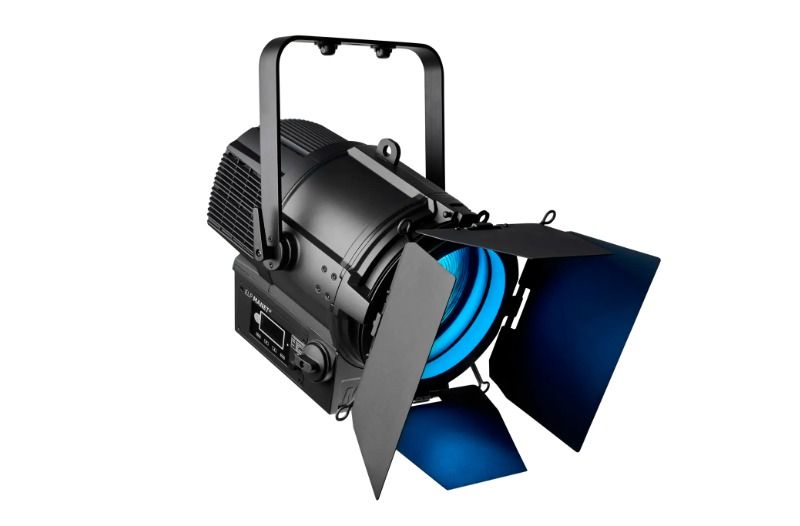

  • Yansıma Önleyici Ahır Kapıları
  • Esnek Montaj Seçenekleri
  • Sezgisel Kontrol Arayüzü
  • Doğrusal CTC ve Renk Tonu Kanallarıyla Basit RGB Kontrolü
  • Ultra Sessiz Soğutma Sistemi
  • Companion Mobile App aracılığıyla konfigürasyon ve tanılamayı destekleyen NFC arayüzü

Physical
Width 372.3 mm (14.66 in.)Height (head forward): 499.30 mm (19.66 in.)Depth: 404.90 mm (15.94 in.)Weight: 14.0 kg (30.86 lbs.)
Dynamic Effects
Dimmer/Shutter 0 - 100% continuous dimming, regular and random strobe, instant open and blackoutDimming options: Choice of four dimming curvesColor Mixing: RGB(ALC), independently variable 0 - 100%Color Temperature Control: Variable 1,850 - 12,500 KTint Control: Variable green-magenta shift ?uv -0.05 - +0.05Virtual Color wheel: 48 color presets, continuous rotation & random colorLED Frequency control: Variable LED PWM control
Control and Programming

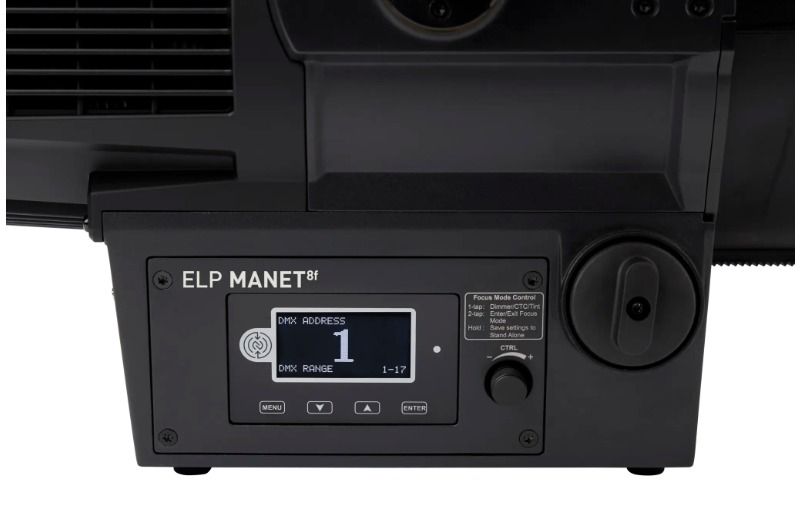

Control Protocols DMX and RDMDMX Modes: Compact, Basic & Direct DMX Channels: 11, 17 & 1716-bit Controllable Parameters: Dimming and Color Mixing Setting and Addressing: Display Menu, NFC or RDM Local User Interface: Backlit LCD Display with integrated NFC antennaQuick Focus Manual Control: Rotary Encoder Fixture identification: User-settable ID number DMX Compliance: USITT DMX512-A RDM Compliance: ANSI/ESTA E1.20DMX/RDM Transceiver: Galvanic-isolated RS-485DMX/RDM Daisy-Chain Limit: 32 fixturesFirmware Update: via DMX using Martin Companion
Optics
Front Lens Diameter 200 mm (7.87 in.) Zoom Range: 1:5.6 Full Zoom Range at Half Peak (Beam Angle): 9° - 50° Full Zoom Range at Tenth Peak (Field Angle): 17° - 66°Light Source: 500 W RGBALC COB LEDMax. Total LED Engine Power: 500 WMinimum LED lifetime: > 20.000 hours (to > 70% luminous output)* *Figure obtained under manufacturer's test conditions
Photometric Data
Light Engine Luminous Output 15,500 lumens Fixture Luminous Output Wide: 13,100 lumens Fixture Luminous Output Narrow: 5,600 lumensCCT: Variable 1,850 K - 12,500 K (+/- 200 K)CRI (Color Rendering Index) high output mode: >=90CRI (Color Rendering Index) high quality mode: >=98CQS (Color Quality Scale) high output mode: >=85CQS (Color Quality Scale) high quality mode: >=95TM-30 Rf (IES TM-30-15 Fidelity Index) high output mode: >=86TM-30 Rf (IES TM-30-15 Fidelity Index) high quality mode: >=95TM-30 Rg (IES TM-30-15 Gamut Index) high output mode: >=107TM-30 Rg (IES TM-30-15 Gamut Index) high quality mode: >=104TLCI (Television Lighting Consistency Index) high output mode: >=98TLCI (Television Lighting Consistency Index) high quality mode: >=98LED Refresh Rate: 3,600 Hz with fine adjustment (+/- 2%) (DMX controllable)Binning: Tight color and flux binning Calibration: Full Gamut Color Calibration Color Modes: Direct Color Mode, Extended Gamut Mode and Calibrated Color Mode * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient* All Photometric Data measured at 6500 K white
Construction
Color Matte black
Protection rating IP20
Housing Material Steel & Aluminum
Installation
Mounting points 1 pair of 1/4-turn points for 106mm (4.17 in.) center-to-center omega bracket, Single M12 / 1/2" hole for rigging clamp, Two guide holes to support industry standard 28mm Spigot accessory
Location Indoor
Orientation Any
Minimum distance to combustible materials 0.2 m (7.87 in.)
Minimum distance to illuminated surfaces 1.0 m (39.37 in.)
Connections
AC mains power in/thru Neutrik PowerCON TRUE1 TOP
DMX and RDM data in/thru Neutrik 5-pin locking XLR TOP
Electrical
AC power 100-240 V AC nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch mode Typical half-cycle RMS inrush current at 230 V, 50 Hz: 12.68 A Typical earth-leakage current: 0.65 mA Power Factor: 0.99 @ 100 V / 120 V / 208 V / 230 V / 240 V Max current draw: 5.3 A @ 100 V / 120 V , 2.2 A @ 208 V / 230 V / 240 V Typical current draw: 5.26 A @ 100 V , 4.33 A @ 120 V , 2.45 A @ 208 V , 1.92 A @ 230 V , 2.11 A @ 240 V * Power Consumption Maximum: 530 W Typical: 530 W * Idle: 3.8 W * Hibernation: TBD W * * Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Typical: full output white, no effects moving, regulated high fan speed. Idle: no output, no effects moving, regulated high fan speed. Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.
Thermal
Cooling Forced air (temperature regulated, low noise, user definable levels)
Maximum ambient temperature (Ta max.) 40° C (104° F)
Minimum ambient temperature (Ta min.) 0° C (32° F)
Maximum surface temperature, steady state, at 40° C ambient 68° C (154.4° F)
Total heat dissipation (calculated, +/- 10%) 1808 BTU/hr
Acoustic Data
Sound Pressure Level (LpA) @ 1m (default regulated high fan mode, full output) 26.7dB(A)
Sound Pressure Level (LpA) @ 1m (regulated medium fan mode, full output) 21.1 dB(A
Sound Pressure Level (LpA) @ 1 m (regulated low fan mode, full output) 18.9 dB(A)
Environmental
RoHS Compliant
REACH Compliant
WEEE Compliant
Proposition 65 Compliant
Packaging FSC Certified cardboard outer & inner packaging
Efficacy (max output) 24.6 lm/W
LWR* 928.6 lm/kg (421 lm/lbs.)
* LWR = Lumen-to-Weight Ratio
Approvals
Global CB Certification/IECEE IEC 60598-2-17 (IEC 60598-1)
EU safety EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC EN 55015; EN 55032; EN 55035; EN 61547; EN 61000-3-3
US safety UL 1573
US EMC FCC Part 15 Class B
Canadian safety CSA C22.2 No. 166
Canadian EMC ICES-003 Class B, ICES-005 Class B
Australia/NZ RCM
United Kingdom UKCA
Thailand TISI 1955-2551
Korea KS C 9832, KS C 9835
Included Items
Adjustable Mounting Bracket4 leaf Anti-Reflective Manual Barn Door SystemColor Filter FrameMulti-Language Safety and Installation Manual
Related Items
Martin Companion Cable (for firmware update over DMX) P/N 91616091Martin Companion Software (for firmware update over DMX/Ethernet and fixture setup/configuration via NFC): Free download from www.martin.com, app store and play store
Accessories
YokeELP MANET 8f Pole Operated Yoke P/N MAR-90800021Power Input Cables Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91611797 Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91610173Power Daisy-Chain Cables Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796 Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172Power Connectors Cable Connector, Neutrik powerCON TRUE1 TOP Female: P/N 91611789HU Cable Connector, Neutrik PowerCON TRUE1 TOP Male: P/N 91611788HUInstallation Hardware Omega Bracket with 1/4 turn fasteners: P/N 91602001G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003 Half-coupler Clamp: P/N 91602005 Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007 Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006 Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
Ordering Information
ELP MANET 8f (with 4 leaf Barn Door and Color Filter Frame in cardboard box) P/N MAR-90800020
