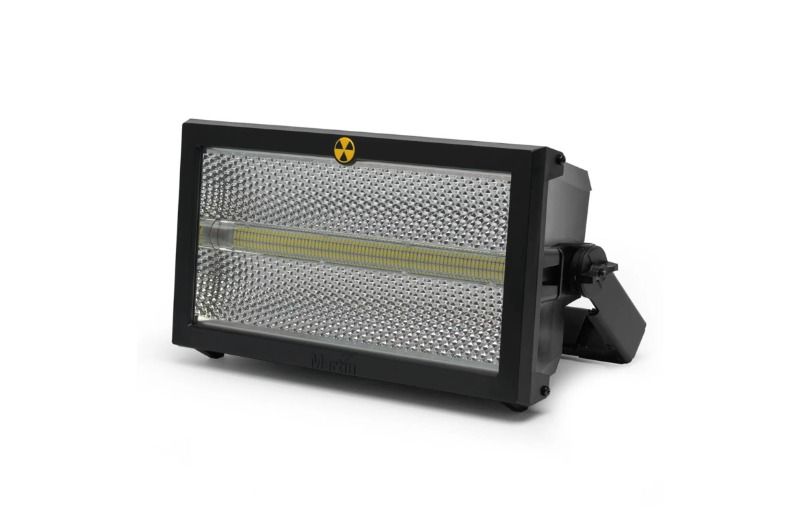

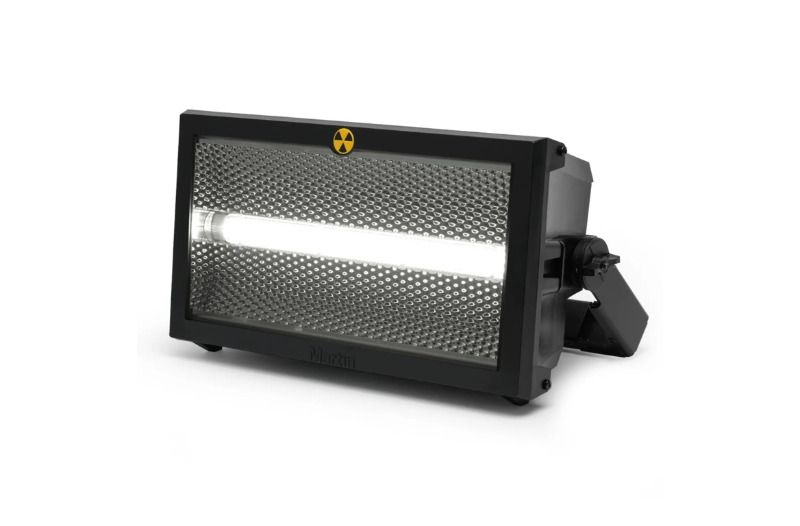

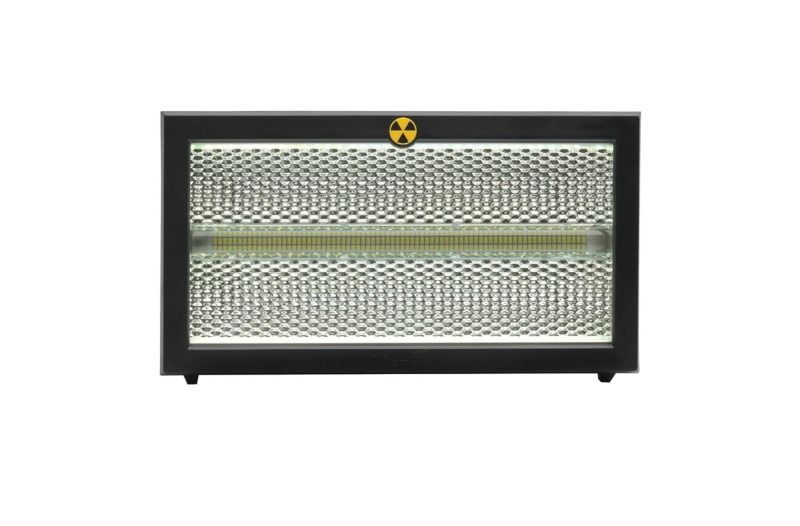

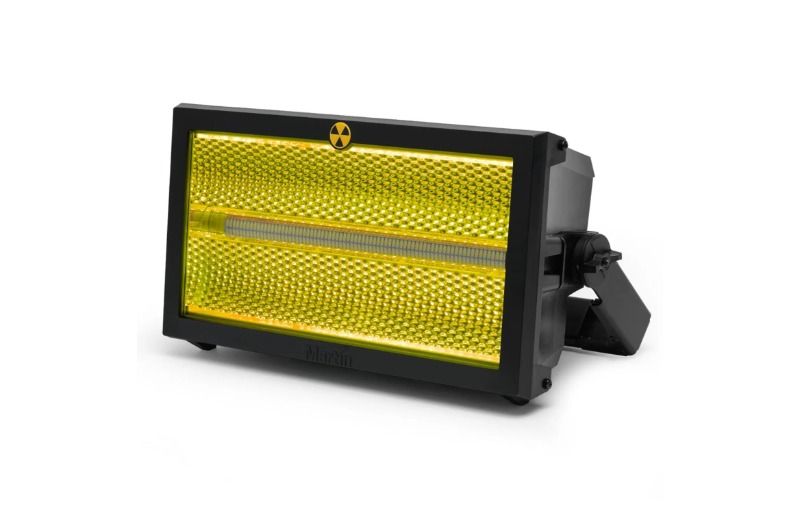

Atomic 3000 LED

  • Marka : MARTIN
  • Ürün Kodu :

Atomik 3000 LED
Benzersiz Aura arka aydınlatmalı LED tabanlı flaş

Atomic 3000 LED, geleneksel flaş ışığı ile son teknoloji LED teknolojisinin mükemmel bir karışımıdır. Orijinal Atomic 3000 DMX'in 15 yıllık başarısından yararlanan bu yeni sürüm, LED teknolojisinin ek avantajlarıyla birlikte aynı işlevsellik ve davranışa sahiptir. İkonik öncülüyle aynı olağanüstü parlaklığı sunar, ancak önemli ölçüde daha düşük tepe güç tüketimiyle.

Atomic 3000 LED yalnızca bir flaş ışığı değil, aynı zamanda reflektöre bakan RGB kontrollü LED'lerle arka ışık aydınlatmasını birleştiren yaratıcı bir araçtır. MAC Aura ve MAC Quantum Wash'a benzeyen göz kamaştırıcı göz alıcı görünüm sunar.

Dahili FX makroları ve orijinal Atomic Colors kaydırma çubuğunun basitleştirilmiş yeniden kullanımı, tam özellik paketini tamamlar ve Atomic 3000 LED'i en üst düzeyde yaratıcı aydınlatma aracı haline getirir.

Özellikler

  • Klasik reflektör görünümü
  • İkonik posta kutusu şekli ve endüstriyel tasarım

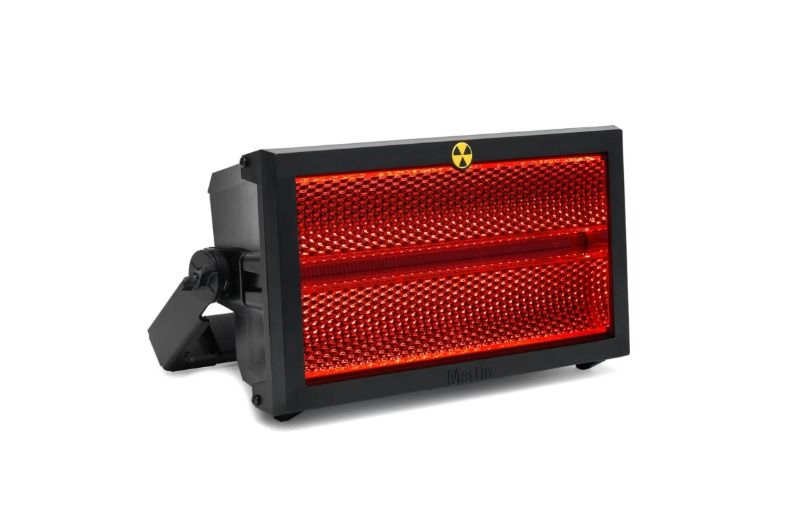

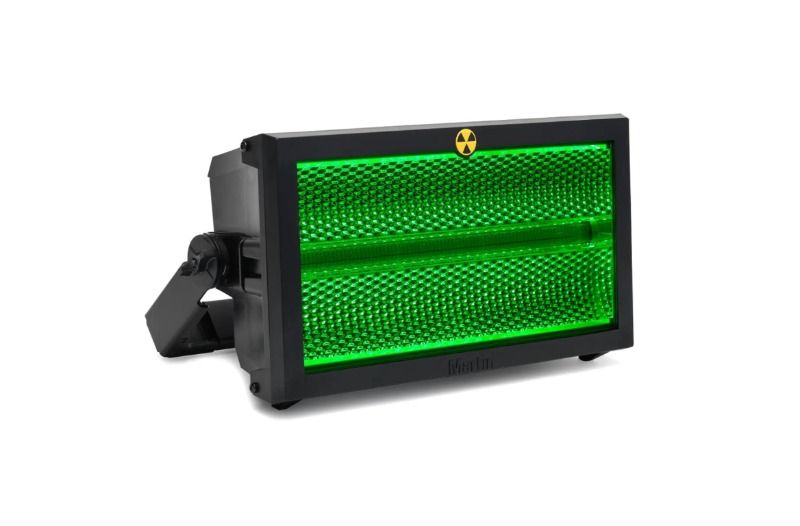

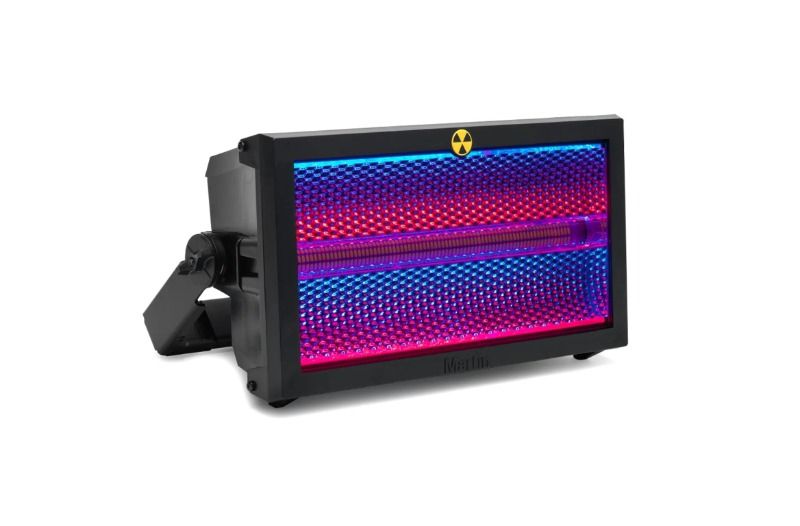

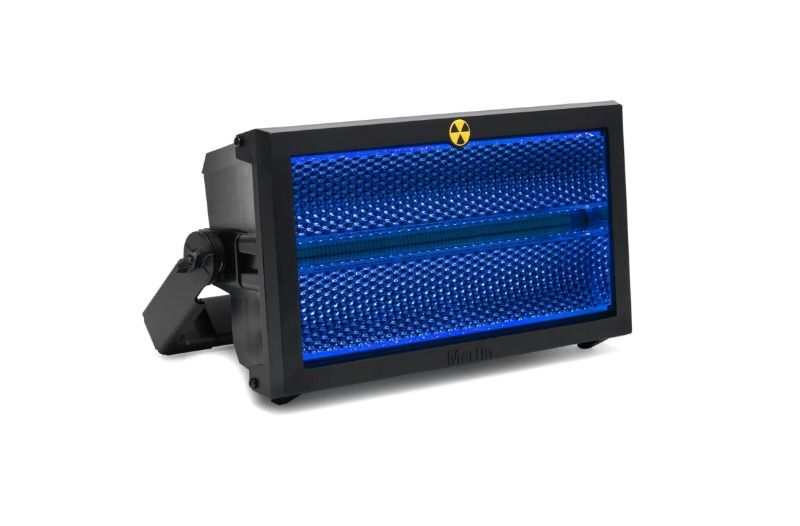

  • Reflektöre Aura arka ışığı (RGB)
  • Azaltılmış parlaklık ve güç tüketimiyle kısılabilir ev ışığı işlevi
  • Menü ve DMX kontrol kanalı aracılığıyla LED ve Xenon modu mevcuttur

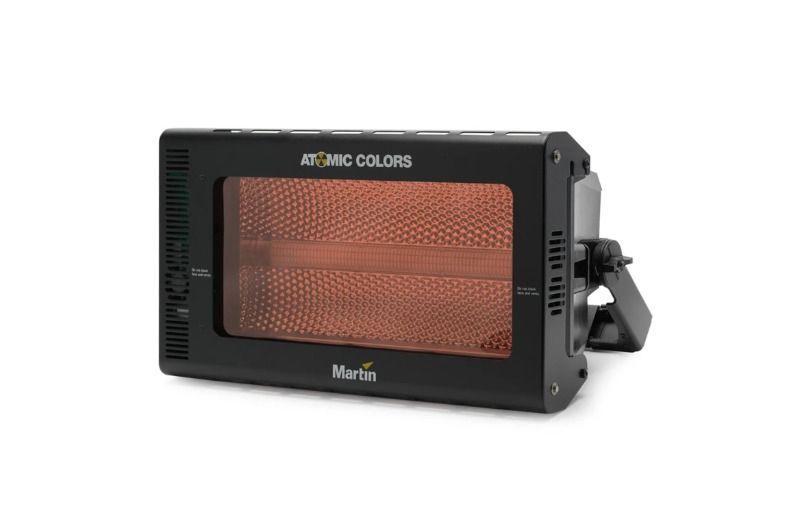

  • Dahili güç ve veri kaynağı sayesinde orijinal Atomic renkli kaydırma çubuğunun kullanımı kolaylaştırıldı

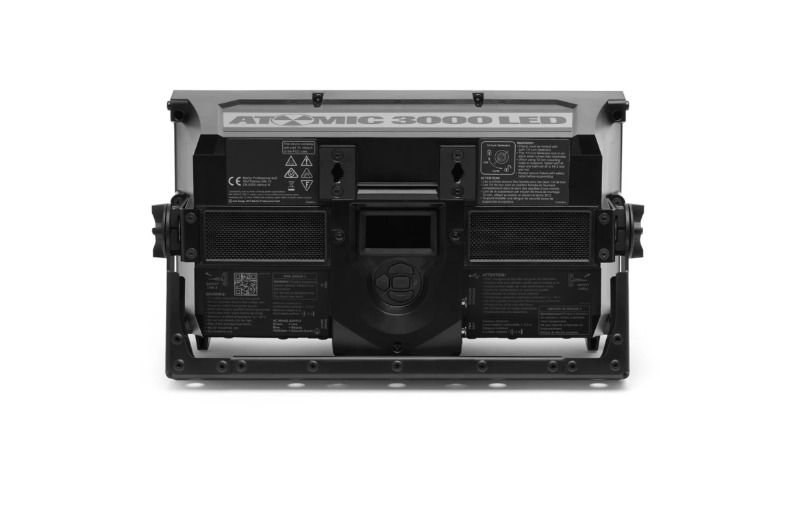

  • Hızlı ve kolay ayar ayarlaması için 4 düğmeli menü ve LCD ekran
  • Akıllı donanım ve braket çözümü
  • Atomic 3000 olarak 4 Kanallı DMX modu (kolay değiştirme)
  • 14 Kanal Genişletilmiş DMX modu dahil. Aura kontrolü ve dahili FX makroları
  • RDM uyumlu, yazılım güncellemeleri için USB bağlantı noktası

Physical
Length 245 mm (9.7 in.)
Width 425 mm (16.8 in.)
Height 240 mm (9.5 in.)
Weight 7.8 kg (17.2 lbs.)
All data including mounting bracket
Dynamic Effects
Strobe 0.289 - 16.667 Hz, variable flash rate, intensity and duration
Special effects Blinder, ramp up/down, random flash, lightning. spikes, pre-programmed FX
Aura (secondary LED array illumination) color mixing RGB
Control and Programming
Control systems DMX, RDM
Setting and addressing Control panel with backlit monochrome graphic display
DMX channels 3/4/14
DMX compliance USITT DMX512-A
RDM compliance ANSI/ESTA E1.20 RDM
Transceiver RS-485
Firmware update via USB type A memory device or via DMX using Martin Companion
Optics and Photometric Data
Max. total output 180,000 lumens*
Beam (strobe) array Light source: 228 x Cree XLamp XP-L, 10 W white LEDs (color temperature 5,700 K)Resolution: 8-bitDimming, above 16.7% output intensity: Current-controlled, flicker-freeDimming, below 16.7% output intensity: PWM (refresh rate 6,000 Hz)Binning: Tight color and flux binningMinimum LED lifetime: 50,000 hours**
Aura (backlight) array Light source: 64 x Osram RGB LEDsResolution: 8 bits per color plus 8-bit dimmingDimming: PWM (refresh rate 1,001 Hz)Binning: Tight color and flux binningMinimum LED lifetime: 50,000 hours**
*For full photometric data, click on Photometrics in menu bar**To >70% output, figure obtained under manufacturer's test conditions
Construction
Housing Steel. high-impact thermoplastic, flame-retardant to UL 94 5VA
Color Black
Protection rating IP 20
Installation
Mounting points Two pairs of quarter-turn fastener points, M12 holes in adjustable bracket
Location Indoor use only, must be fastened to structure or surface
Orientation Any
Minimum distance to combustible materials 200 mm (8 in.) from fixture
Minimum distance to illuminated surfaces 1 m (3 ft. 4 in.) from fixture
Connections
AC Power Neutrik PowerCON TRUE1 TOP male socket
DMX data in/out 5-pin locking XLR
Atomic Colors color gel scroller 4-pin locking XLR
Software upload USB 2.0
Electrical
AC power 100-240 V AC nominal, 50/60 HzPower supply unit: Auto-ranging electronic switch modeTypical half-cycle RMS inrush current at 230 V, 50 Hz: 17.7 ATypical earth-leakage current: 0.18 mAPower Factor: 0.98 @ 100 V , 0.96 @ 120 V , 0.89 @ 208 V , 0.88 @ 230 V , 0.87 @ 240 VMax current draw: 8.4 A @ 100 V / 120 V , 3.9 A @ 208 V / 230 V / 240 VTypical current draw: 6.8 A @ 100 V , 5.7 A @ 120 V , 3.5 A @ 208 V , 3.2 A @ 230 V , 3.1 A @ 240 V * Power ConsumptionMaximum: 740 WTypical: 663 W *Idle: 25 W * * Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Allow for peak currents that exceed these figures when using the blinder effect. Typical: full output white, regulated fan speed. Idle: no output, regulated fan speed.
Thermal
Cooling Forced air (temperature-regulated, low noise, user-definable fan settings)
Maximum ambient temperature (Ta max.) 40° C (104° F)
Minimum ambient temperature (Ta min.) 5° C (41° F)
Typical heat dissipation (calculated, +/- 10%) 2270 BTU/hr.
Environmental
RoHS Compliant
REACH Compliant
WEEE Compliant
Proposition 65 Compliant
Efficacy (max output) 271.5 lm/W
LWR* 23,077 lm/kg (10,465 lm/lb)
LWR = Lumen-to-Weight Ratio
Approvals
EU safety EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC EN 55015 Class B, EN 61547, EN 55032, EN 55035, EN 61000-3-2 Class A, EN 61000-3-3
US safety UL 1573
US EMC 47 CFR 15 Class A
Canadian safety CSA E598-2-17 (CSA E60598-1)
Canadian EMC ICES-003 Class A
Australia/NZ RCM
United Kingdom UKCA
Thailand TIS
Related Items
Martin Companion Cable P/N 91616091
Martin Companion Software Suite (including firmware uploader) Free download from www.martin.com
Accessories
Power connectors Cable Connector, Neutrik PowerCON TRUE1 NAC3FX-W (female): P/N 91611789
Power cables Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1, 1.5 m (4.9 ft.): P/N 91611797Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1, 5 m (16.4 ft.): P/N 91611786Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1, 1.5 m (4.9 ft.): P/N 91610173Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1, 5 m (16.4 ft.): P/N 91610174
Installation hardware Half-coupler clamp: P/N 91602005G-clamp (vertical hanging installation only): P/N 91602003Quick trigger clamp (vertical hanging installation only): P/N 91602007
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver P/N 91604007
Atomic Colors gel scroller P/N 91611086
Ordering Information
Atomic 3000 LED in cardboard box P/N 90425000HU
