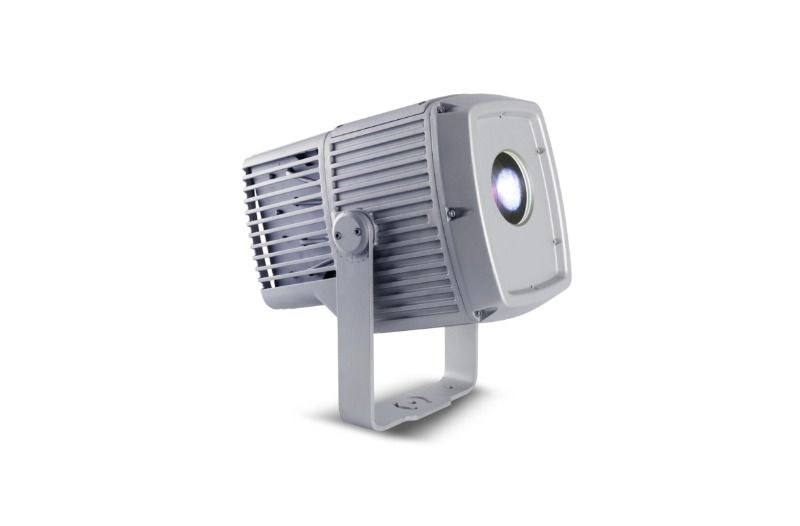

| Physical |
| Length |
415 mm (16.4 in.) |
| Width |
293 mm (11.6 in.) |
| Height |
444 mm (17.5 in.) |
| Weight |
17.5 kg (38.6 lbs.) |
| All figures include mounting yoke |
| Dynamic Effects |
| Color wheel |
8 interchangeable colors + open |
| Gobo wheel |
6 rotating gobos plus open, indexing, variable rotation |
| Gobo animation |
Variable speed linear animation effect |
| Prism |
Prism wheel with 2 interchangeable prisms, prism rotation and indexing |
| Frost (wash effect) |
Motorized variable |
| Dimming |
0-100% electronic |
| Shutter |
Strobe and pulse effects, instant open and blackout |
| Focus |
Motorized, variable 3 m (9.8 ft.) to infinity |
| Control and Programming |
| Stand-alone control |
Up to 20 scenes with global fade/hold times |
| Control options |
DMX, RDM, standalone |
| Configuration, addressing and status |

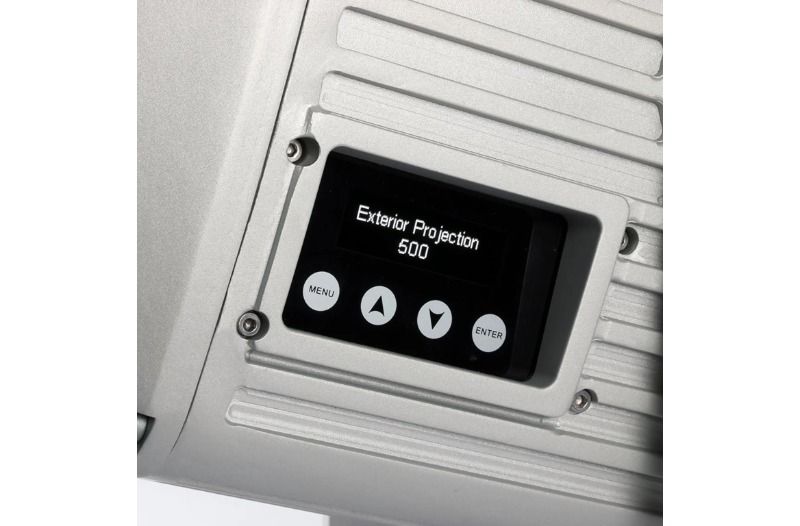

Onboard control panel with OLED display |
| 8-bit control |
color/gobo selection, prism, frost, animation |
| 16-bit control |
Gobo indexing and rotation, focus and intensity |
| DMX channels |
13 |
| DMX compliance |
USITT DMX512-A |
| RDM compliance |
ANSI/ESTA E1.20 |
| Optics |
| Light source |
230 W white light LED engine |
| CRI (Color Rendering Index) |
72 |
| Color temperature |
8300 K |
| LED lifetime |
20,000 hours (to >70% luminous output)* |
| LED manufacturer |
Prolight Opto |
| Binning |
Tight color and flux binning |
| *Figure obtained under manufacturer's test conditions |
| Photometric Data |
| Narrow |
Cut-off angle: 12°Total output: 5000 lumensCenter peak: 203,000 cd |
| Medium |
Cut-off angle: 22°Total output: 6100 lumensCenter peak: 77,000 cd |
| Wide |
Cut-off angle: 37°Total output: 5700 lumensCenter peak: 28,000 cd |
| Very Wide |
Cut-off angle: 50°Total output: 3400 lumensCenter peak: 11,000 cd |
| * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient. |
| Construction |
| Housing |
Cast aluminum |
| Finish |
Hard anodized, metallic grey lacquered |

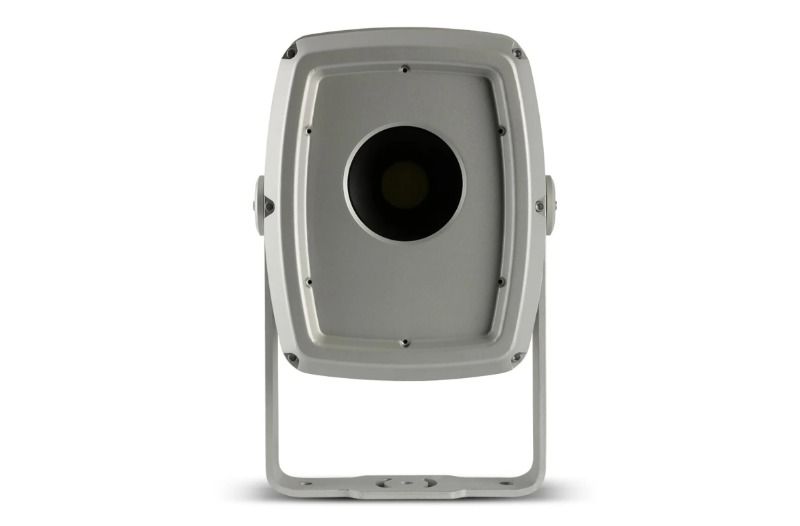

| Front glass |
5 mm (0.2 in.) anti-reflection coated tempered glass |
| Ingress protection |
IP66 |
| Impact resistance |
IK08 (with control panel display cover plate installed) |
| Corrosion resistance |
C5-M (very high corrosivity / marine, ISO 12944) |
| Vibration resistance |
1.0g, Sinusoidal (IEC 60068-2-6) 0,7g RMS Random (IEC 60068-2-64) |
| EPA (Effective Projected Area) |
0.15 m2 |
| RoHS compliant |

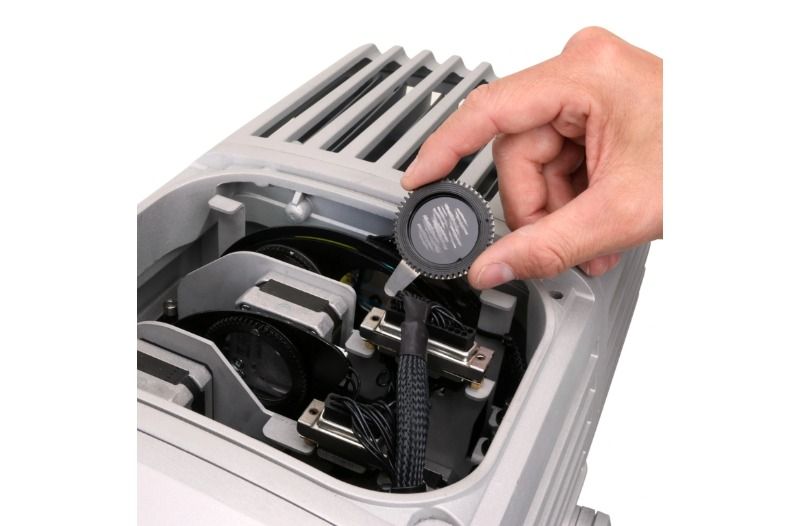

| Gobos |
| Suitable material |
Borosilicate glass, coatings heat-resistant to 450°C (842° F) |
| Alternative material |
Aluminum 1060, paint on front lens side, 450° C (842° F) |
| Gobo diameter |
30.0 mm +0/-0.3 mm (1.2 in. +0/-0.02 in.) |
| Maximum image diameter |
23 mm (0.91 in.) |
| Glass gobo thickness, minimum |
1.1 mm ±0.1 mm (0.045 ±0.004 in.) |
| Glass gobo thickness, maximum |
3.0 mm ±0.3 mm (0.12in. ± 0.012 in.) |
| Aluminum gobo thickness |
0.5 mm ± 0.02 mm (0.020 in. ± 001 in.) |
| HT paint |
| Gobos and Color Frame |
| Installation |
| Mounting |
Adjustable yoke |
| Location |
Suitable for wet locations. Do not immerse in water. |
| Orientation |
Any (sides must be kept vertical) |
| Minimum distance to illuminated surfaces |
0.5 m (20 in.) |

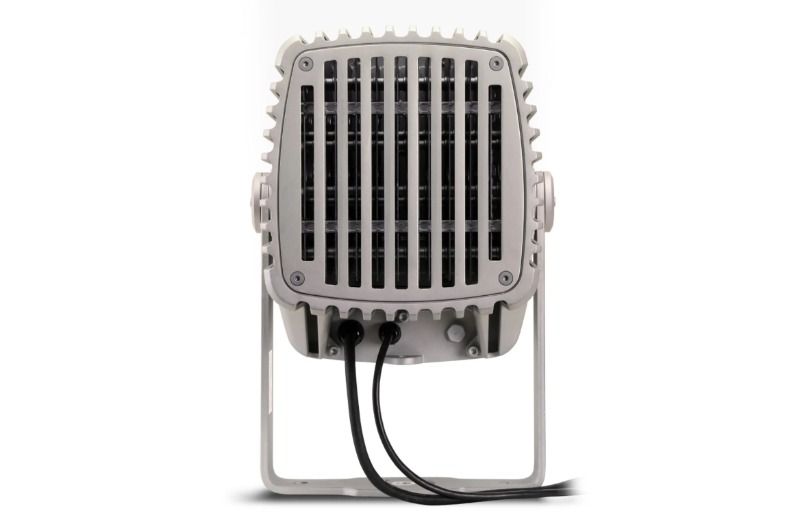

| Connections |
| Power cable entry |
IP68 cable gland |
| Power connection |
1.8 m (5.9 ft.) cable tail with bare ends |
| Data cable entry |
IP68 cable gland |
| Data connection |
1.8 m (5.9 ft.) combined input + output cable tail with bare ends |
| Electrical |
| AC power |
100-240/277 V nominal, 50/60 Hz |
| Power Supply |
Auto-ranging electronic switch-mode |
| Typical half-cycle RMS inrush current |
8.4 A |
| Idle power (zero intensity, no effects applied) |
32 W, 0.3 A |
| Surge protection |
4 KV |
| Typical Power and Current |
| 110 V, 60 Hz |
320 W, 2.9 A, PF 0.977 |
| 230 V, 50 Hz |
310 W, 1.4 A, PF 0.971 |
| 277 V, 60 Hz |
305 W, 1.2 A, PF 0.950 |
| Figures are typical, not maximum. Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. |
| Thermal |
| Cooling |
Convection, internal forced air |
| Total heat dissipation (calculated) |
1100 BTU/hr. |
| Maximum surface temperature |
85° C (185° F) |
| Maximum ambient temperature (Ta max.) |
45° C (113° F) * |
| Minimum ambient temperature (Ta min.) |
-30° C (-22° F)** |
| *Above this temperature, the fixture regulates output to protect from overheating.** An integrated heat-element will heat-up internal components at ambient temperatures below 0° C (32° F) - For instant wake-up with no warm-up time, leave power applied constantly. |
| Environmental |
| RoHS |
Compliant |
| REACH |
Compliant |
| WEEE |
Compliant |
| Proposition 65 |
Compliant |
| Efficacy (max output) |
20 lm/W |
| LWR* |
349 lm/kg (158 lm/lb) |
| LWR = Lumen-to-Weight Ratio |
| Approvals |
| Global CB Certification/IECEE |
IEC 60598-2-5 (IEC 60598-1) |
| EU safety |
EN 60598-2-1, EN 60598-2-5 (EN 60598-1), EN 62471, EN 62493 |
| EU EMC |
EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61547 |
| US safety |
ANSI/UL 1598 |
| US EMC |
CFR 47 Part 15 Class A |
| Canadian safety |
CSA C22.2 No 250.0 |
| Australia/NZ |
RCM |
| India |
BIS |
| Related Items |
| Martin Companion Cable |
P/N 91616091 |
| Martin Companion Software Suite (including firmware uploader) |
| Accessories |
| Glare Shield, Exterior Projection 500, aluminum |
P/N 91611767 |
| Projection Setup Gobo |
P/N 91616068 |

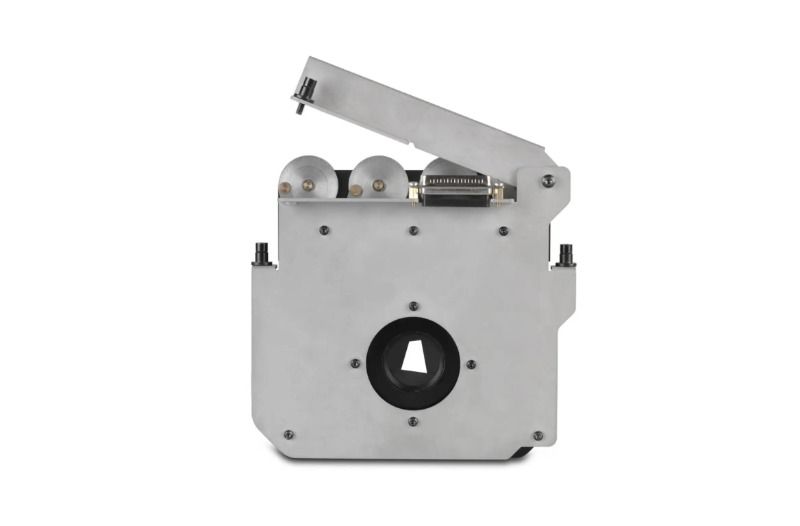

| EP-500, Manual Framing Module |
P/N 91611842 |
| Ring for gobo, OD30, set of 10 pcs |
P/N MAR-91611851 |
| Spare Parts |
| Silica gel desiccant bag in sealed foil pack |
P/N 37220000 |
| Goboholder with magnet incl. washer, short spring & long spring |
P/N 50481990 |
| Goboholder without magnet incl. washer, short spring & long spring |
P/N 50481992 |
| Ordering Information |
| EU models |
Exterior Projection 500, Narrow, EU, Aluminum: P/N 90506500Exterior Projection 500, Medium, EU, Aluminum: P/N 90506505Exterior Projection 500, Wide, EU, Aluminum: P/N 90506510Exterior Projection 500, Very Wide, EU, Aluminum: P/N 90506535Exterior Projection 500, Narrow, EU, White: P/N 90506540Exterior Projection 500, Medium, EU, White: P/N 90506545Exterior Projection 500, Wide, EU, White: P/N 90506550Exterior Projection 500, Very Wide, EU, White: P/N 90506555 |
| US Models |
Exterior Projection 500, Narrow, US, Aluminum: P/N 90506515Exterior Projection 500, Medium, US, Aluminum: P/N 90506520Exterior Projection 500, Wide, US, Aluminum: P/N 90506525Exterior Projection 500, Very Wide, US, Aluminum: P/N 90506530 |
