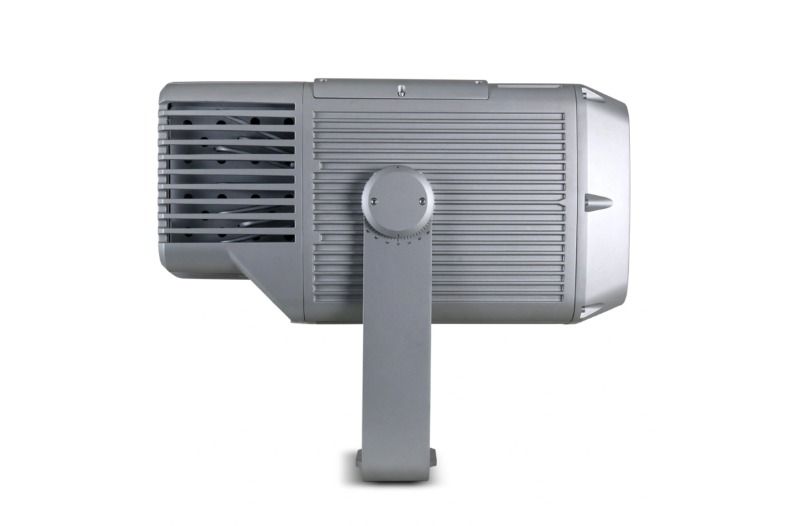

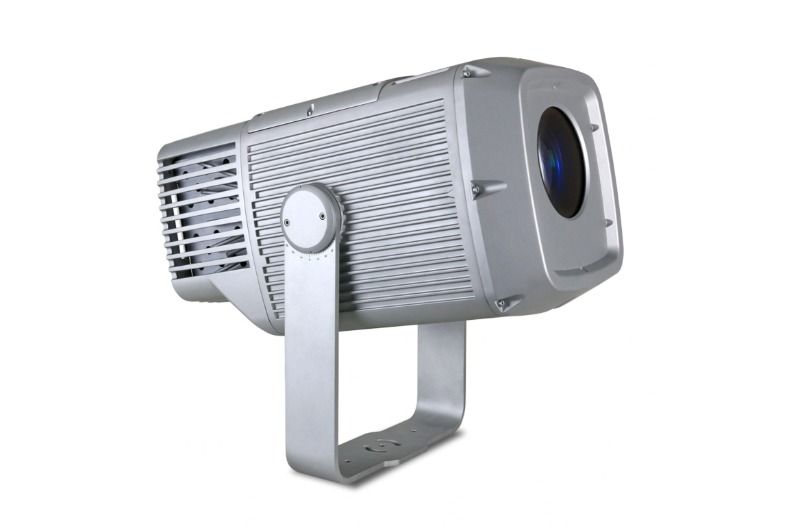

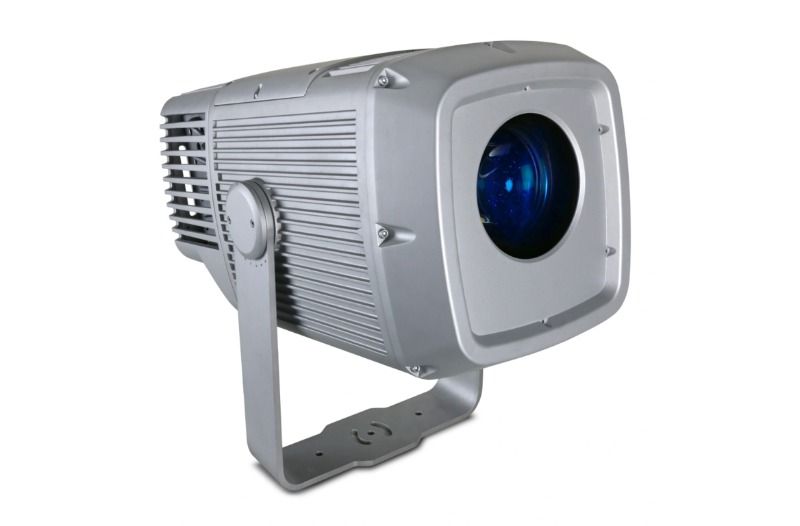

Exterior Projection 1000

  • Marka : MARTIN
  • Ürün Kodu :

Dış Projeksiyon 1000
Dış mekana uygun büyük ölçekli görüntü projektörü

Sınırlı miktarda mevcuttur - bilgi için lütfen satıcınızla iletişime geçin

Exterior Projection 1000, sınırsız yaratıcı dış aydınlatma tasarımları için dokuları, desenleri ve grafikleri entegre eden, kalıcı dış mekan kurulumlarına yönelik benzersiz, güçlü bir araçtır.

Yüksek etkiye sahip ve az bakım gerektiren bu gelişmiş, IP66 dereceli LED projektör, keskin görüntü kalitesi, dinamik özellikler ve çok uzak mesafelere mükemmel erişim sunar.

Bina cepheleri için özel gobolar oluşturma

Ürün doğrulamamız ve güvenilirliğimiz hakkında daha fazla bilgi edinin

Özellikler

  • Yüksek güçlü LED motorunu temel alan düz alanlı, yüksek kontrastlı görüntü projeksiyonu
  • %0-100 elektronik karartma
  • Tam CMY renk karışımı + 7 değiştirilebilir renk içeren ek renk tekerleği
  • Grafik görüntüleri yansıtmak için 7 gobo yuvası (gobolar dahil)
  • Animasyonlu ışık efektleri oluşturmak için animasyon sistemi (yatay ve dikey)
  • İstenilen yüzeye tam projeksiyon için 10° - 44° yakınlaştırma aralığı
  • Geçiş efektleri ve yıkama ışığı olarak hibrit işlev oluşturmak için değişken buzlanma
  • Soyut çoklu desenler oluşturmak için 2 adet dönen prizma
  • Grafik OLED ekran aracılığıyla sezgisel kurulum, konfigürasyon ve bağımsız programlama
  • RDM ve DMX kontrolü
  • Kalıcı dış mekan kurulumu için tamamen hava koşullarına dayanıklı IP66 armatürü
  • Isı boruları teknolojisini kullanarak tam konveksiyonlu soğutma

Physical
Length 702 mm (27.7 in.)
Width 417 mm (16.5 in.)
Height 618 mm (24.4 in.)
Weight 50 kg (110 lbs.)
All figures include mounting yoke
Dynamic Effects
Color mixing CMY, independently variable 0 - 100%
Color wheel 7 interchangeable colors + open
Gobo wheel 7 rotating gobos plus open, indexing, variable rotation
Gobo animation wheel Indexing, continuous rotation with variable angle, speed and direction
Zoom 10° - 44° (cut-off angles)
Prism Prism wheel with 2 interchangeable prisms, prism rotation and indexing
Frost filter Motorized, variable
Dimming 0-100% electronic
Shutter Electronic, strobe and pulse effects, instant open and blackout
Focus Motorized, variable 3 m (9.8 ft.) to infinity
Control and Programming
Stand-alone control Up to 20 scenes with global fade/hold times
Control options DMX, RDM, standalone

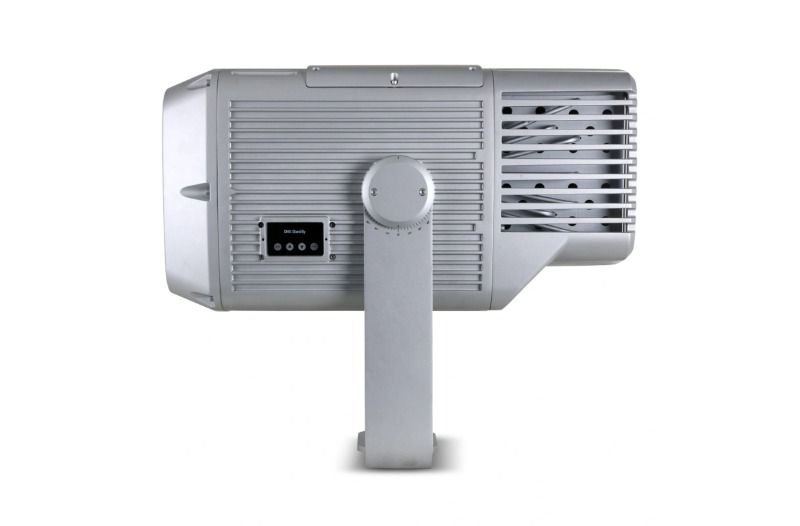

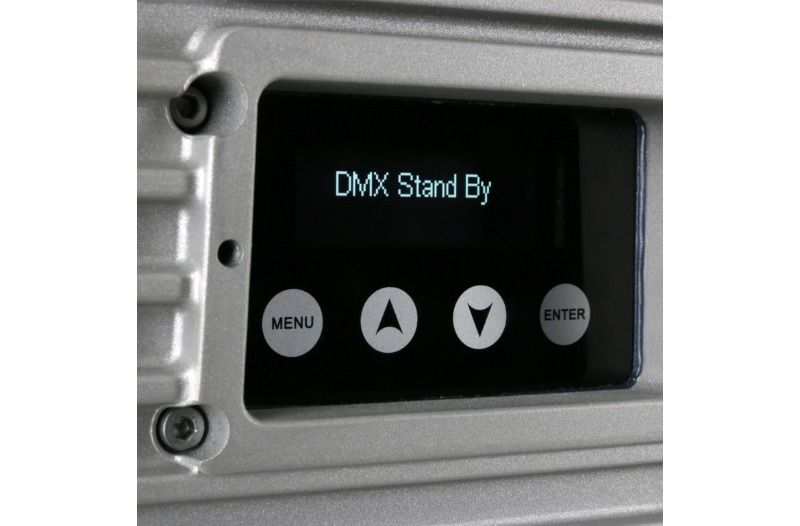

Configuration, addressing and status Onboard control panel with OLED display or via RDM
8-bit control CMY, color selection, gobo selection, prism, frost, animation
16-bit control Gobo indexing and rotation, zoom, focus and intensity
DMX channels 20
DMX compliance USITT DMX512-A
RDM compliance ANSI/ESTA E1.20
Optics
Light source 440 W white light LED engine
CRI (Color Rendering Index) 72
Color temperature 6500 K (±250 K)
LED lifetime 20,000 hours (to >70% luminous output)*
LED manufacturer Appotronics
Binning Tight color and flux binning
*Figure obtained under manufacturer's test conditions
Photometric Data
Cut-off angle 10° - 44°
Luminous intensity At 10° zoom: 11,500 lumensAt 16° zoom: 15,000 lumensAt 40° zoom: 16,800 lumens
Center Peak At 10° zoom: 731,000 cdAt 16° zoom: 311,000 cdAt 40° zoom: 42,000 cd
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Construction
Housing Cast aluminum
Finish Hard anodized, white or metallic grey lacquered
Front glass 5 mm (0.2 in.) anti-reflection coated tempered glass
Ingress protection IP66

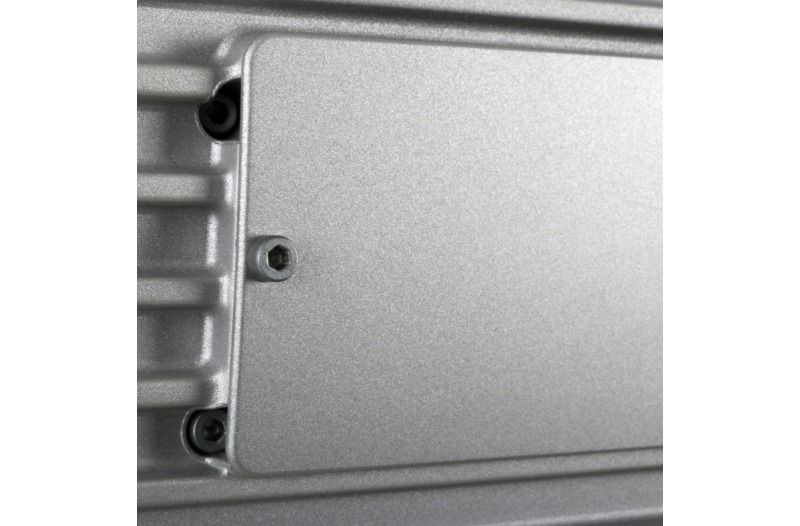

Impact resistance IK08 (with control panel display cover plate installed)
Corrosion resistance C5-M (very high corrosivity / marine, ISO 12944)
Vibration resistance 1.0g, Sinusoidal (IEC 60068-2-6)0,7g RMS Random (IEC 60068-2-64)
EPA (Effective Projected Area) 0.28m²

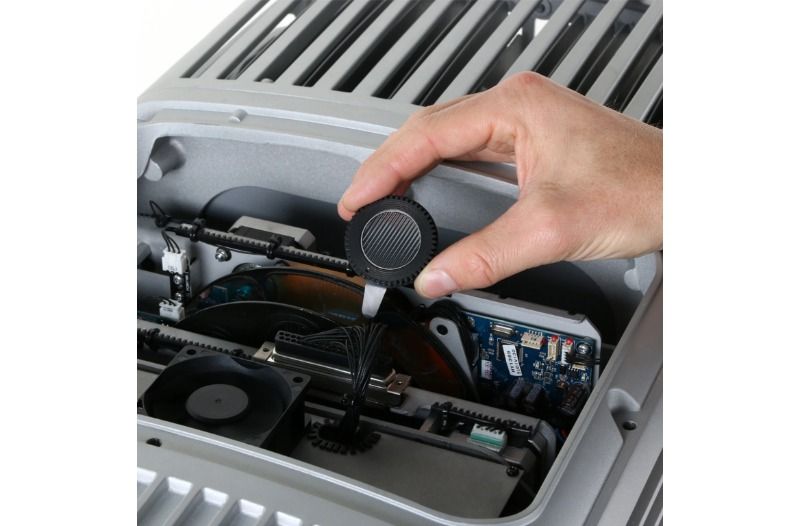

Gobos
Suitable material Metal or borosilicate glass, coatings heat-resistant to 450°C (842° F)
Gobo diameter 30.0 mm +0/-0.3 mm (1.2 in. +0/-0.02 in.)
Maximum image diameter 26 mm (1.02 in.)
Gobo thickness, minimum 1.1 mm ±0.1 mm (0.045 ±0.004 in.)
Gobo thickness, maximum 3.0 mm ±0.3 mm (0.118 in. ± 0.012 in.)*
*Gobos thicker than 2.5 mm require a shorter spring in the goboholder
Gobos and Color Frame
Installation
Mounting Adjustable yoke
Location Suitable for wet locations. Do not immerse in water.
Orientation Any (sides must be kept vertical)
Minimum distance to illuminated surfaces 0.5 m (20 in.)
Connections

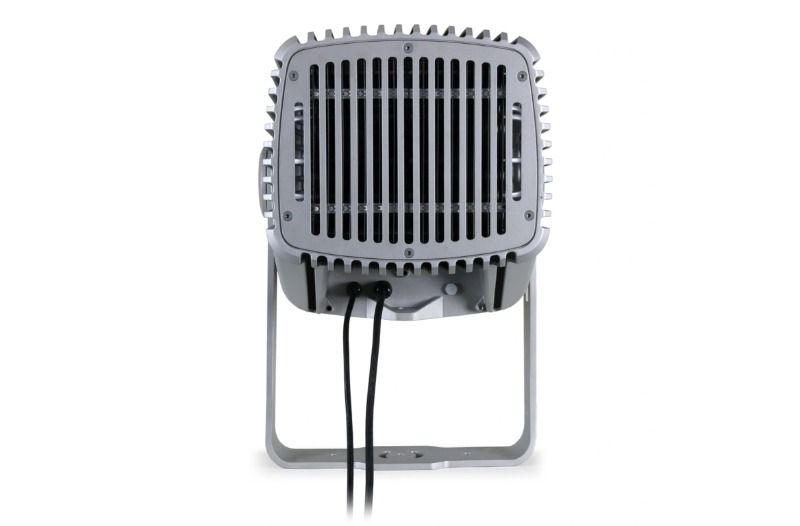

Power cable entry IP66 cable gland
Power connection 1.8 m (5.9 ft.) cable tail with bare ends
Power cable type EU models: H07RN-F 450/700V, Ø10 mm
US models SJTW 14AWG, 300V, Ø9.3 mm
Data cable entry IP66 cable gland
Data connection 1.8 m (5.9 ft.) combined input + output cable tail with bare ends
Electrical
AC power 100-120/200-277 V nominal, 50/60 Hz
Power Supply Auto-ranging electronic switch-mode
Typical half-cycle RMS inrush current 15.5 A
Idle power (zero intensity, no effects applied) 75 W
Surge protection 4 KV
Typical Power and Current
120 V, 60 Hz 645 W, 5.5 A, PF 0.98
230 V, 50 Hz 635 W, 2.9 A, PF 0.95
277 V, 60 Hz 635 W, 2.6 A, PF 0.90
Figures are typical, not maximum. Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
Thermal
Cooling Convection, internal forced air
Total heat dissipation (calculated) 2350 BTU/hr.
Maximum surface temperature 85° C (185 ° F)
Maximum ambient temperature (Ta max.) 45° C (113° F)*
Minimum ambient temperature (Ta min.) -30° C (-22° F)**
*Above this temperature, the fixture regulates output to protect from overheating.** An integrated heat-element will heat-up internal components at ambient temperatures below 0° C (32° F) - For instant wake-up with no warm-up time, leave power applied constantly.
Environmental
RoHS Compliant
REACH Compliant
WEEE Compliant
Proposition 65 Compliant
Efficacy (max output) 26 lm/W
LWR* 349 lm/kg (158 lm/lb)
LWR = Lumen-to-Weight Ratio
Approvals
Global CB Certification/IECEE IEC 60598-2-5 (IEC 60598-1)
EU safety EN 60598-2-1, EN 60598-2-5 (EN 60598-1), EN 62471, EN 62493
EU EMC EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61547
US safety ANSI/UL 1598
US EMC CFR 47 Part 15 Class A
Canadian safety CSA C22.2 No 250.0
Australia/NZ RCM
Included Items
Silica gel desiccant bag P/N 37220000
Two gobo retaining springs
Related Items
Martin Companion Cable P/N 91616091Martin Companion Software Suite (including firmware uploader)
Accessories
Glare Shield, Exterior Projection 1000 P/N 91611768
Projection Setup Gobo, Exterior Projection 1000 P/N 91616075
Ring for gobo, OD30, set of 10 pcs P/N MAR-91611851
Spare Parts
Silica gel desiccant bag in sealed foil pack P/N 37220000
Goboholder for EP1000 with magnet incl. washer & short spring P/N 50482185
Goboholder for EP1000 with magnet incl. washer & long spring P/N 50482186
Ordering Information
EU models Exterior Projection 1000, EU, Aluminum: P/N 90512000Exterior Projection 1000, EU, White: P/N 90512015
US Models Exterior Projection 1000, US, Aluminum: P/N 90512005Exterior Projection 1000, US, White: P/N 90512010
