VDO Atomic Dot CLD

Marka : MARTIN
Ürün Kodu :

VDO Atomik Nokta CLD
Soğuk beyaz flaş / kör edici / göz şekeri fikstürü

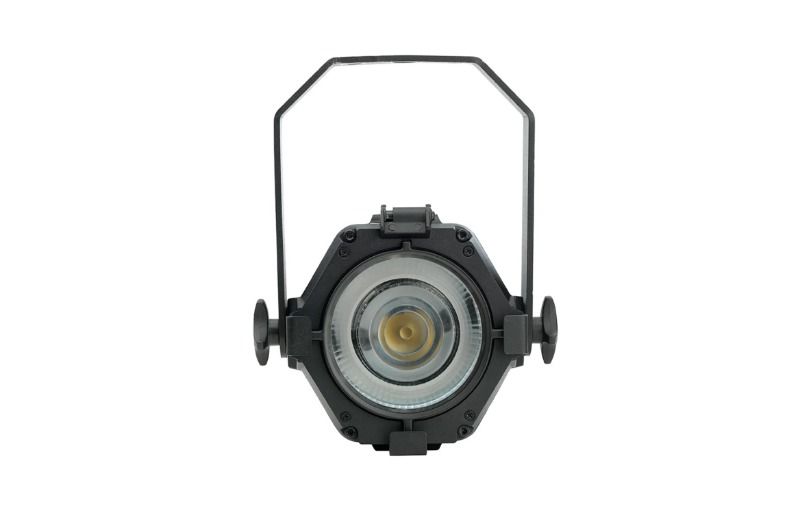

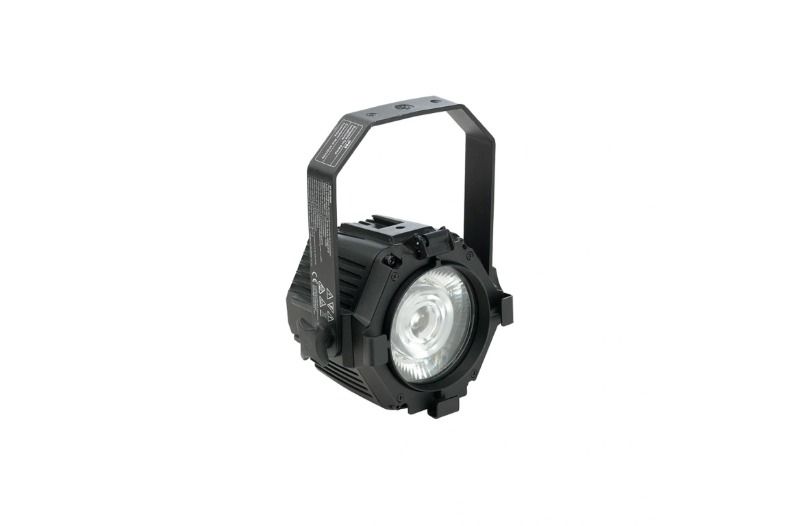

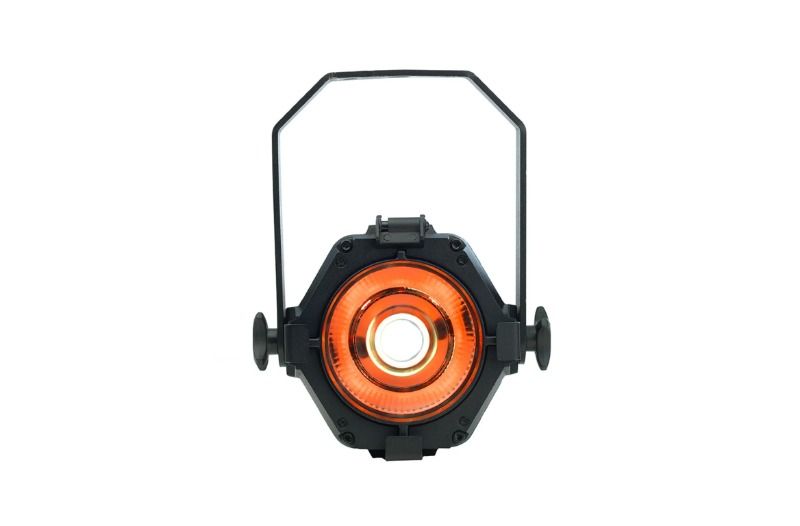

WRM renk sıcaklığı seçeneği de mevcut olan Martin VDO Atomic Dot CLD hibrit aydınlatma ve video armatürü, kompakt bir flaş ışığı, küçük perdeyi, video pikselini ve küçük spot ışığını birleştirir.

Video kontrollü Aura arka ışığını ve parlak flaş/kör noktayı tek bir armatürde birleştiren aydınlatma tasarımcıları, izleyiciler üzerinde her zamankinden daha büyük bir etki yaratmak için daha büyük bir yaratıcı potansiyele sahip oluyor. Armatürlerin kompakt tasarımı aynı zamanda tasarımcılara VDO Atomic Dot'ları hemen hemen her yere yerleştirme ve daha büyük miktarlarda yerleştirme olanağı sağlıyor. P3, DMX, Art-Net ve sACN için entegre destek, ek arayüz kutularına olan ihtiyacı ortadan kaldırır ve yerleşik P3, piksel eşlemeyi ve ürünün video kontrollü flaş veya kör edici olarak kullanılmasını kolaylaştırır.

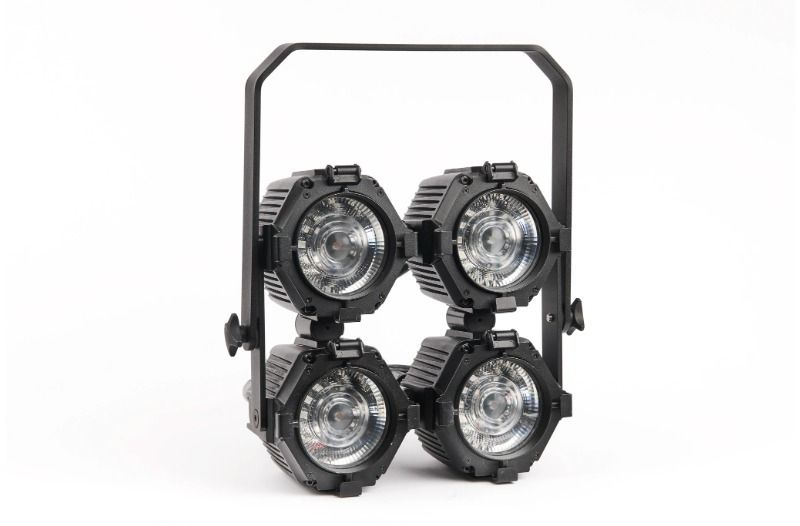

EntegreVDO Izgara Montaj Sistemi, birden fazla VDO Atomik Noktanın çıtalar, diziler veya yaratıcı şekillerde birleştirilmesine olanak tanır. DMX, Art-Net, sACN ve P3 taşıyan PDE kablosu bağlantıları kolay ve hızlı hale getirir.

VDO Atomic Dots, konser/turne ve TV programı setlerinde çalışan kiralık müşteriler ve aydınlatma tasarımcılarının yanı sıra kurumsal ve gece kulübü müşterilerini desteklemek için idealdir.

VDO Izgara Montaj Sistemi hakkında daha fazla bilgi edinmek için buraya tıklayın.

Özellikler

Soğuk beyaz (5700K) ışın/flaş/kör/göz şekeri fikstürü
3350 lümen güçlendirme/flaş
1600 lümen sürekli
11 derecelik ışın açısı
22 derecelik alan açısı

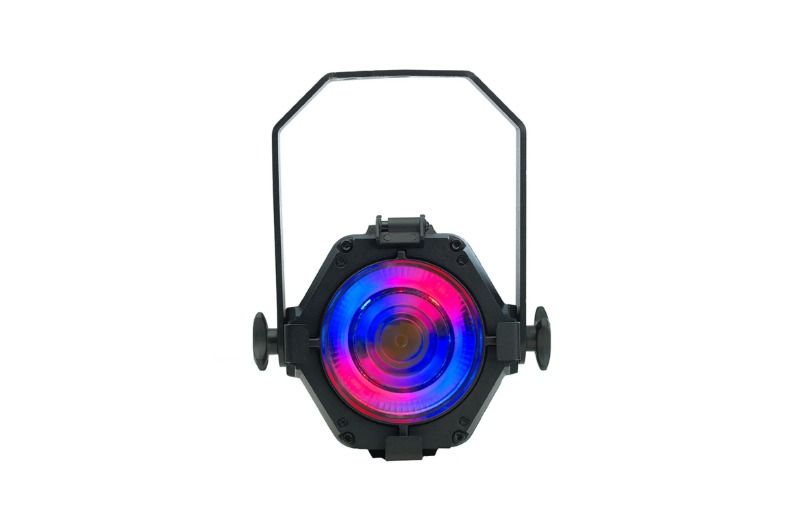

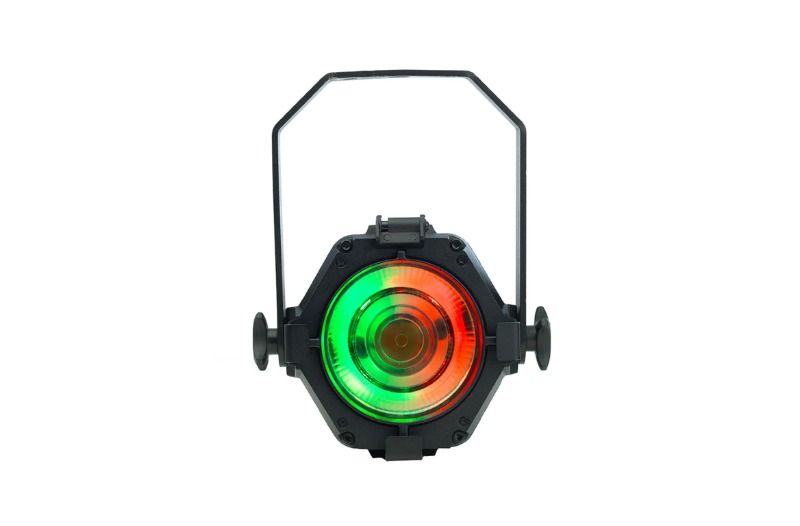

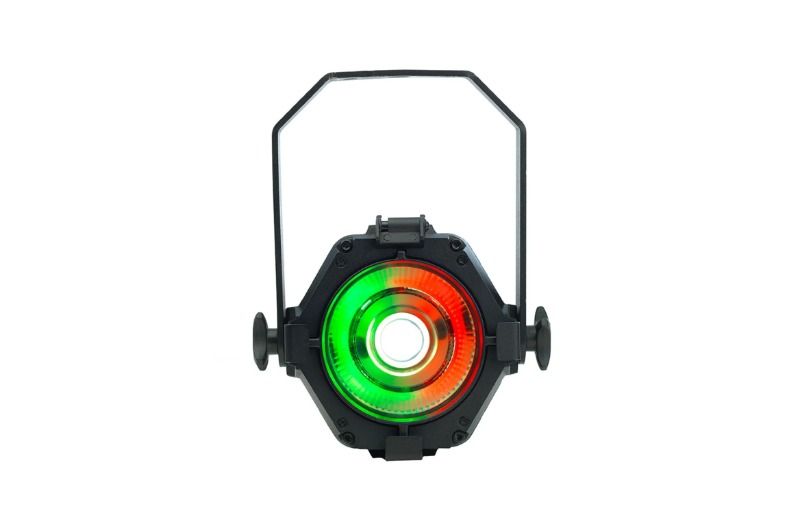

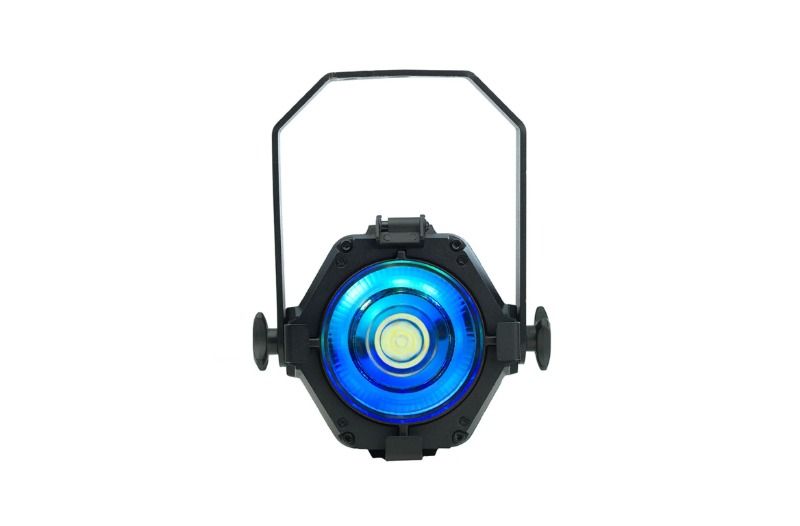

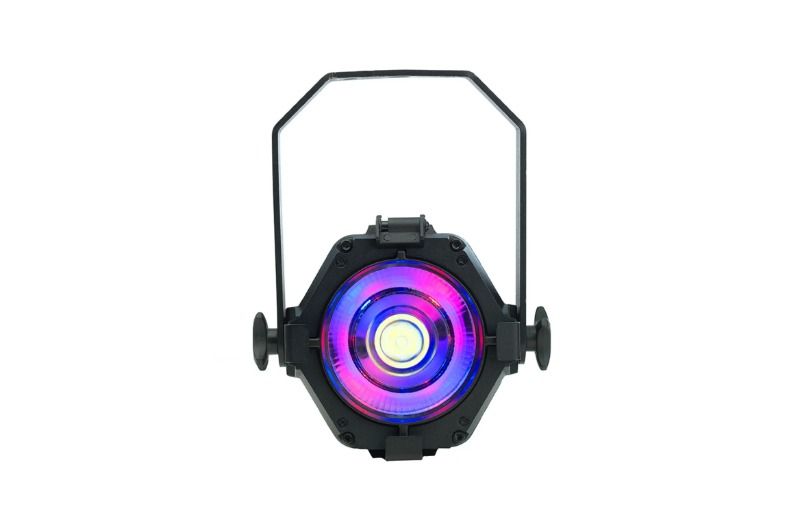

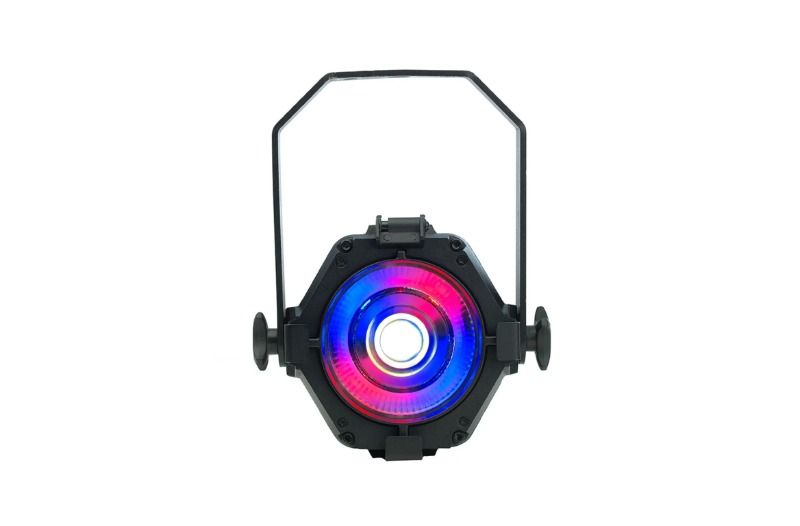

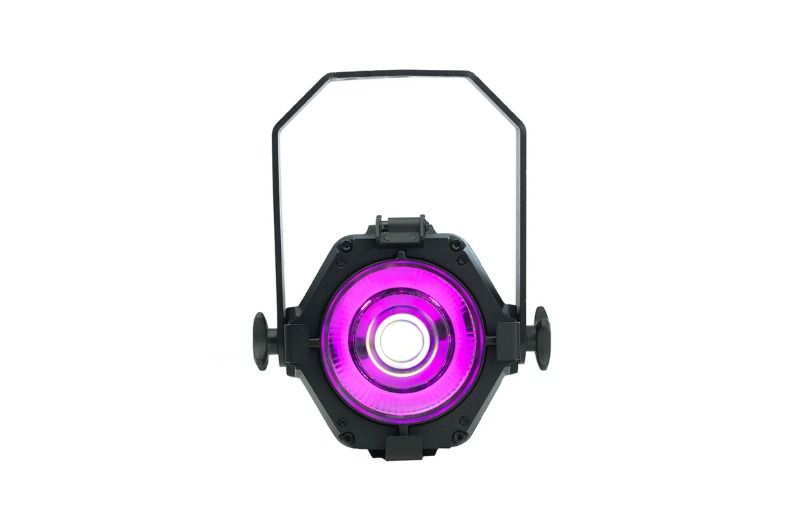

Piksel kontrollü RGB Aura arka aydınlatma
Kompakt form faktörü
Dahili güç kaynağı (100-240V)

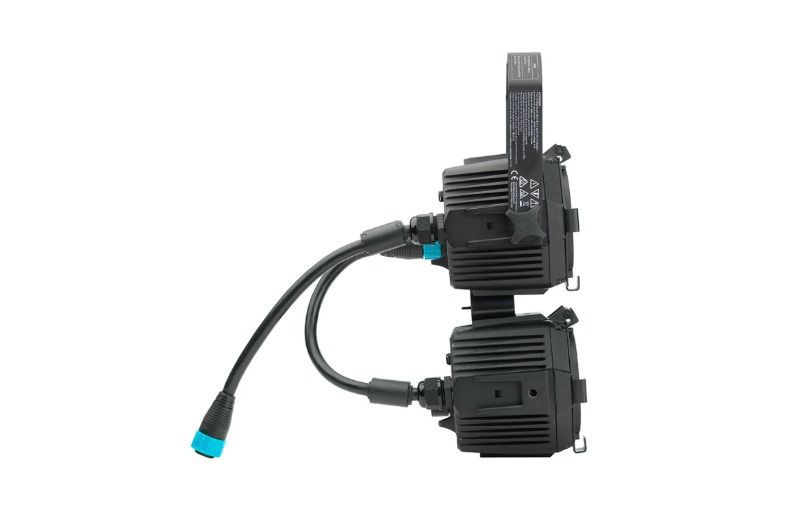

Hibrit kablo (PDE Sistemi) aracılığıyla Güç ve Veri IN & THRU
P3, DMX, Art-Net ve sACN uyumlu
Arka ışıkta ve ışında yerleşik piksel FX

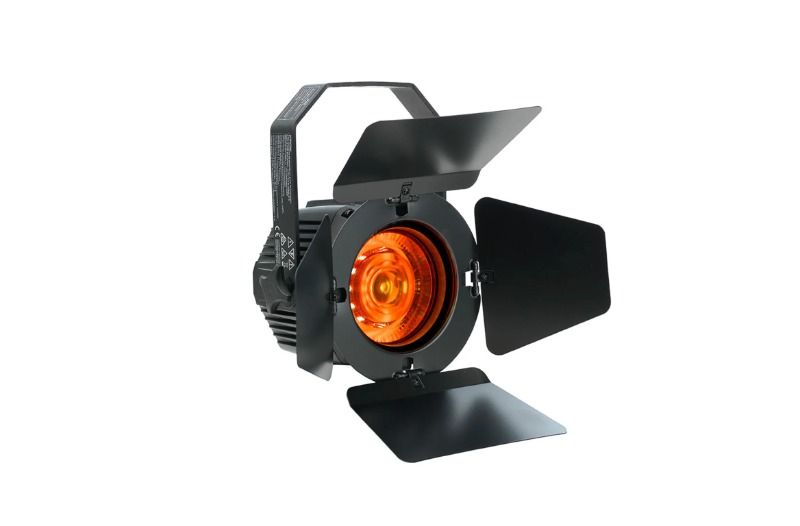

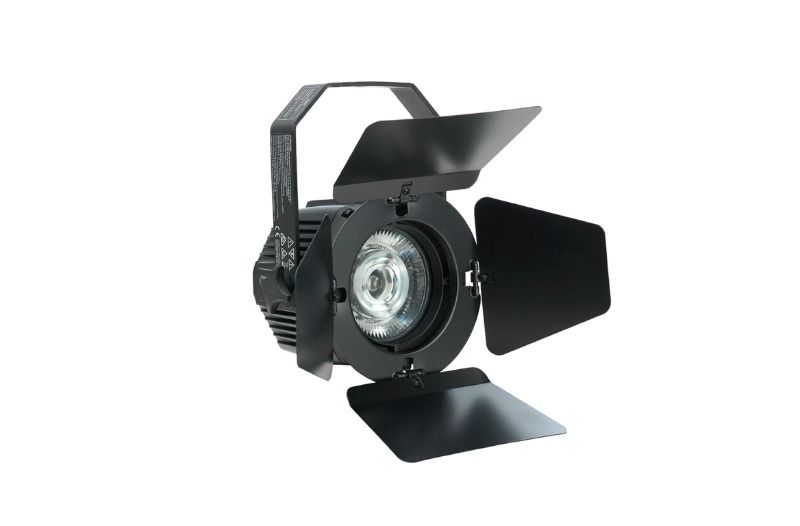

Ambar kapakları ve/veya difüzör/lens için ön aksesuar tutucusu

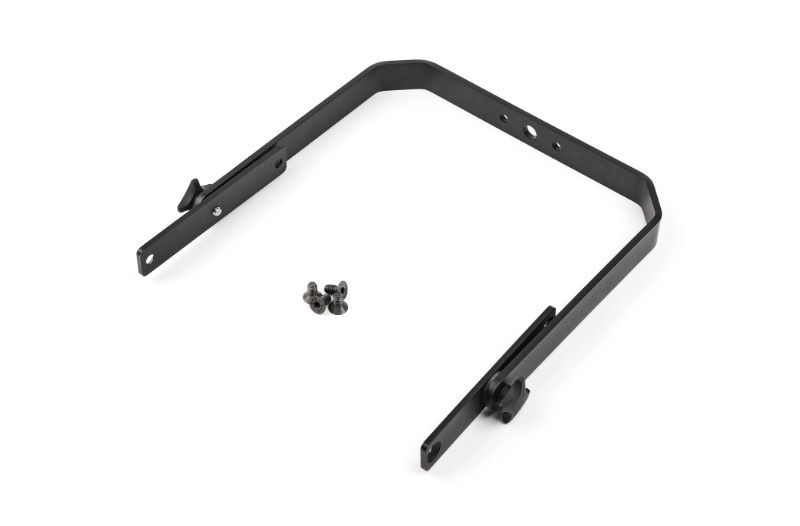

Sökülebilir boyunduruk tertibatı

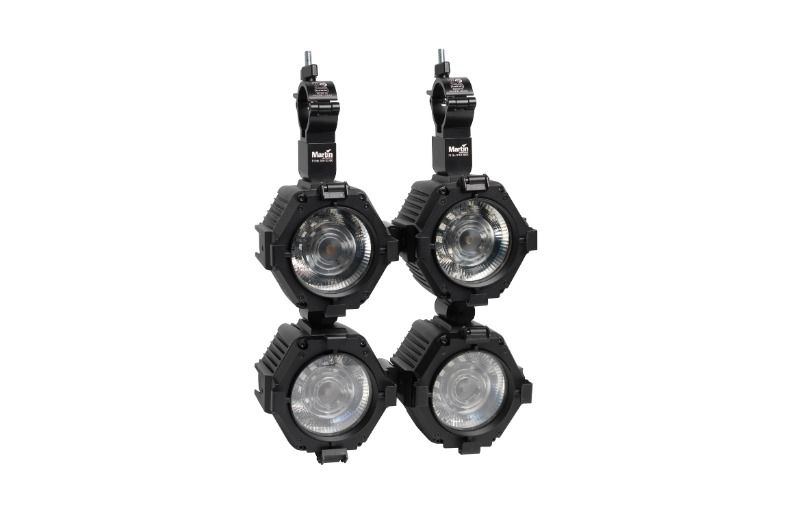

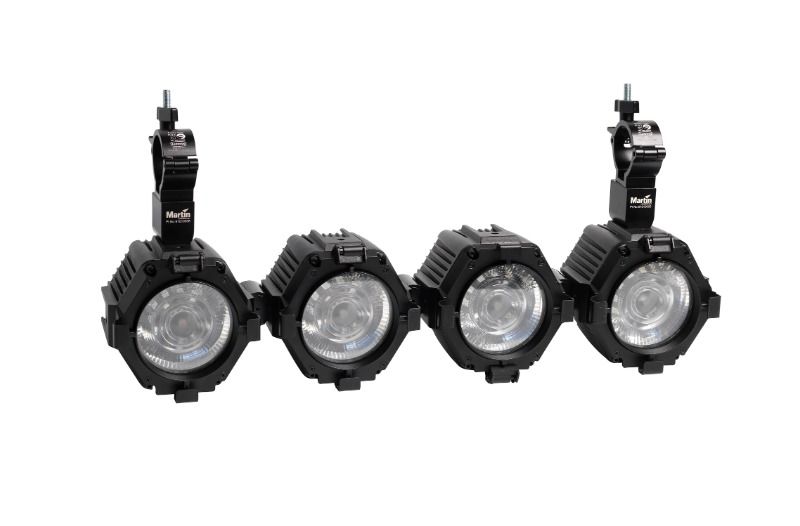

Çıtalar, diziler ve yaratıcı şekiller oluşturmak için VDO Izgara Montaj Sistemi
Karışık diziler için Martin VDO Atomic Bold ve MAC One kilitleme mekaniği ile uyumlu
Pasif soğutma
IP65 dereceli

Physical
Width excluding hanging bracket	130 mm (5.1 in.)Width including hanging bracket: 175 mm (6.9 in.)Height excluding hanging bracket: 134 mm (5.3 in.)Height including hanging bracket: 242 mm (9.5 in.)Horizontal fixture spacing: 150 mm (5.9 in.) (center-to-center using interlock couplers)Vertical fixture spacing: 150 mm (5.9 in.) (center-to-center using interlock couplers)Depth: 146 mm (5.7 in.)Weight including hanging bracket: 2.2 kg (4.85 lbs.)Weight excluding hanging bracket: 2.0 kg (4.41 lbs.)
Dynamic Effects
Beam Dimmer/Shutter	0 - 100% continuous dimming, variable flash rate and duration, and atomic effectsBeam Dimming options: Choice of four dimming curvesBeam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video controlAura Dimmer/Shutter: 0 - 100% continuous dimming, regular and random strobe effectsAura Dimming options: Choice of four dimming curvesAura Color mixing: RGB, independently variable 0 - 100%Aura Color temperature control: Variable 2000 - 11,000 KAura Virtual Color wheel: 36 color presets, continuous rotation & random colorAura PixelMapping: individual RGB control of each Aura pixelAura P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video controlBuilt-in FX: Various pre-programmed FX on Beam, Aura and combination of both
Control and Programming
Control Protocols	DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
Protocol detection	Automatic
Setting and addressing	RDM, RDM over Art-Net or P3
DMX Modes	1-channel, 3-channel, 4-channel, Basic, Extended
DMX channels	1, 3, 4, 19, 64
Fixture Identification	User-settable ID number
DMX compliance	USITT DMX512-A
RDM compliance	ANSI/ESTA E1.20
Art-Net Compliance	Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance	ANSI E1.31 - 2016
Martin P3 Compliance	P3 System Controller Software 5.1.0 or newer
DMX/RDM Transceiver	RS-485
Ethernet Transceiver	10/100Mbit
Firmware update	via DMX using Martin Companion or via Ethernet using P3 System Controller
P3 Video Processing
Color Resolution	16 bit per color (48 bit per pixel) (Aura)
Color Temperature Control	2000-11,000 K (Aura)
Synchronization	System-wide
Frame Rate	Up to 75 frames/sec
Brightness Control	0-100% (maintaining full color depth)
Color Gamut Control	full spectrum control (Aura)
Gamma Correction and Control	fully controllable (Aura)
Control/User Interface
Device status	Multi-color status LED
Device test and reset	Pushbutton to call up local test patterns and reset device
Optics and Photometric Data
Lens Diameter	95 mmFront Accessory Holder: PAR30 size Beam/Strobe LEDLED Type: Cold WhiteMax. total lumen output: 3350 lumens (boost/strobe mode)Max. total lumen output: 1600 lumens (continuous mode)Beam Angle: 11 Degrees (half peak)Field Angle: 22 Degrees (one-tenth peak)Binning: Tight color and flux binningColor Temperature: 5700 KCRI (Color Rendering Index):>=80Resolution: 16-bitMinimum LED lifetime: 50,000 hours (to >70% luminous output) Aura Backlight LEDsLED Type: RGBLED Quantity: 16Binning: Tight color and flux binningColor Temperature: Variable (2000-11,000 K)Resolution: 16-bit per color per pixelMinimum LED lifetime: 50,000 hours (to >70% luminous output) * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Construction
Housing	Aluminum
Color	Black
Protection rating	IP65
Installation

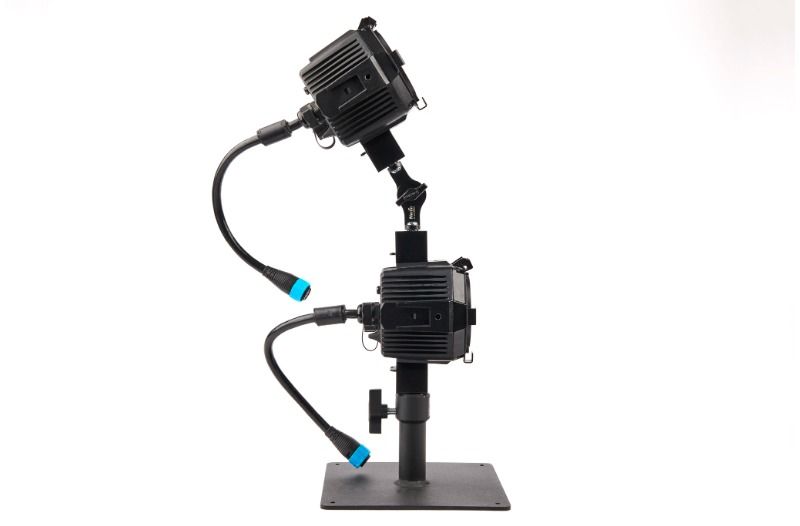

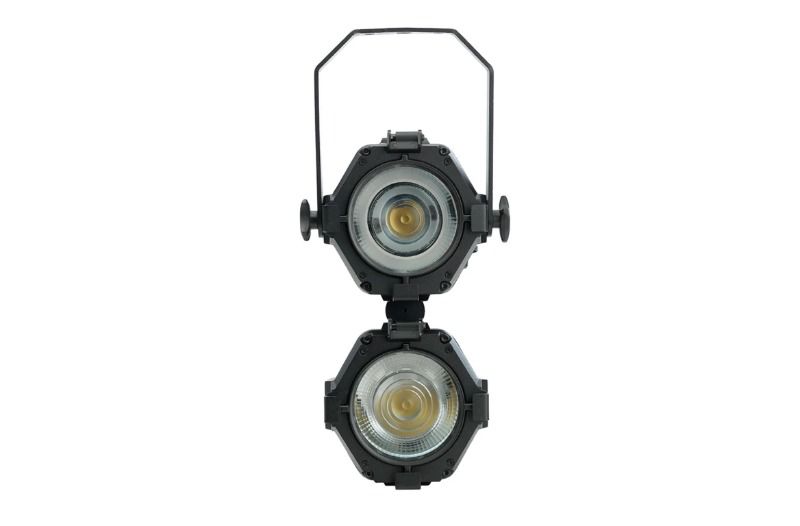

Mounting options	hanging from bracket, hanging from clamp attached directly to fixture or hanging from other fixture using interlock mechanism
Location	indoor or temporary outdoor use
Clamp attachment to hanging bracket	M12
Clamp attachment directly to fixture	M8
Maximum vertical column height	16 fixtures
Orientation	Any
Minimum distance to combustible materials	0.1 m
Minimum distance to illuminated surfaces	0.2 m
Connections

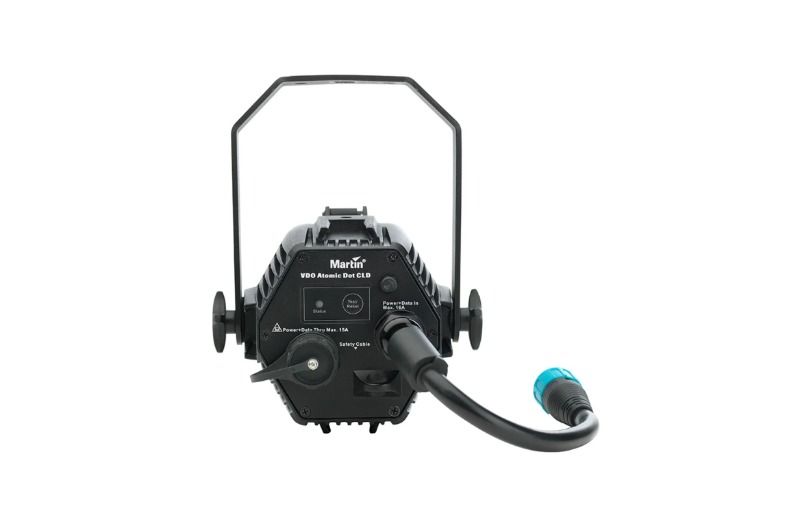

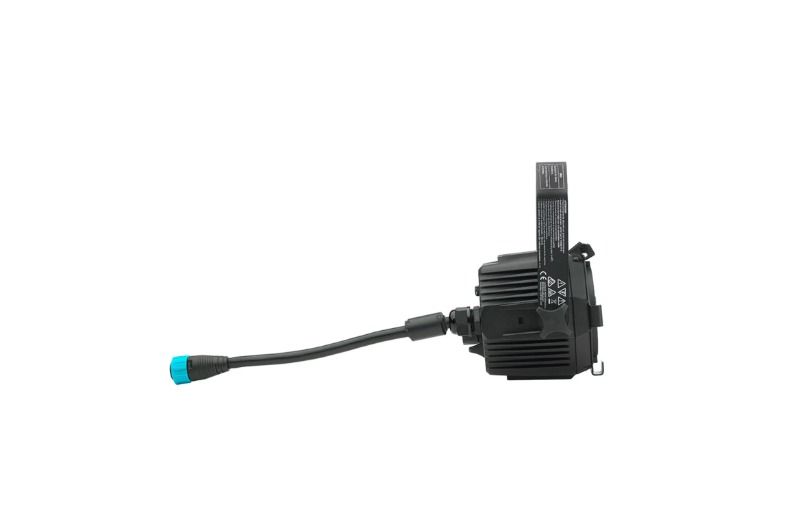

AC Power, DMX and Network input	cable tail with PDE hybrid connector (IP65)AC Power, DMX and Network thru: chassis-mount PDE hybrid connector (IP65)All connections hot plugging compatible
Electrical
AC power	100-240 V AC nominal, 50/60 HzPower supply unit: Auto-ranging electronic switch modeTypical half-cycle RMS inrush current at 230 V, 50 Hz: 1.1 ATypical earth-leakage current: 0.25 mAPower Factor: 0.99 @ 100 V , 0.98 @ 120 V , 0.95 @ 208 V , 0.96 @ 230 V , 0.94 @ 240 VMax current draw: 0.6 A @ 100 V / 120 V , 0.3 A @ 208 V / 230 V / 240 VTypical current draw: 0.5 A @ 100 V , 0.4 A @ 120 V , 0.2 A @ 208 V , 0.2 A @ 230 V , 0.2 A @ 240 V * Power ConsumptionMaximum: 55 WTypical: 50 W Idle: 4 W * Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Typical: full output white. Idle: no output.
Thermal
Cooling	Convection
Maximum ambient temperature (Ta max.)	40° C
Minimum ambient temperature (Ta min.)	0° C
Typical heat dissipation (calculated, +/- 10%)	171 BTU/hr
Environmental
RoHS	Compliant
REACH	Compliant
WEEE	Compliant
Proposition 65	Compliant
Efficacy (max output)	74.4 lm/W
LWR*	1,523 lm/kg (691 lm/lb)
LWR = Lumen-to-Weight Ratio
Approvals
EU safety	EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC	EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
US safety	UL 1573
US EMC	47 CRF Chapter 15 Class B
Canadian safety	CSA 22.2 No. 166
Canadian EMC	ICES-003 Class B, ICES-005 Class B
Australia/NZ	RCM
United Kingdom	UKCA
Related Items
VDO Atomic Dot WRM in cardboard	P/N 90357702
Martin P3-050 System Controller	P/N 90721090
Martin P3-150 System Controller	P/N 90721015
Martin P3-300 System Controller	P/N 90721060
Martin P3-PC System Controller	Free download from martin.com
Martin Companion Cable (for firmware update over DMX)	P/N 91616091
Martin Companion Software (for firmware update over DMX)	Free download from www.martin.com
Accessories

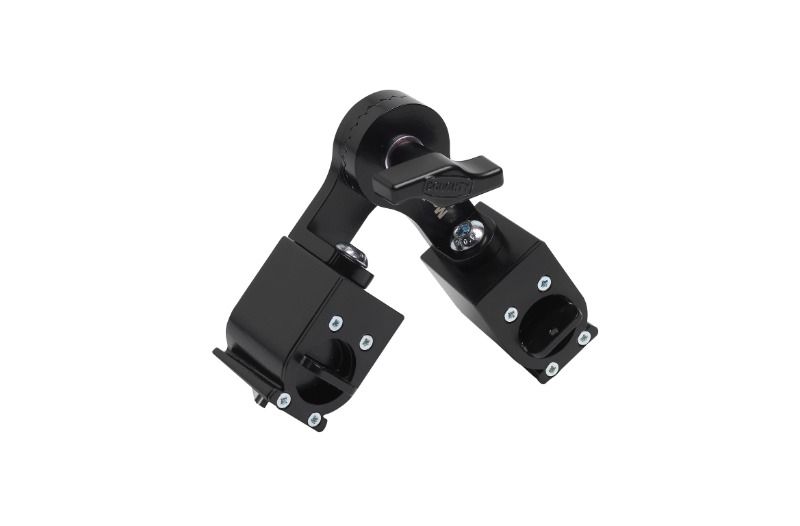

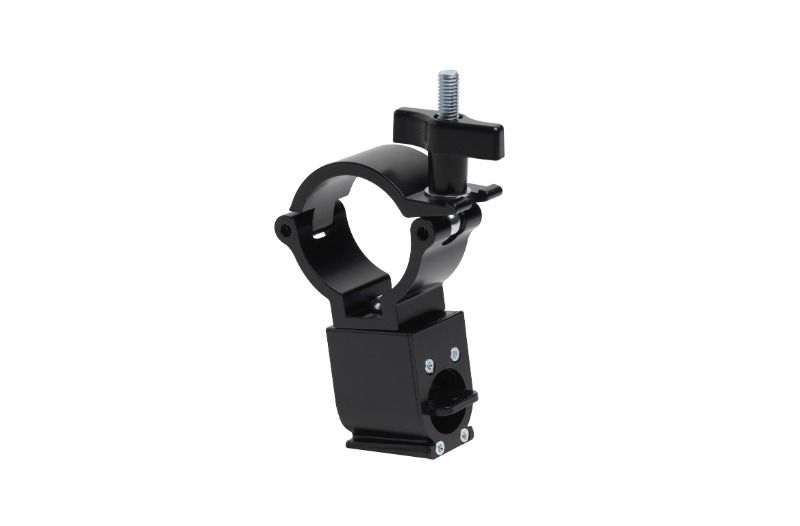

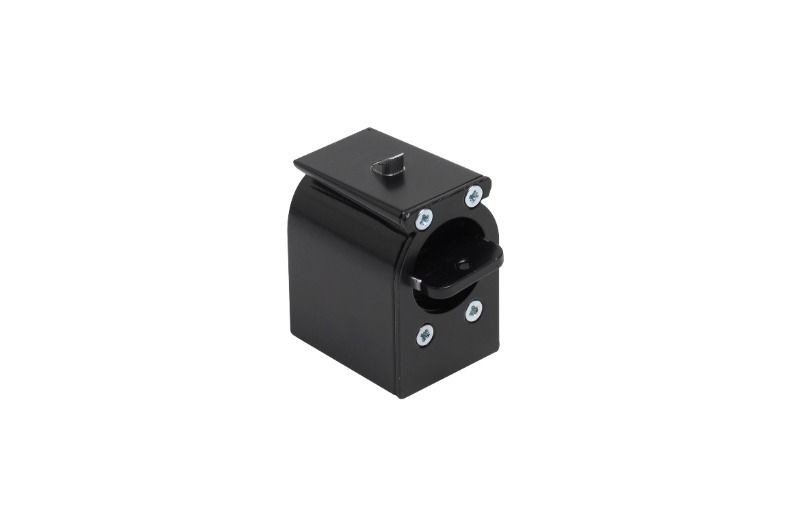

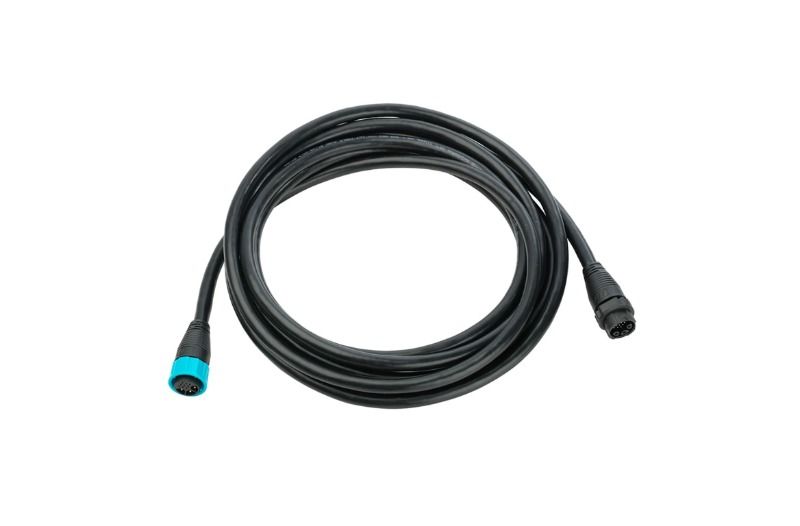

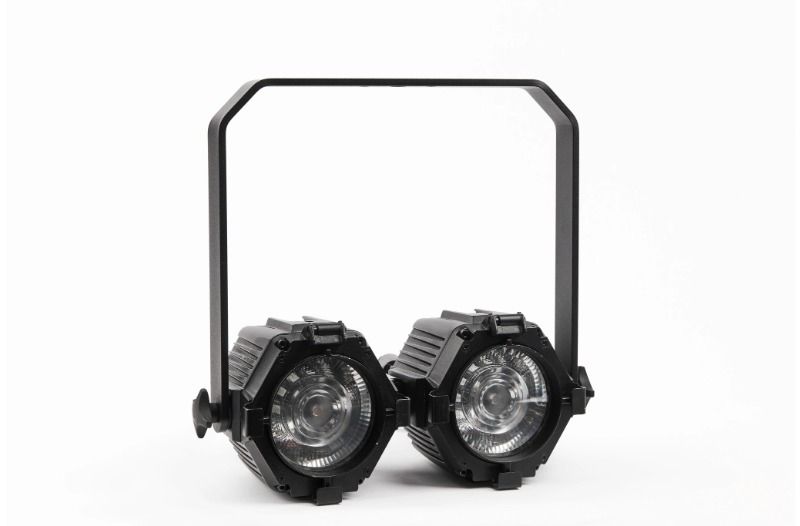

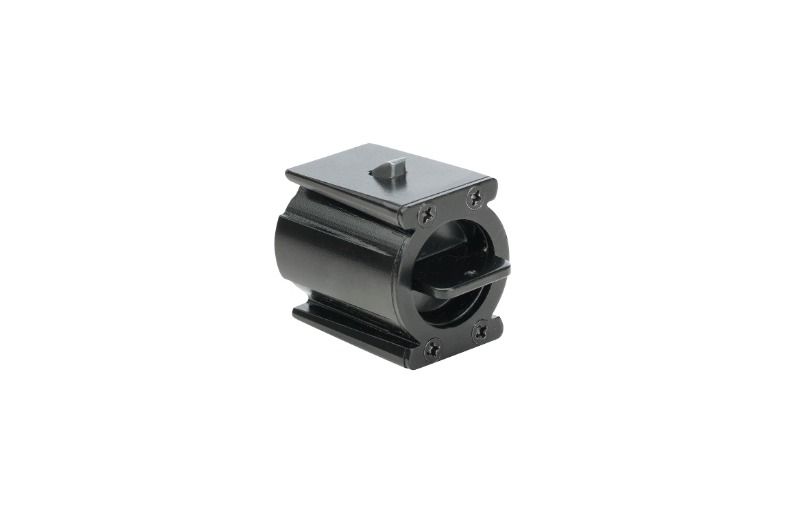

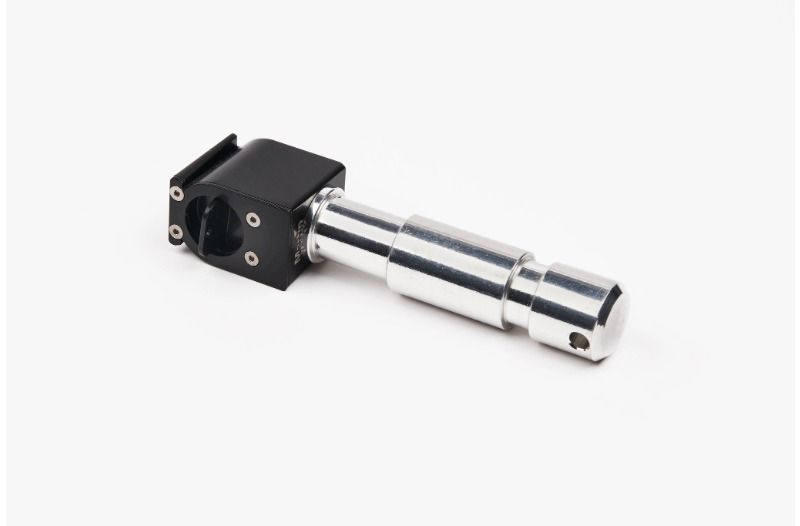

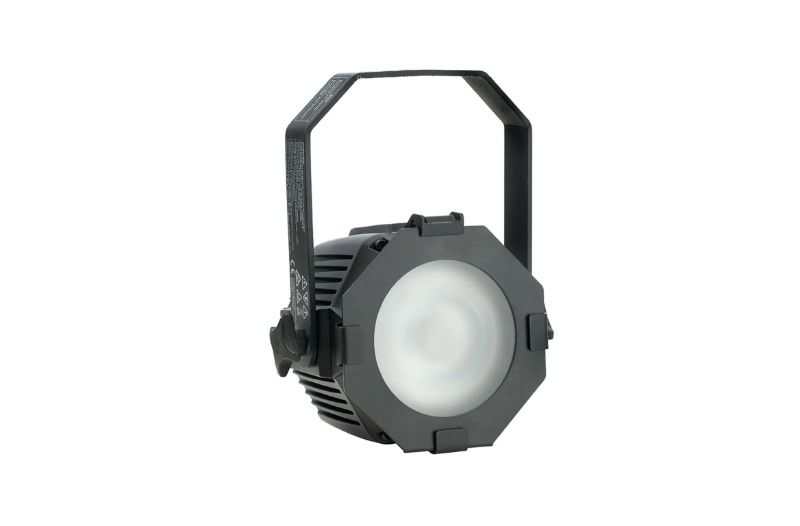

Junction Boxes Passive Junction Box Power-DMX-Ethernet to PDE	P/N 91610001Active Junction Box Power-DMX-Ethernet to PDE: P/N MAR-91700002 Adapters Cables BreakIn Cable Power-DMX-Ethernet to PDE: P/N MAR-91700000BreakOut Cable PDE to Power-DMX-Ethernet: P/N MAR-91700001BreakInOut Cable Power-DMX to PDE: P/N MAR-91700003 Optical AccessoriesVDO Atomic Dot Diffuser 60 Degrees: P/N 91610002VDO Atomic Dot Diffuser 30 Degrees: P/N 91610005 Mechanical AccessoriesSuper Lightweight Half Coupler Rigging Clamp, black: P/N 91602018G-clamp (vertical hanging installation only): P/N 91602003Half-coupler clamp: P/N 91602005Quick trigger clamp (vertical hanging installation only): P/N 91602007Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007Set of 10 VDO Couplers: P/N MAR-91616129HUVDO Atomic Half Coupler: P/N 91610004VDO Atomic Interlock Adapter: P/N 91610006VDO Atomic Pivot Coupler: P/N 91610007VDO Atomic Dot Double Width Bracket: P/N 91616117VDO Atomic Spigot Adapter 28mm: P/N MAR-91616118 Pre-Assembled Hybrid PDE CablesPower+Data Cable Rental PDE-PDE 1m: P/N 91616001Power+Data Cable Rental PDE-PDE 2,5m: P/N 91616002Power+Data Cable Rental PDE-PDE 5m: P/N 91616003Power+Data Cable Rental PDE-PDE 10m: P/N 91616004Power+Data Cable Rental PDE-PDE 25m: P/N 91616005 Bulk Hybrid PDE Cable and ConnectorsPower+Data Connector PDE Male: P/N 91611701Power+Data Connector PDE Female: P/N 91611702Power+Data Cable Power-DMX-Ethernet Rental 100m: P/N 91616006 DemoKitVDO Atomic Dot Demo Kit: P/N 91311001 FlightcaseFlightcase for 15 x VDO Atomic Dot: P/N 91515053Flightcase Extender for 15 x VDO Atomic Dot: P/N 91515054
Ordering Information
VDO Atomic Dot CLD in cardboard	P/N 90357701
