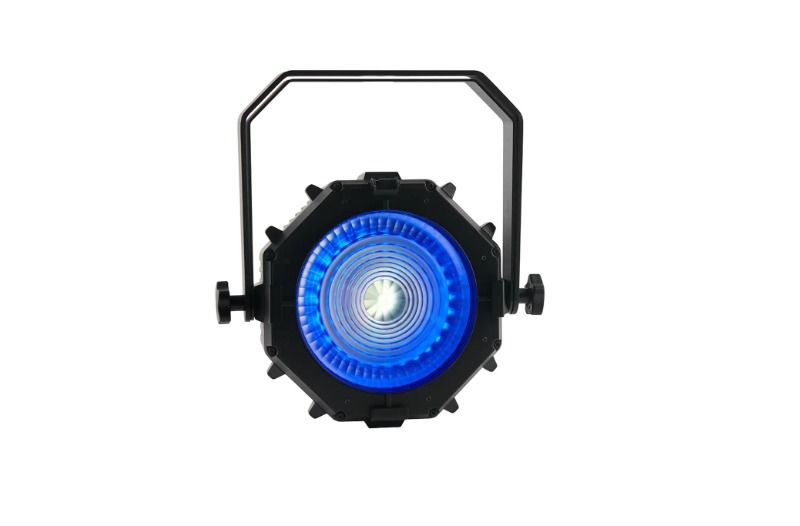

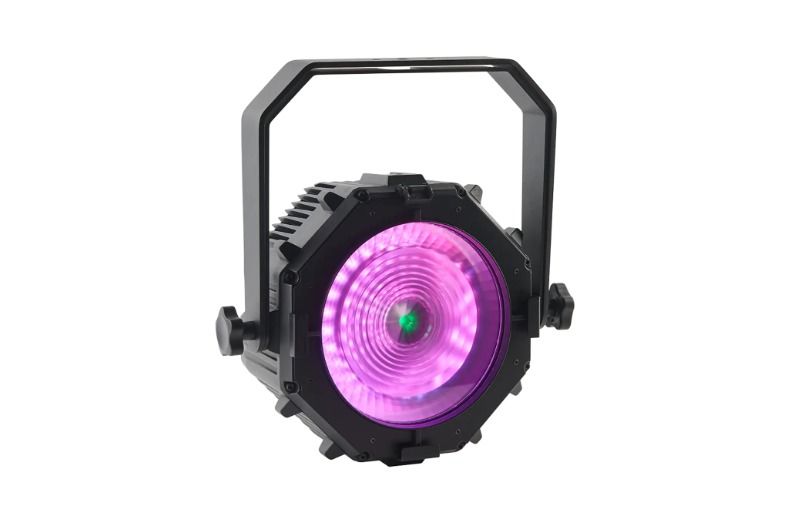

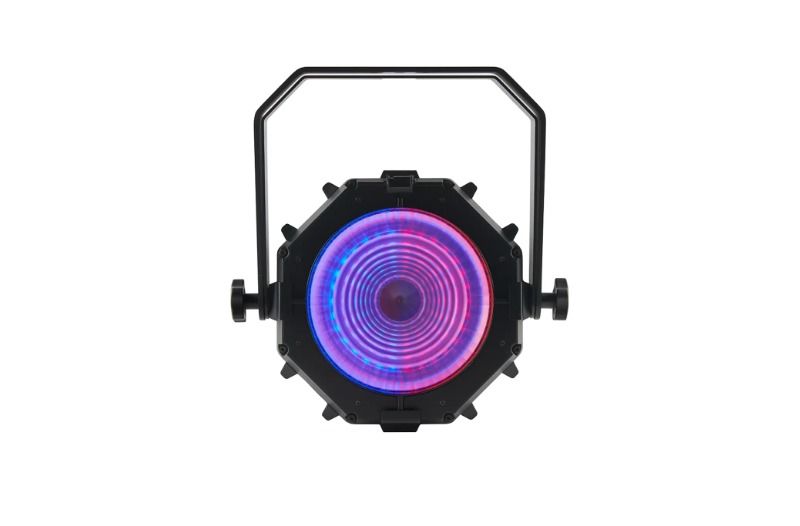

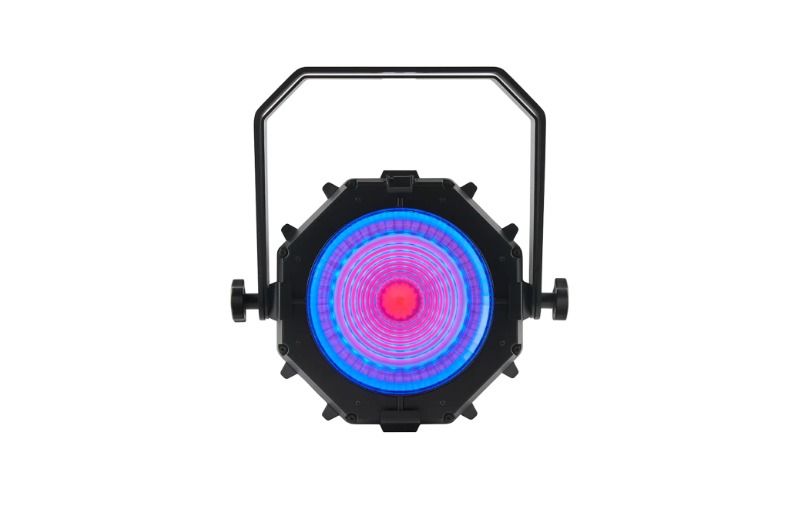

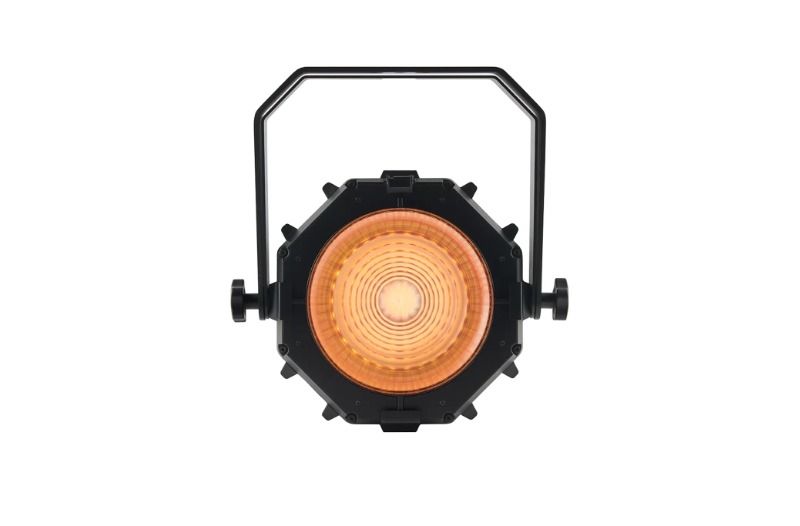

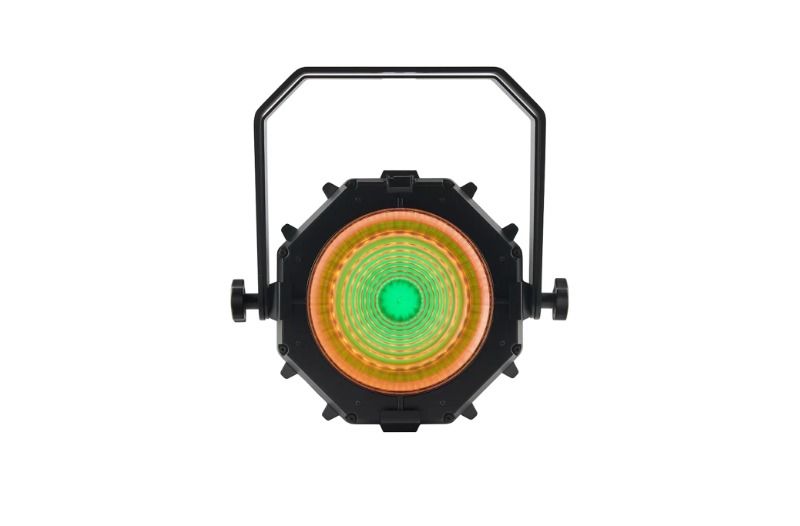

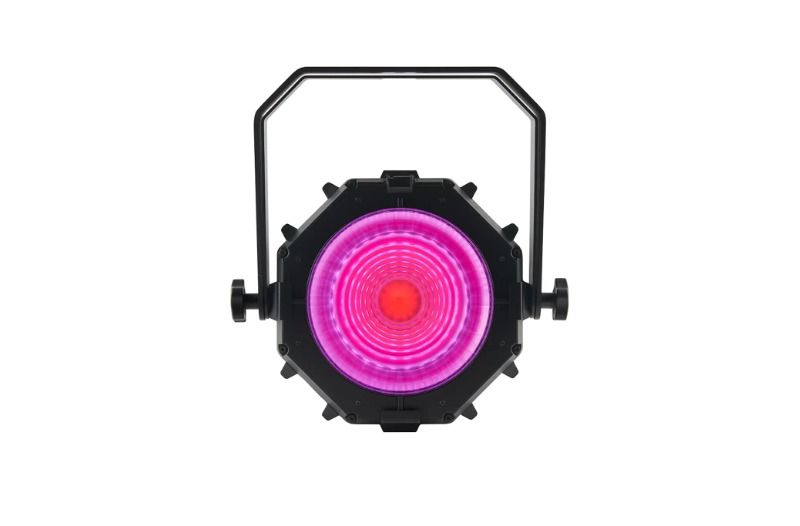

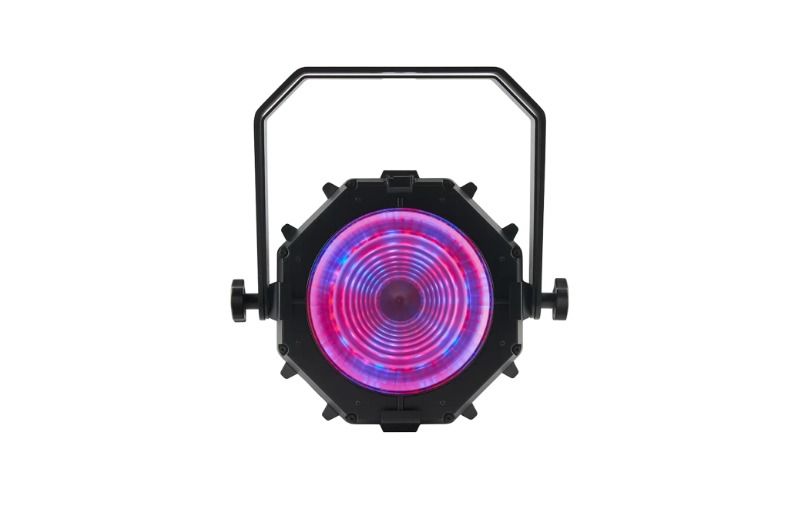

VDO Atomic Bold

  • Marka : MARTIN
  • Ürün Kodu : VDO ATOMIC BOLD

VDO Atomik Kalın
Tam renkli kör edici / flaş / yıkama / göz şekeri fikstürü

Martin VDO Atomic Bold, inanılmaz derecede çok yönlü, yaratıcı bir LED hibrit armatürdür ve VDO Atomic ailesinin en yeni üyesidir. Seyirci kör edici, flaş ışığı, yaratıcı LED piksel eşleme yüzeyi, göz kamaştırıcı efektli ışık ve sahne yıkama gibi sayısız uygulamayı tek bir kompakt armatürde desteklemek için geniş bir işlevsellik yelpazesi içerir.

Kardeşi VDO Atomic Dot'u popüler bir hibrit armatür haline getiren birçok avantajı içeren VDO Atomic Bold, aynı VDO Izgara Montaj Sistemini, aynı PDE Kablolamasını ve benzer görünümü korur ancak aydınlatma tasarımcılarına daha fazla yaratıcı potansiyel sunmak için daha yüksek, tam renkli çıktıya sahip daha büyük bir armatürdür.

Tek bir ışık olarak veya büyük bir dizi oluşturmak için çoklu olarak çalışacak basit bağlantılara sahip benzersiz sekizgen şekilli bir tasarıma sahiptir. Art-Net, sACN ve DMX gibi endüstri standardı protokollere ek olarak Martin P3 kontrolü, video eşlemeyi DMX kontrolüyle karıştırmak için yaratıcı özgürlüğü ortaya çıkarır.

VDO Atomic Bold, kiralık müşterileri ve konser/turne ve TV şovlarında çalışan set ve aydınlatma tasarımcılarını hedef alıyor ancak aynı zamanda kurumsal müşteriler ve üst düzey gece kulübü pazarındaki müşteriler için de mükemmel bir seçim.

VDO Izgara Montaj Sistemi hakkında daha fazla bilgi edinmek için buraya tıklayın.

Özellikler

  • Yüksek güçlü, tam renkli flaş/panjur/yıkama/göz şekeri aparatı
  • 13.000 lümen güçlendirme/flaş
  • 8.000 lümen sürekli
  • 12 derecelik ışın açısı
  • 26 derecelik alan açısı
  • 72 LED'li piksel kontrollü RGB Aura arka aydınlatma
  • Kompakt form faktörü
  • Dahili güç kaynağı (100-240V)
  • Hibrit kablo (PDE sistemi) aracılığıyla Güç ve Veri IN & THRU
  • P3, DMX, Art-Net ve sACN uyumlu
  • Arka ışıkta ve ışında yerleşik piksel FX
  • Ambar kapakları ve/veya difüzör/lens için ön aksesuar tutucusu
  • Zemin standı olarak da kullanılabilen sökülebilir boyunduruk tertibatı
  • Çıtalar, diziler ve yaratıcı şekiller oluşturmak için VDO Izgara Montaj Sistemi
  • Karışık diziler için Martin VDO Atomic Dot ve MAC One kilitleme mekaniği ile uyumlu
  • IP65 dereceli

Physical
Width excluding hanging bracket 288 mm (11.3 in.) (identical to 2x VDO Atomic Dot locked together)Width including hanging bracket: 371 mm (14.6 in.)Height excluding hanging bracket: 288 mm (11.3 in.) (identical to 2x VDO Atomic Dot locked together)Height including hanging bracket: 394 mm (15.5 in.)Horizontal fixture spacing: 300 mm (11.8 in.) (center-to-center using interlock couplers)Vertical fixture spacing: 300 mm (11.8 in.) (center-to-center using interlock couplers)Depth: 161 mm (6.3 in.)Weight including hanging bracket: 9.32 kg (20.5 lbs.)Weight excluding hanging bracket: 7.65 kg (16.9 lbs.)
Dynamic Effects
Beam Dimmer/Shutter 0 - 100% continuous dimming, variable flash rate and duration, and atomic effectsBeam Dimming options: Choice of four dimming curvesBeam Color mixing: RGB, independently variable 0 - 100%Beam Color temperature control: Variable 2,000 - 11,000 KBeam Virtual Color wheel: 48 color presets, continuous rotation and random colorBeam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video controlAura Dimmer/Shutter: 0 - 100% continuous dimming, regular and random strobe effectsAura Dimming options: Choice of four dimming curvesAura Color mixing: RGB, independently variable 0 - 100%Aura Color temperature control: Variable 2,000 - 11,000 KAura Virtual Color wheel: 48 color presets, continuous rotation & random colorAura PixelMapping: individual RGB control of each Aura pixelAura P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video controlBuilt-in FX: Various pre-programmed FX on Beam, Aura and combination of both
Control and Programming
Control Protocols DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
Protocol detection Automatic
Setting and addressing RDM, RDM over Art-Net or P3
DMX Modes 1-channel, 3-channel, 4-channel, Compact, Basic, Extended
DMX channels 1, 3, 4, 10, 27, 243
Fixture Identification User-settable ID number
DMX compliance USITT DMX512-A
RDM compliance ANSI/ESTA E1.20
Art-Net Compliance Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance ANSI E1.31 - 2016
Martin P3 Compliance P3 System Controller Software 5.1.0 or newer
DMX/RDM Transceiver RS-485
Ethernet Transceiver 10/100 Mbit (with fail-safe bypass)
Firmware update via DMX using Martin Companion or via Ethernet using P3 System Controller
P3 Video Processing
Color Resolution 16 bit per color (48 bit per pixel) (Beam & Aura)
Color Temperature Control 2,000 - 11,000 K (Beam & Aura)
Synchronization system-wide
Frame Rate up to 75 frames/sec
Brightness Control 0-100% (maintaining full color depth)
Color Gamut Control full spectrum control (Beam & Aura)
Gamma Correction and Control fully controllable (Beam & Aura)
Control/User Interface
Device status Multi-color status LED
Device test and reset Pushbutton to call up local test patterns and reset device
Optics and Photometric Data
Lens Diameter 200 mmFront Accessory Holder: PAR64 size Beam/Strobe LED LED Type: RGBWMax. total lumen output: 13,000 lumens (boost/strobe mode)Max. total lumen output: 8,000 lumens (continuous mode)Center intensity: 170,000 cd (boost/strobe mode)Center intensity: 103,000 cd (continuous mode)Beam Angle: 12 Degrees (half peak)Field Angle: 26 Degrees (one-tenth peak)Binning: Tight color and flux binningCalibration: Full Gamut Color CalibrationColor Modes: Extended Mode and Calibrated ModeCRI (Color Rendering Index):>=83CQS (Color Quality Scale):>=87TM-30 Rf (IES TM-30-15 Fidelity Index):>=83TM-30 Rg (IES TM-30-15 Gamut Index):>=106TLCI (Television Lighting Consistency Index):>=85Color Temperature: variable (2,000 - 11,000 K)Resolution: 16-bit per colorMinimum LED lifetime: 50,000 hours (to >70% luminous output) Aura Backlight LEDs LED Type: RGBLED Quantity: 72Binning: Tight color and flux binningCalibration: Full Gamut Color CalibrationColor Modes: Extended Mode and Calibrated ModeColor Temperature: Variable (2,000 - 11,000 K)Resolution: 16-bit per color per pixelMinimum LED lifetime: 50,000 hours (to >70% luminous output) * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient* All Photometric Data measured at 6500 K white
Construction
Housing Aluminum
Color Black
Protection rating IP65
Installation
Mounting options hanging from bracket, hanging from clamp attached directly to fixture, hanging from other fixture using interlock mechanism or floor standing using integrated double bracket
Location indoor or temporary outdoor use
Clamp attachment to hanging bracket M12
Clamp attachment directly to fixture M8
Maximum vertical column height 4 fixtures
Orientation Any
Minimum distance to combustible materials 0.1 m
Minimum distance to illuminated surfaces 0.5 m
Connections
AC Power, DMX and Network input cable tail with PDE hybrid connector (IP65)AC Power, DMX and Network thru: chassis-mount PDE hybrid connector (IP65)All connections hot plugging compatible
Electrical
AC power 100-240 V AC nominal, 50/60 HzPower supply unit: Auto-ranging electronic switch modeTypical half-cycle RMS inrush current at 230 V, 50 Hz: 3.0 ATypical earth-leakage current: 0.80 mAPower Factor: 0.99 @ 100 V / 120 V , 0.97 @ 208 V , 0.96 @ 230 V , 0.95 @ 240 VMax current draw: 4.0 A @ 100 V / 120 V , 1.9 A @ 208 V / 230 V / 240 VTypical current draw: 3.6 A @ 100 V , 3.0 A @ 120 V , 1.7 A @ 208 V , 1.6 A @ 230 V , 1.6 A @ 240 V * Power ConsumptionMaximum: 400 WTypical: 358 W *Idle: 14 W ** Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Typical: full output white, regulated fan speed. Idle: no output, regulated fan speed.
Thermal
Cooling Forced air (temperature regulated, low noise)
Maximum ambient temperature (Ta max.) 40 C
Minimum ambient temperature (Ta min.) 0 C
Typical heat dissipation (calculated, +/- 10%) 1365 BTU/hr
Acoustic Data
Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output) 25.9 dB(A)
Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low) 19.2 dB(A)
Environmental
RoHS Compliant
REACH Compliant
WEEE Compliant
Proposition 65 Compliant
Efficacy (max output) 43.3 lm/W
LWR* 1,395 lm/kg (634 lm/lb)
LWR = Lumen-to-Weight Ratio
Approvals
Global CB Certification/IECEE IEC 60598-2-17 (IEC 60598-1)
EU safety EN 60598-2-17 (EN 60598-1), EN 62471, EN62493
EU EMC EN 55015, EN 55032 Class B, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61547
US safety UL1573
US EMC FCC Part 15 Class A
Canadian safety CSA 22.2 No. 166
Canadian EMC ICES-003 Class A; ICES-005 Class A
Australia/NZ RCM
United Kingdom UKCA
Included Items
User Guide
Related Items
Martin P3-050 System Controller P/N 90721090
Martin P3-150 System Controller P/N 90721015
Martin P3-300 System Controller P/N 90721060
Martin P3-PC System Controller Free download from www.martin.com
Martin Companion Cable (for firmware update over DMX) P/N 91616091
Martin Companion Software (for firmware update over DMX) Free download from www.martin.com
Accessories
Junction Boxes Passive Junction Box Power-DMX-Ethernet to PDE P/N 91610001Active Junction Box Power-DMX-Ethernet to PDE: P/N MAR-91700002 Adapters Cables BreakIn Cable Power-DMX-Ethernet to PDE: P/N MAR-91700000BreakOut Cable PDE to Power-DMX-Ethernet: P/N MAR-91700001BreakInOut Cable Power-DMX to PDE: P/N MAR-91700003 Optical Accessories VDO Atomic Bold Diffuser 60 Degrees: P/N MAR-91616119VDO Atomic Bold Diffuser 30 Degrees: P/N MAR-91616120 Mechanical Accessories Super Lightweight Half Coupler Rigging Clamp, black: P/N 91602018G-clamp (vertical hanging installation only): P/N 91602003Half-coupler clamp: P/N 91602005Quick trigger clamp (vertical hanging installation only): P/N 91602007Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007VDO Atomic Bold Interlock Doubler: P/N MAR-91616122Set of 10 VDO Couplers: P/N MAR-91616129HUVDO Atomic Half Coupler: P/N 91610004VDO Atomic Interlock Adapter: P/N 91610006VDO Atomic Pivot Coupler: P/N 91610007VDO Atomic Spigot Adapter 28mm: P/N MAR-91616118VDO Atomic Bold Double Width Bracket: P/N MAR-91616121 Pre-Assembled Hybrid PDE Cables Power+Data Cable Rental PDE-PDE 1 m: P/N 91616001Power+Data Cable Rental PDE-PDE 2.5 m: P/N 91616002Power+Data Cable Rental PDE-PDE 5 m: P/N 91616003Power+Data Cable Rental PDE-PDE 10 m: P/N 91616004Power+Data Cable Rental PDE-PDE 25 m: P/N 91616005 Bulk Hybrid PDE Cable and Connectors Power+Data Connector PDE Male: P/N 91611701Power+Data Connector PDE Female: P/N 91611702Power+Data Cable Power-DMX-Ethernet Rental 100 m: P/N 91616006 Flightcase Flightcase for 6 x VDO Atomic Bold: P/N MAR-91515056
Ordering Information
VDO Atomic Bold in cardboard P/N MAR-90357703
