| Physical |
| Length |
472 mm (18.6 in.) base566 mm (22.3 in.) head |
| Width |
473 mm (18.6 in.)335 mm (13.2 in.) base |
| Height |
732 mm (28.8 in.) head straight up749 mm (29.5 in.) maximum |
| Weight |
35.7 kg (78.7 lbs.) |
| Minimum center-to-center distance in side-by-side installation |
650 mm (25.6 in.) |
| Dynamic Effects |
| Color mixing |
CMY, independently variable 0 - 100% |
| Color wheel |
7 interchangeable dichroic filters + open, indexing, continuous rotation, random color |
| Rotating aerial effects |
5 interchangeable rotating aerial effect gobos, wheel and gobo indexing, continuous rotation and shake |
| Static gobo wheel |
Interchangeable wheel with 7 integral gobos, wheel indexing and continuous rotation, random gobo |
| Iris |
0 - 100%, pulse effects |
| Zoom |
Motorized |
| Color temperature control |
CTO, variable 6000 - 3200 K |
| Wash effect |
Fade in/out |
| Mechanical dimmer/shutter |
0 - 100% continuous dimming, variable & random strobe & pulse effects, instant open & blackout |
| Dimming options |
Choice of four dimming curves |
| Pan |
540° |
| Tilt |
268° |
| Position correction system |
Absolute position monitoring |
| Control and Programming |
| Setting and addressing |
Control panel with backlit graphic display and jog wheel or via DMX |
| 16-bit control |
Dimmer, aerial effect indexing, focus, zoom, pan and tilt |
| DMX channels |
20/28 |
| Receiver |
Opto-isolated RS-485 |
| DMX compliance |
USITT DMX512-A |
| RDM compliance |
ANSI/ESTA E1.20 |
| Firmware update |
USB memory device or USB/DMX hardware interface over DMX link |
| Optics |
| Zoom range |
11-58° (1:5) |
| Color temperature |
6000 K |
| Output |
35,000 lm |
| Photometric Data |
| * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient. |
| Lamp |
| Type |
1000 W short-arc discharge |
| CRI (Color rendering index) |
>85 |
| Average lifetime |
750 hours |
| Socket |
PGJX36 |
| Ballast |
Electronic |
| Approved lamps |
Osram Lok-it! 1000/PS Brilliant, Osram Lok-it! 1000W/PS VS1, Philips MSR Gold MiniFastFit 1000W |
| Service Utilities |
| Fixture identification |
User-settable fixture ID number |
| Construction |
| Housing |
UV-resistant fiber-reinforced composite |
| Color |
Black |
| Reflector |
Glass, cold light |
| Protection rating |
IP20 |
| Gobos |
| Size |
E27 (Size E, max. image diameter 27 mm) |
| Approved material |
Borosilicate 3.3 or better with dichroic or heavy matted aluminum coating (metal gobos not approved) |
| Outside diameter |
37.5 mm +0/- 0.2 mm (1.5 in. +0/- 0.01 in.) |
| Maximum image diameter |
27 mm (1.1 in.) |
| Maximum thickness |
1.1 mm +/- 0.1 mm (0.1 in. +/- 0.01 in.) |
| Installation |
| Mounting points |
Eight quarter-turn locking points |
| Orientation |
Any |
| Minimum distance to combustible materials |
0.3 m (1.0 ft.) |
| Minimum distance to illuminated surfaces |
3.4 m (11.2 ft.) |
| Connections |
| AC power input |
Neutrik PowerCon |
| DMX and RDM data in/out |
5-pin locking XLR |
| USB memory devices |
USB host socket |
| Electrical |
| AC power |
120-240 V AC nominal, 50/60 HzPower supply unit: Auto-ranging electronic switch modeTypical half-cycle RMS inrush current at 230 V, 50 Hz: 16.2 APower Factor: 0.99 @ 120 V / 208 V / 230 V / 240 VTypical current draw: 10.3 A @ 120 V , 5.8 A @ 208 V , 5.2 A @ 230 V , 5.0 A @ 240 V * Power ConsumptionTypical: 1225 W * * Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Typical: full output white, no effects moving, regulated fan speed. |
| Environmental |
| RoHS |
Compliant |
| REACH |
Compliant |
| WEEE |
Compliant |
| Proposition 65 |
Compliant |
| Efficacy (max output) |
30 lm/w |
| LWR* |
980 lm/w (444 lm/lb) |
| LWR = Lumen-to-Weight Ratio |
| Approvals |
| EU safety |
EN 60598-2-17 (EN 60598-1), EN 62471 |
| EU EMC |
EN 55015, EN 55103-1, EN 55103-2, EN 61547 |
| US safety |
UL 1573 |
| US EMC |
FCC Part 15 Class A |
| Canadian safety |
CSA E598-2-17 (CSA E60598-1) |
| Canadian EMC |
ICES-003 Class A |
| Australia/NZ |
C-TICK N4241 |
| Included Items |
| Lamp (installed) |
P/N 97010346 |
| Two Omega clamp attachment brackets with 1/4-turn fasteners |
P/N 91602001 |
| Safety and installation manual |
| Related Items |
| Martin Companion Cable |
P/N 91616091 |
| Martin Companion Software Suite (including firmware uploader) |
Free download from www.martin.com |
| Accessories |
| Power Input Cables |
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178(H07RN-F are European approved cables, SJOOW are US approved cables) Power Connector:Power Connector PowerCON Female : P/N 91611794 T-shaped omega clamp attachment bracket with 1/4-turn fasteners: P/N 91602008Half-coupler (tube) clamp: P/N 91602005G-clamp (suspension with yoke vertically downwards only): P/N 91602003Quick-trigger clamp (suspension with yoke vertically downwards only): P/N 91602007Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007Flightcase for 2 x MAC Viper: P/N 91510180Omega clamp attachment bracket with 1/4-turn fasteners: P/N 91602001 |
| Spare Parts |
| Osram HTI 1000/PS Lok-it lamp |
P/N 97010346 |
| Air filter, head, MAC Viper (sold in multiples of 12) |
P/N 20800270 |
| Ordering Information |

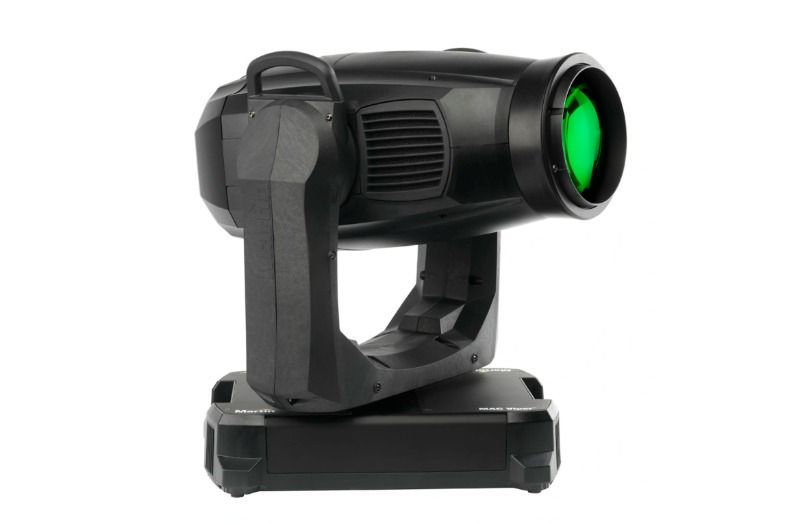

| MAC Viper AirFX in cardboard box |
P/N 90233030 |
| MAC Viper AirFX in double flightcase |
P/N 90233040 |
| Shipping Information |
| In cardboard carton |
Shipping dimensions (LxWxH): 580 x 450 x 870 mm (22.9 x 17.8 x 34.3 in.)Shipping weight: 39 kg (86.0 lbs.)Quantity on pallet: 8 fixturesPallet dimensions (LxWxH): 1200 x 1000 x 1860 mm (47.3 x 39.4 x 73.3 in.)Pallet weight (incl. pallet): 334 kg (736.4 lbs.) |
| In double flightcase |
Shipping dimensions (LxWxH): 1200 x 580 x 850 mm (47.3 x 22.9 x 33.5 in.) |
