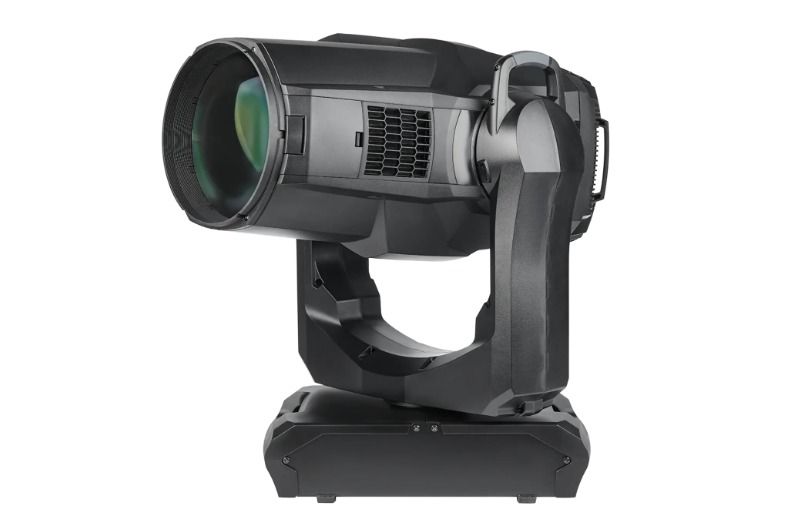

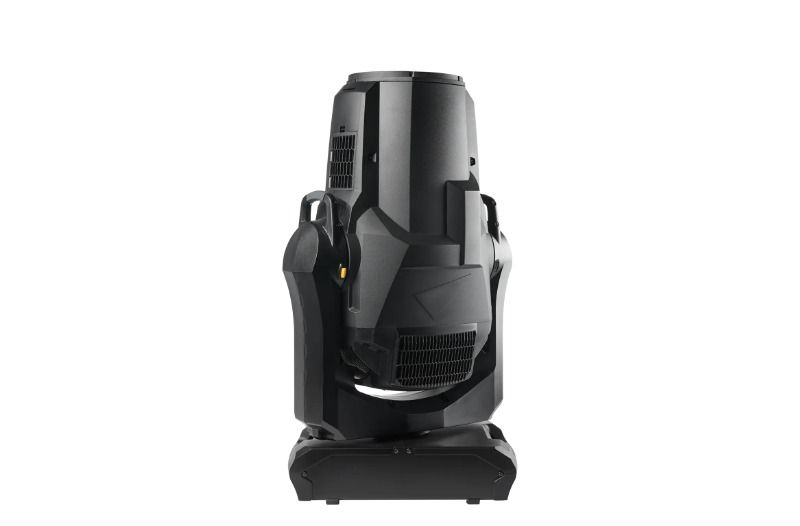

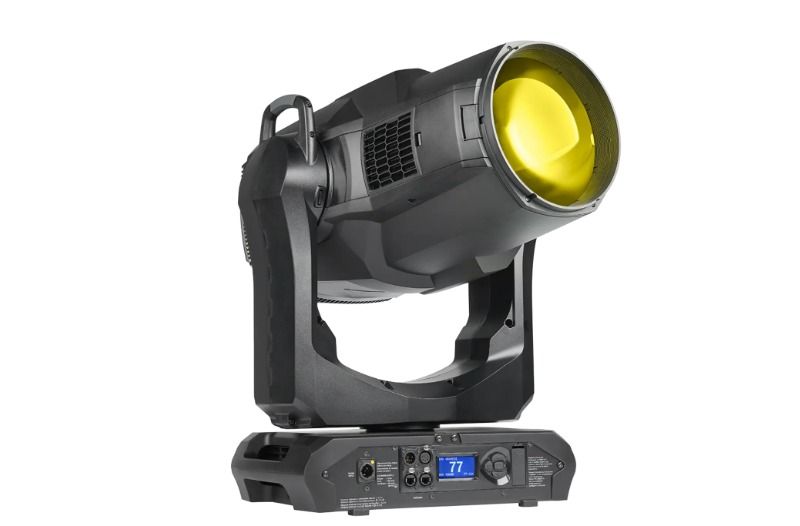

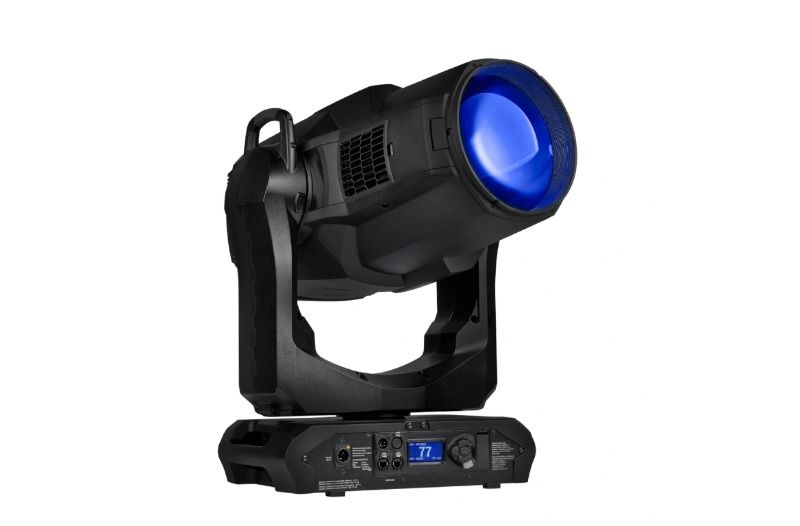

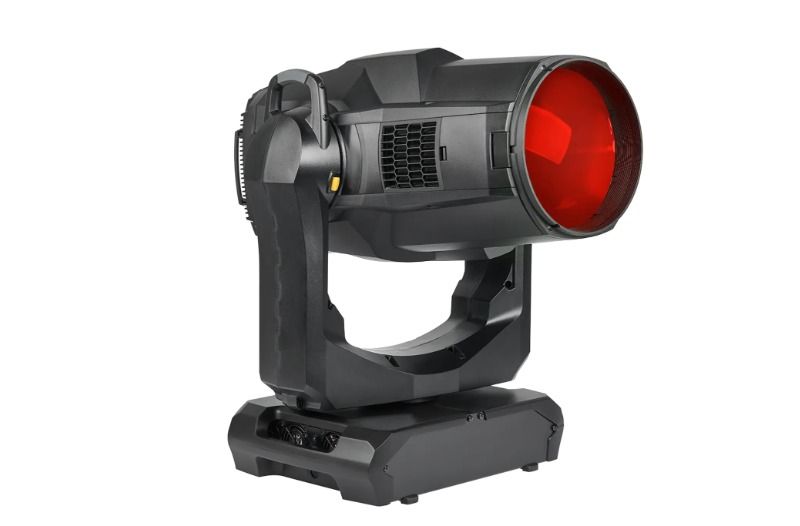

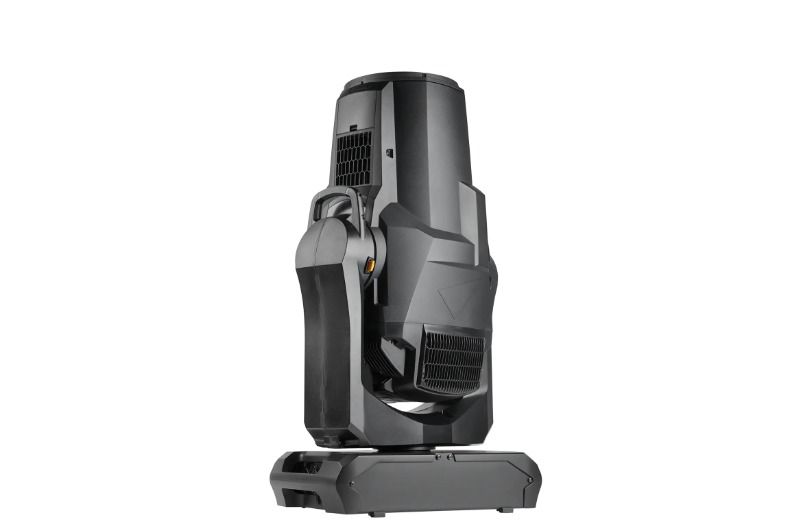

| Physical |
| Weight |
39.0 kg (86.0 lbs.) |
| Minimum center-to-center distance in side-by-side installation |
810 mm (31.9 in.) |
| Length (head) |
642 mm (25.3 in.) |
| Length (base) |
468 mm (15.5 in.) |
| Width (base) |
312 mm (12.3 in.) |
| Width (across yoke) |
520 mm (20.5 in.) |
| Height (head straight up) |
848 mm (33.4 in.) |
| Height (maximum) |
867 mm (34.2 in.) |
| Dynamic Effects |
| Pre-programmed effects |
Two ranges of FX, independent or synchronized/combined |
| Color mixing |
CMY, independently variable 0 - 100% |
| Color wheel |
6 x interchangeable dichroic filters + open (incl. Spectral Enhancement Filter), indexing, continuous rotation, random color |
| Iris |
Variable 0 - 100%, pulse effects |
| Zoom |
Motorized |
| Color temperature control |
Variable 5800 - 2850 K |
| Frost |
Motorized |
| Dimmer/shutter |
0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout |
| Dimming options |
Choice of four dimming curves |
| Pan |
540°, coarse & fine control and speed |
| Tilt |
268°, coarse & fine control and speed |
| P3 |
Videomapping of fixture color and/or intensity with variable crossfade between DMX control and video control |
| Focus |
Motorized, range varies with zoom angle, from approx. 4.5 m (14.8 ft.) to infinity |
| Control and Programming |
| Control Protocols |
DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3 |
| Protocol detection |
Automatic |
| Setting and addressing |
Display Menu, RDM, RDM over Art-Net or P3 |
| DMX Modes |
One |
| DMX channels |
29 |
| 16-bit Controllable Parameters |
Dimming, Color Mixing + CTC, Zoom, Focus, Pan and Tilt |
| Fixture Identification |
User-settable ID number |
| DMX compliance |
USITT DMX512-A |
| RDM compliance |
ANSI/ESTA E1.20 |
| Art-Net Compliance |
Art-Net 1, 2, 3 and 4; including RDM over Art-Net |
| sACN Compliance |
ANSI E1.31 - 2016 |
| Martin P3 Compliance |
P3 System Controller Software 5.1.0 or newer |
| DMX/RDM Transceiver |
Galvanic-isolated RS-485 |
| Ethernet Transceiver |
10/100Mbit (with fail-safe bypass) |
| Firmware update |
USB memory device, via DMX using Martin Companion or via Ethernet using P3 System Controller |
| Local User Interface |
Backlit LCD Display with battery-powered operation |

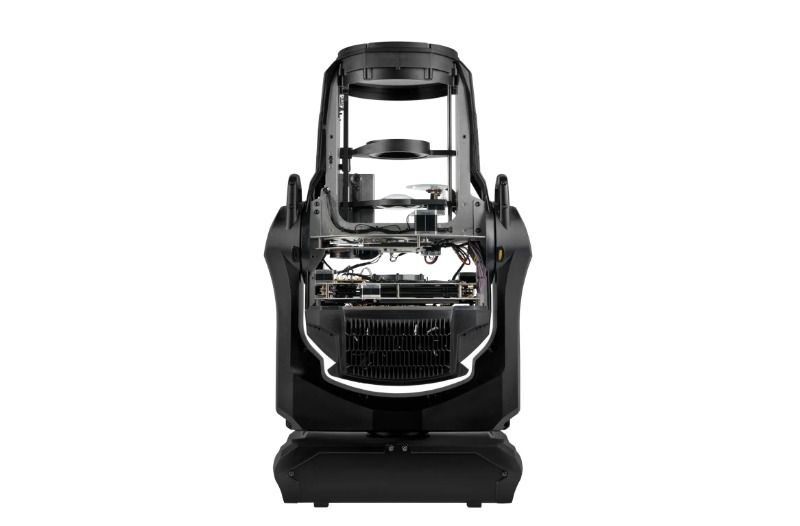

| Optics |
| Front lens diameter |
220 mm |
| Light source |
84 x 20 W White LEDs in a custom Martin engine |
| Zoom Range Beam (half-peak) |
6.8° - 47.5° (1:7) |
| Zoom Range Field (tenth-peak) |
9° - 62° (1:7) |
| Maximum Total LED Engine Power |
1150 W |
| Minimum LED Lifetime |
>50,000 hours (to >80% luminous output)* / >20,000 hours (to >90% luminous output)**Figure obtained under manufacturer's test conditions |
| Photometric Data |
| Light engine luminous output |
90,000 lumens LED refresh rate : 3000 Hz Standard Fixture luminous output: 63,500 lumens CRI (Color Rendering Index): 66 (+/- 3)TM-30 Rf (IES TM-30-15 Fidelity Index): 66 TM-30 Rg (IES TM-30-15 Gamut Index): 95 CCT: 5800 K (+/- 250 K) Peak Luminous Intensity: 5,000,000 cd With Spectral Enhancement Filter at 5300 K Fixture luminous output: 49,000 lumensCRI (Color Rendering Index): 78 (+/- 3)With CTO and Cyan at 3200 KFixture luminous output: 19,500 lumensCRI (Color Rendering Index): 90 (+/- 3)* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient. |
| Light engine luminous output |
90,000 lumens |
| LED refresh rate |
3000 Hz |
| Fixture luminous output |
63,500 lumens |
| CRI (Color Rendering Index) |
66 (+/- 3) |
| TM-30 Rf (IES TM-30-15 Fidelity Index) |
66 |
| TM-30 Rg (IES TM-30-15 Gamut Index) |
95 |
| CCT |
5800 K (+/- 250 K) |
| Peak Luminous Intensity |
5,000,000 cd |
| Fixture luminous output |
49,000 lumens |
| CRI (Color Rendering Index) |
78 (+/- 3) |
| Fixture luminous output |
19,500 lumens |
| CRI (Color Rendering Index) |
90 (+/- 3) |
| Construction |
| Housing |
High-impact flame-retardant thermoplastic |
| Color |
Black |
| Protection rating |
IP20 |
| Installation |
| Mounting points |
2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets |
| Location |
Dry location only, must be fastened to surface or structure |
| Orientation |
Any |
| Minimum distance to combustible materials |
0.2 m (8 in.) |
| Minimum distance to illuminated surfaces |
4.75 m (15.6 ft.) |

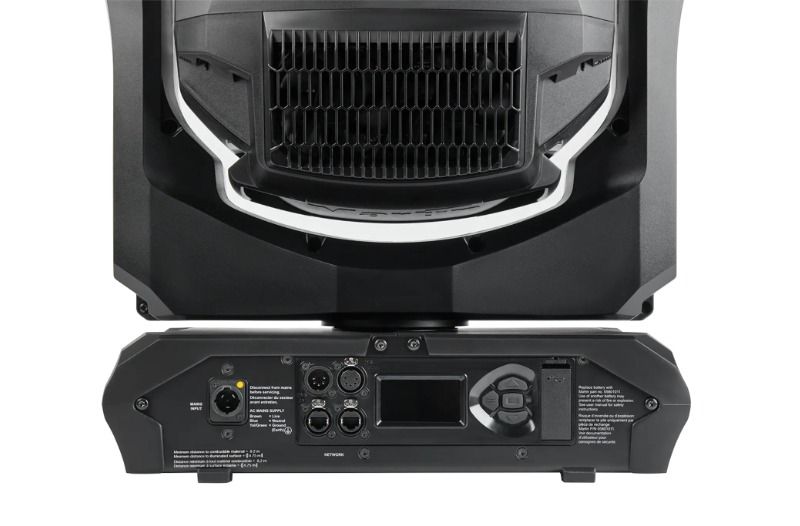

| Connections |
| DMX and RDM data in/out |
5-pin locking XLR |
| AC mains power input. |
Neutrik TRUE1 socket, accepts TRUE1 NAC3FX-W (TOP) connector |
| Ethernet (Art-Net, sACN and P3) in/out, including fail-safe bypass |
Neutrik etherCON |
| Firmware from flash memory |
USB 2.0 port |
| Electrical |
| AC power |
200-240 V AC nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch mode Typical half-cycle RMS inrush current at 230 V, 50 Hz: 17.0 A Power Factor: 0.99 @ 208 V / 230 V / 240 V Max current draw: 8.0 A @ 208 V , 6.7 A @ 230 V / 240 V Typical current draw: 6.6 A @ 208 V , 6.0 A @ 230 V , 5.7 A @ 240 V * Power Consumption Maximum: 1450 W Typical: 1360 W * Idle: 100 W * Hibernation: 55 W * * Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Typical: full output white, no effects moving, regulated fan speed. Idle: no output, no effects moving, regulated fan speed. Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture. |

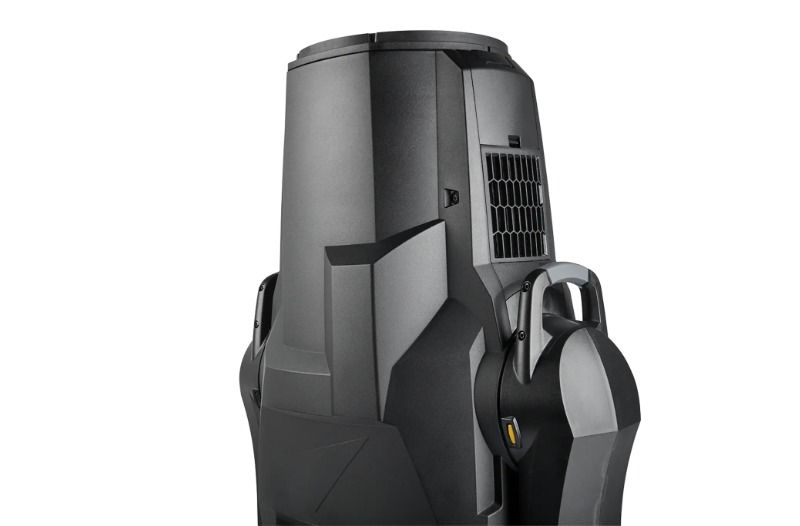

| Thermal |
| Cooling |
Forced air (temperature regulated, low noise) |
| Maximum ambient temperature (Ta max.) |
40° C |
| Minimum ambient temperature (Ta min.) |
5° C |
| Maximum surface temperature, steady state, at 40° C ambient |
85° C (185° F) |
| Total heat dissipation (calculated, +/- 10%) |
4950 BTU/hr. |
| Acoustic Data |
| Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output) |
37.6 dB(A) |
| Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low) |
34.5 db(A) |
| Warranty |
| Fixture |
2 years |
| Light Engine |
5 years |
| Environmental |
| RoHS |
Compliant |
| REACH |
Compliant |
| WEEE |
Compliant |
| Proposition 65 |
Compliant |
| Efficacy (max output) |
48 lm/w |
| LWR* |
1,628 lm/kg (738 lm/lb) |
| LWR = Lumen-to-Weight Ratio |
| Approvals |
| Global CB Certification/IECEE |
IEC 60598-2-17 (IEC 60598-1) |
| EU safety |
EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 |
| EU EMC |
EN 55015; EN 55032; EN 61547; EN 55035; EN 61000-3-2,-11 |
| US safety |
UL 1573 |
| US EMC |
FCC Part 15 Class B |
| Canadian safety |
CSA C22.2 No. 166 |
| Canadian EMC |
ICES-003 Class B, ICES-005 Class B |
| Australia/NZ |
RCM |
| Included Items |
| Two omega brackets with 1/4 turn fasteners for rigging clamp attachmentSafety and Installation Manual |
| Related Items |
| Martin Companion Cable (for firmware update over DMX) |
P/N 91616091 |
| Martin Companion Software (for firmware update over DMX) |
Free download from www.martin.com |
| Accessories |

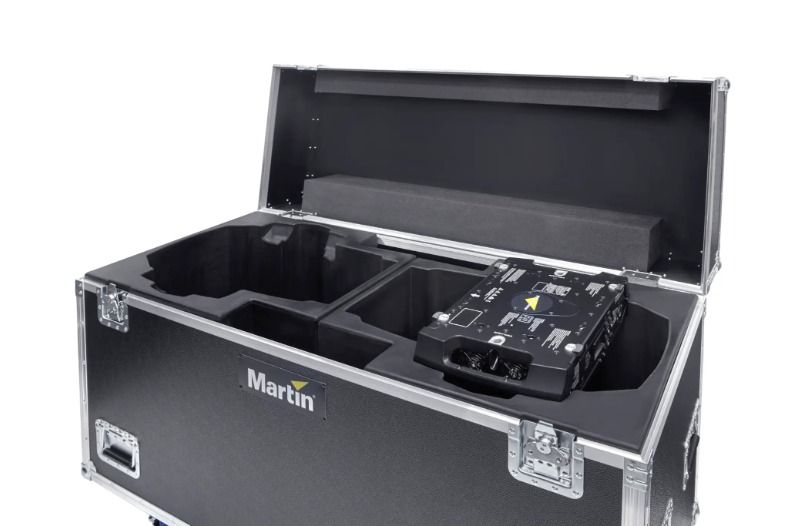

| Transport and Storage Flightcase for 2 x MAC Ultra Performance/Wash without SIP inserts |
P/N 91515055Consumables Air filter, MAC Quantum / MAC Ultra, set of 12: P/N 50400765 CR123A 3-volt lithium battery: P/N 05801011Power Input Cables Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91611797 Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 5 m (16.4 ft.) P/N 91611786 Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91610173 Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 5 m (16.4 ft.) P/N 91610174Power Input Connector Cable Connector, Neutrik powerCON TRUE1 NAC3FX-W TOP (female): P/N 91611789HUInstallation Hardware G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003 Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007 Half-coupler Clamp: P/N 91602005 Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006 Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007 |
| Verified Third-Party Accessories |
| Beam ControlMAC Ultra Wash Top Hat |
P/N City Theatrical 2805 |
| Ordering Information |
| MAC Ultra Wash, SIP (in cardboard box with SIP foam flight case insert) |
P/N 90250085HU |
| MAC Ultra Wash, white finish, SIP (in cardboard box with SIP foam flight case insert) |
P/N 90250090HU |
