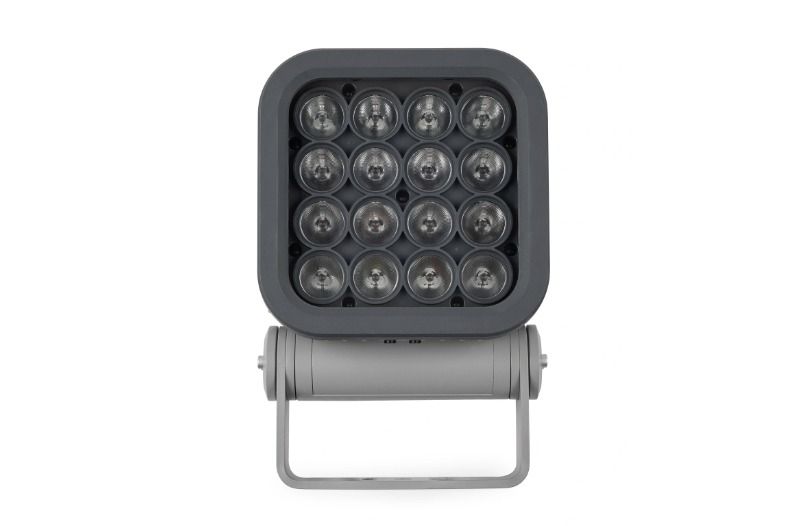

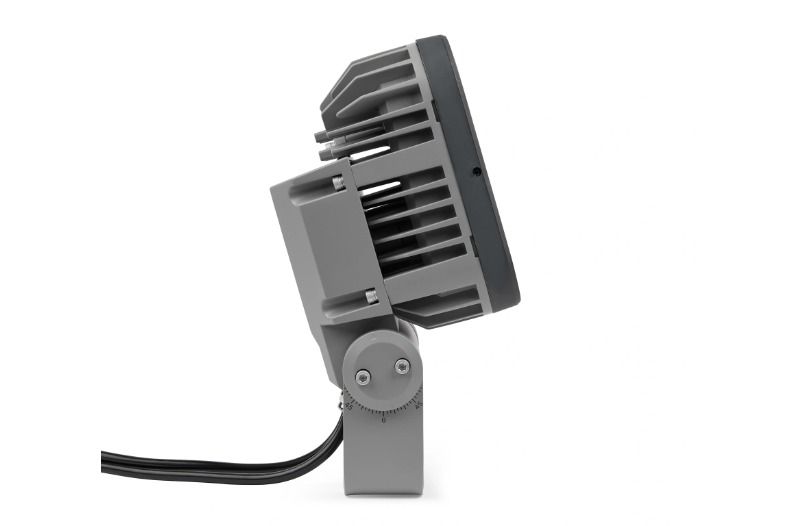

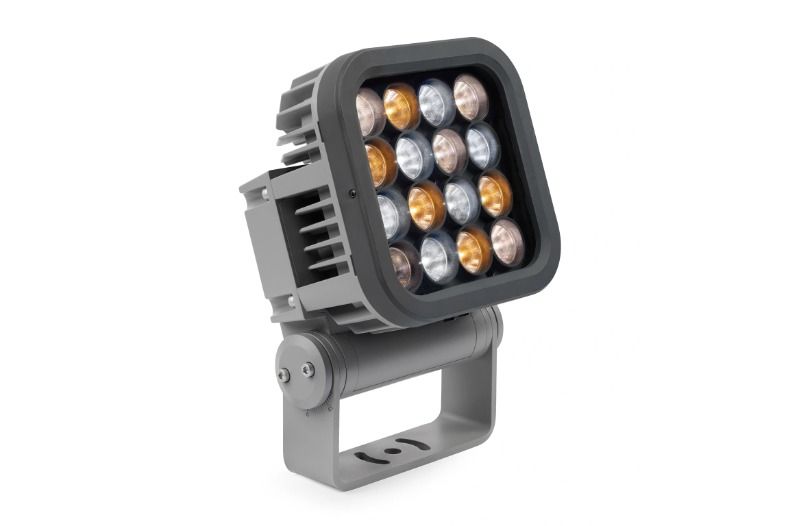

Exterior Wash Pro M CTC

  • Marka : MARTIN
  • Ürün Kodu :

Dış Cephe Yıkama Pro M CTC
Renk sıcaklığı kontrollü, dış mekana uygun yıkama lambası

Zorlu koşullar ve yaratıcılık için tasarlanan Exterior Wash Pro M CTC, orta ölçekli yapıları ve bina cephelerini aydınlatmak için tasarlanmış mantıklı, kullanıcı dostu ve çok yönlü bir aydınlatma çözümü sunar. Harici lenslere ve isteğe bağlı bir bölme snootuna sahip olan bu fikstür, yapılandırılabilir ışın kontrolü sağlar. Exterior Wash Pro M CTC, 2400K-6500K arasında özel renk sıcaklığı kontrolü sunar. Kalıcı dış mekan kurulumları için tasarlanan ve 5 yıllık garantiyle desteklenen bu armatür, katı çevre standartlarını karşılar.

Özellikler

  • Dört boyut ve lümen paketinden oluşan Logic ailesi (S, M, L, XL)
  • Kompakt ve ince tasarım
  • 2400K - 6500K arasında genişletilmiş renk sıcaklığı kontrolü
  • 60 lm/W'tan fazla verimlilik
  • Yüksek güçlü LED'ler kullanılarak dar ışın açısı

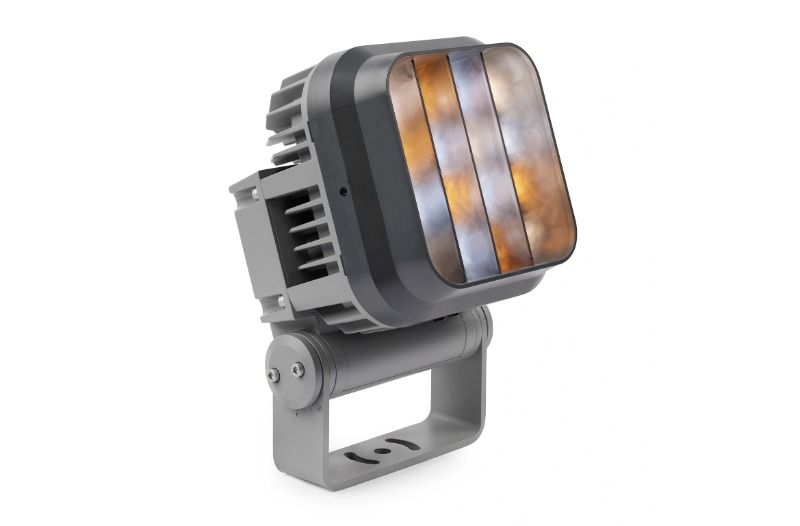

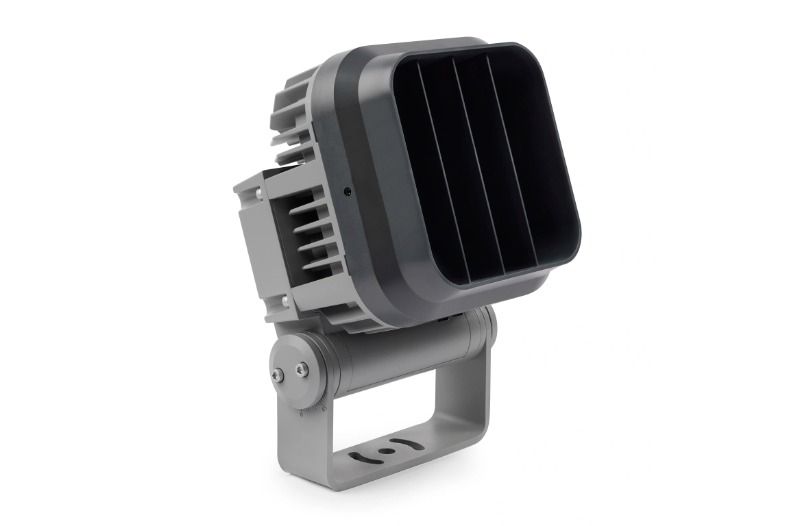

  • İsteğe bağlı bölme snoot
  • Harici olarak monte edilen mikro lens difüzörleri
  • RDM ve DMX kontrolü

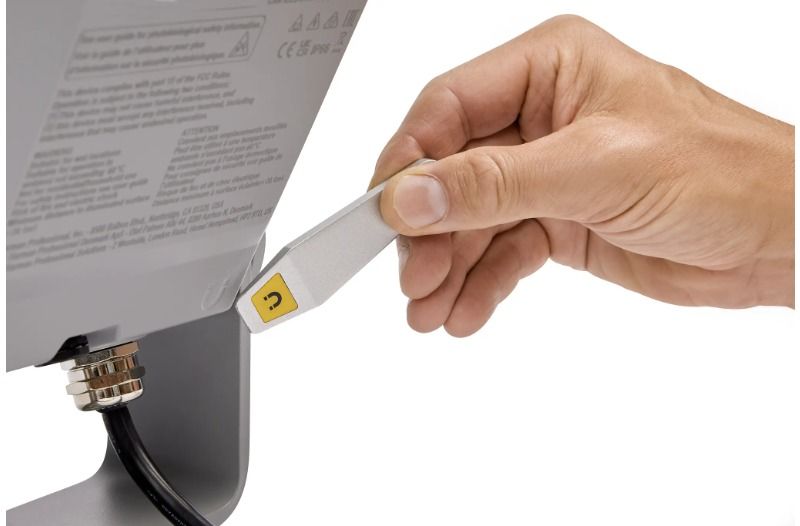

  • Manyetik sensör aracılığıyla yerel teşhis ve odaklama
  • Güç ve DMX Giriş/Çıkış önceden monte edilmiş kablolar
  • Kolay zincirleme bağlantı için isteğe bağlı Hibrit Giriş/Çıkış kablo çözümü
  • Tamamen hava koşullarına dayanıklı gövde (IP66, IK08 ve C-5 Yüksek korozyon derecesi)
  • FSC sertifikalı karton ambalajda gönderilir
  • 5 yıl garanti

Physical
Length 152 mm (5.98 inch.)
Width 201 mm (7.91 inch.)
Height 303 mm (11.93 inch.)
Weight 7.3 kg (16.1 lbs)
Dynamic Effects
Intensity 0 - 100 %
Color temperature control 2400K - 6500K
Control and Programming
Control systems DMX, RDM
User interface Magnetic sensor for local diagnostics and focusing
Stand-alone control Up to 20 scenes with individual fade/hold times
Control resolution 8-bit DMX control of each color
Dimmer Resolution 16-bit DMX control of intensity
DMX channels 3/3 (Standard/Basic)
DMX compliance USITT DMX512/1990
RDM compliance ANSI/ESTA E1.20
DMX/RDM Transceiver Galvanic-isolated RS-485
Firmware update Serial upload via DMX link
Optics

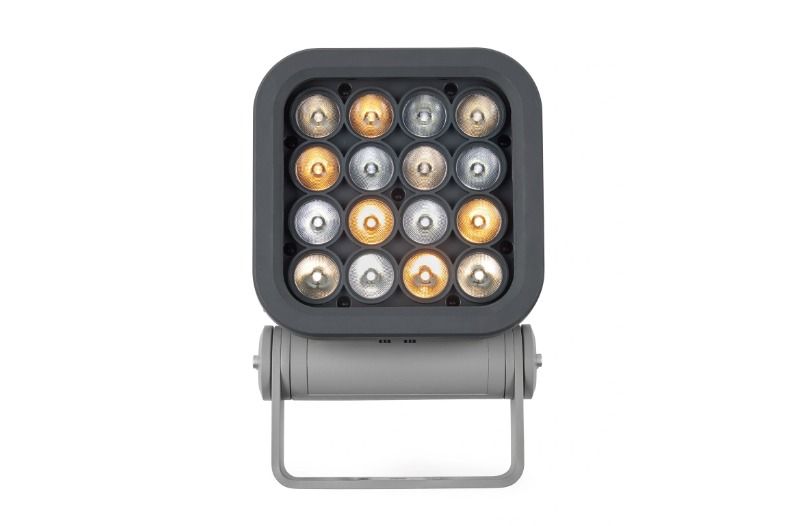

Light source 5 x 2400K, 5 x 4000K, 6 x 6500 K white LEDsTotal LED power: 96 W (16 x 6 W)Minimum LED lifetime: 100 000 hours (to > 70% luminous output)*LED manufacturer: CreeBinning: Tight color and flux binning*Figure obtained under manufacturer's test conditions at Ta = 25° C.
Beam Angle Options
Native beam angle 7°
Narrow micro lens 9°
Medium micro lens 15°
Wide micro lens 30°
Very Wide micro lens 50°
Asymmetric micro lens 8° x 60°
Photometric Data
CRI (Color Rendering Index) > 70
CCT 2400K - 6500K (default 4000K)
LUMINOUS OUTPUT*
2400K 2000 lm
4000K 4600 lm
6500K 3600 lm* All Photometric Data measured in steady state (30 minutes warm-up time) at 25 °C ambient.
Construction
Housing Cast Aluminum
Color Traffic grey RAL 7042 - other colors available on request
Surface treatment Anodized and electrostatic powder-coated
Protection rating IP66
Effective Projected Area (EPA) 0.056 m² / 0.072 m²
Impact resistance IK08
Corrosion resistance C5 High (ISO 12944-6)
Vibration resistance 1.0g, Sinusoidal (IEC 60068-2-6), 0,7g RMS Random (IEC 60068-2-64), 3.0g (ANSI C136-31)
Installation
Mounting Adjustable bracket
Orientation Any
Minimum distance to illuminated surfaces 0.1 m (0.3 ft.)
Connections
Power connection 2 m (6.5 ft.) cable tail open ended
Power input cable type, EU models H07RN-F 3G 1.0 mm², 450/750V, VDE
Power input cable type, US models PVC SJTW 3 x 1.31 mm² (16AWG) 105° C 300 V VW-1
Data connection 2 m (6.5 ft.) open ended 6-conductor combined input + output cable tailHybrid power/data cables (in & thru) 8-pin custom connectors available on request
Electrical
AC power 100 - 240 / 277 V nominal, 50/60 Hz
Power supply unit Auto-ranging electronic switch-mode
Typical half-cycle RMS inrush current 12 A
Surge protection 4 KV
Max earth leakage 0.5 mA
Power factor 0.99 @110 V / 120 V, 0.94 @208 V / 230V, 0.90 @277 V
Max current draw 0.75 A @100 V, 0.62 A @120 V, 0.33 A @230 V, 0.27 A @ 277 V
Power Consumption
Maximum Power Consumption 75 W (reduced mode 60W)*
Idle 2.5 W** Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Idle: all LEDs at zero intensity
Thermal
Cooling Convection
Maximum ambient temperature 45° C (113° F)*
Minimum ambient temperature -30° C (-22° F)**
Total heat dissipation (calculated, +/- 10%) 256 BTU/hr
*Above this temperature, the fixture regulates output to protect from overheating.**Power must be maintained below -20° C (-4° F)
Environmental
RoHS Compliant
REACH Compliant
WEEE Compliant
Proposition 65 Compliant
Packaging FSC certified cardboard inlay and outer box
Efficacy (max output) 63 lm/W
LWR* 603 lm/kg (273 lm/lb)*
Approvals
Global CB Certification/IECEE IEC 60598-2-5 (IEC 60598-1)
EU safety EN 60598-2-5 (EN 60598-1), EN 62471, EN 62493
EU EMC EN 55015, EN 55032, EN55035, EN 61547, EN 61000-3-2, EN 61000-3-3
US safety ANSI/UL 1598
US EMC 47 CFR Part 15 Class B
Canadian safety CSA C22.2 No. 250.0
Canadian EMC ICES 003(B), ICES 005(B)
Australia/NZ RCM
United Kingdom UKCA
India BIS IS 10322(Part5/section5)
Korea KS C 9832, KS C 9835
Ordering Information - Fixtures
Exterior Wash Pro M CTC, US, grey P/N MAR-90590014
Exterior Wash Pro M CTC, EU, grey P/N MAR-90590010
Ordering Information - Accessories
Micro Lens Pro M - Narrow P/N MAR-90590031
Micro Lens Pro M - Medium P/N MAR-90590032
Micro Lens Pro M - Wide P/N MAR-90590033
Micro Lens Pro M - Very Wide P/N MAR-90590034
Micro Lens Pro M - Asymmetric P/N MAR-90590035
Hybrid PD cable tail In/Out 0.5 m, black P/N MAR-91700020
Attachment plate for safety wire P/N MAR-90590050

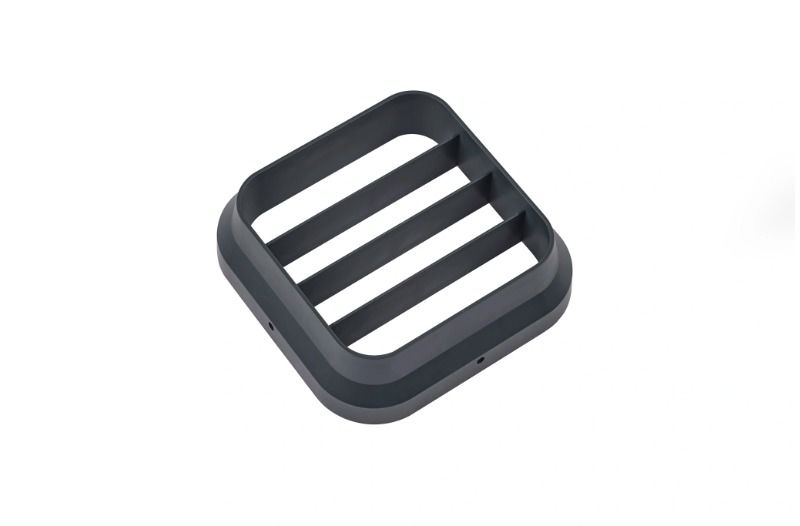

Baffle Snoot Pro M CTC P/N MAR-90590022
Hybrid PD cable tail In/Out 0.5 m, white P/N MAR-91700022
Exterior Multitool P/N MAR-90590025
Junction Box Power DMX to PD P/N MAR-91700019
