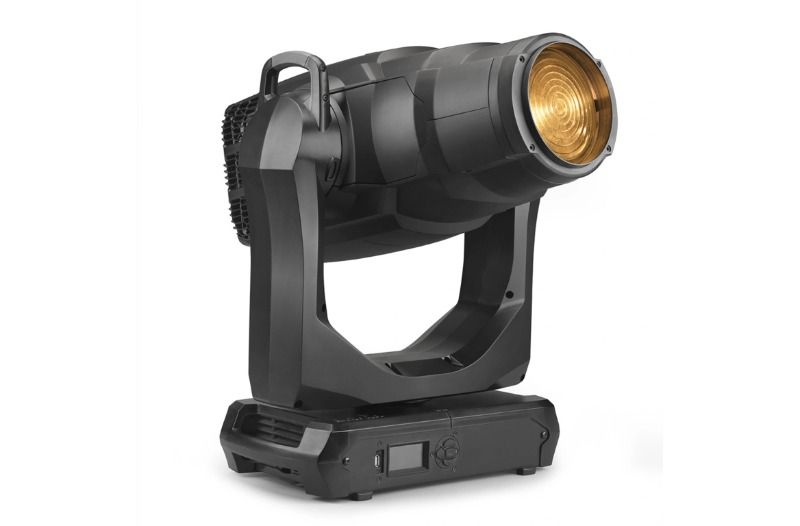

MAC Encore Wash WRM

  • Marka : MARTIN
  • Ürün Kodu :

MAC Encore Yıkama WRM
Yüksek kaliteli sıcak ışık yumuşak kenar hareketli kafa

Işık kalitesinin kritik olduğu çok çeşitli uygulamalarda zengin renk ve birinci sınıf beyaz ışık üretmek üzere tasarlanan MAC Encore Wash WRM, çok sevilen, üretimi durdurulan MAC TW1'in mükemmel, LED tabanlı alternatifidir. Özelliklerle dolu yumuşak kenarlı hareketli kafa, gerçek bir akkor ışık kaynağının çıktı kalitesine gerçekten meydan okuyan benzersiz 3000 K sıcak tungsten emülasyonu sunar ve renk karışımı ve hareketin ek avantajıyla birlikte tungsten bazlı Fresnel armatürler gibi genel armatürlerin modern bir alternatifi olarak ikiye katlanır.

Özellikler

  • 3000 K CCT'ye sahip saf beyaz LED motor.
  • Yakınlaştırma ve karartma sırasında renk sıcaklığı değişimi olmaz.
  • Titreşimsiz çalışma-Tüm kamera uygulamalarına uygun LED sürücü frekansı.
  • Fısıltı kadar sessiz-Konveksiyon ve zorlamalı hava soğutmayı kullanıcı tarafından seçilebilen çıkış ve ses seviyesi kontrolüyle birleştirir.
  • Çeşitli karartma eğrileri ve tungsten kırmızıya kayma emülasyonu ile tam elektronik dimmer/deklanşör kontrolü.
  • Zengin, doygun ana renklerden açık ve pürüzsüz pastel tonlara kadar uzanan üstün bir renk paletiyle canlı CMY renk karışımı.
  • Değişken CTB-tungstenden gün ışığına CCT kontrolü ve siyah gövde eğrisine sadık kalan CMY paletinin genişletilmesi.
  • Renk tekerleği-6 adet değiştirilebilir dikroik filtre + açık.

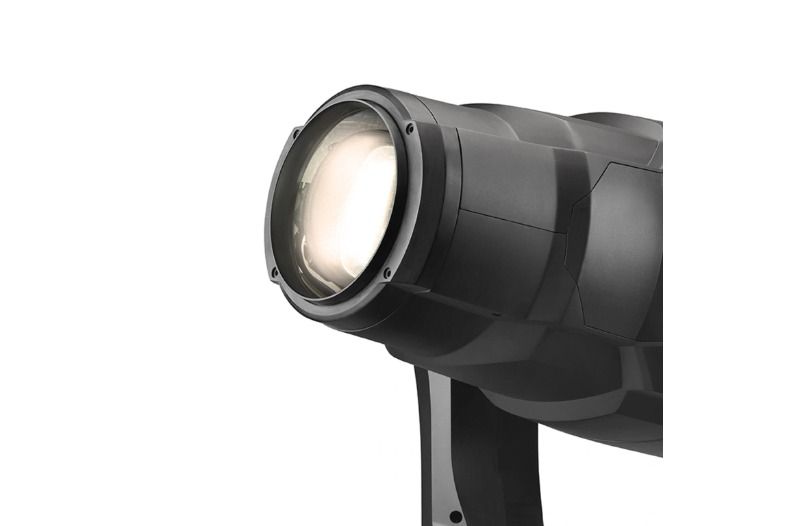

  • Fresnel lens: 1:4 yakınlaştırma; hassas, sessiz ve hızlı yakınlaştırma.
  • PC lensi (isteğe bağlı): 1:5 yakınlaştırma-hassas, sessiz ve hızlı yakınlaştırma.
  • İki panjur kanatlı ve irisli dahili ambar kapısı sistemi. Panjur kanatları tam karartma için üst üste gelebilir ve tüm sistem +/- 100° dönebilir. İpuçlarını büyük bir hassasiyetle tekrarlar.
  • Ayarlanabilir dinamik efektlerle hassas ve sıkı iris.
  • Animotion FX Sistemi- Çarpıcı 3D havada ve projeksiyon efektleri için dahili karartma efekti makroları.
  • 3 fazlı step motor teknolojisi ve mutlak konum izleme sayesinde süper hassas ve sessiz pan/tilt hareketi ve konumlandırma.
  • Kompakt boyut-U: 452 x G: 480 x Y: 745 mm / U: 17,8 x G: 18,9 x Y: 29,3 inç
  • Düşük ağırlık-28,5 kg/62,9 lbs

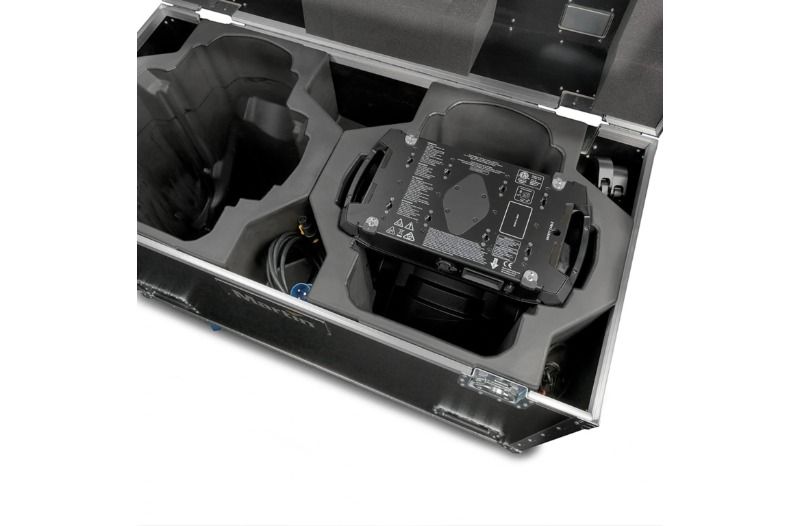

  • Güvenli sevkiyat için köpük kauçuk (SIP) uçuş çantası ek parçası.

Physical
Length 452 mm (17.8 in.)
Width 480 mm (18.9 in.) across yoke
Height 755 mm (29.8 in.) maximum745 mm (29.4 in.) head straight up
Weight 28.5 kg (62.9 lb.)
Minimum center-to-center distance in side-by-side installation 730 mm (28.8 in.)
Dynamic Effects
Pre-programmed effects Two ranges of FX, independent or synchronized/combined
Color mixing CMY, independently variable 0 - 100%
Color wheel 6 x interchangeable dichroic filters + open, indexing, continuous rotation, random color
Iris Variable 0 - 100%
Zoom Motorized
Color temperature control Variable 3000 - 7000 K
Barn doors Internal, two blades with individually controllable insertion, +/- 100° module rotation
Dimmer/shutter 0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout
Dimming options Choice of four dimming curves
Pan 540°
Tilt 268°
Position correction system Absolute position monitoring
Focus Range varies with zoom angle, from approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity
Control and Programming
Setting and addressing Control panel with backlit graphic display and jog wheel or via DMX
16-bit control Dimming, pan and tilt
Movement control options Tracking and vector
DMX channels 24
Fixture Identification User-settable ID number
DMX compliance USITT DMX512-A
RDM compliance ANSI/ESTA E1.20
Transceiver Opto-isolated RS-485
Fixture software update USB memory device or over DMX link
Optics
Light source 468 W custom Martin LED engine
Minimum LED lifetime 50,000 hours (to >80% luminous output)*
Zoom range with Fresnel lens (standard) 14° - 60° one-tenth peak (1:4)
Zoom range with PC lens (optional) 11° - 58° one-tenth peak (1:5)
*Figure obtained under manufacturer's test conditions
Photometric Data
Light engine luminous output >= 31,500 lumens
Fixture luminous output with Fresnel lens (standard) 8,500 lumens
Fixture luminous output with PC lens (optional) 9,500 lumens
CRI (Color Rendering Index) >90
CQS (Color Quality Scale) >90
TM-30 Rf (IES TM-30-15 Fidelity Index) >90
TM-30 Rg (IES TM-30-15 Gamut Index) >98
TLCI (Television Lighting Consistency Index) >90
CCT 3000 K (+/- 250 K)
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Construction
Housing High-impact flame-retardant thermoplastic
Color Black
Protection rating IP20
Installation
Mounting points 4 pairs of 1/4-turn locks
Location Dry location only, must be fastened to surface or structure
Orientation Any
Minimum distance to combustible materials 0.2 m (8 in.)
Minimum distance to illuminated surfaces 2.0 m (6.6 ft.)

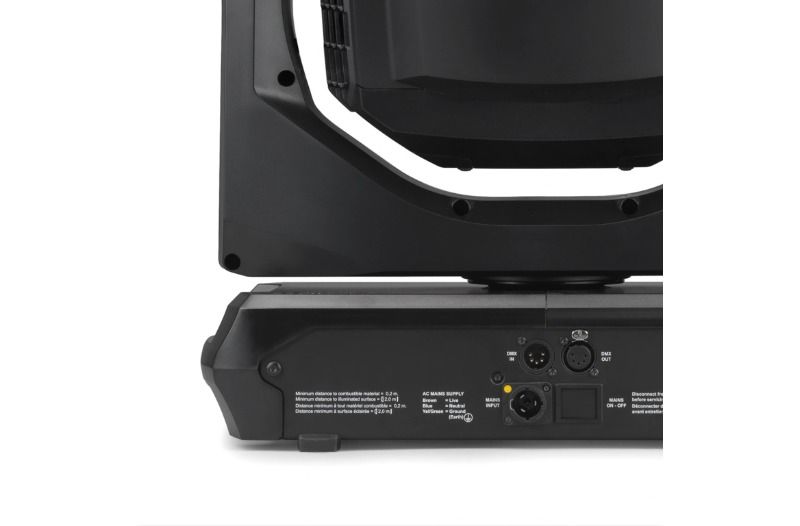

Connections
AC power input Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector)
DMX and RDM data in/out 5-pin locking XLR
Electrical
AC power 120-240 V AC nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch mode Typical half-cycle RMS inrush current at 230 V, 50 Hz: 10.3 A Power Factor: 0.99 @ 120 V / 208 V , 0.98 @ 230 V / 240 V Typical current draw: 5.0 A @ 120 V , 2.9 A @ 208 V , 2.6 A @ 230 V , 2.2 A @ 240 V * Power Consumption Typical: 596 W * Idle: 64 W * * Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Typical: full output white, no effects moving, regulated fan speed. Idle: no output, no effects moving, regulated fan speed.
Thermal
Cooling Combined convection and forced air (temperature-regulated, low noise, user-definable levels)
Maximum ambient temperature (Ta max.) 40° C (104° F)
Minimum ambient temperature (Ta min.) 5° C (41° F)
Maximum surface temperature, steady state, at 40° C ambient 75° C (167° F)
Total heat dissipation (calculated, +/- 10%) 2000 BTU/hr.
Environmental
RoHS Compliant
REACH Compliant
WEEE Compliant
Proposition 65 Compliant
Efficacy (max output) 16 lm/w
LWR* 333 lm/kg (151 lm/lb)
LWR = Lumen-to-Weight Ratio
Approvals
EU safety EN 60598-2-17, EN 62471, EN62493
EU EMC EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
US safety UL 1573
US EMC FCC Part 15 Class A
Canadian safety CSA C22.2 No. E598-2-17
Canadian EMC ICES-003 Class A
Australia/NZ RCM
Thailand TIS
Included Items
Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
Related Items
Martin Companion Cable P/N 91616091
Martin Companion Software Suite (including firmware uploader) Free download from www.martin.com
Accessories
Gelframe MAC Encore P/N 91001000
Set of Followspot Handles MAC Encore P/N 91001001HU
PC Lens Assy MAC Encore Wash P/N 91616110HU
SIP Packaging MAC Encore Family P/N 91616115HU
Cables and connectors Power Input Cable, H07RN-F, 2.5 mm2, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797 Power Input Cable, H07RN-F, 2.5 mm2, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786 Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173 Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174 Cable Connector, Neutrik PowerCON TRUE1 NAC3FX-W (female): P/N 91611789
*Please order SIP variant fixtures to obtain the required SIP foam flightcase inserts
Installation hardware G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003 Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007 Half-coupler Clamp: P/N 91602005 Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006 Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
Flightcase Two-unit Flightcase for MAC Encore*: P/N 91515048
Verified Third-Party Accessories
Beam ControlMAC Encore Wash Top Hat P/N City Theatrical 2779
Ordering Information
MAC Encore Wash WRM EPS (in cardboard box, polystyrene packaging) P/N 90234025
MAC Encore Wash WRM SIP (in cardboard box with SIP foam flightcase insert) P/N 90234030
MAC Encore Wash WRM, white finish, EPS (in cardboard box, polystyrene packaging) P/N 90234035HU
