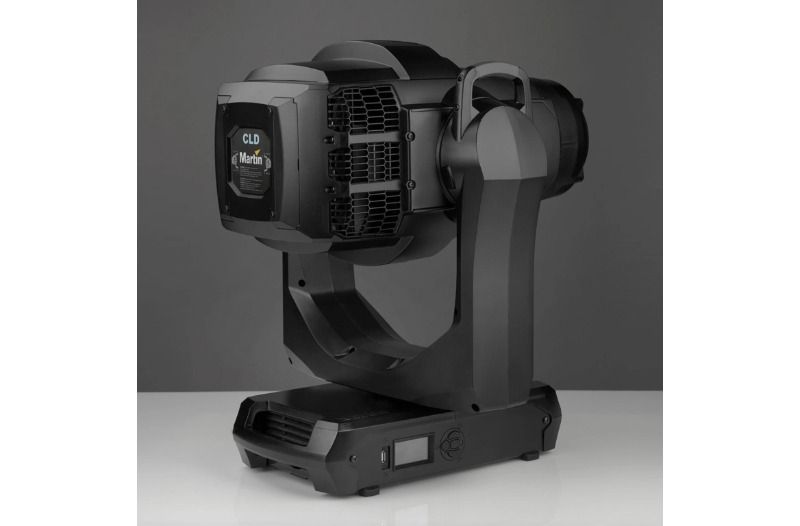

MAC Encore Performance CLD

  • Marka : MARTIN
  • Ürün Kodu :

MAC Encore Performansı CLD
Yüksek kaliteli soğuk ışık sert kenarlı hareketli kafa

MAC Encore Performance CLD, son teknoloji LED teknolojisini, ultra yüksek renk sunumuyla saf, tam spektrumlu ışık üretmek üzere dikkatle tasarlanmış tescilli ve yenilikçi bir ışık motoruyla birleştirir. Özelliklerle dolu hareketli kafa, benzersiz 6000 K net, nötr gün ışığı sunar. Gelişmiş renk karıştırma sistemi, pürüzsüz ve ince pastellerden zengin ve canlı doygun renklere kadar tam bir palet sunar. Üstelik tungsten/turuncuya karşı tamamen değişken bir renk düzeltmesi sunar.

Özellikler

  • 6000 K CCT'ye sahip saf beyaz LED motor
  • Yakınlaştırma ve karartma sırasında renk sıcaklığı değişimi olmayan düz bir alan.
  • Titreşimsiz çalışma - Tüm kamera uygulamalarına uygun LED sürücü frekansı.
  • Ultra düşük gürültü - Kullanıcı tarafından seçilebilen çıkış ve ses seviyesi kontrolü ile konveksiyon ve zorlamalı hava soğutmayı birleştirir.
  • Çeşitli karartma eğrileri ve tungsten kırmızıya kayma emülasyonu ile tam elektronik dimmer/deklanşör kontrolü.
  • Açık ve pürüzsüz pastel tonlardan zengin, doygun ana renklere kadar uzanan üstün bir renk paletiyle canlı CMY renk karışımı.
  • Değişken CTO-gün ışığından tungsten CCT kontrolüne ve siyah gövde eğrisine sadık kalan CMY paletinin genişletilmesi.
  • Renk tekerleği - 6 adet değiştirilebilir dikroik filtre + açık.
  • Otomatik bağlantılı odaklamayla 1:4 yakınlaştırma hassas ve hızlı, sessiz yakınlaştırma.
  • Bireysel +/- 30° ayarlı dört çerçeveli deklanşör kanadı ve +/- 55°'lik tüm sistem dönüşü, yüksek hassasiyetli işaret tekrarlarına olanak tanır.
  • Çerçeveleme sisteminden neredeyse sıfır odak ayrımına sahip beş adet döner cam gobo.
  • Değişken açı, hız ve yön ile sürekli çok yönlü dönüş ve indeksleme özelliğine sahip animasyon tekerleği.
  • Çarpıcı 3D havada ve projeksiyon efektleri için Animotion FX Sisteminin dahili karartma efekti makroları.
  • Ayarlanabilir dinamik efektlerle hassas ve sıkı iris.
  • Yumuşak don - gobo sanat eserlerinin ve çerçeveli görüntülerin güzel, yumuşak bir kenarla görünür olmasını sağlayan hafif bir don.
  • Ağır donma isteğe bağlı bir aksesuar olarak mevcuttur.
  • 3 fazlı step motor teknolojisi ve mutlak konum izleme sayesinde süper hassas ve sessiz pan/tilt hareketi ve konumlandırma.
  • Kompakt boyut-L: 452 mm x G: 480 mm x Y: 733 mm (U: 17,8 inç x G: 18,9 inç x Y: 28,9 inç).
  • Düşük ağırlık: 31 kg/68 lbs.

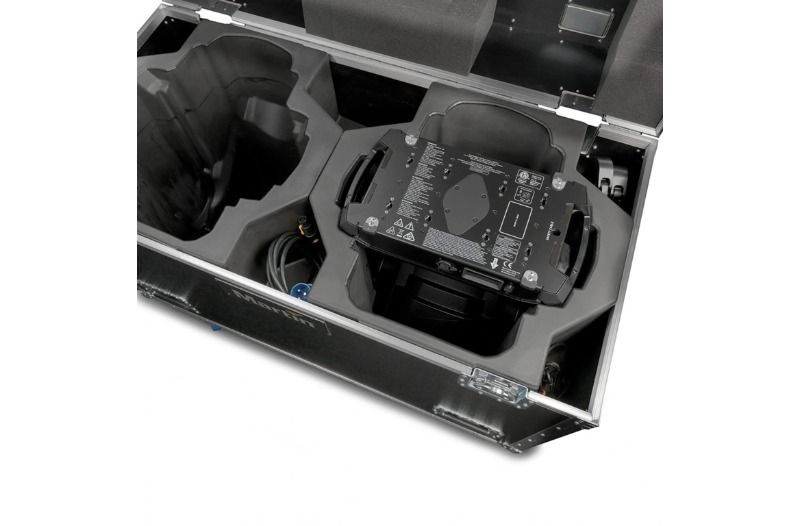

  • Güvenli sevkiyat için köpük kauçuk (SiP) uçuş çantası ek parçası.

Physical
Length 452 mm (17.8 in.)
Width 480 mm (18.9 in.) across yoke
Height 740 mm (29.2 in.) maximum731 mm (28.8 in.) head straight up
Weight 31 kg (68.4 lbs.)
Minimum center-to-center distance in side-by-side installation 700 mm (27.6 in.)
Dynamic Effects
Pre-programmed effects Two ranges of FX, independent or synchronized/combined
Color mixing CMY, independently variable 0 - 100%
Color wheel 6 x interchangeable dichroic filters + open, indexing, continuous rotation, random color
Gobo animation Interchangeable animation wheel, indexing, continuous rotation with variable speed and direction
Rotating gobo wheel 5 x interchangeable texture/breakup gobos + open, indexing, continuous rotation and shake
Iris Variable 0 - 100%
Zoom Motorized
Color temperature control Variable 6000 - 2700 K
Framing Rotatable framing module, +/- 55°, 4 x individually controllable blades with variable angle and position
Frost Variable 0 - 100%
Dimmer/shutter 0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout
Dimming options Choice of four dimming curves
Pan 540°
Tilt 268°
Position correction system Absolute position monitoring
Focus Range varies with zoom angle, from approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity
Control and Programming

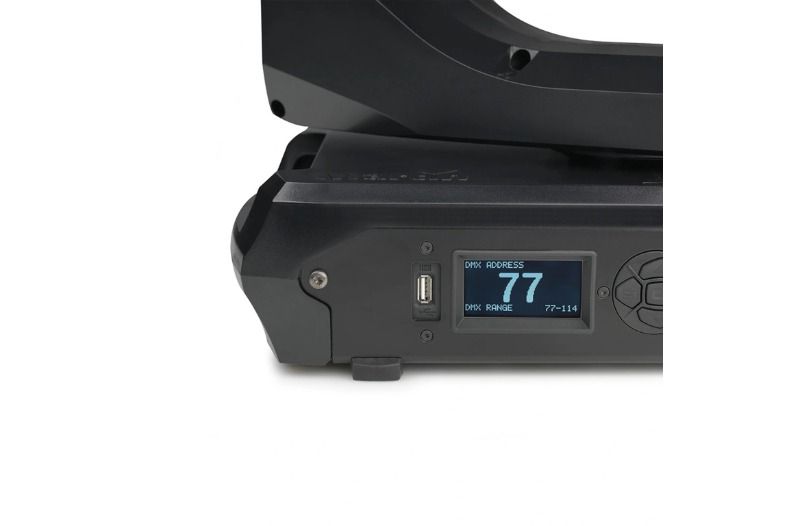

Setting and addressing Control panel with backlit graphic display and jog wheel or via DMX
16-bit control Dimming, rotating gobos, zoom, focus, pan and tilt
Movement control options Tracking and vector
DMX channels 38
Fixture Identification User-settable ID number
DMX compliance USITT DMX512-A
RDM compliance ANSI/ESTA E1.20
Transceiver Opto-isolated RS-485
Fixture software update USB memory device or over DMX link
Optics
Zoom range 12° - 48° one-tenth peak (1:4)
Light source 468 W custom Martin LED engine
Minimum LED lifetime 50,000 hours (to >80% luminous output)*
*Figure obtained under manufacturer's test conditions
Photometric Data
Light engine luminous output >= 39,400 lumens
Fixture luminous output 11,600 lumens
CRI (Color Rendering Index) >80
CQS (Color Quality Scale) >80
TM-30 Rf (IES TM-30-15 Fidelity Index) >80
TM-30 Rg (IES TM-30-15 Gamut Index) >95
TLCI (Television Lighting Consistency Index) >70
CCT 6000 K (+/- 250 K)
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Construction
Housing High-impact flame-retardant thermoplastic
Color Black
Protection rating IP20
Installation
Mounting points 4 pairs of 1/4-turn locks
Location Dry location only, must be fastened to surface or structure
Orientation Any
Minimum distance to combustible materials 0.2 m (8 in.)
Minimum distance to illuminated surfaces 2.0 m (6.6 ft.)

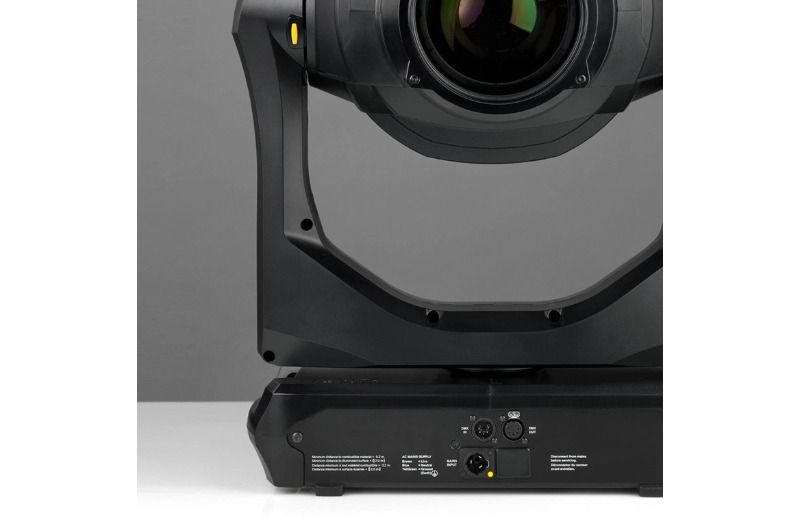

Connections
AC power input Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector)
DMX and RDM data in/out 5-pin locking XLR
Electrical
AC power 120-240 V AC nominal, 50/60 HzPower supply unit: Auto-ranging electronic switch modeTypical half-cycle RMS inrush current at 230 V, 50 Hz: 10.3 APower Factor: 0.99 @ 120 V / 208 V , 0.98 @ 230 V / 240 VTypical current draw: 5.0 A @ 120 V , 2.9 A @ 208 V , 2.6 A @ 230 V , 2.2 A @ 240 V * Power ConsumptionTypical: 596 W *Idle: 64 W * * Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Typical: full output white, no effects moving, regulated fan speed. Idle: no output, no effects moving, regulated fan speed.
Thermal
Cooling Combined convection and forced air (temperature-regulated, low noise, user-definable levels)
Maximum ambient temperature (Ta max.) 40° C (104° F)
Minimum ambient temperature (Ta min.) 5° C (41° F)
Maximum surface temperature, steady state, at 40° C ambient 75° C (167° F)
Total heat dissipation (calculated, +/- 10%) 2000 BTU/hr.
Environmental
RoHS Compliant
REACH Compliant
WEEE Compliant
Proposition 65 Compliant
Efficacy (max output) 20 lm/w
LWR* 297 lm/kg (169 lm/lb)
LWR = Lumen-to-Weight Ratio
Approvals
EU safety EN 60598-2-17, EN 62471, EN62493
EU EMC EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
US safety UL 1573
US EMC FCC Part 15 Class A
Canadian safety CSA C22.2 No. E598-2-17
Canadian EMC ICES-003 Class A
Australia/NZ RCM
Thailand TIS
Included Items
Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
Related Items
Martin Companion Cable P/N 91616091
Martin Companion Software Suite (including firmware uploader) Free download from www.martin.com
Accessories
Gelframe MAC Encore P/N 91001000
Set of Followspot Handles MAC Encore P/N 91001001HU
Heavy Frost Assy MAC Encore Performance P/N 91001002HU
SIP Packaging MAC Encore Family P/N 91616115HU
Static GOBO Wheel MAC Encore Performance P/N 91001003
Top Hat MAC Encore Performance P/N 91001004
Cables and connectors Power Input Cable, H07RN-F, 2.5 mm2, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797Power Input Cable, H07RN-F, 2.5 mm2, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174Cable Connector, Neutrik PowerCON TRUE1 NAC3FX-W (female): P/N 91611789
*Please order SIP variant fixtures to obtain the required SIP foam flightcase inserts
Installation hardware G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007Half-coupler Clamp: P/N 91602005Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
Flightcase Two-unit Flightcase for MAC Encore*: P/N 91515048
Verified Third-Party Accessories
Beam ControlMAC Encore Performance Top Hat P/NCity Theatrical 2778
Ordering Information
MAC Encore Performance CLD EPS (in cardboard box, polystyrene packaging) P/N 90234000
MAC Encore Performance CLD SIP (in cardboard box with SIP foam flightcase insert) P/N 90234005
MAC Encore Performance CLD, white finish, EPS (in cardboard box, polystyrene packaging) P/N 90234010HU
