MAC Aura XIP

Marka : MARTIN
Ürün Kodu : MAC AURA XIP

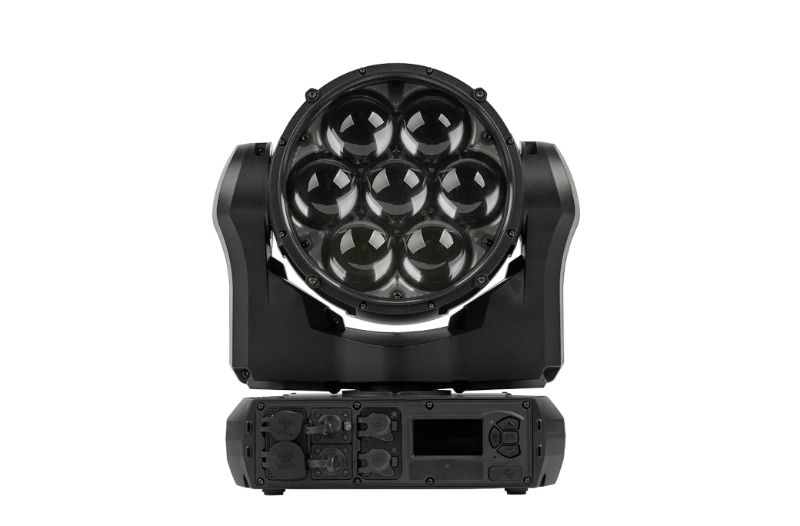

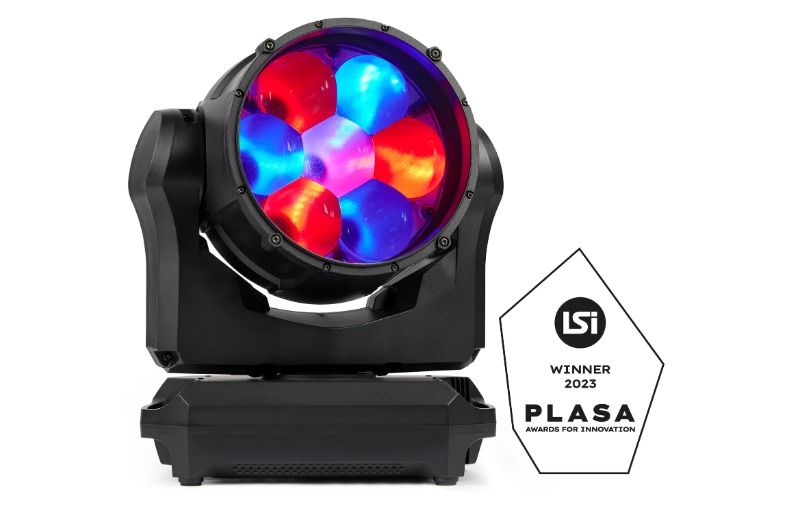

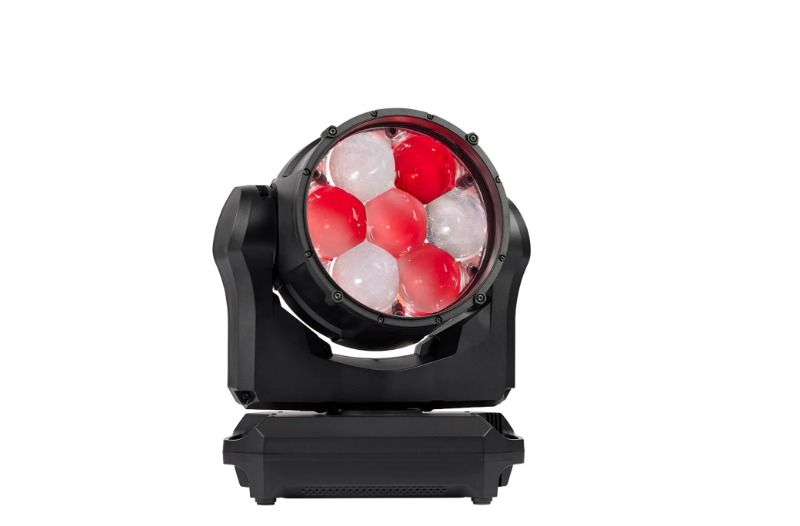

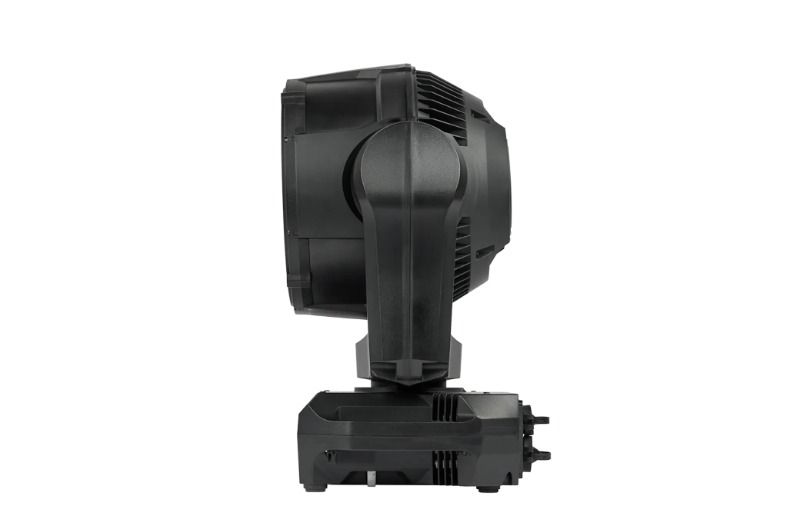

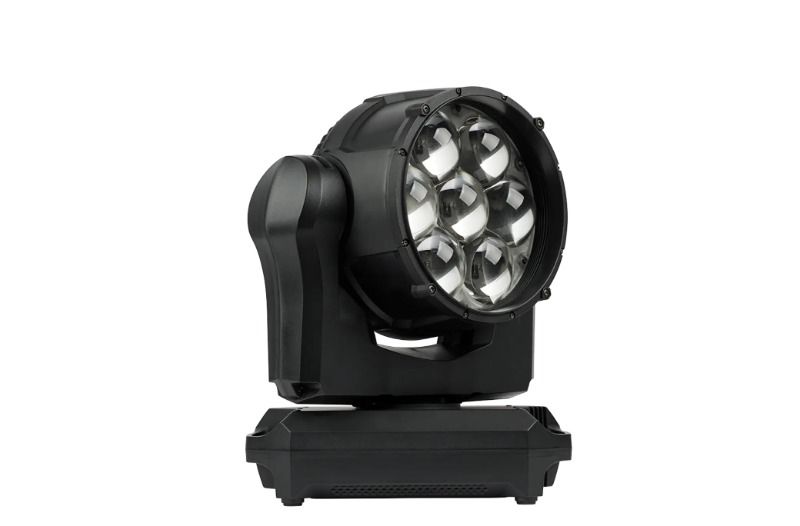

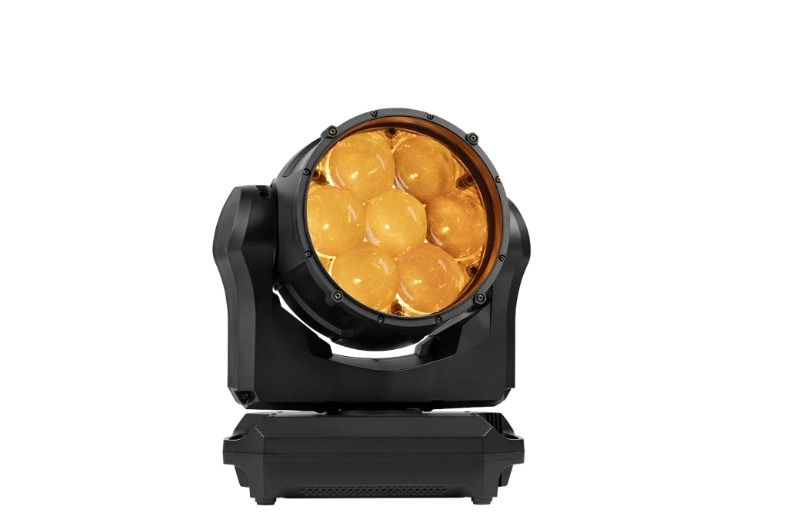

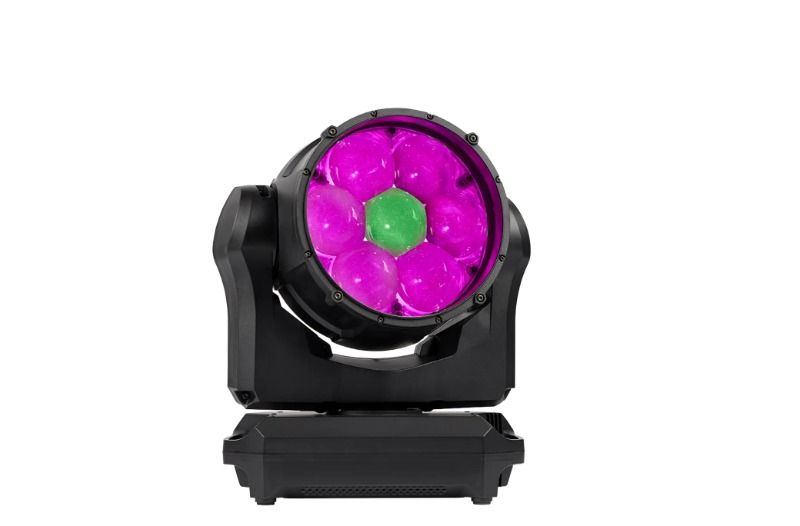

MAC Aura XIP
Akıllı dış mekan koruması ve Aura filamentleriyle Yıkama Işığı

MAC Aura XIP, radikal aura filaman efekti ve ışın, aura veya her ikisi üzerinde video eşleştirme yetenekleriyle tam piksel kontrolüne sahip birinci sınıf bir hareketli kafa yıkama lambasıdır. Bu, Martin'in MAC Aura ağır yıkama lambaları ailesine en son eklenen ve Martin'in akıllı dış mekan özellikli tasarımı sayesinde ağırlık, boyut ve estetikten sıfıra yakın ödün veren, sınıfında dış mekan kullanımı için derecelendirilen ilk armatürdür. Yumuşak kenarlı eşit bir yıkama alanı, minimum dağınık ışık ve iyileştirilmiş hafif motor kontrolü ile yüksek yoğunluklu orta hava ışınlarıyla optik kalite çıtasını yükseltiyor.

Çok çeşitli konser ve turne prodüksiyonları için mükemmel olan MAC Aura XIP, festivaller ve etkinlikler için akıllı, dış mekan tasarımıyla donatılırken tiyatro, televizyon, kurumsal etkinlikler ve daha fazlası için yeterince sessiz ve hafiftir.

MAC Aura XIP, aura filaman etkisi, daha dar ışın ve gelişmiş ışık motoru kontrolüyle daha iyi yıkama kalitesiyle aydınlatma tasarımcılarına çeşitli olanaklar sunarken; Kiralama müşterileri, ürünün neredeyse her yerde kullanılmasına ve daha az bakım gerektirmesine olanak tanıyan, optik iyileştirmeler ve yalıtılmış tasarımla daha hafif ve daha çok yönlü bir çalışma ortamını takdir edeceklerdir.

XIP Teknolojisi Hakkında Daha Fazla Bilgi Edinin

Bu sayfayı İspanyolca olarak görüntüle

Özellikler

6.000 lümen RGBW ışık çıkışı
Yüksek dar yoğunluk: 360.000 cd

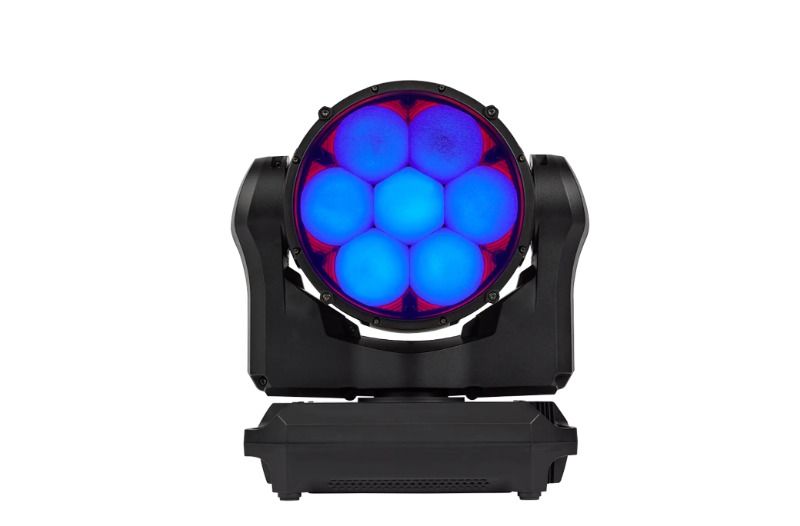

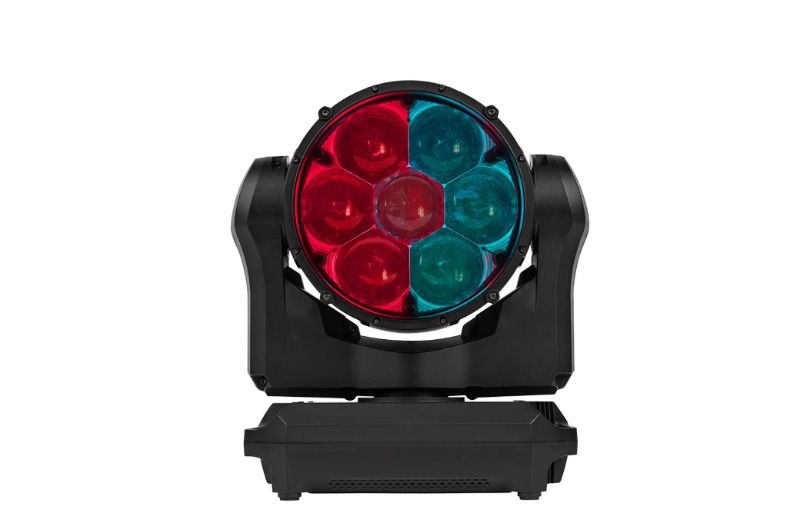

Pikselleştirilmiş Işın: 7x 60W RGBW LED'ler

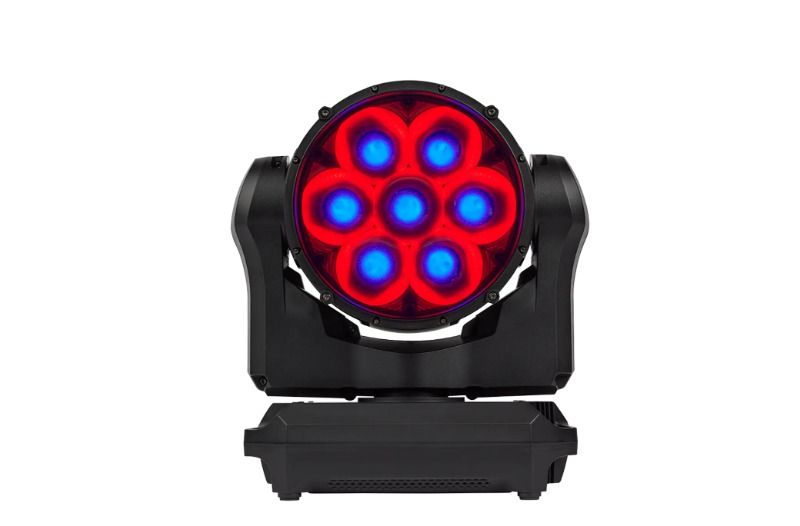

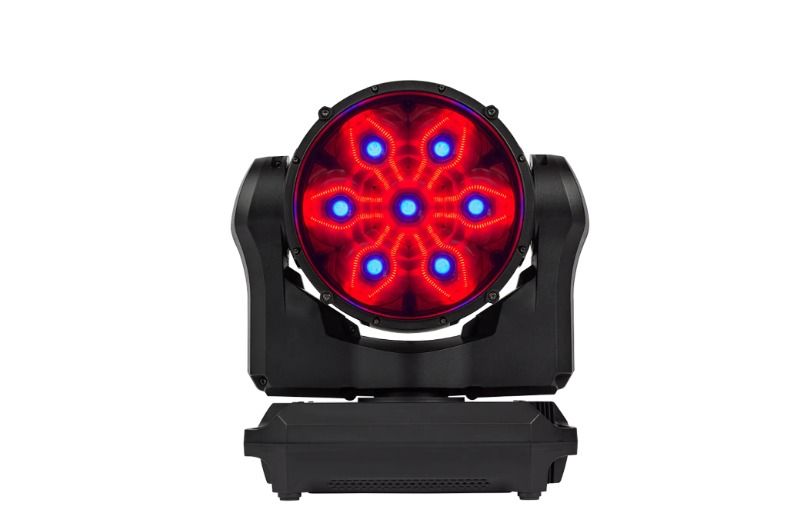

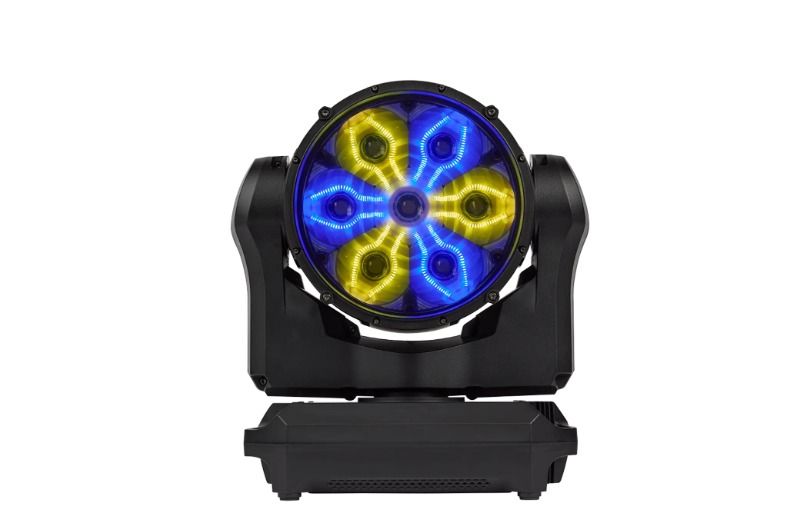

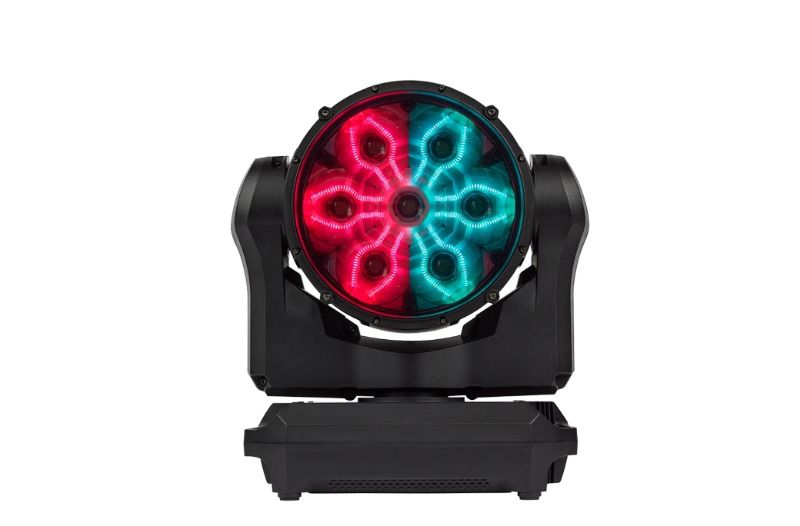

Filament Aura: 12x 4W RGBW LED'ler
Martin'in Tam Gamut Renk Kalibrasyonu kullanılarak tamamen kalibre edilmiştir
Titreşimsiz çalışma - Her türlü kamera uygulamasına uygun LED sürücü frekansı
Zorlu uygulamalar için LED Sürücü frekansı ayarlanabilir

Physical
Width (across yoke)	338 mm (13.31 in.)Width (base): 306 mm (12.05 in.)Height (head forward): 387 mm (15.24 in.)Height (maximum): 421 mm (16.57 in.)Depth (head): 205 mm (8.07 in.)Depth (base): 226 mm (8.90 in.)Minimum center-to-center distance in side-by-side installation: 350 mm (14 in.)Weight: 8.95 kg (19.73 lbs.)
Dynamic Effects
Beam Dimmer/Shutter	0 - 100% continuous dimming, regular and random strobe, instant open and blackoutBeam Dimming options: Choice of four dimming curvesBeam Color Mixing: RGB(W), independently variable 0 - 100%Beam Color Temperature Control: Variable 2,000 - 12,850 KBeam Tint Control:Variable green-magenta shift ?uv -0.05 - +0.05Beam Virtual Color wheel: 48 color presets, continuous rotation & random colorZoom: Motorized with 1:6 zoom ratioPan: Motorized 540°Tilt: Motorized 220°Beam PixelMapping: Individual RGB control of each of the 7 Beam pixelsBeam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video controlAura Dimmer/Shutter: 0 - 100% continuous dimming, regular and random strobe, instant open and blackoutAura Dimming options: Choice of four dimming curvesAura Color Mixing: RGB, independently variable 0 - 100%Aura Color Temperature Control: Variable 2,000 - 12,850 KAura Tint Control:Variable green-magenta shift ?uv -0.05 - +0.05Aura Virtual Color wheel: 48 color presets, continuous rotation & random colorAura PixelMapping: Individual RGB control of each of the 12 Aura filamentsAura P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video controlPre-programmed effects: Two ranges of FX on Beam, Aura or Combination; independent or synchronized/combined; featuring foreground color, background color, speed and direction controlLED Frequency control: Variable LED PWM control
Control and Programming
Control Protocols	DMX, RDM, Art-Net, RDM over Art-Net, sACN and Martin P3Protocol Detection: AutomaticDMX Modes: Compact, Basic, Extended, Ludicrous, Compact Direct, XB Standard & XB ExtendedDMX Channels: 20, 36, 57, 93, 20, 14 & 25Multi-Universe Overflow: No16-bit Controllable Parameters: Beam & Aura Dimming, Beam Color Mixing, Zoom, Pan and TiltSetting and Addressing: Display Menu, RDM, RDM over Art-Net or Martin P3Local User Interface: Backlit LCD Display with battery-powered operationFixture identification: User-settable ID numberDMX Compliance: USITT DMX512-ARDM Compliance: ANSI/ESTA E1.20Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-NetsACN Compliance: ANSI E1.31 - 2018Martin P3 Compliance: P3 System Controller Software 5.1.0 or newerDMX/RDM Transceiver: Galvanic-isolated RS-485DMX/RDM Daisy-Chain Limit: 32 fixturesEthernet Transceiver: 10/100Mbit (with fail-safe bypass)Ethernet Daisy-Chain Limit Recommendation: 50 fixturesFirmware Update: via USB type C memory device, via DMX using Martin Companion or via Ethernet using Martin Companion / P3 System Controller
Optics
Front Lens Diameter	196 mm (7.72 in.)Zoom Range: 1:6Full Zoom Range at Half Peak (Beam Angle): 6.3° - 35.3°Full Zoom Range at Tenth Peak (Field Angle): 8.8° - 50.4°Beam Light Source: 7 x 60 W RGBW LEDAura Light Source: 12 x 4 W RGBW LEDMax. Total Beam LED Engine Power: 296.5 WMax. Total Aura LED Engine Power: 35.1 WMinimum LED lifetime: > 50.000 hours (to > 70% luminous output)* *Figure obtained under manufacturer's test conditions
Photometric Data
Light Engine Luminous Output	11,000 lumensFixture Luminous Output Wide: 6,000 lumensFixture Luminous Output Narrow: 4,500 lumensPeak Luminous Intensity Narrow: 360,000 cdCCT: Variable 2,000 K - 12,850 K (+/- 200 K)CRI (Color Rendering Index): >= 71CQS (Color Quality Scale): >= 80TM-30 Rf (IES TM-30-15 Fidelity Index): >= 78TM-30 Rg (IES TM-30-15 Gamut Index): >= 117TLCI (Television Lighting Consistency Index): >= 57Beam LED Refresh Rate: Variable 2,400 Hz - 3,000 Hz and 24,000 Hz mode (DMX controllable)Aura LED Refresh Rate: 1,200 HzBinning: Tight color and flux binningCalibration: Full Gamut Color Calibration of Beam and AuraColor Modes: Direct Color Mode, Extended Gamut Mode and Calibrated Color Mode * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient* All Photometric Data measured at 6500 K white
Construction
Housing	High-impact flame-retardant thermoplastic
Color	Black
Protection rating	IP54
Installation

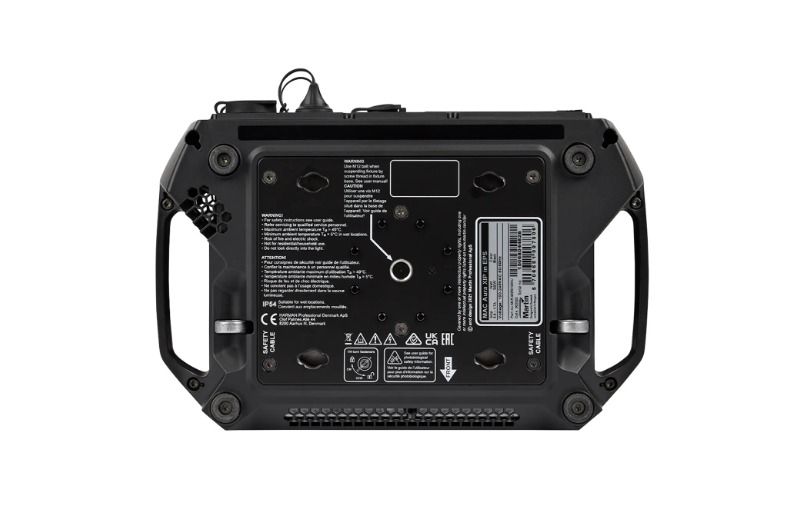

Mounting points	2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets and single M12 threaded hole
Location	Indoor or Temporary Outdoor use
Orientation	Any, except with display/connectors facing upwards in outdoor application
Minimum distance to combustible materials	0.2 m (7.87 in.)
Minimum distance to illuminated surfaces	1.0 m (39.37 in.)

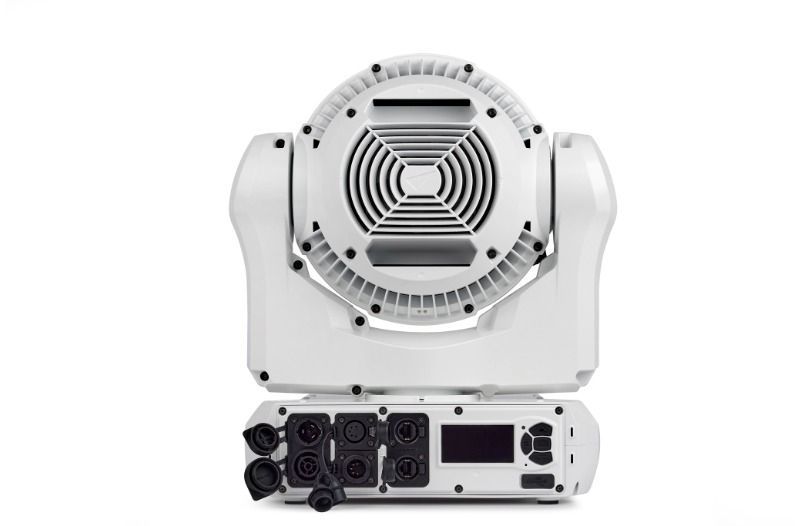

Connections

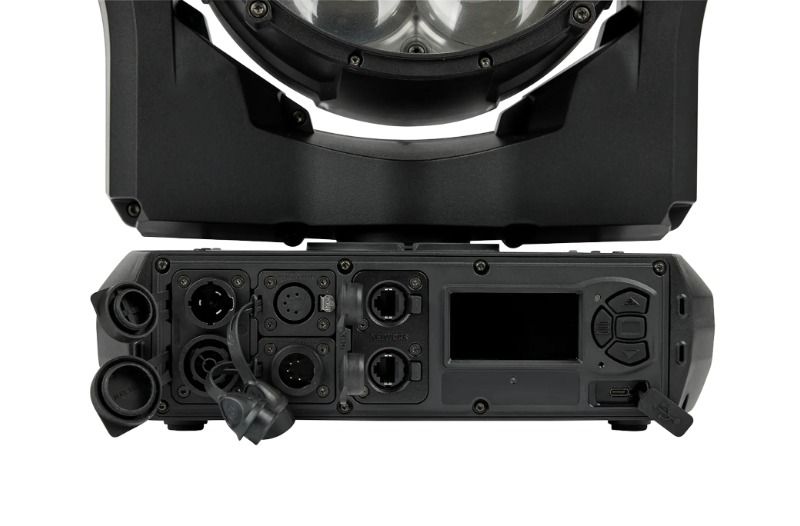

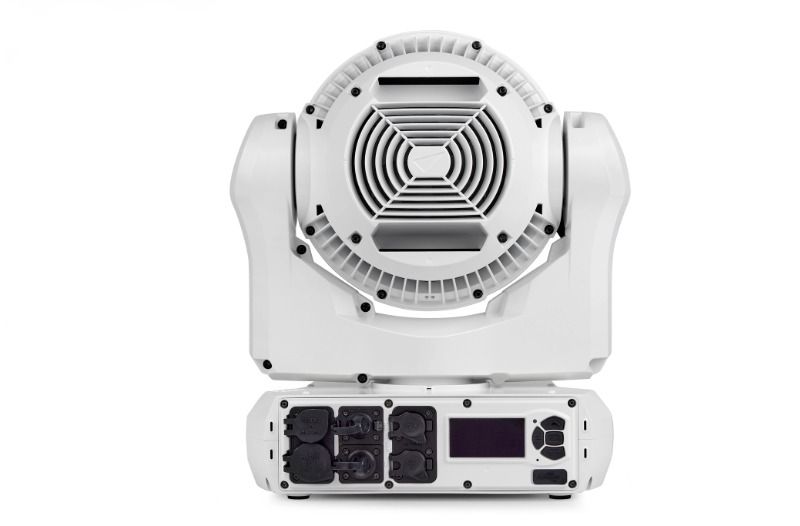

AC mains power in/thru	Neutrik powerCON TRUE1 TOPDMX and RDM data in/thru: Neutrik 5-pin locking XLR TOPEthernet (Art-Net, sACN and Martin P3) in/thru, including fail-safe bypass: Neutrik etherCON TOPFirmware from flash memory: USB 2.0 type C port
Electrical
AC power	100-240 V AC nominal, 50/60 HzPower supply unit: Auto-ranging electronic switch modeTypical half-cycle RMS inrush current at 230 V, 50 Hz: 7.0 ATypical earth-leakage current: 0.43 mAPower Factor: 0.99 @ 100 V / 120 V , 0.97 @ 208 V / 230 V / 240 VMax current draw: 3.9 A @ 100 V / 120 V , 1.8 A @ 208 V / 230 V / 240 VTypical current draw: 2.9 A @ 100 V , 2.4 A @ 120 V , 1.4 A @ 208 V , 1.3 A @ 230 V , 1.2 A @ 240 V * Power ConsumptionMaximum: 340 WTypical: 292 W Idle: 47 W Hibernation: 32 W * * Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Typical: full output white, no effects moving, regulated fan speed. Idle: no output, no effects moving, regulated fan speed. Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.
Thermal

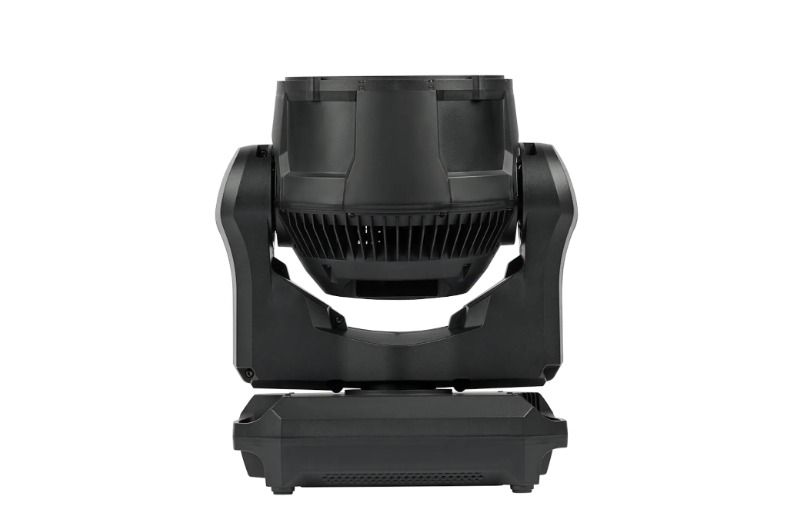

Cooling	Forced air (temperature regulated, low noise, user-definable levels)
Maximum ambient temperature (Ta max.)	40° C (104° F)
Minimum ambient temperature (Ta min.)	-10° C (14° F) - Warm up condition may apply
Maximum surface temperature, steady state, at 40° C ambient	60° C (140° F)
Total heat dissipation (calculated, +/- 10%)	972 BTU/hr.
Acoustic Data
Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output)	34.4 dB(A)
Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low)	25.2 dB(A)
Environmental
RoHS	Compliant
REACH	Compliant
WEEE	Compliant
Proposition 65	Compliant
Packaging	Recycled cardboard pulp inner packaging
Efficacy (max output)	21.3 lm/W
LWR*	670 lm/kg (304 lm/lbs.)
LWR = Lumen-to-Weight Ratio
Approvals
Global CB Certification/IECEE	IEC 60598-2-17 (IEC 60598-1)
EU safety	EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC	EN 55015; EN 55032; EN 55035; EN 61547; EN 61000-3-3
US safety	UL 1573
US EMC	FCC Part 15 Class B
Canadian safety	CSA C22.2 No. 166
Canadian EMC	ICES-003 Class B, ICES-005 Class B
Australia/NZ	RCM
United Kingdom	UKCA
Thailand	TIS
Included Items

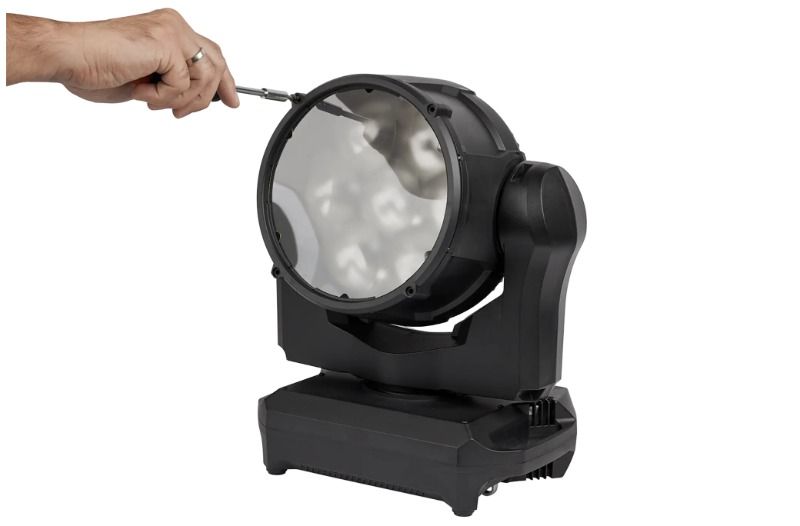

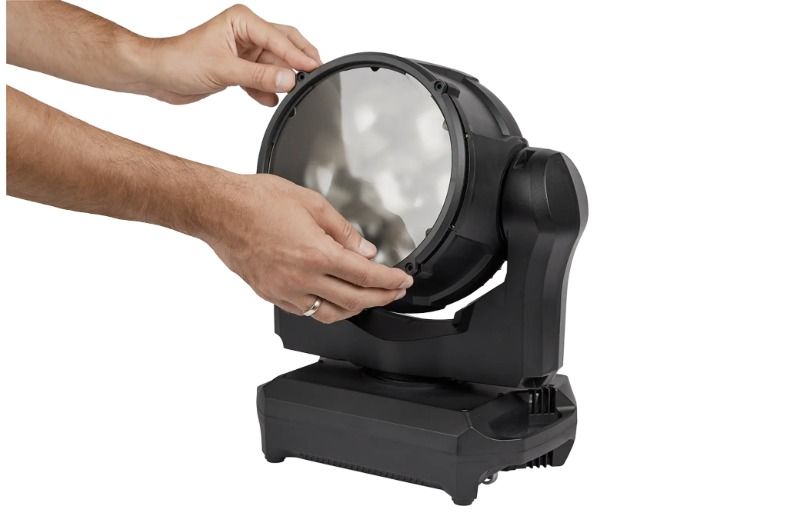

Two omega brackets with 1/4 turn fasteners for rigging clamp attachmentSoftLensMulti-Language Safety and Installation Manual
Related Items
Martin Companion Cable (for firmware update over DMX)	P/N 91616091
Martin Companion Software (for firmware update over DMX/Ethernet)	Free download from www.martin.com
Accessories
Transport and Storage Flightcase for 6 x MAC Aura XIP	P/N MAR-91515057Additional dual SiP Foam Flightcase Insert for MAC Aura XIP: P/N MAR-91611861HUConsumables CR123A 3-volt lithium battery: P/N 05801011Spare Parts Additional MAC Aura XIP SoftLens: P/N 5136656-00Power Input Cables Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91611797Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91610173Power Linking Cables Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172Power Connectors Cable Connector, Neutrik powerCON TRUE1 TOP Female: P/N 91611789HUCable Connector, Neutrik PowerCON TRUE1 TOP Male: P/N 91611788HUInstallation Hardware G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003Half-coupler Clamp: P/N 91602005Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
Verified Third-Party Accessories
Beam ControlMAC Aura XIP Top Hat	P/N City Theatrical2798MAC Aura XIP Hexcel Louver: P/NCity Theatrical 2797MAC Aura XIP Concentric Ring: P/N City Theatrical 2796
Ordering Information
MAC Aura XIP in dual SiP (in cardboard box with dual SiP foam flight case insert)	P/N MAR-90250105HU (to be ordered in multiples of 2)
MAC Aura XIP in Cardboard (in cardboard box with cardboard inlay)	P/N MAR-90250100HU

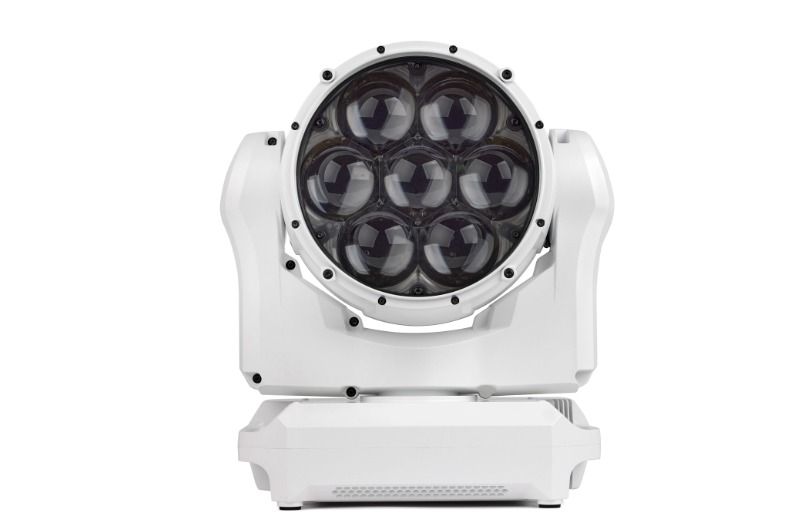

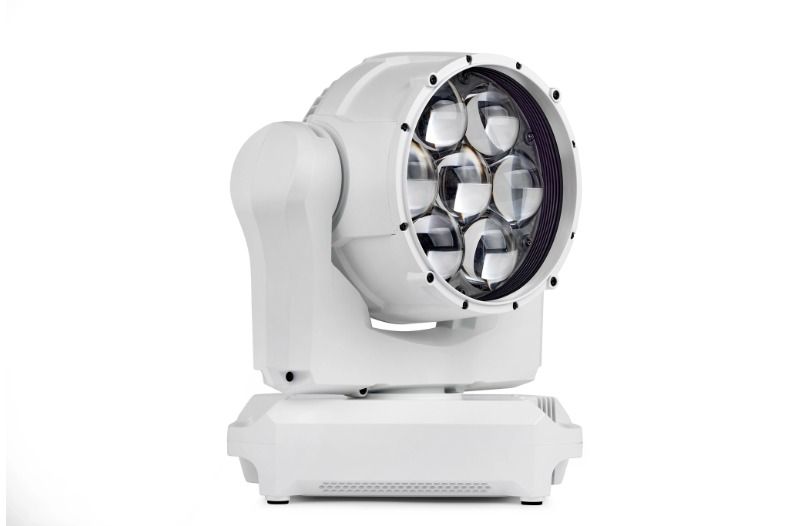

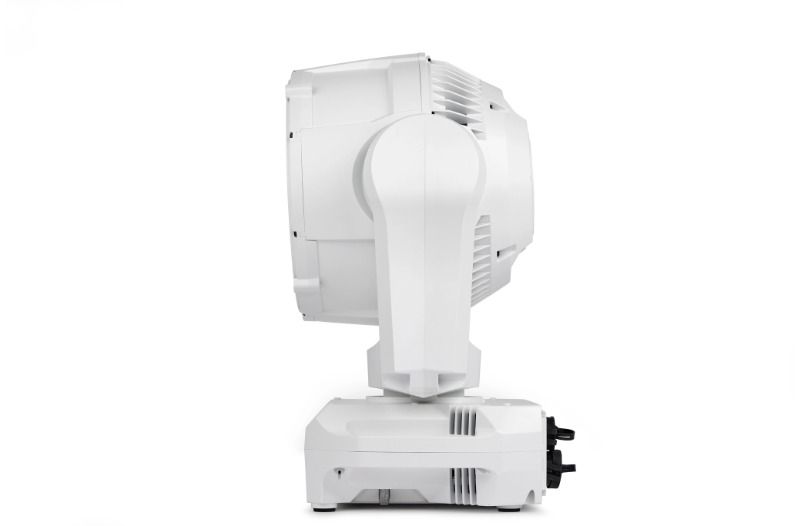

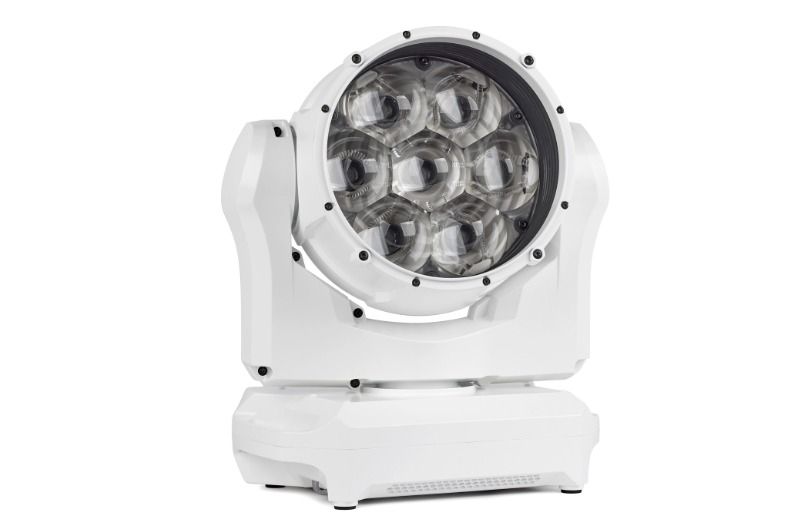

MAC Aura XIP white in Cardboard (in cardboard box with cardboard inlay)	P/N MAR-90250110HU
