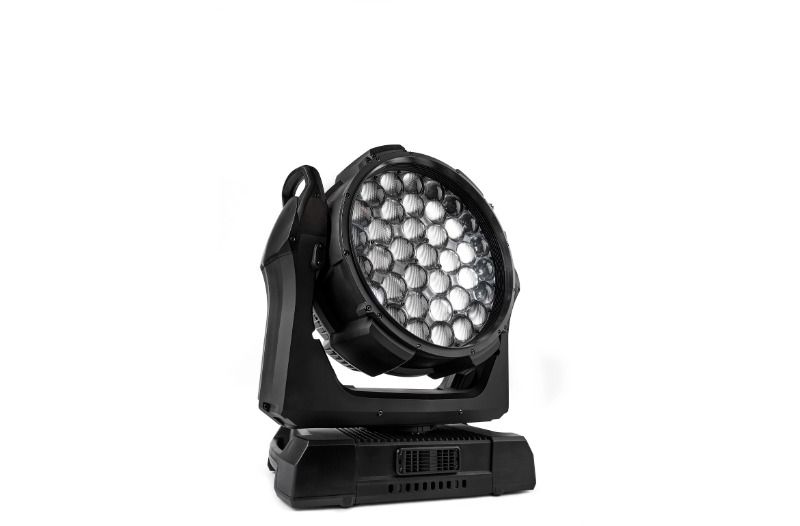

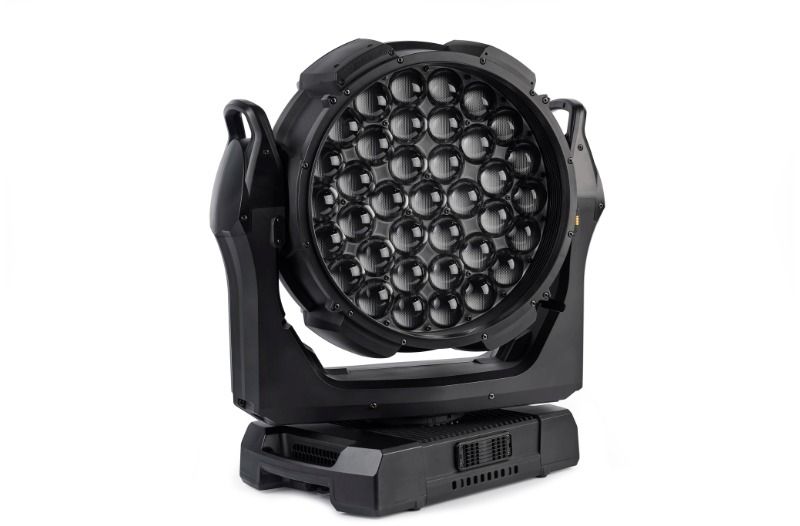

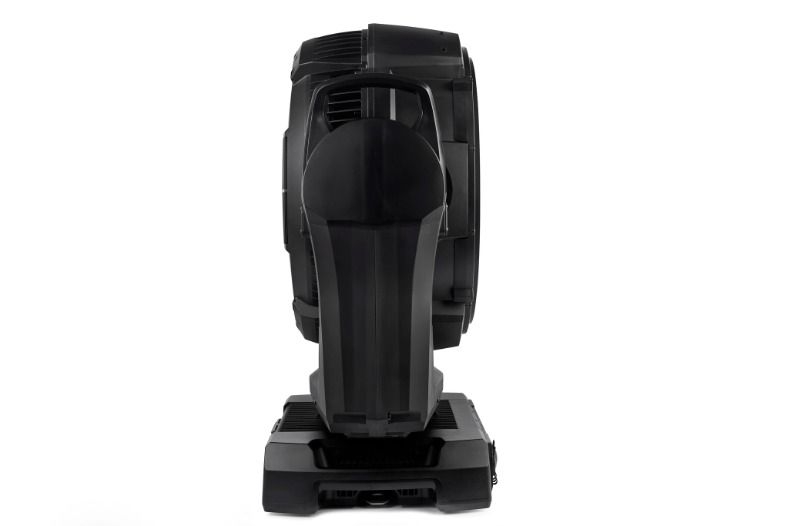

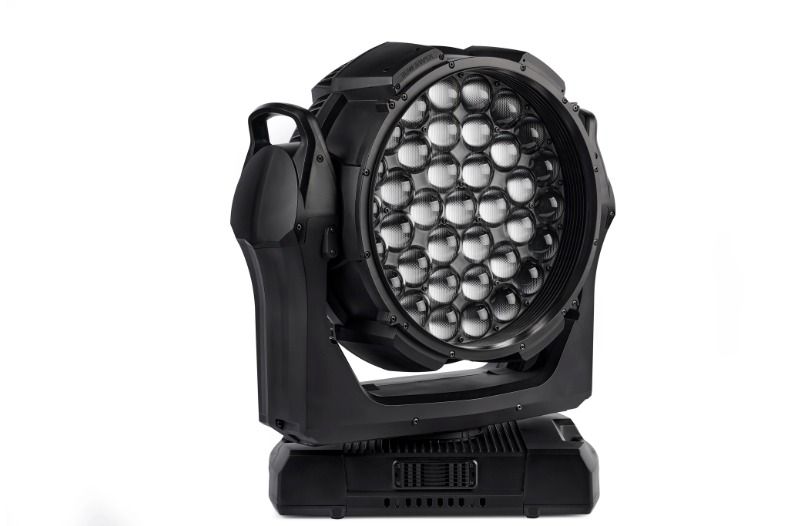

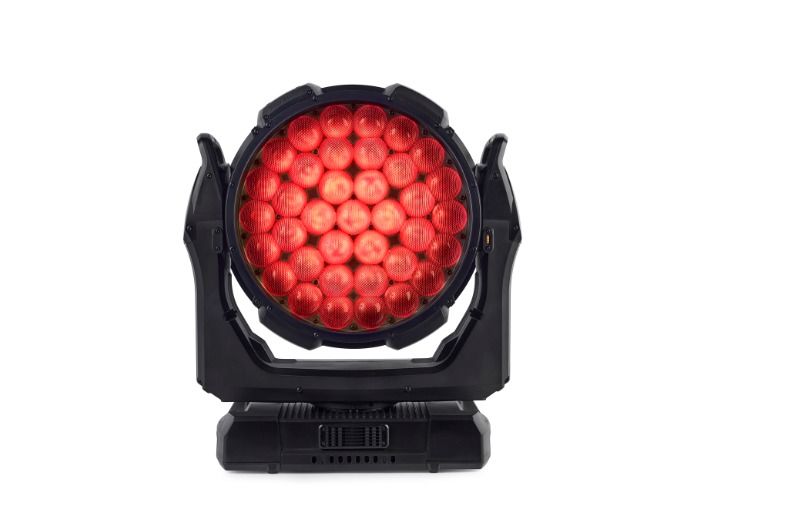

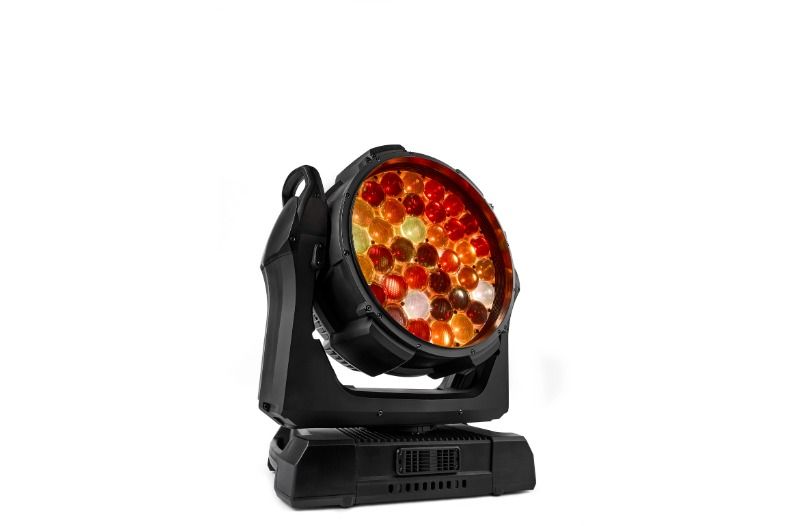

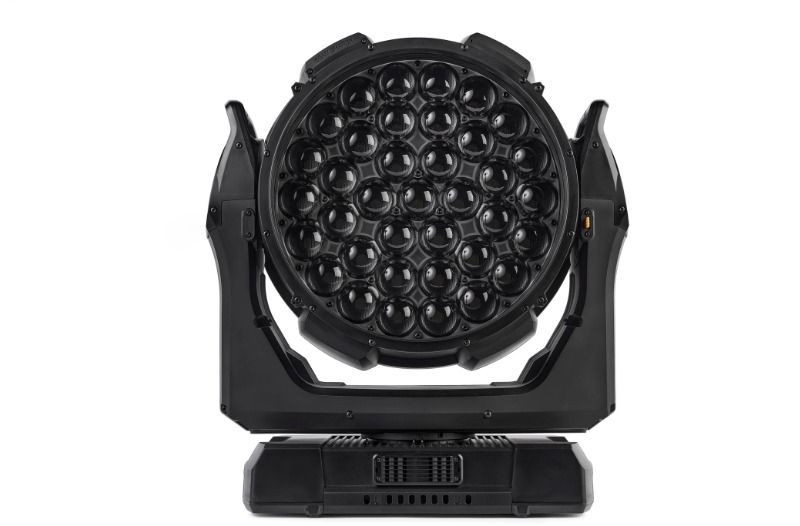

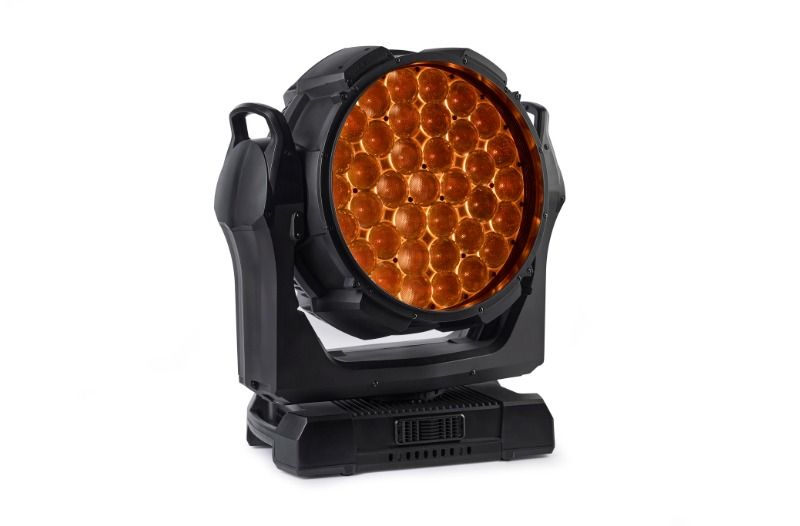

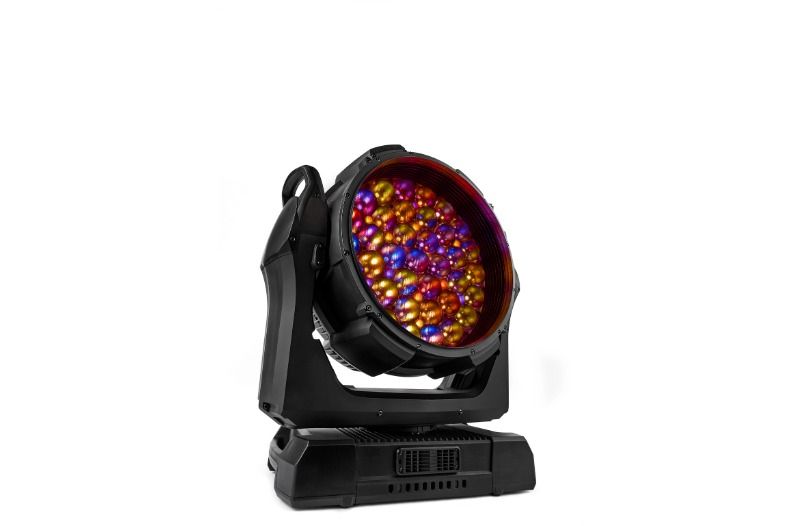

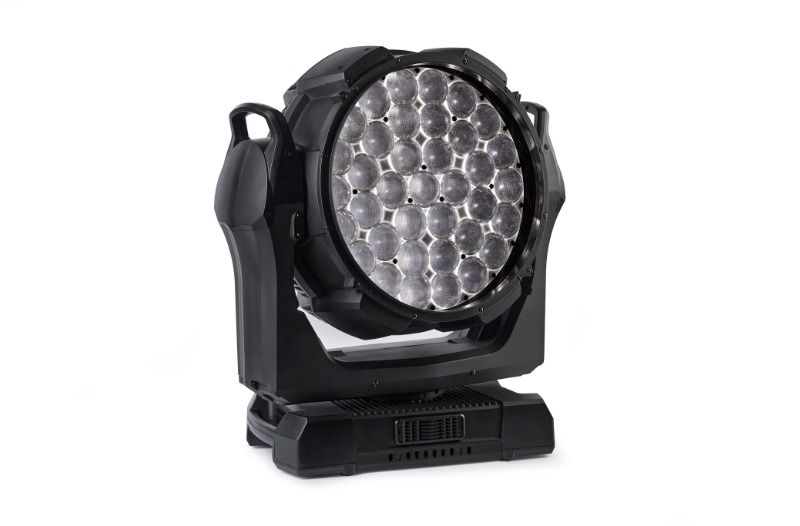

MAC Aura Raven XIP

  • Marka : MARTIN
  • Ürün Kodu : MAC AURA RAVEN XIP

MAC Aura Raven XIP
Sürükleyici video arka planlı dış mekan yıkama lambası

Martin MAC Aura Raven XIP, MAC Aura ailesinin en büyük, en parlak ve en cesur armatürü olarak yıkama, ışınlama, göze hitap etme ve akıllı hava koşullarına dayanıklılık işlevlerini birleştiren birinci sınıf bir hareketli kafa armatürüdür. Sınıfında lider lümen çıkışı ve iç ve dış mekanlarda benzersiz performans sunan MAC Aura Raven XIP, festival sahnelerini, tiyatro gösterilerini, kurumsal etkinlikleri ve yayın uygulamalarını aydınlatmak için gerçekten çok yönlü bir iş makinesine ihtiyaç duyan aydınlatma tasarımcıları, kiralama şirketleri ve kurulum müşterileri için mükemmeldir.

Sınıfının en temiz yıkama alanı ve olağanüstü optik performansıyla MAC Aura Raven XIP'in sektör lideri ışık motoru, devasa 343 mm (13,5 inç) ön lensi aracılığıyla 27.000 lümen çıkış ve yüksek yoğunluklu ışın sunar. Ön merceğin arkasına yerleştirilmiş 234 ayrı LED dizisi, gelişmiş pikselli Aura arka ışık efekti yaratarak tamamen yeni bir görsel efekt olasılıkları katmanı ekler.

Yıkama, ışınlama ve göz alıcı armatürler için yeni performans ve özellik ölçütleri belirleyen MAC Aura Raven XIP, RGBL (Kırmızı, Yeşil, Mavi, Limon) ışık motoru LED'lerini kullanarak cilt tonlarını ve genel ışık kalitesini önemli ölçüde artırır. Ayrıca, daha fazla dekora ve uygulamaya kusursuz bir şekilde uyum sağlayan, son derece sade bir görünüm sunan koyu renkli bir lens içerir.

Önemli ölçüde geliştirilmiş kayış tahrikli yakınlaştırma sistemi, son derece hızlı ve neredeyse sessiz çalışmayı sağlar. MAC Aura ailesinin diğer ilkleri arasında Evrensel Bağlantı Modülü yuvası; Companion Mobile uygulama kontrolü; ve daha kolay taşıma ve taşıma için boyunduruk kolları. Martin'in P3 kontrolü aynı zamanda kurulumu, yapılandırmayı ve DMX'in videoyla eşlenmesini ve karıştırılmasını da basitleştirir.

MAC Aura Raven XIP, efsanevi Martin MAC Quantum Wash'dan %70 daha fazla parlaklık sağlayabilen çok yönlü bir iş makinesine ihtiyaç duyan kiralama şirketleri ve kurulum müşterileri için mükemmeldir. Aynı zamanda, IP20 dereceli armatürlere alternatif olarak daha düşük bakım gereksinimleriyle daha yüksek yatırım getirisi elde etmek üzere tasarlanmıştır. Aydınlatma tasarımcıları için, güçlü bir yıkama ışığını tiyatro, televizyon veya kurumsal etkinlikler için kolayca belirlenebilecek inanılmaz göz kamaştırıcı efektlerle birleştirerek, aynı zamanda festivaller, konserler ve diğer etkinlikler için dış mekan olarak derecelendirilen armatürü son derece çok yönlü olacak şekilde tasarladık.

MAC Aura Raven XIP ile ışığın gücünü açığa çıkarın. Benzersiz performansı, üstün ışık kalitesini ve son teknoloji özellikleri deneyimleyin; amiral gemisi MAC Aura Raven XIP'yi deneyimleyin.

XIP Teknolojisi Hakkında Daha Fazla Bilgi Edinin

Özellikler

  • 27.000 lümen çıkış
  • 6'dan 51 dereceye kadar sessiz ve son derece hızlı yakınlaştırma sistemi
  • Daha yüksek ışık kalitesi sağlayan RGBL (Kırmızı/Yeşil/Mavi/Limon) LED motoru (CRI / TM-30 / TLCI)
  • Büyük 343 mm (13,5 inç) çaplı ön lens
  • Pikselli Aura arka ışık efekti için çok daha göze çarpmayan bir görünüm ve daha yüksek kontrast sunan koyu lens

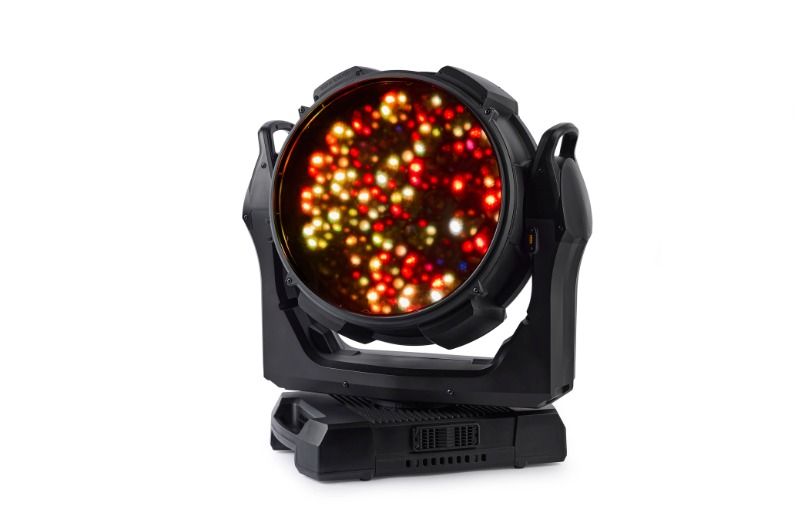

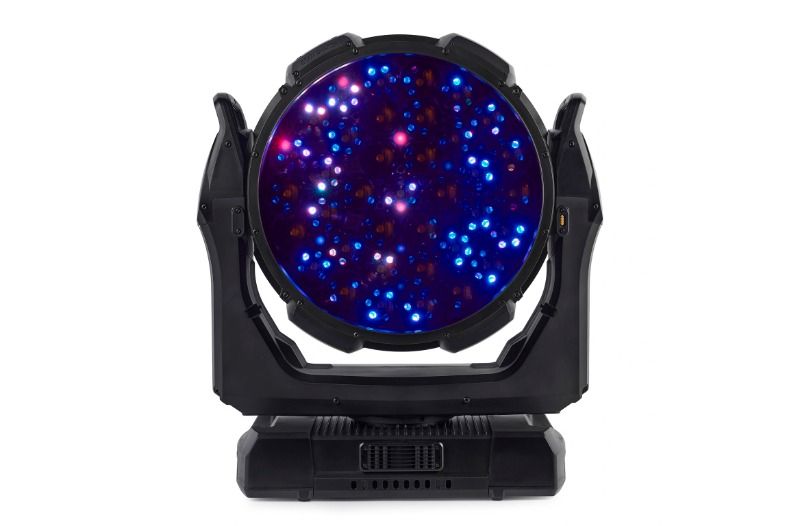

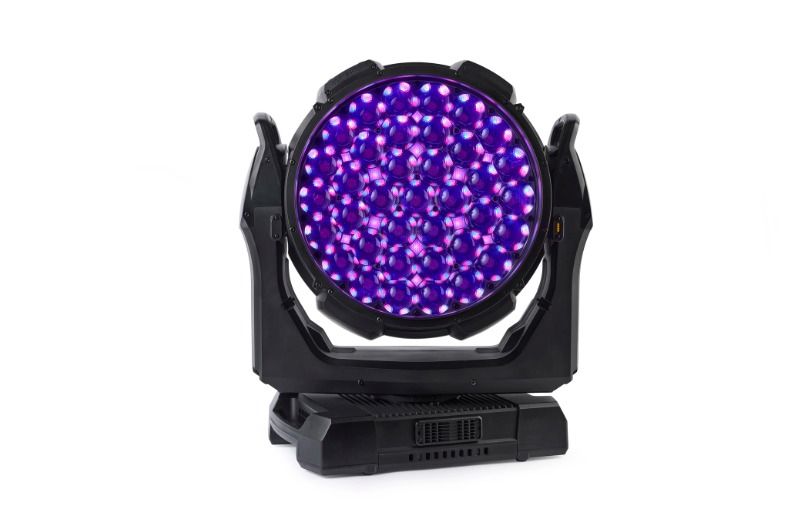

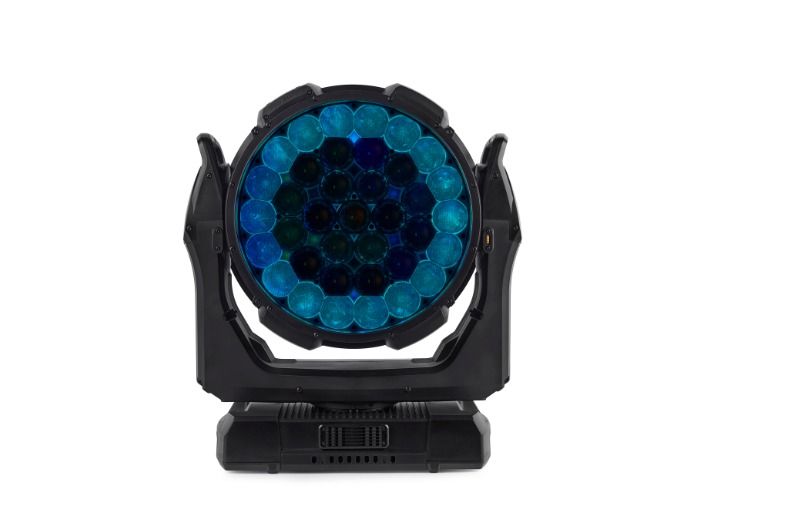

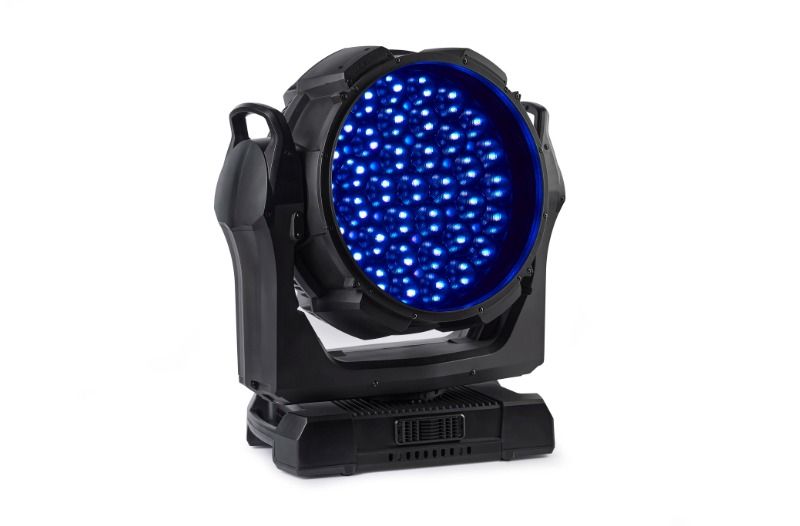

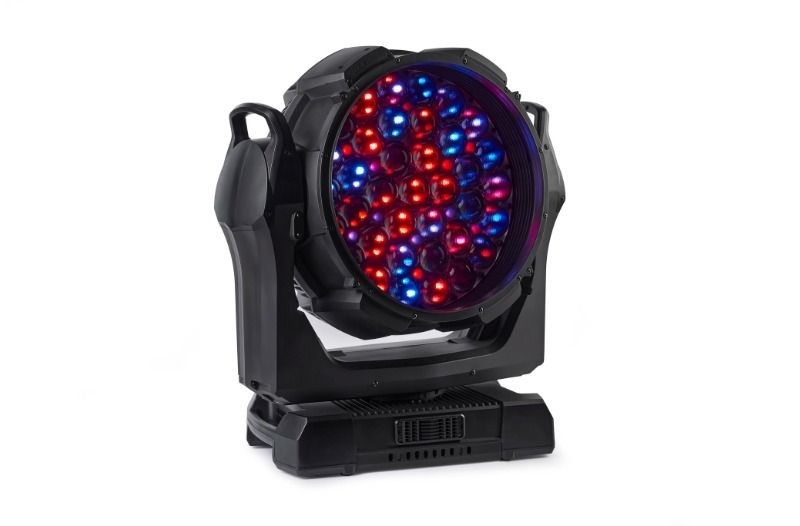

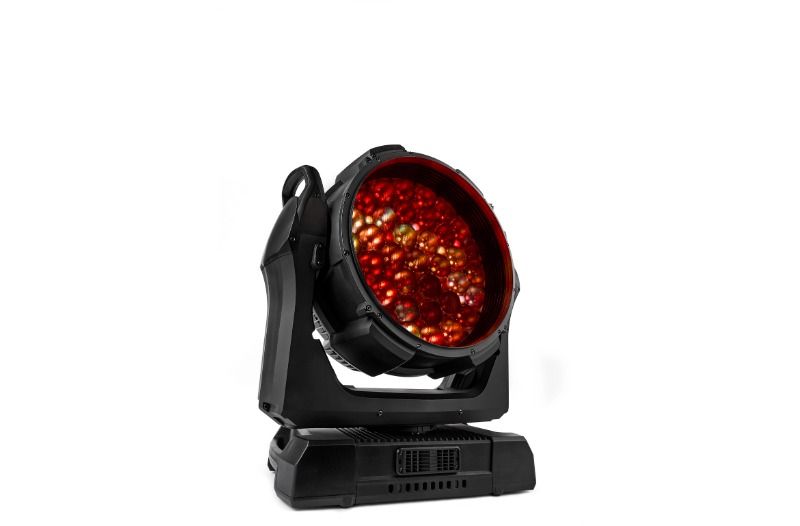

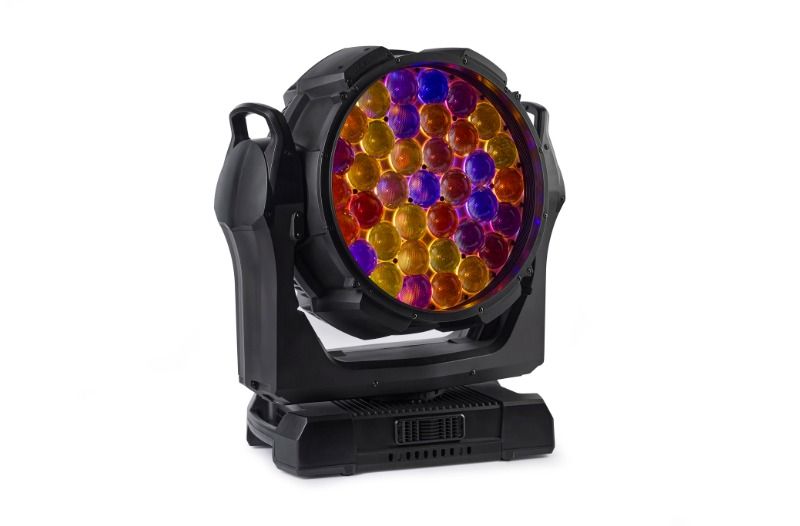

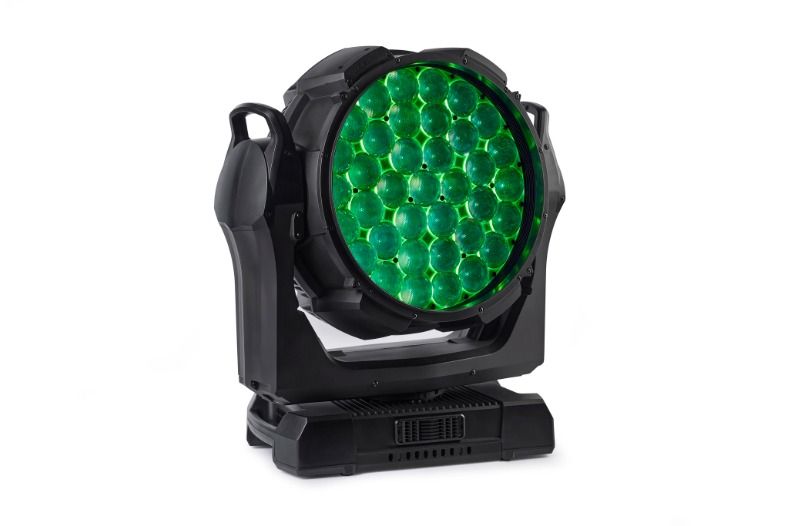

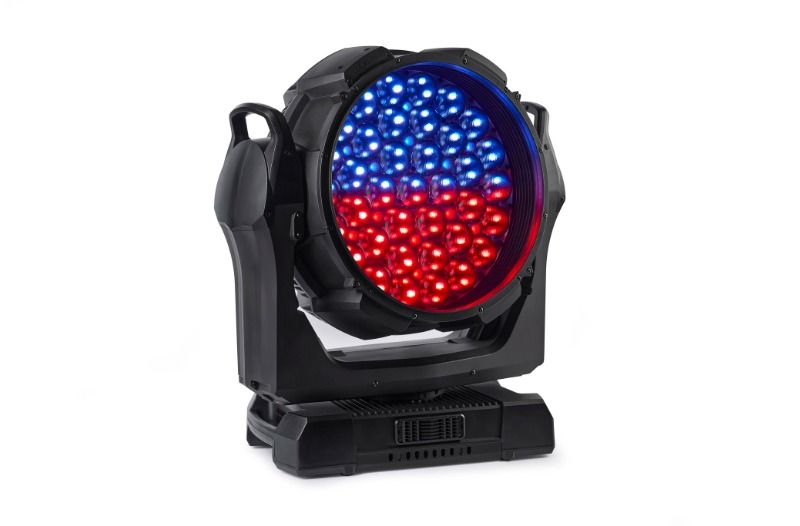

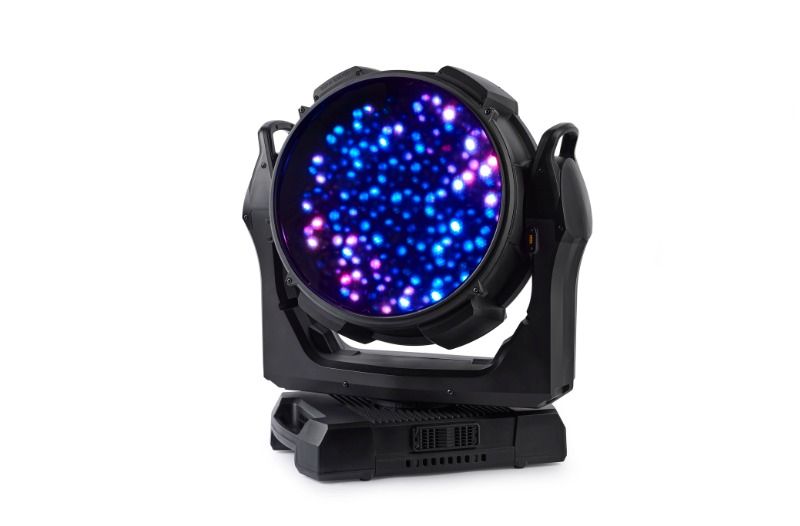

  • 234 RGB LED'li Pikselleştirilmiş Aura Arka Işık Efekti

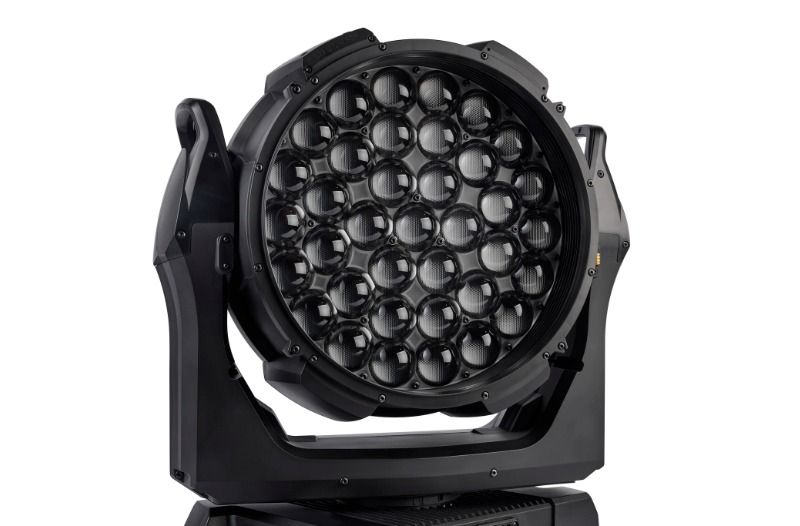

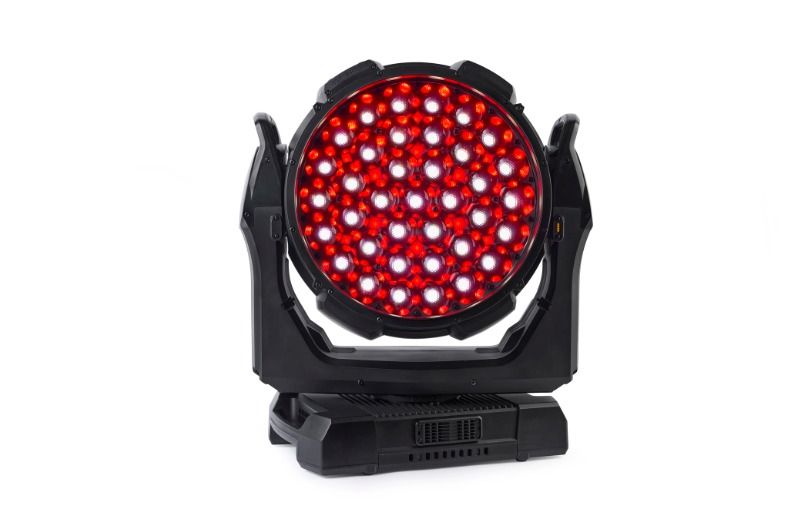

  • 37 ana LED ve 234 Aura arka ışık LED'i üzerinde tam piksel kontrolü
  • DMX, Art-Net, sACN ve Martin P3 kontrolü
  • Geçici dış mekan kullanımı için XIP akıllı hava koşullarına dayanıklı teknoloji
  • Sınıfının en kompakt ve hafif armatürü

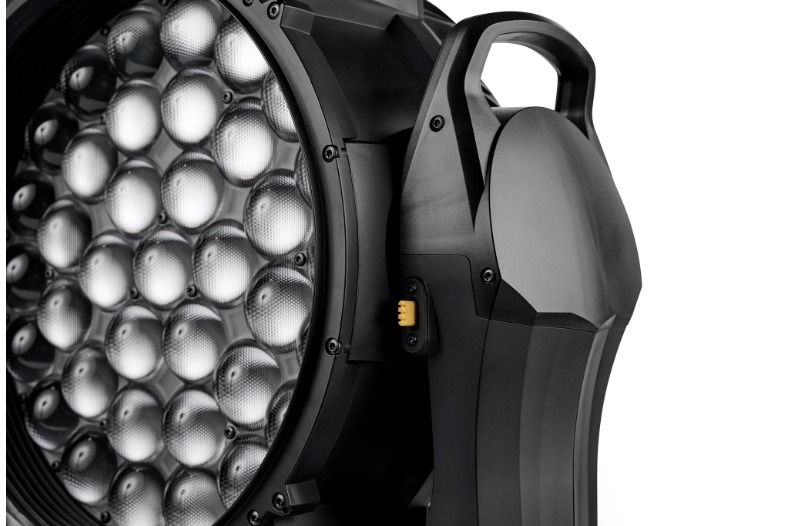

  • Fikstürün kolay taşınması ve baş aşağı çevrilmesinin kolay olması için boyunduruk kolları
  • Kurulum ve konfigürasyon için pille çalışan ekran
  • Companion Mobile App aracılığıyla konfigürasyon ve tanılamayı destekleyen NFC arayüzü

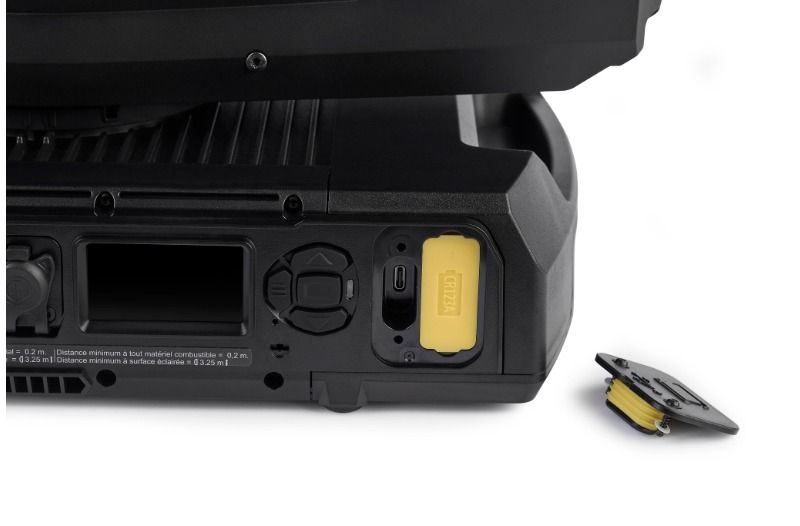

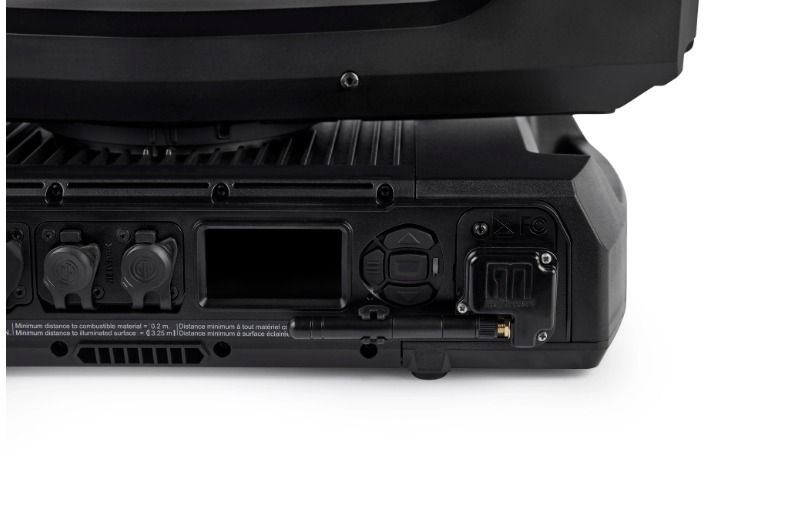

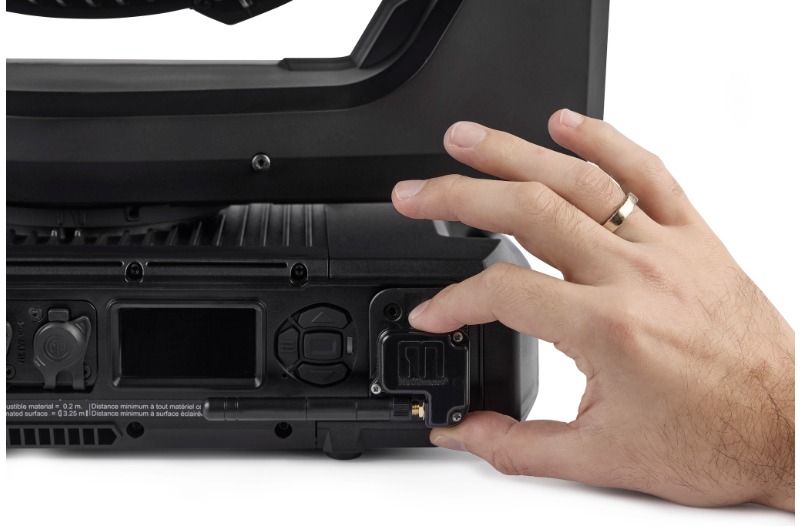

  • Üçüncü taraf kablosuz modülleri destekleyen Evrensel Bağlantı Modülü yuvası

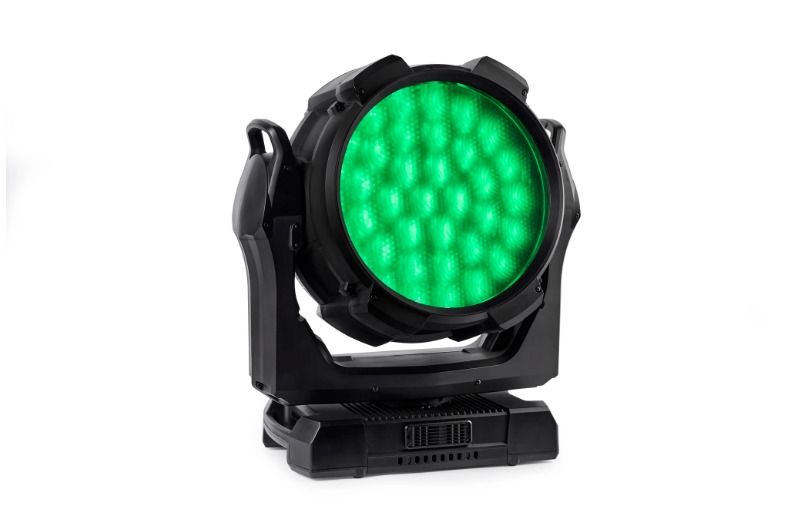

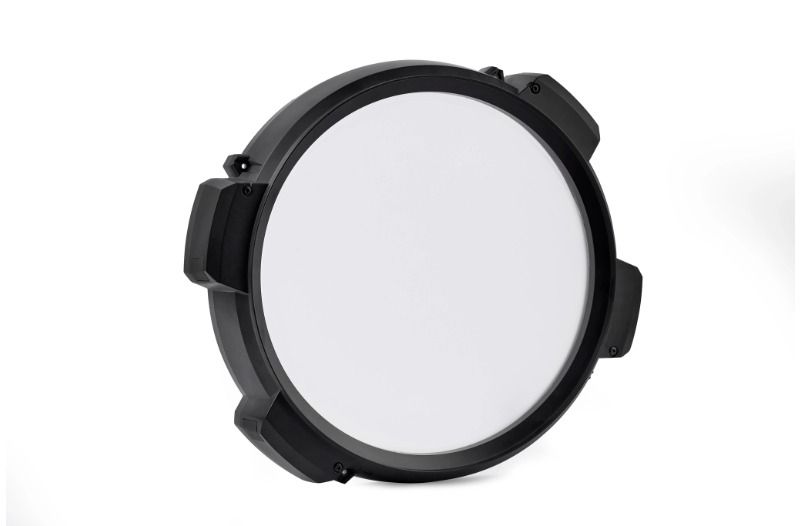

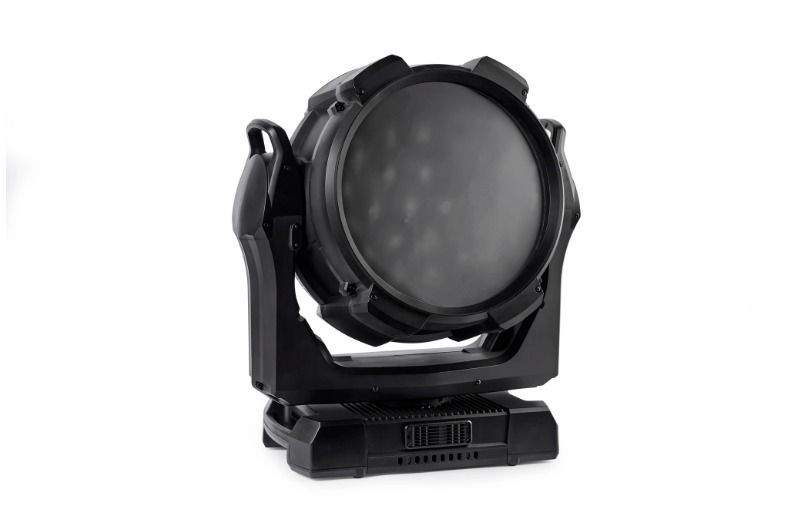

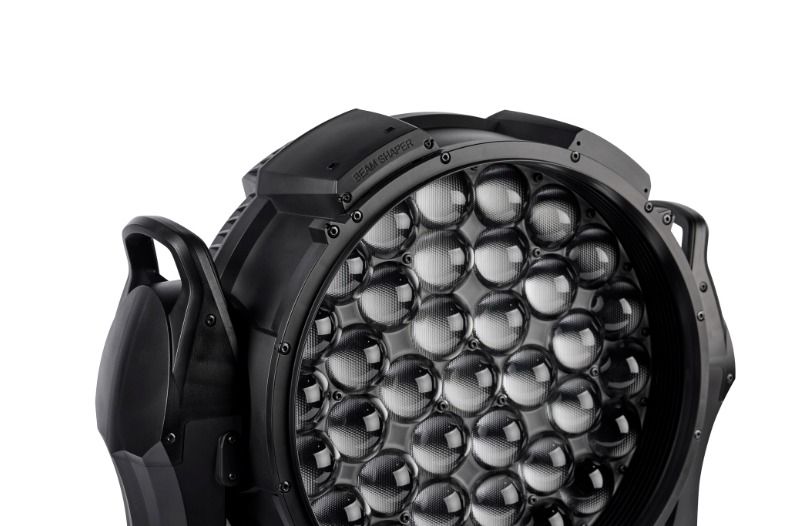

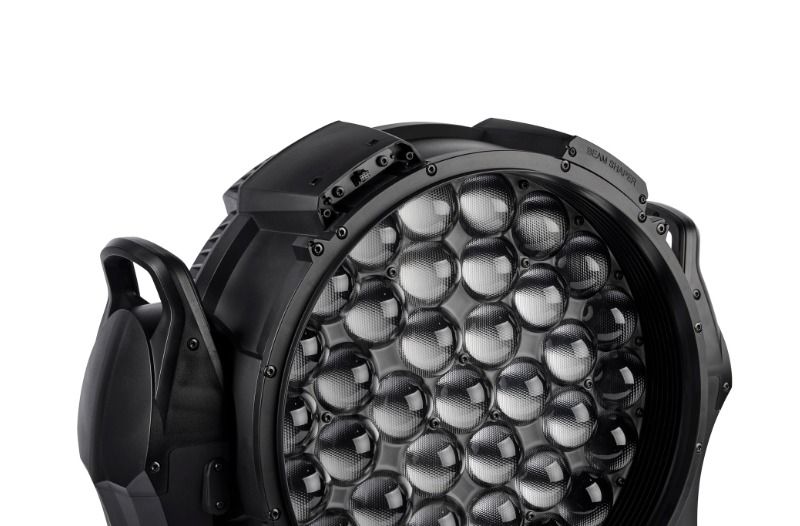

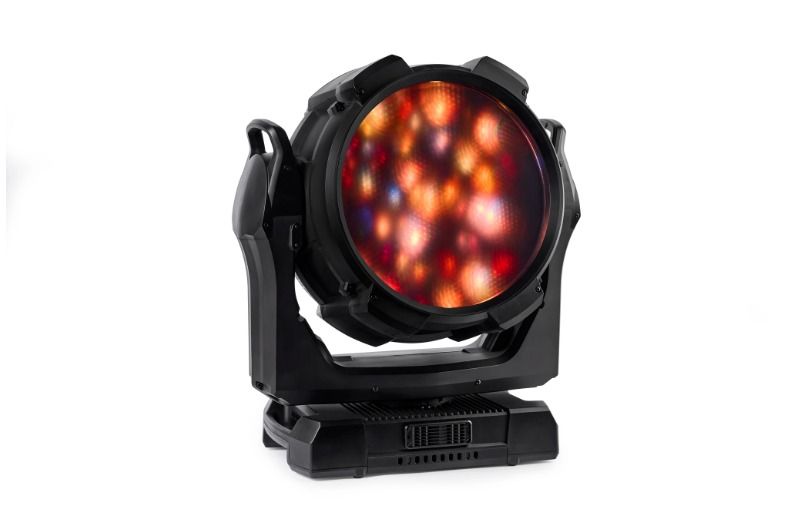

  • Eklenebilir ve yansıtılan ışık alanını şekillendiren isteğe bağlı BeamShaper modülü

Physical
Width (across yoke) 528 mm (20.8 in.)Width (base): 429 mm (16.9 in.)Height (head forward): 588 mm (23.1 in.)Height (maximum): 603 mm (23.7 in.)Depth (head): 241 mm (9.5 in.)Depth (base): 285 mm (11.2 in.)Minimum center-to-center distance in side-by-side installation: 540 mm (21 in.)Weight: 28.8 kg (63.5 lbs.)
Dynamic Effects
Beam Dimmer/Shutter 0 - 100% continuous dimming, regular and random strobe, instant open and blackoutBeam Dimming options: Choice of four dimming curvesBeam Color Mixing: RGB(L), independently variable 0 - 100%Beam Color Temperature Control: Variable 2,000 - 12,850 KBeam Tint Control:Variable green-magenta shift ?uv -0.05 - +0.05Beam Virtual Color wheel: 48 color presets, continuous rotation & random colorZoom: Motorized with 1:5.3 zoom ratioPan: Motorized 540°Tilt: Motorized 250°Beam PixelMapping: Individual RGB control of each of the 37 Beam pixelsBeam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video controlAura Dimmer/Shutter: 0 - 100% continuous dimming, regular and random strobe, instant open and blackoutAura Dimming options: Choice of four dimming curvesAura Color Mixing: RGB, independently variable 0 - 100%Aura Color Temperature Control: Variable 2,000 - 12,850 KAura Tint Control:Variable green-magenta shift ?uv -0.05 - +0.05Aura Virtual Color wheel: 48 color presets, continuous rotation & random colorAura PixelMapping: Individual RGB control of each of the 234 Aura pixelsAura P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video controlPre-programmed effects: Two ranges of FX on Beam, Aura or Combination; independent or synchronized/combined; featuring foreground color, background color, speed and direction controlLED Frequency control: Variable LED PWM control
Control and Programming
Control Protocols DMX, RDM, Art-Net, RDM over Art-Net, sACN and Martin P3 (additional protocols, incl. wireless, available via Universal Connect Module)Protocol Detection: AutomaticDMX Modes: Compact, Basic, Extended, Ludicrous, Plaid & Compact DirectDMX Channels: 22, 38, 149, 266, 851 & 22Multi-Universe Overflow: Yes, in all DMX Modes16-bit Controllable Parameters: Beam & Aura Dimming, Beam Color Mixing, Zoom, BeamShaper Indexing, Pan and TiltSetting and Addressing: Display Menu, NFC, RDM, RDM over Art-Net or Martin P3Local User Interface: Backlit LCD Display with battery-powered operation and integrated NFC antennaFixture identification: User-settable ID numberDMX Compliance: USITT DMX512-ARDM Compliance: ANSI/ESTA E1.20Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-NetsACN Compliance: ANSI E1.31 - 2018Martin P3 Compliance: P3 System Controller Software 6.2.0 or newerDMX/RDM Transceiver: Galvanic-isolated RS-485DMX/RDM Daisy-Chain Limit: 32 fixturesEthernet Transceiver: 10/100Mbit (with fail-safe bypass)Ethernet Daisy-Chain Limit Recommendation: 50 fixturesFirmware Update: via USB type C memory device, via DMX using Martin Companion or via Ethernet using Martin Companion / P3 System Controller
Optics
Front Lens Diameter 343 mm (13.5 in.)Zoom Range: 1:5.3Full Zoom Range at Half Peak (Beam Angle): 6.6° - 35.3°Full Zoom Range at Tenth Peak (Field Angle): 9.9° - 51.0°Beam Light Source: 37 x 40 W RGBL LEDAura Light Source: 234 x 0.30 W RGB LEDMax. Total Beam LED Engine Power: 830 WMax. Total Aura LED Engine Power: 70 WMinimum LED lifetime: > 50.000 hours (to > 70% luminous output)* *Figure obtained under manufacturer's test conditions
Photometric Data
Light Engine Luminous Output 39,000 lumensFixture Luminous Output Wide: 27,000 lumensFixture Luminous Output Narrow: 23,000 lumensPeak Luminous Intensity Narrow: 1,900,000 cdCCT: Variable 2,000 K - 12,850 K (+/- 200 K)CRI (Color Rendering Index): >= 82CQS (Color Quality Scale): >= 89TM-30 Rf (IES TM-30-15 Fidelity Index): >= 84TM-30 Rg (IES TM-30-15 Gamut Index): >= 110TLCI (Television Lighting Consistency Index): >= 84Beam LED Refresh Rate:2,400 Hz with fine adjustment (+/- 2%)and 19,200 Hz mode (DMX controllable)Aura LED Refresh Rate: 62,500 HzBinning: Tight color and flux binningCalibration: Full Gamut Color Calibration of Beam and AuraColor Modes: Direct Color Mode, Extended Gamut Mode and Calibrated Color Mode * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient* All Photometric Data measured at 6500 K white
Construction
Housing High-impact flame-retardant thermoplastic
Color Black
Protection rating IP54
Installation

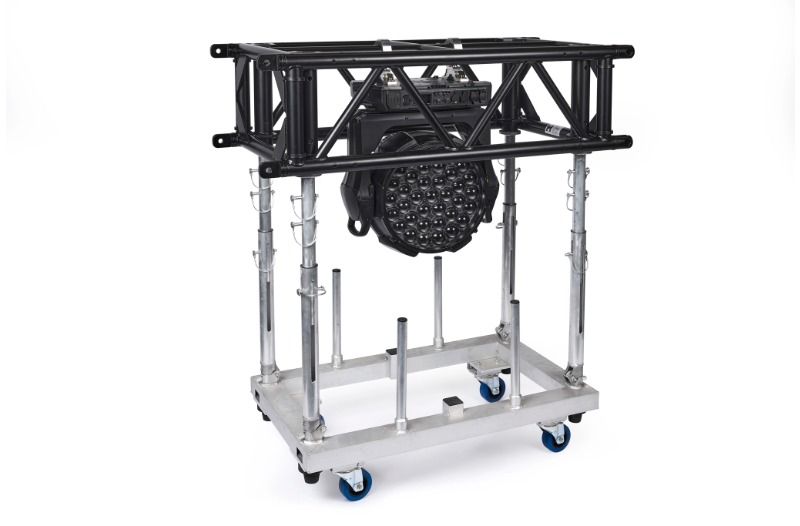

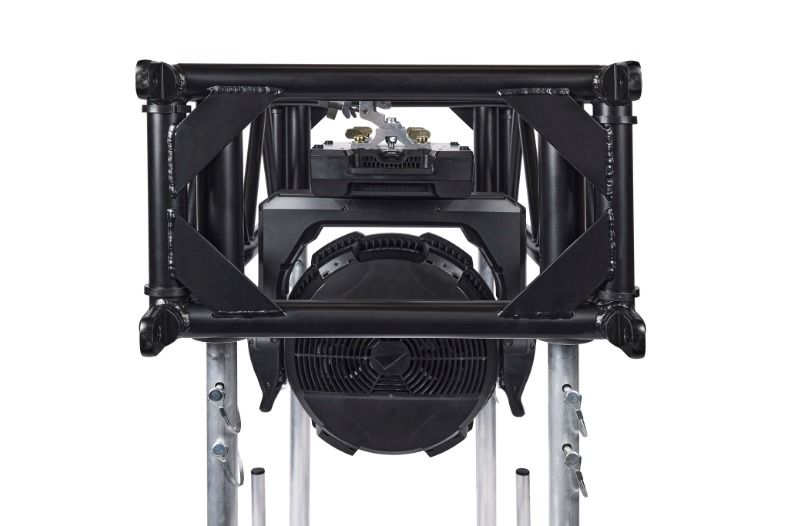

Mounting points 4 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets
Location Indoor or Temporary Outdoor use
Orientation Any, except with display/connectors facing upwards in outdoor application
Minimum distance to combustible materials 0.2 m (7.9 in.)
Minimum distance to illuminated surfaces 2.5 m (98.4 in.)

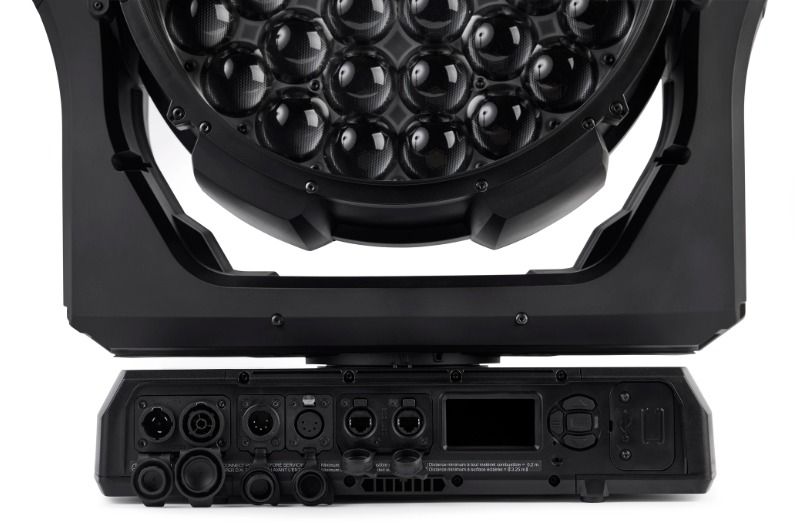

Connections

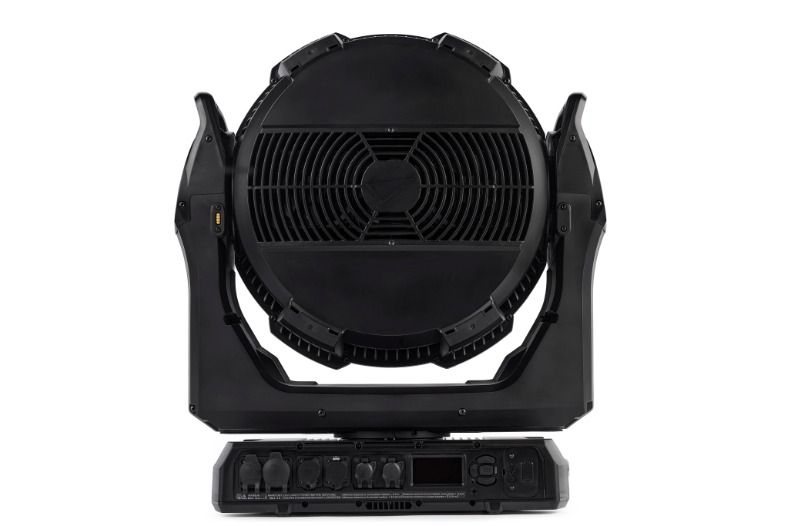

AC mains power in/thru Neutrik Rean powerCON TRUE1 TOPDMX and RDM data in/thru: Neutrik 5-pin locking XLR TOPEthernet (Art-Net, sACN and Martin P3) in/thru, including fail-safe bypass: Neutrik etherCON TOPFirmware from flash memory: USB 2.0 type C portAccessory Plug-In: Universal Connect Module Slot
Electrical
AC power 100-240 V AC nominal, 50/60 HzPower supply unit: Auto-ranging electronic switch modeTypical half-cycle RMS inrush current at 230 V, 50 Hz: 17 ATypical earth-leakage current: 0.7 mAPower Factor: 0.99 @ 100 V / 120 V / 208 V / 230 V , 0.98 @ 240 VMax current draw: 11.3 A @ 100 V / 120 V , 5.6 A @ 208 V, 4.8 A @ 230 V / 240 VTypical current draw: 9.8 A @ 100 V , 8.1 A @ 120 V , 4.6 A @ 208 V , 4.2 A @ 230 V , 4.0 A @ 240 V * Power ConsumptionMaximum: 1120 WTypical: 1020 W *Idle: 135 W *Hibernation: 6 W * * Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Typical: full output white, no effects moving, regulated fan speed. Idle: no output, no effects moving, regulated fan speed. Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.
Thermal
Cooling Forced air (temperature regulated, low noise, user-definable levels)
Maximum ambient temperature (Ta max.) 40° C (104° F)
Minimum ambient temperature (Ta min.) -10° C (14° F) - Warm up condition may apply
Maximum surface temperature, steady state, at 40° C ambient 80° C (176° F)
Total heat dissipation (calculated, +/- 10%) 3478 BTU/hr.
Acoustic Data
Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output) 35.5 dB(A)
Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low) 23.6 dB(A)
Environmental
RoHS Compliant
REACH Compliant
WEEE Compliant
Proposition 65 Compliant
Packaging FSC Certified cardboard outer packaging & Recycled EPS inner packaging
Efficacy (max output) 26.4 lm/W
LWR* 937 lm/kg (425 lm/lbs.)
* LWR = Lumen-to-Weight Ratio
Approvals
Global CB Certification/IECEE IEC 60598-2-17 (IEC 60598-1)
EU safety EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC EN 55015; EN 55032; EN 55035; EN 61547; EN 61000-3-3
US safety UL 1573
US EMC FCC Part 15 Class B
Canadian safety CSA C22.2 No. 166
Canadian EMC ICES-003 Class B, ICES-005 Class B
Australia/NZ RCM
United Kingdom UKCA
Thailand TIS 1955-2551
Korea KS C 9832, KS C 9835
Included Items

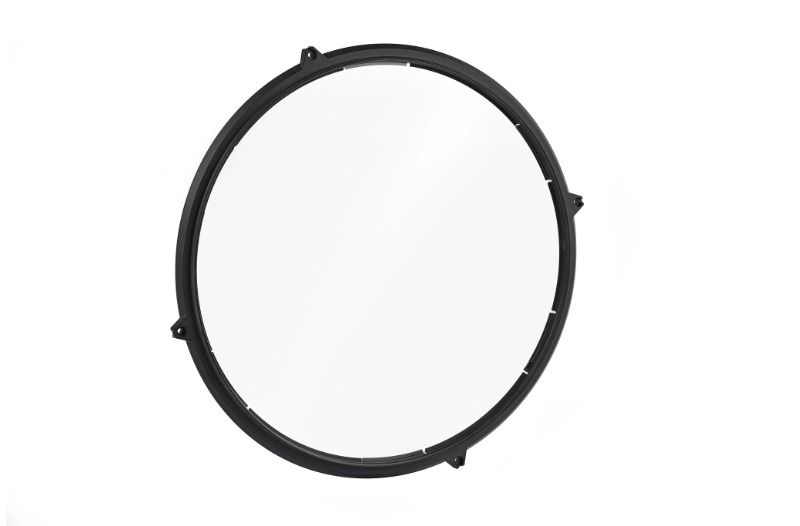

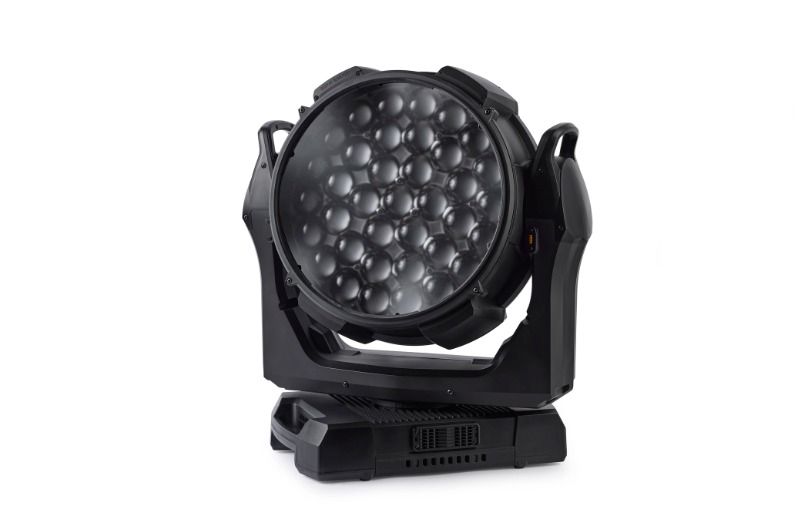

Two omega brackets with 1/4 turn fasteners for rigging clamp attachmentSoftLensMulti-Language Safety and Installation Manual
Related Items
Martin Companion Cable (for firmware update over DMX) P/N 91616091Martin Companion Software (for firmware update over DMX/Ethernet and fixture setup/configuration via NFC): Free download from www.martin.com, app store and play store
Accessories
OpticalMAC Aura Raven XIP BeamShaper Module P/N MAR-91614064HUTransport and Storage Flightcase for 2 x MAC Aura Raven XIP: P/N MAR-91515064Additional SiP Foam Flightcase Insert for MAC Aura Raven XIP: P/N MAR-91611864HUConsumables CR123A 3-volt lithium battery: P/N 05801011Spare Parts Additional MAC Aura Raven XIP SoftLens: P/N 5145811-00Power Input Cables Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91611797Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91610173Power Daisy-Chain Cables Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172Power Connectors Cable Connector, Neutrik powerCON TRUE1 TOP Female: P/N 91611789HUCable Connector, Neutrik PowerCON TRUE1 TOP Male: P/N 91611788HUInstallation Hardware G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003Half-coupler Clamp: P/N 91602005Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
Verified Third-Party Accessories
Beam ControlMAC Aura Raven XIP Top Hat P/N City Theatrical 2825MAC Aura Raven XIP Hexcel Louver: P/NCity Theatrical 2824MAC Aura Raven XIP Concentric Ring: P/N City Theatrical 2823Universal Connect ModuleMultiverse Connect Module 2.4GHz: P/N City Theatrical 5914Multiverse Connect Module 900MHz: P/N City Theatrical 5915
Ordering Information
MAC Aura Raven XIP in SiP (in cardboard box with SiP foam flight case insert) P/N MAR-90250405HU
MAC Aura Raven XIP in Cardboard (in cardboard box with EPS, reused material) P/N MAR-90250400HU

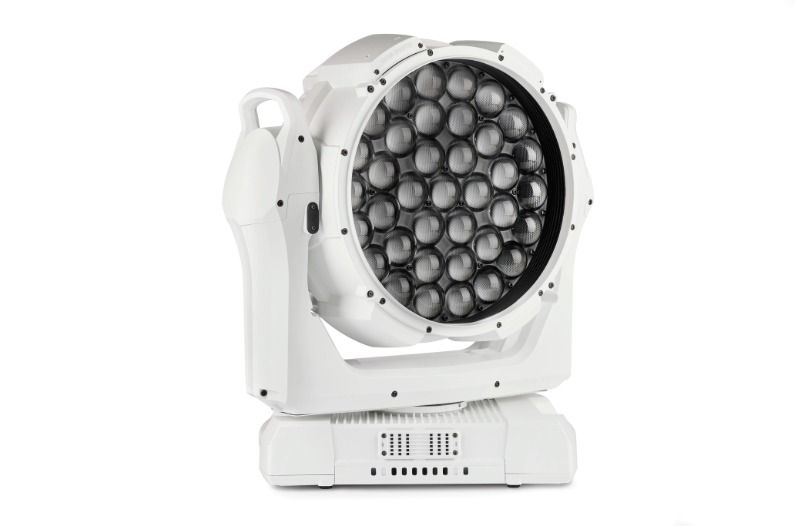

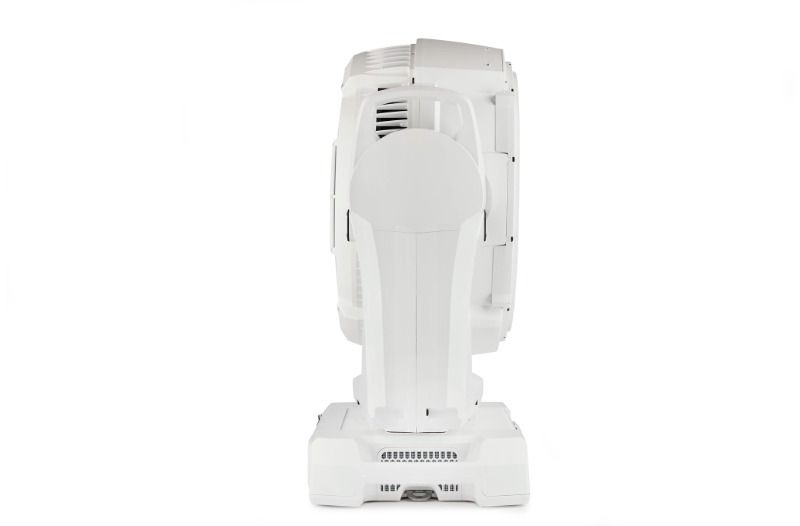

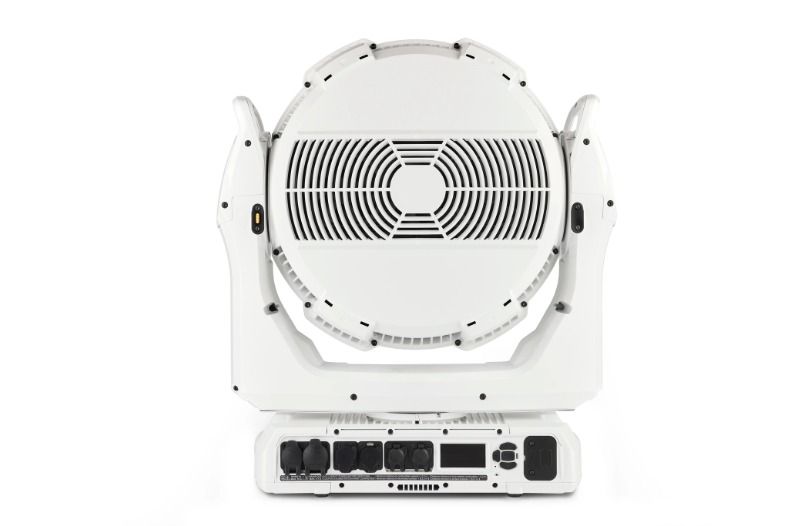

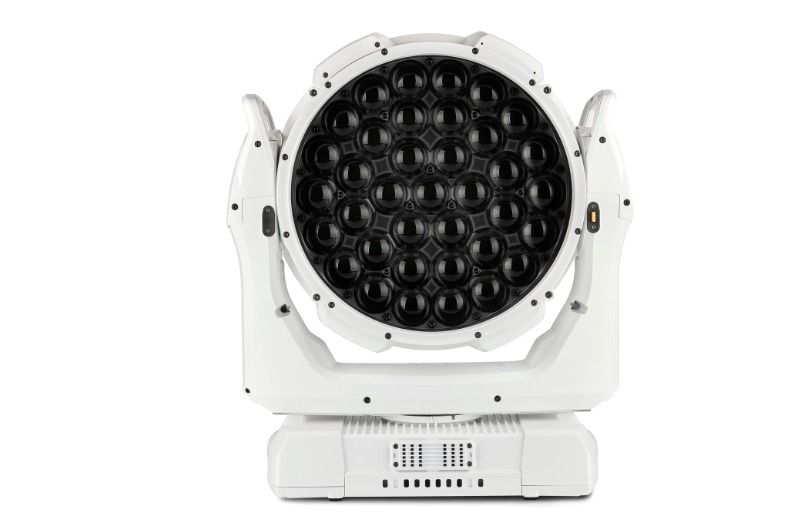

MAC Aura Raven XIP White in Cardboard (in cardboard box with EPS, reused material) P/N MAR-90250410HU
