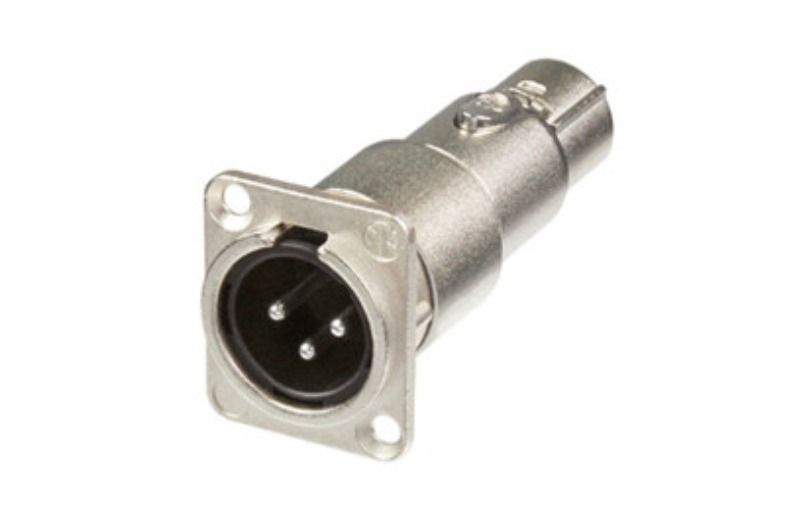

NA3MDF

Panel montajı için XLR erkek-dişi geçiş adaptörü

Product
Title	NA3MDF
Connection Type	Adapter
Electrical
Capacitance between contacts	<= 4 pF
Contact resistance	<= 5 mOhm
Dielectric strength	1,5 kVdc
Insulation resistance	> 2 GOhm (initial)
Rated current per contact	16 A
Rated voltage	< 50 V
Mechanical
Insertion force	<= 20 N
Withdrawal force	<= 20 N
Lifetime	> 1000 mating cycles
Wiresize	max. 2.5 mm²
Wiresize	max. 14 AWG
Wiring	Solder contacts
Locking device	Latch lock
Chassis shape	D
Material
Contact plating	2 µm Ag over 2 µm Ni
Insert	Polyamide (PA 6.6 30 % GR)
Locking element	Steel Ck67
Shell	Zinc diecast (ZnAl4Cu1)
Shell plating	Nickel
Environmental
Flammability	UL 94 HB
Standard compliance	IEC 61076-2-103
Protection class	IP 40
Solderability	Complies with IEC 68-2-20
Temperature range	-30 °C to +80 °C
